Skif

Skif

Anti-Tank Guided Missiles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Skif
Designation
Skif
Alternate Designation
Equipment Type
Anti-Tank Guided Missiles
Manufacturer
Luch Design Bureau
Date of Introduction
Description

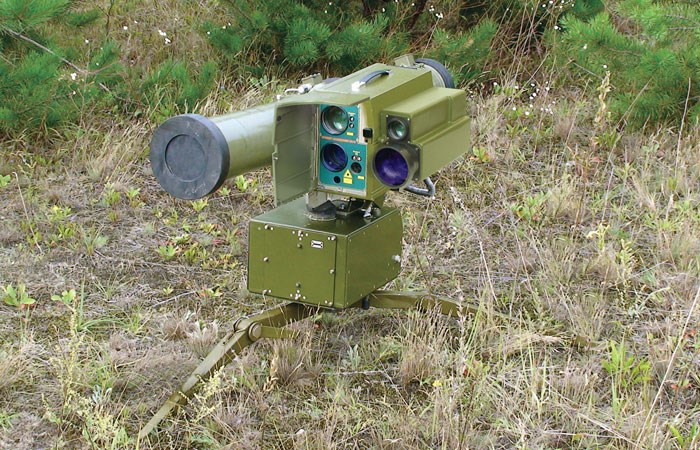

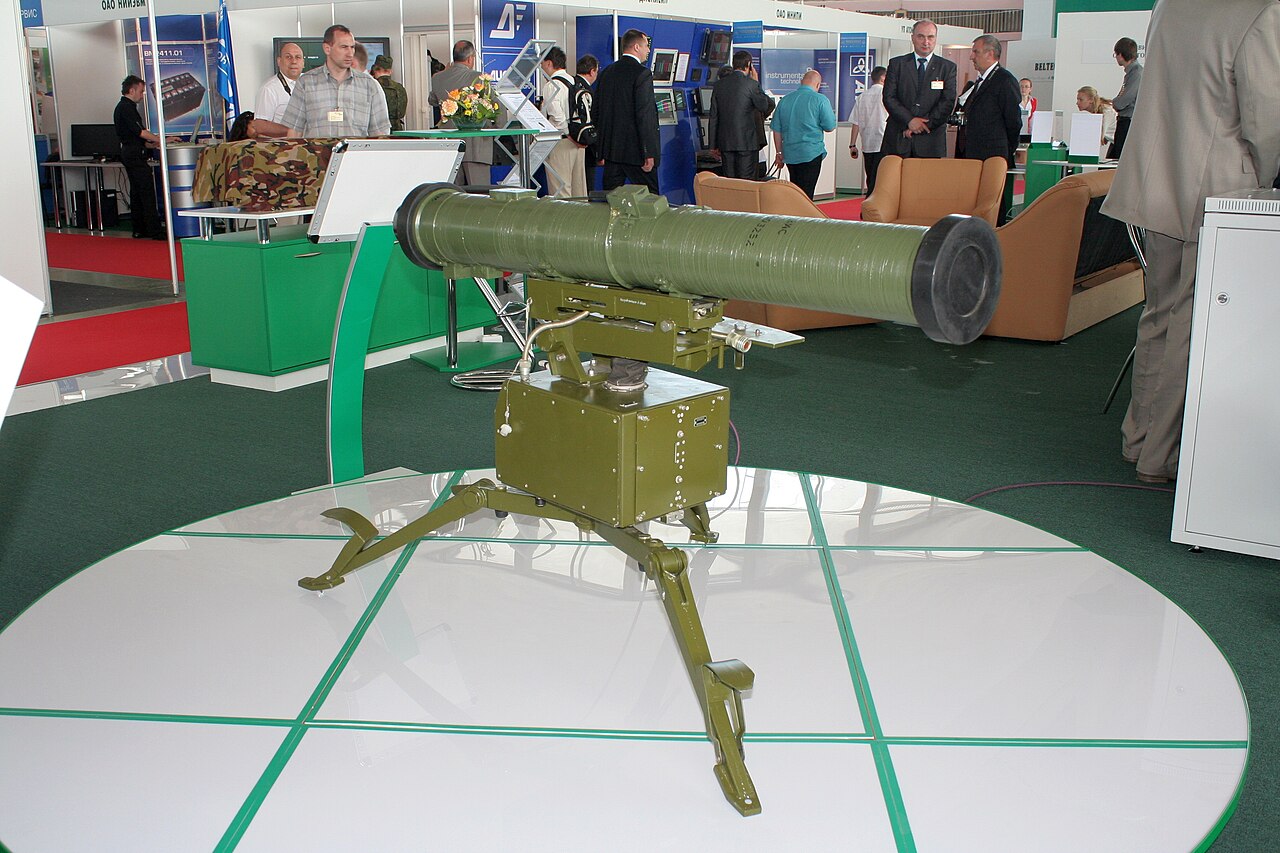

The Skif is a tripod-mounted man-portable anti-armor missile developed by the Luch Design Bureau of Ukraine to destroy moving and stationary armored targets equipped with advanced ceramic armor and explosive reactive armor (ERA). The guidance system consists of laser beam with automatic target tracking (SACLOS) and the warhead is a tandem hollow charge. The Skif missile system is also capable of taking out other targets such as weapon emplacements, a tank in a trench, light armored vehicles and helicopters. The launch post includes a thermal camera and a remote control and can be operated from closed emplacements and shelters to reduce the risk of counter fire attack by the enemy. The missile has been designed to engage targets at ranges between 100 meters to 5,000 meters (3,000 meters at night) and penetrating reinforced armor with a thickness of up to 800 mm.

Ground Specifications
Max Speed 781.2 km/h
Range 5.0 km
Overview (Deagel)
Group Anti-Tank Guided Missiles
Status Active
Origin Ukraine
Contractor Luch Design Bureau
Total Production ?
Specifications (Deagel)
Dimensions — Diameter 130 millimeter
Dimensions — Launch Unit Length 1,360 millimeter
Mass — Cartridge Weight 29.5 kilogram
Mass — Launch Unit Weight 32 kilogram
Performance — Max Range 5,000 meter
Performance — Min Range 100 meter
Performance — Piercing in Armor 800 millimeter
Speed — Top Speed 217 mps
Temperature — Max Operating Temperature 60 ° Celsius
Temperature — Min Operating Temperature -40.00 ° Celsius
Time — Flight Time 23 second
Details
Country of Origin Ukraine
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
Width
Height
Weight
32 kg
Operators (1)
Ukraine
