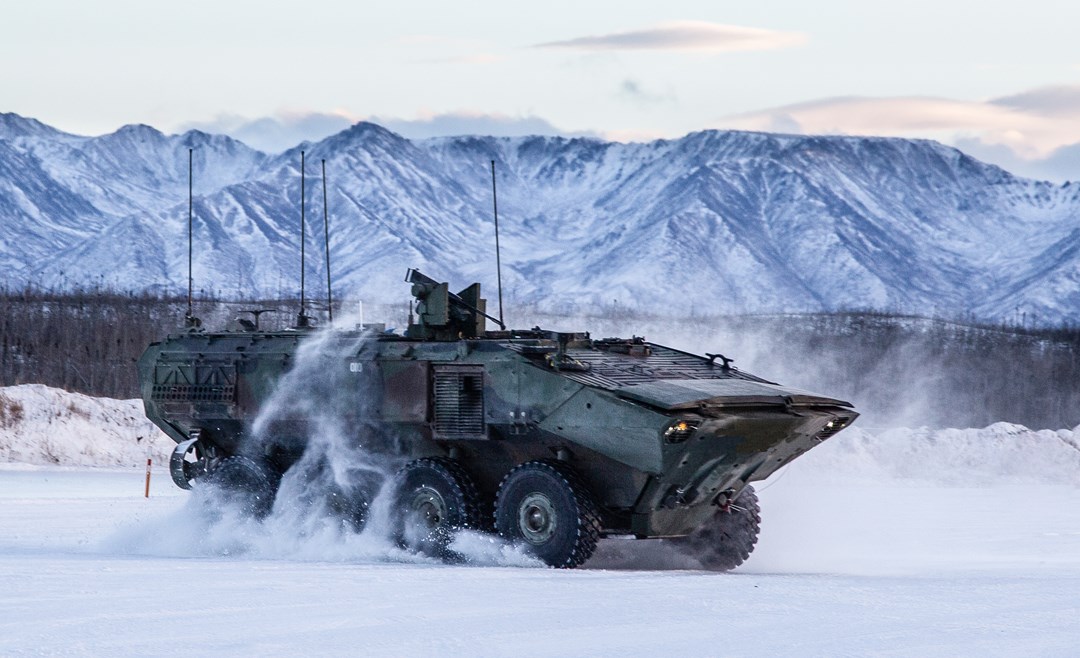

ACV-30

ACV-30

Wheeled Armored Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
ACV-30
Designation
ACV-30
Alternate Designation
—
Equipment Type
Wheeled Armored Vehicles
Manufacturer
BAE Systems, Iveco Defence Vehicles
Date of Introduction
2025
Description

The ACV-30 is a variant designed to perform cavalry and reconnaissance missions equipped with an unmanned turret with a 30mm cannon (MCT-30) from Kongsberg. The production vehicle may feature the RT-20 remotelly controlled weapon station with a 30mm automatic cannon also supplied by Kongsberg. The ACV-30 is also intended to provide fire support during landing operations in enemy shores. Its development was ordered by the US Marine Corps in June 2019. The USMC expects to take delivery of 150 ACV-30s beginning in the 2023-2025 timeframe. The project scope increased to 175 vehicles to be delivered by 2029. The vehicles will be equipped with the Protector Remote Turret 20 weapon station from Kongsberg.

Ground Specifications
Crew 3
Troop Capacity 10
Mobility Type Wheeled (8x8)
Main Weapon 30mm cannon (30mm)
Max Speed 105.0 km/h
Range 500.0 km
Overview (Deagel)
Group Wheeled Armored Vehicles
Status Active
Origin United States of America
Contractors BAE Systems*, Iveco Defence Vehicles
Initial Operational Capability (IOC) 2025
Total Production 175
Development Cost USD $88 million
Unitary Cost USD $6 million
Specifications (Deagel)
Crew 3
Troops 10
Wheel Drive 8
Wheels 8
Dimensions — Main Gun Caliber 30 millimeter
Dimensions — Wheelbase 4.9 meter
Mass — Combat Weight 25 ton
Mass — Empty Weight 15 ton
Performance — Max Range 500 kilometer
Performance — Swimming Distance 22 kilometer
Power — Power 700 hp
Speed — Top Speed 105 kph
Speed — Top Swimming Speed 8 knot
Gear (Deagel)
Item 1 Weapon Stations: Protector Remote Turret 20 (1)
Variants
Variant 1 ACV-P
Variant 2 ACV-C
Variant 3 ACV-30
Variant 4 ACV-R
Details
Country of Origin United States
Sources

deagel.com: https://www.deagel.com/x/x/a002505

Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
25000 kg
Operators (1)
United States
