ACV-19 Turkish Amphibious Armored Combat Vehicle

ACV-19

Amphibious Armored Combat Vehicle

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

ACV-19 Turkish Amphibious Armored Combat Vehicle

Designation

ACV-19

Alternate Designation

ACV-19

Equipment Type

Amphibious Armored Combat Vehicle

Manufacturer

FNSS

Date of Introduction

2000

Description

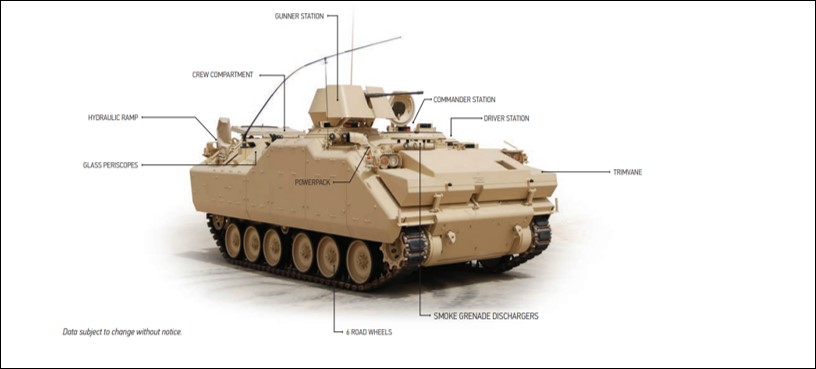

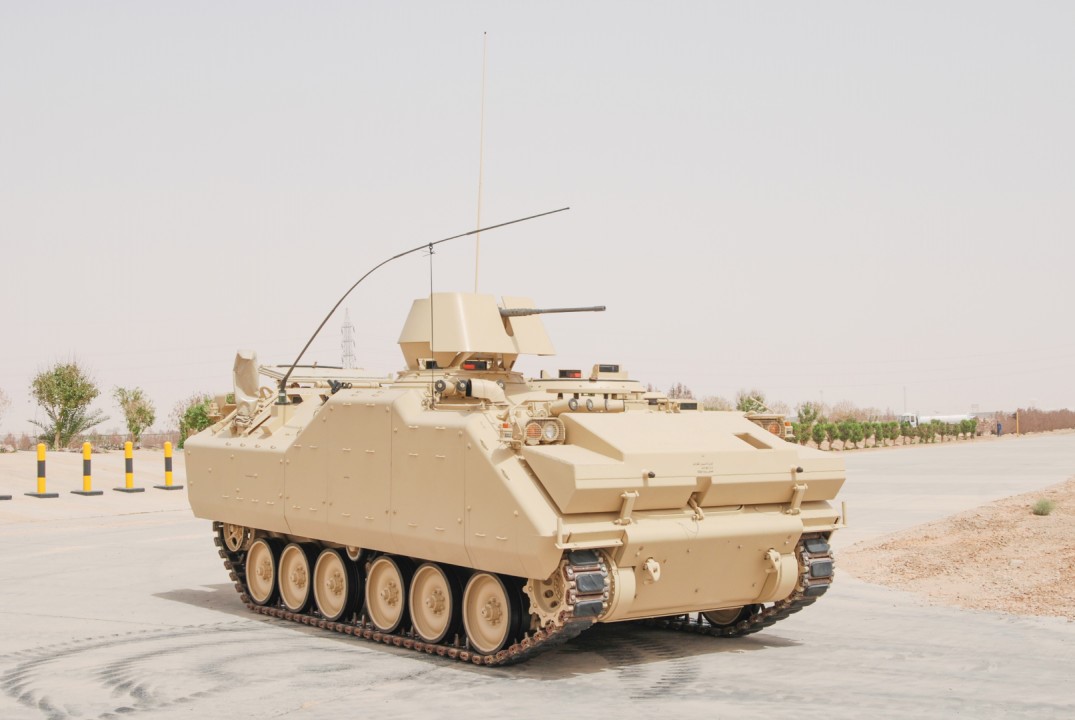

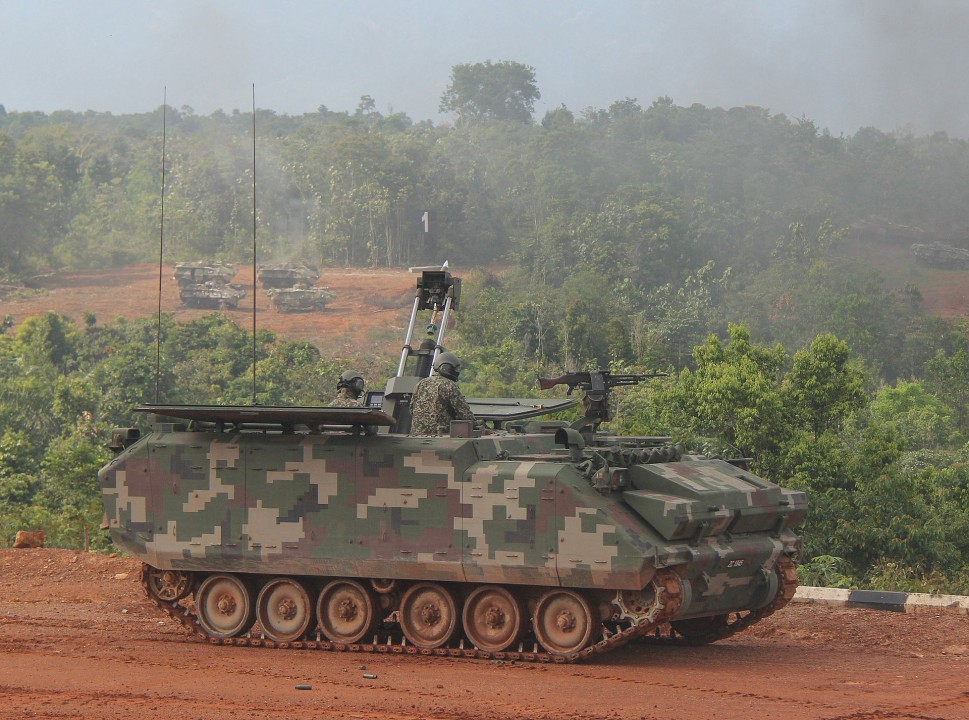

The ACV-19 Turkish Amphibious Armored Combat Vehicle is a modern, high-performance vehicle in the 15-19 ton weight class, derived from the highly successful FNSS ACV. This vehicle has demonstrated its effectiveness with numerous armies worldwide. The ACV-19 incorporates the latest advancements in vehicle performance, offering increased internal volume and payload capacity while maintaining commonality with the ACV family of vehicles. The key differences between the ACV-15 and the ACV-19 include a longer, stretched hull featuring six road wheels, heavy-duty final drives, and enhanced suspension systems. As a result, the ACV-19 provides more space under armor and can carry heavier payloads, such as larger turrets, without sacrificing the mobility that the ACV-15 offers. Moreover, the 90% spare part commonality between the ACV-19 and ACV-15 simplifies maintenance for users of both variants. The ACV-19 chassis is equipped with a unique space-laminated armor system that combines steel and aluminum technologies to offer a high level of protection against direct kinetic energy threats. The hull also protects against mines. The vehicle is designed to be upgradeable, with growth potential that allows for customization based on user requirements. As such, it can be adapted into a versatile family of vehicles for various roles, including cavalry, infantry, main battle tank support, and artillery.

Ground Specifications

Crew 13

Mobility Type Tracked

Engine Diesel

Max Speed 65.0 km/h

Range 490.0 km

Variants

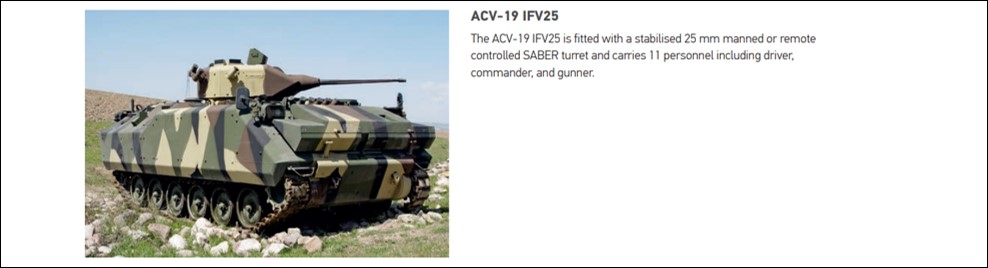

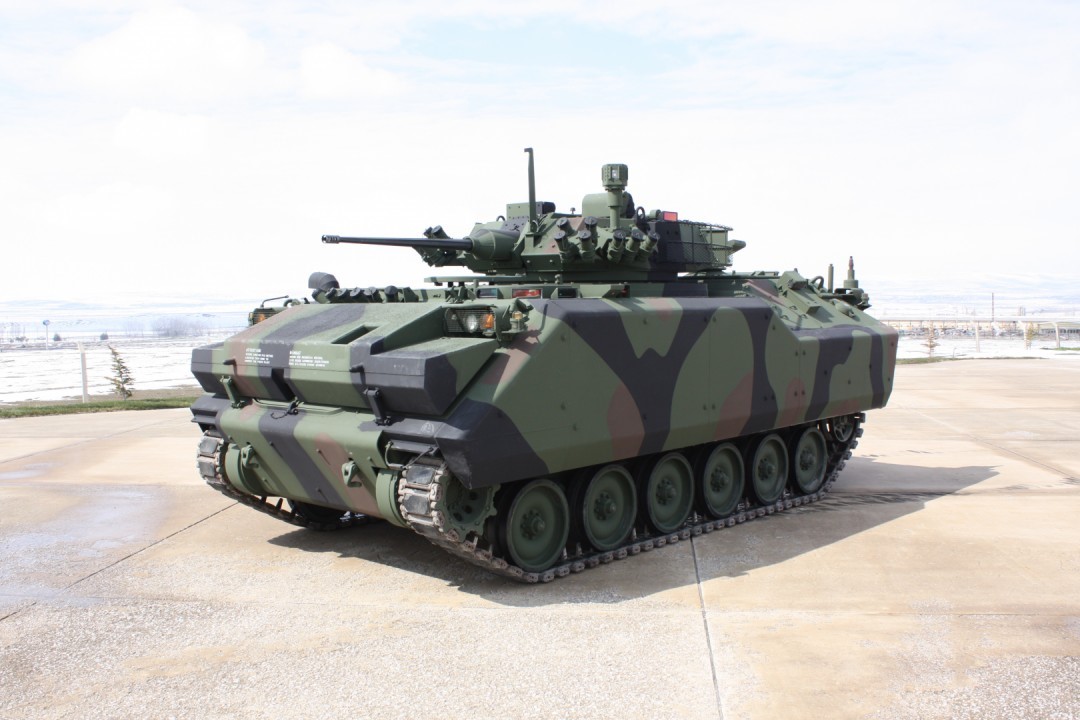

ACV-19 IFV25 The ACV-19 IFV25 is fitted with a stabilised 25 mm manned or remote controlled SABER turret and carries 11 personnel including driver, commander, and gunner.

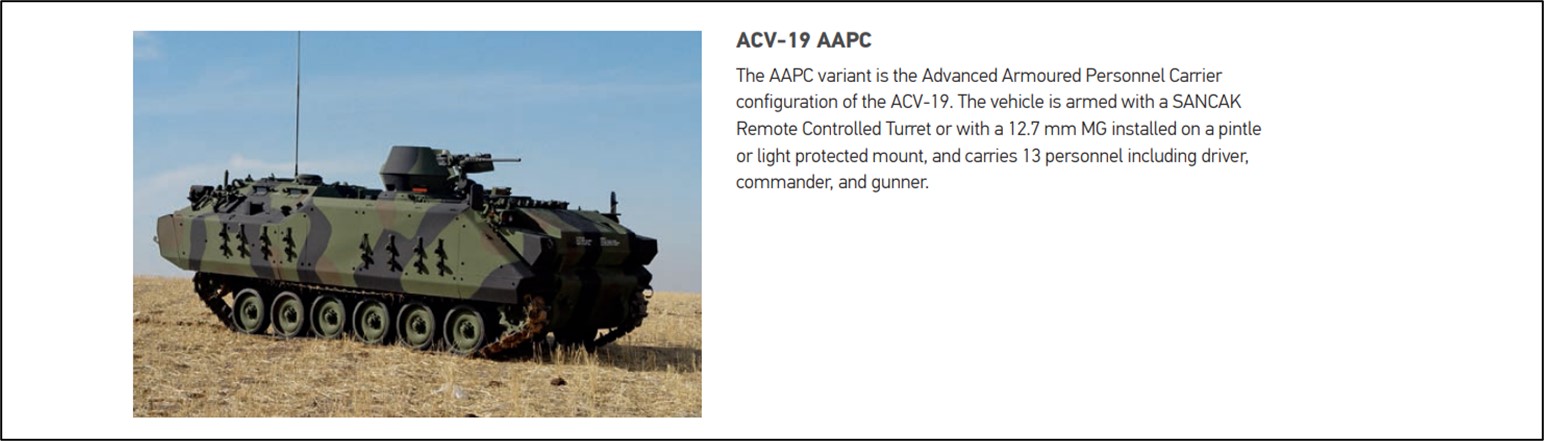

ACV-19 AAPC The AAPC variant is the Advanced Armoured Personnel Carrier configuration of the ACV-19. The vehicle is armed with a SANCAK Remote Controlled Turret or with a 12.7 mm MG installed on a pintle or light protected mount, and carries 13 personnel including driver, commander, and gunner

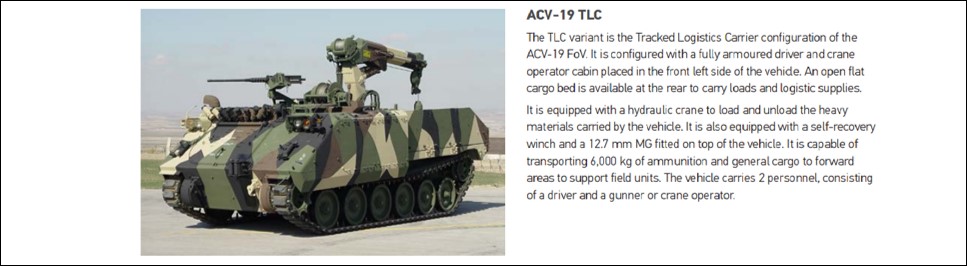

ACV-19 TLC The TLC variant is the Tracked Logistics Carrier configuration of the ACV-19 FoV. It is configured with a fully armoured driver and crane operator cabin placed in the front left side of the vehicle. An open flat cargo bed is available at the rear to carry loads and logistic supplies. It is equipped with a hydraulic crane to load and unload the heavy materials carried by the vehicle. It is also equipped with a self-recovery winch and a 12.7 mm MG fitted on top of the vehicle. It is capable of transporting 6,000 kg of ammunition and general cargo to forward areas to support field units. The vehicle carries 2 personnel, consisting of a driver and a gunner or crane operator.

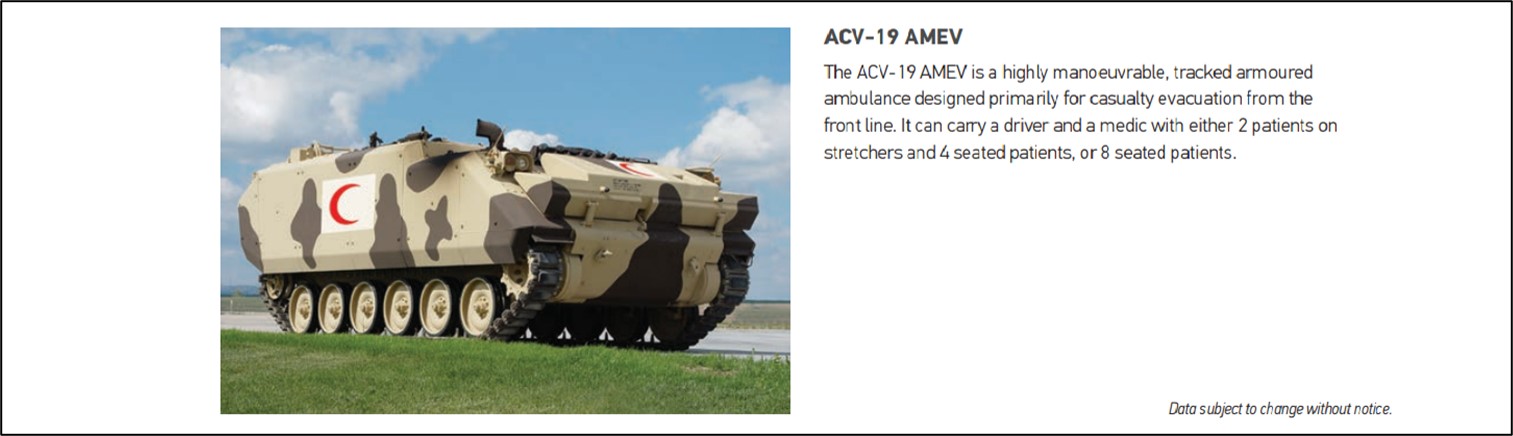

ACV-19 AMEV The ACV-19 AMEV is a highly manoeuvrable, tracked armoured ambulance designed primarily for casualty evacuation from the front line. It can carry a driver and a medic with either 2 patients on stretchers and 4 seated patients, or 8 seated patients.

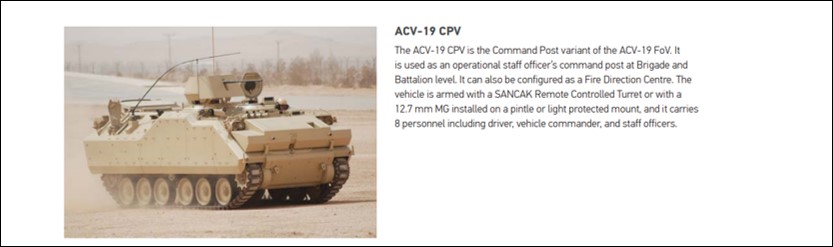

ACV-19 CPV The ACV-19 CPV is the Command Post variant of the ACV-19 FoV. It is used as an operational staff officer’s command post at Brigade and Battalion level. It can also be configured as a Fire Direction Centre. The vehicle is armed with a SANCAK Remote Controlled Turret or with a 12.7 mm MG installed on a pintle or light protected mount, and it carries 8 personnel including driver, vehicle commander, and staff officers

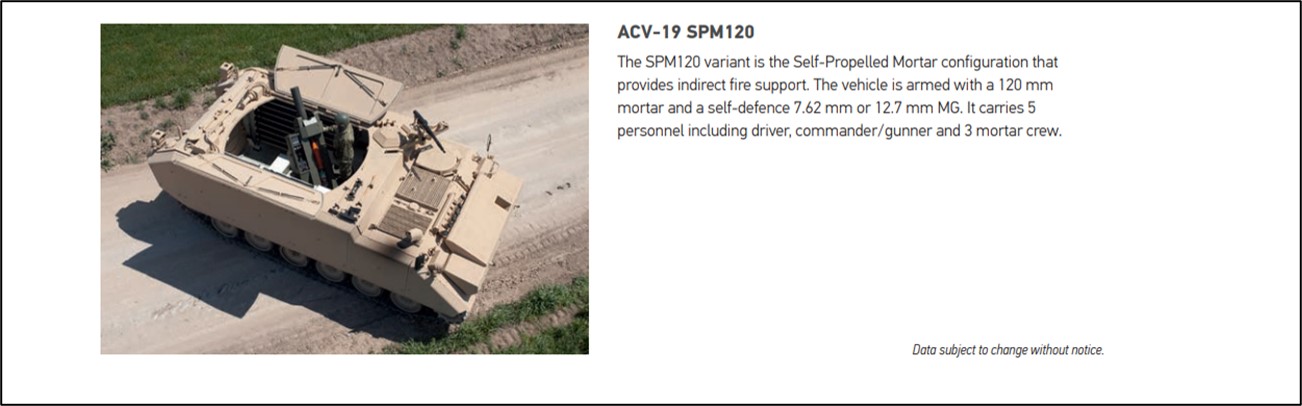

ACV-19 SPM120 The SPM120 variant is the Self-Propelled Mortar configuration that provides indirect fire support. The vehicle is armed with a 120 mm mortar and a self-defence 7.62 mm or 12.7 mm MG. It carries 5 personnel including driver, commander/gunner and 3 mortar crew.

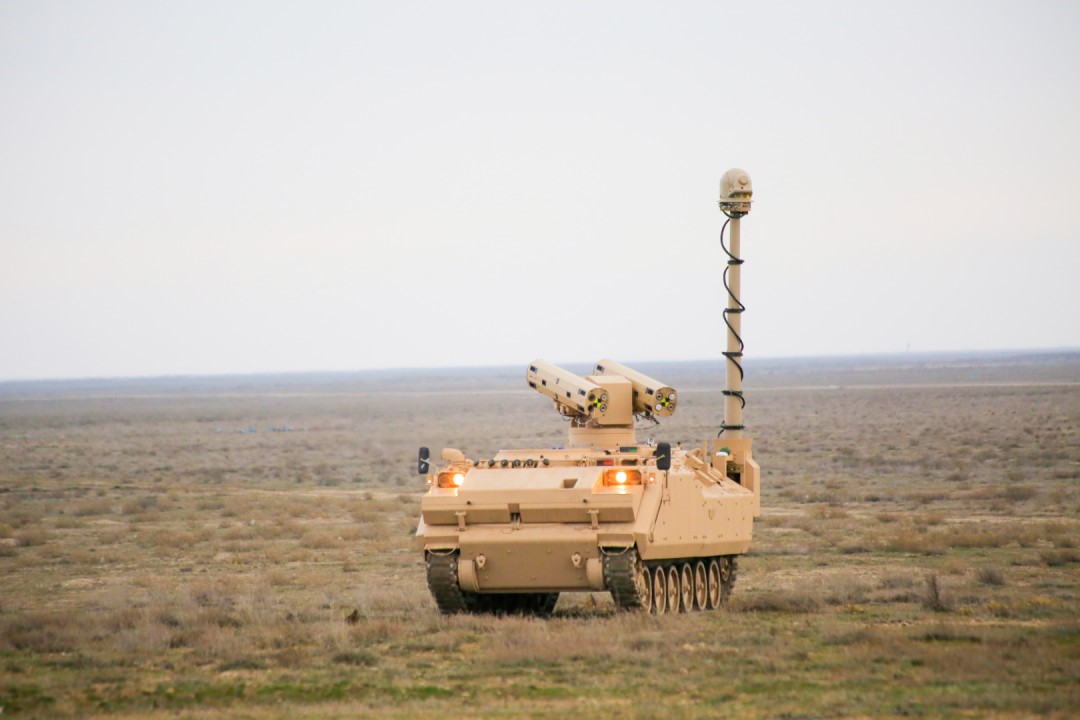

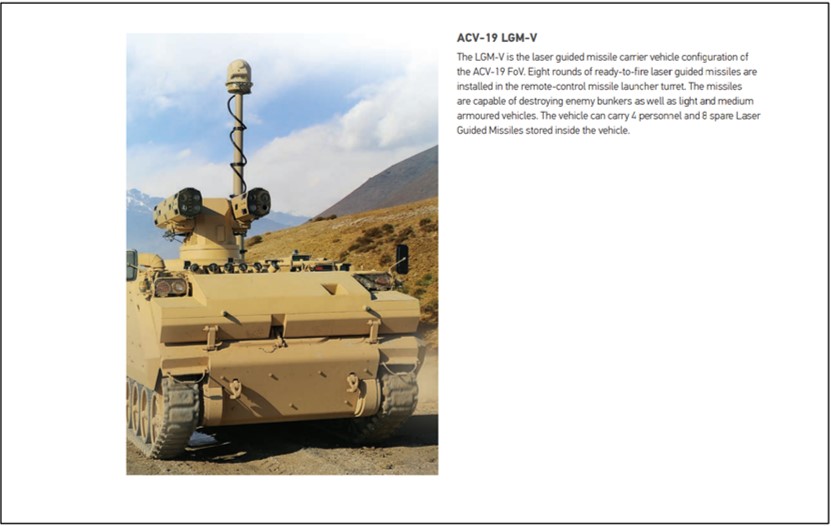

ACV-19 LGM-V The LGM-V is the laser guided missile carrier vehicle configuration of the ACV-19 FoV. Eight rounds of ready-to-fire laser guided missiles are installed in the remote-control missile launcher turret. The missiles are capable of destroying enemy bunkers as well as light and medium armoured vehicles. The vehicle can carry 4 personnel and 8 spare Laser Guided Missiles stored inside the vehicle.

System

Alternative Designation ACV-19

Type Amphibious Armored Combat Vehicle

Manufacturer FNSS

Configuration Track

Crew 13 (Incl. Gunner, Driver and Commander)

Dimensions

Length 6.02 m

Width 2.94 m

Height 2.69 m

Weight, Combat 18,000 kg

Automotive

Engine Name INA

Engine Type Diesel

Engine Power INA

Transmission Fully Automatic

Maximum Range 490 km

Max. Road Speed 65 km/h

Gradient 60%

Side Slope 30%

Vertical Obstacle 0.70 m

Trench Crossing 1.83 m

Fording Depth 1.1 m

Amphibious Capability Standard

Suspension System Torsion Bar

Steering System Through Transmission

Main Weapon System

Note Manned and Remote Controlled Turrets, Mortar and/or Missile Systems from Various Types and Origin Can be Integrated.

Protection

Armor INA - All-round protection for the crew. - Level 1 protection according to NATO AEP-55 STANAG 4569. The armored capsule features: - Anti-fragmentation lining made from a material designed to protect against irregularly shaped fragments weighing 1.1 grams and traveling at speeds of up to 500 m/s. - Front doors that open in the direction of travel, and rear doors that open in the opposite direction. This 180° door configuration provides added armor protection when entering or exiting the vehicle under fire. - Interior anti-shrapnel lining to protect the crew and internal equipment from secondary fragments. - Ballistic glass that matches the protection level of the corresponding armored sections, while ensuring high visibility.

Applique Armor INA

Smoke Grenade Dischargers 8 ea

Automatic Fire Suppression System Optional

NBC Detection System Optional

CBRN Protection System Standard

A/C and Heater Optional

Image Sources

Note https://www.fnss.com.tr/en/products/acv-19-armoured-combat-vehicle/acv-19-technical-specifications

Details

Country of Origin Turkey

Category Land

Land

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

6.02 m

Width

2.94 m

Height

2.69 m

Weight

18000 kg

Operators (4)

Turkey

Jordan

Malaysia

United Arab Emirates
