RB-636 Svet-KU/Svet-VSG (РБ-636 Свет-КУ/Свет-ВСГ) Russian Electronic Warfare System

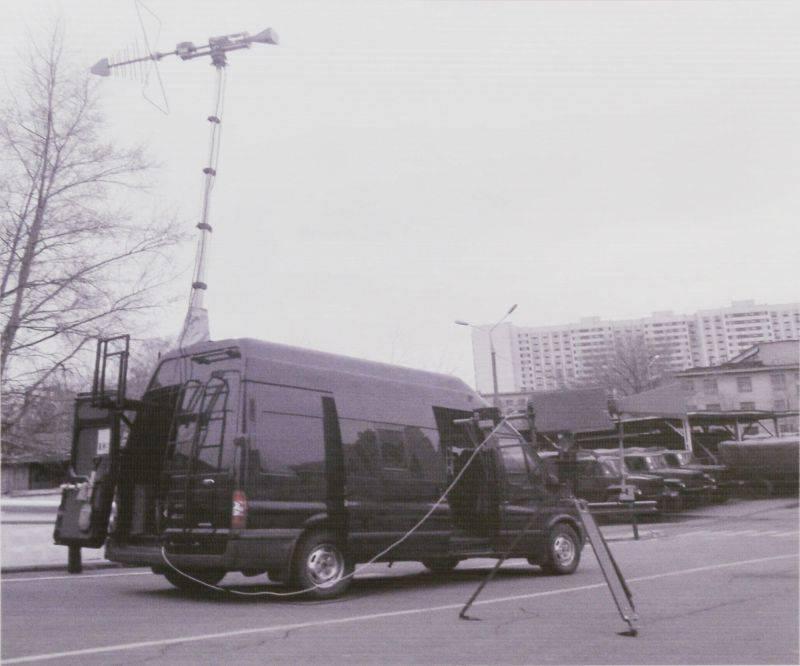

Carrying out SIGINT activities and jamming radio and radar signals within the Bandwidth/Frequencies: 0.025–18 GHz Variants: RB-636AM2 Svet-KU complex, based on the Ford Transit van Additional Information: • Composed of the Svet-VSG stationary antenna post of electronic intelligence with a control point and the Svet-KU mobile complex of radio for radio control and protection of information from leakage through technical channels of wireless communication • Can interact with the automated complex technical control point (APU CPC) Performance Specifications: • Frequency range [GHz] 170,171,172: 0.025–18 • Simultaneous analysis and direction-finding bandwidth [MHz]: ≥ 20 • Scanning speed when analyzing frequency band loading [MHz/s]: ≥ 500 • canning speed for space-energy detection [MHz/s]: 100 • Noise figure [dB]: 12 • Suppression of side channels of reception [dB]: ≥ 80 • Intermodulation dynamic range [dB] 172: ≥ 85 • Mean time between failures, [h]: 3000 • Power consumption [kW]: ≤ 3 • Deployment time (calculation of 3 people) [min]: 10 Source: COGINT Analytic Insight Report - Russian EW Systems, 7 June 2023 (UNCLASSIFIED)
