2B26 Grad-K Russian 122mm Multiple Launch Rocket System (MLRS)
2B26 Grad-K
Multiple Launch Rocket System (MLRS)
Other
Basic Information
Name
2B26 Grad-K Russian 122mm Multiple Launch Rocket System (MLRS)
Designation
2B26 Grad-K
Alternate Designation
2B26 Grad-K
Equipment Type
Multiple Launch Rocket System (MLRS)
Manufacturer
Kamaz
Date of Introduction
2012
Description

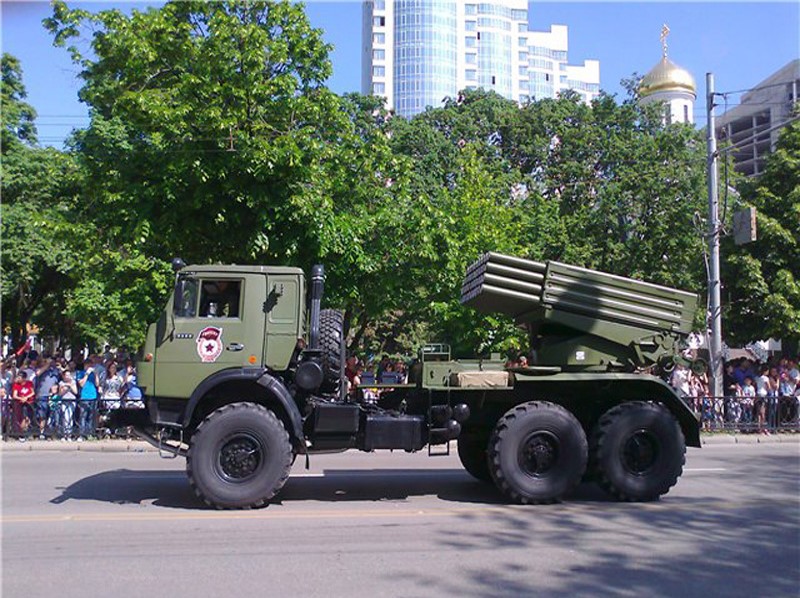

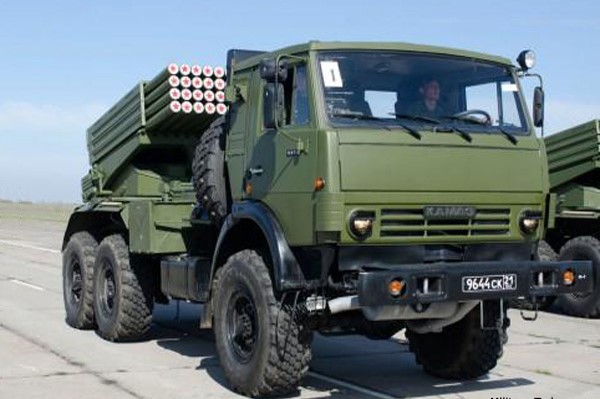

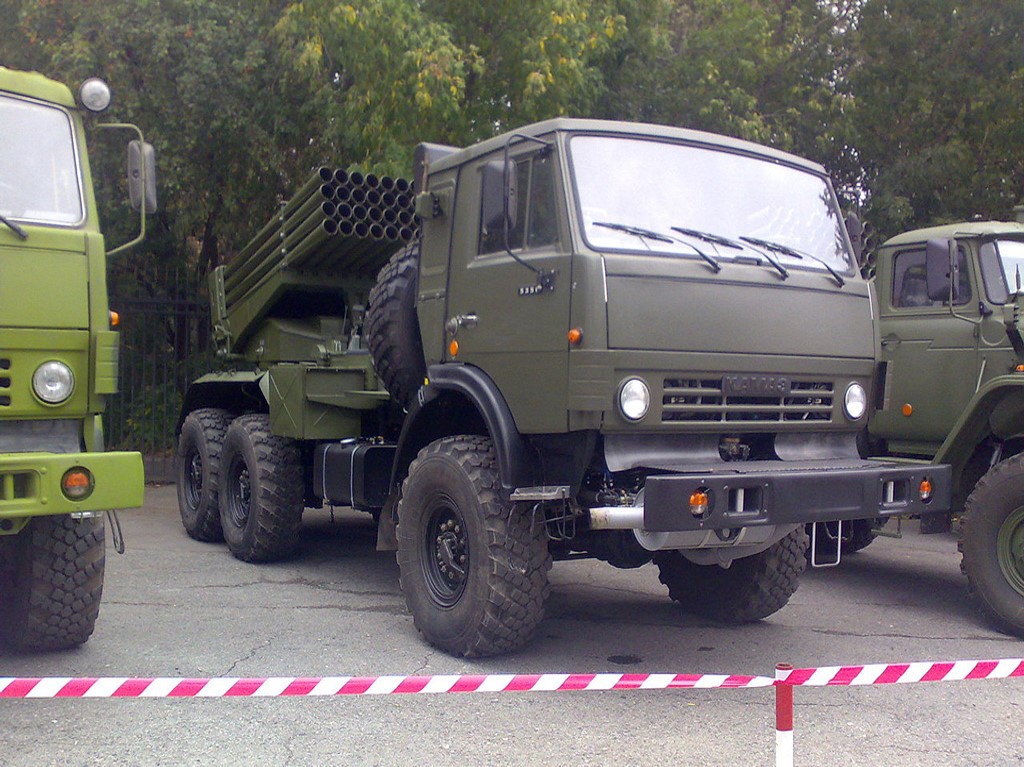

The 2B26 Grad-K Russian 122mm Multiple Launch Rocket System (MLRS) is a modernized version of the BM-21 Grad. This artillery rocket system is effective against concentration of troops, soft-skin and lightly armored vehicles, command posts, artillery and mortar batteries and other targets.
Ground Specifications
Crew
3
Mobility Type
Wheeled (6x6)
Main Weapon
122mm Multiple Launch Rocket System (MLRS)
Engine
Diesel (260 hp)
Max Speed
80.0 km/h
Range
800.0 km
System
Alternative Designation
2B26 Grad-K
Type
Multiple Launch Rocket System (MLRS)
Manufacturer
Kamaz
Configuration
6x6
Crew
3 ea
Cargo Capacity
6 tons
Dimensions
Length
7.75 m
Width
2.5 m
Height
3.29 m
Weight, Combat
15.6 tons
Weight, Curb
12.0 tons
Automotive
Engine Name
KamAZ-740.13-260 Diesel
Engine Type
Diesel
Engine Power
260 hp
Cruising Range
800 km
Speed, Maximum Road
80 km/h
Speed, Average Cross
INA
Speed Maximum Swim
Not Amphibious
Gradient
60 %
Side Slope
40 %
Vertical Step
0.6 m
Trench
0.6 m
Fording Depth
1.75 m
Main Weapon System
Type
Multiple Launch Rocket System (MLRS)
Caliber
122 mm
Number of Tubes
40 ea
Rocket Weight
70 kg
Warhead Weight
25 kg
Maximum Firing Range
40 km
Full Salvo Duration
2 seconds
Reloading Time
7 minutes
Protection
Armor
It is also proposed with concealed built-in internal armor
Applique Armor
INA
NBC Protection
INA
Smoke Equipment
No
Details
Country of Origin
Russia
Category
Rocket Artillery Systems
Land > Artillery > Rocket Artillery Systems
Filter Label
2
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.75 m
Width
2.5 m
Height
3.29 m
Weight
15600 kg
Operators (1)
Russia
