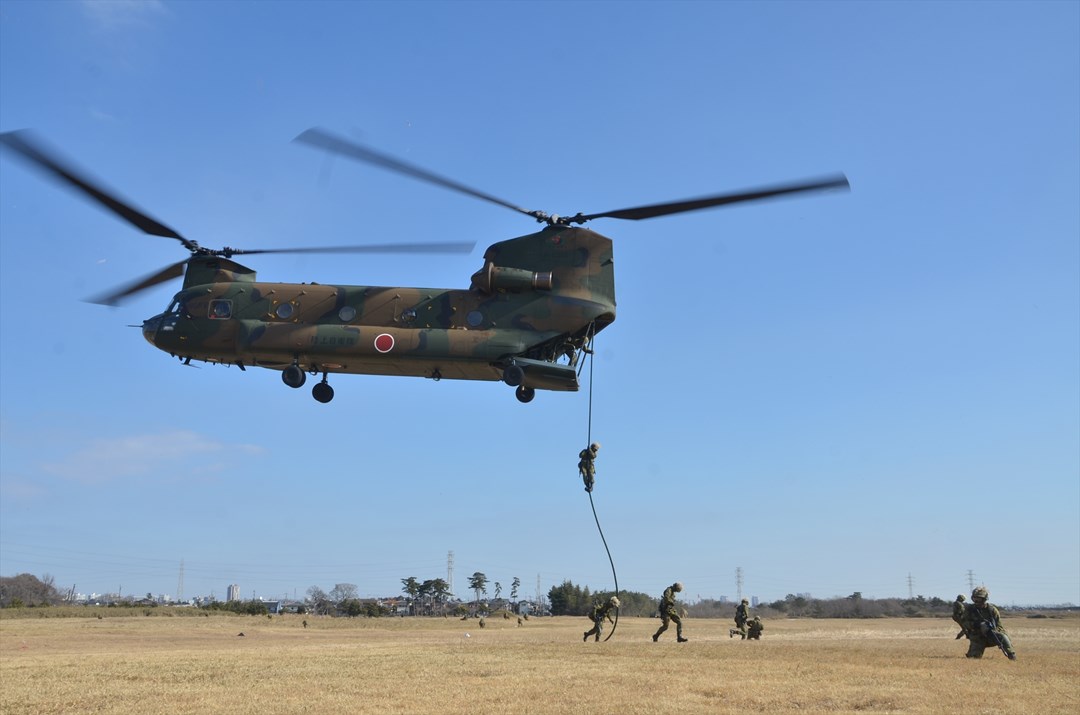

CH-47D Chinook
CH-47D Chinook
Utility & Transport Helicopters
Basic Information
Name
CH-47D Chinook
Designation
CH-47D Chinook
Alternate Designation
Boeing Vertol 234, CH-47C, CH-47J (Japanese version), CH-47JA, CH-47SD (Variant utilized by Taiwan), Chinook Mark 3 (UK version), Chinook Mk2, Chinook Mk3, Chinook Mk4, Chinook Mk4A, Chinook Mk5
Equipment Type
Utility & Transport Helicopters
Manufacturer
Boeing
Date of Introduction
1979
Description
The first CH-47A was delivered to the US Army in 1962 and the current CH-47D Chinook improved model in 1979. Of the 750 Chinooks operated by the US during the Vietnam war about 200 were lost in combat. After the war, 500 Chinooks were remanufactured and upgraded to -D configuration. The last CH-47D was delivered to the US Army in 1994. The US Army plans to upgrade 300 CH-47D helicopters to the CH-47F standard beginning in 2004.
Air & Air Defense Specifications
Crew
2
Max Speed
314.6 km/h
Range
426.0 km
Overview (Deagel)
Group
Utility & Transport Helicopters
Status
Active
Also Known As
Boeing Vertol 234, CH-47C, CH-47J (Japanese version), CH-47JA, CH-47SD (Variant utilized by Taiwan), Chinook Mark 3 (UK version), Chinook Mk2, Chinook Mk3, Chinook Mk4, Chinook Mk4A, Chinook Mk5
Origin
United States of America
Contractor
Boeing
Initial Operational Capability (IOC)
1979
Total Production
?
Specifications (Deagel)
Crew
2
Main Rotor Blades
6
Number of Engines
2
Troops
33
Dimensions — Height
5.5 meter
Dimensions — Length
30.2 meter
Dimensions — Main Rotor Diameter
18.3 meter
Dimensions — Width
3.6 meter
Mass — Empty Weight
10,615 kilogram
Mass — Max Takeoff Weight
22,680 kilogram
Mass — Payload
11,340 kilogram
Performance — Max Range
426 kilometer
Speed — Cruise Speed
73.6 mps
Speed — Top Speed at High Altitude
87.4 mps
Gear (Deagel)
Item 1
Decoy Systems: Echidna
Item 2
ESM & Warning Systems: AN/AAR-57 CMWS
Item 3
Jamming Systems: AN/ALQ-156
Item 4
Jamming Systems: AN/ALQ-157
Item 5
Jamming Systems: AN/ALQ-212 ATIRCM
Item 6
Turboshaft Engines: T55 (2)
Variants
Variant 1
CH-47D Chinook
Variant 2
MH-47E Chinook
Variant 3
MH-47G Chinook
Variant 4
CH-47F Chinook
Variant 5
HH-47 Chinook
Variant 6
MH-47G Block II Chinook
Variant 7
CH-47F Block II Chinook
Details
Country of Origin
United States
Category
Transport Helicopter
Air > Transport Helicopter
Sources
deagel.com: https://www.deagel.com/x/x/a000504
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
30.2 m
Width
—
Height
5.5 m
Weight
22680 kg
Related Equipment (1)
Variant of
Operators (17)
United States
United Kingdom
Italy
Japan
South Korea
Iran
Spain
Argentina
Australia
Egypt
Greece
Libya
Morocco
Netherlands
Singapore
Taiwan
Thailand
