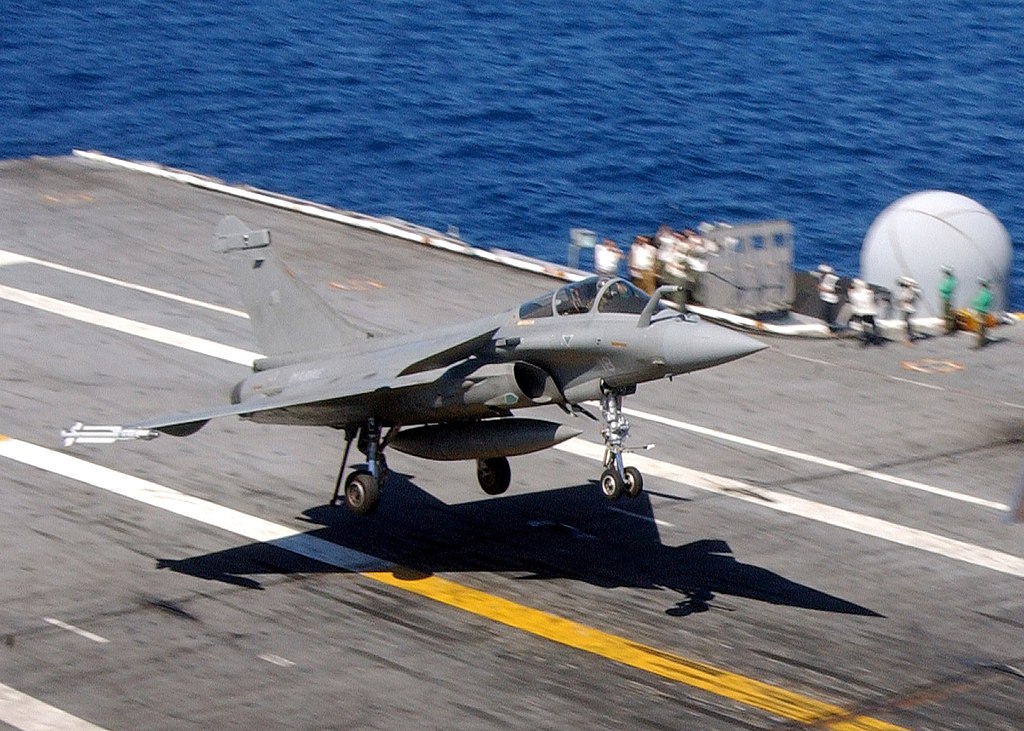

Rafale M

Rafale M

Multi-Role Fighters
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Rafale M
Designation
Rafale M
Alternate Designation
Equipment Type
Multi-Role Fighters
Manufacturer
Dassault-Aviation
Date of Introduction
2004
Description

The single-seat Rafale M (Marine) has been developed to replace the Super Etendard and Crusader aircraft onboard the French aircraft carrier/s. It will perform any mission currently carried out by current French carrier-based aircraft. Rafale M achieved initial operational capability in 2002 onboard the Charles de Gaulle nuclear-powered aircraft carrier. The French plans to procure up to 60 Rafales to equip two aircraft carriers. On June 25, 2004, Rafale F1 standard entered service with the French Navy's 12 Flottille or 12F at Landivisau naval air base. The 10 Rafale M assigned to 12F will be deployed on the Charles de Gaulle nuclear-powered aircraft carrier. The Rafale M program scope was optimized for one one aircraft (Charles de Gaulle) with 31 aircraft to be procured. The Rafale Ms onboard Charles de Gaulle aircraft carrier proved fully operational in May 2006 during combat missions in support of multinational forces deployed in Afghanistan. Early in March 2007, the French Air Force deployed for the first time three Rafale fighter aircraft to Dushanbe, Tajikistan, in support of ISAF operations in Afghanistan. Another 12 Rafale M aircraft based at Charles de Gaulle carrier were expected to join the ISAF operations shortly. On March 24, 2007, three Rafale F2 equipped with laser guided bombs and based at the Charles de Gaulle aircraft carrier performed successfully their first combat mission over Afghanistan. On September 24, 2004, the French Ministry of Defense awarded a €3.1 billion multiyear contract for 59 Rafale aircraft to an industry team comprising Dassault Aviation (€1.5 billion), Snecma (€600 million), Thales (€500 million), MBDA and Sagem. The Rafale aircraft ordered by the French Armed Forces will be furnished following the multi-role standard F3 specifications. Deliveries are expected to begin in June 2008 and will continue through January 2012. Under the terms of the multiyear contract, the French Navy will receive 12 carrier-based Rafale Ms to replace aging Super Etendard aircraft. French Minister of Defense, Alliot-Marie, announced that the third batch of Rafale, comprising 59 aircraft, turn into firm order on December 6, 3004, during a speech at the French Senate about Defense budget. The Rafale first batch contract was awarded in 1994 and was set for 13 aircraft. The second order was awarded in 1999 for 48 aircraft. The third order was announced in September 2004 consisting of 59 aircraft and 118 engines. The total number of Rafale ordered for the French armed forces now stands at 120 units.

Air & Air Defense Specifications
Crew 1
Max Speed 2222.6 km/h
Range 1900.0 km
Service Ceiling 15000 m
Wingspan 10.90 m
Overview (Deagel)
Group Multi-Role Fighters
Status Active
Origin France
Contractor Dassault-Aviation
Initial Operational Capability (IOC) 2004
Total Production 74
Unitary Cost EUR 120 million
Specifications (Deagel)
Crew 1
Number of Engines 2
Dimensions — Height 5.3 meter
Dimensions — Length 15.3 meter
Dimensions — Main Gun Caliber 30 millimeter
Dimensions — Wingspan 10.9 meter
G-load — Max Maneuvering Load Factor 11 g
Mass — Empty Weight 10,000 kilogram
Mass — Max Takeoff Thrust 34,000 pound
Mass — Max Takeoff Weight 21,000 kilogram
Mass — Payload 8,000 kilogram
Performance — Ceiling 15,000 meter
Performance — Max Range 1,900 kilometer
Speed — Top Speed at High Altitude 1.8 mach
Time — Flight Endurance 3 hour
Gear (Deagel)
Item 1 Air-to-Air Missiles: Mica IR
Item 2 Air-to-Air Missiles: Mica RF
Item 3 Anti-Ship Missiles: AM39 Exocet Block 2 (2)
Item 4 Anti-Ship Missiles: ANF
Item 5 Bombs: AASM 250
Item 6 Bombs: AASM IR
Item 7 Bombs: BGL 1000
Item 8 Bombs: BGL 250
Item 9 Bombs: BGL 400
Item 10 Bombs: GBU-12 Paveway II
Item 11 Cruise Missiles: ASMP
Item 12 Cruise Missiles: ASMP A
Item 13 Cruise Missiles: Storm Shadow
Item 14 Jamming Systems: Spectra (1)
Item 15 Optronic Systems: Damocles (1)
Item 16 Optronic Systems: FSO (1)
Item 17 Radar Systems: RBE2 (1)
Item 18 Standoff Weapons: Apache AP
Item 19 Standoff Weapons: Apache IZ
Item 20 Standoff Weapons: AS30L
Variants
Variant 1 Rafale M
Variant 2 Rafale C
Variant 3 Rafale B
Details
Country of Origin France
Category Multirole Aircraft
Air > Multirole Aircraft
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
15.3 m
Width
10.9 m
Height
5.3 m
Weight
21000 kg
Related Equipment (1)
Operators (2)
France
India
