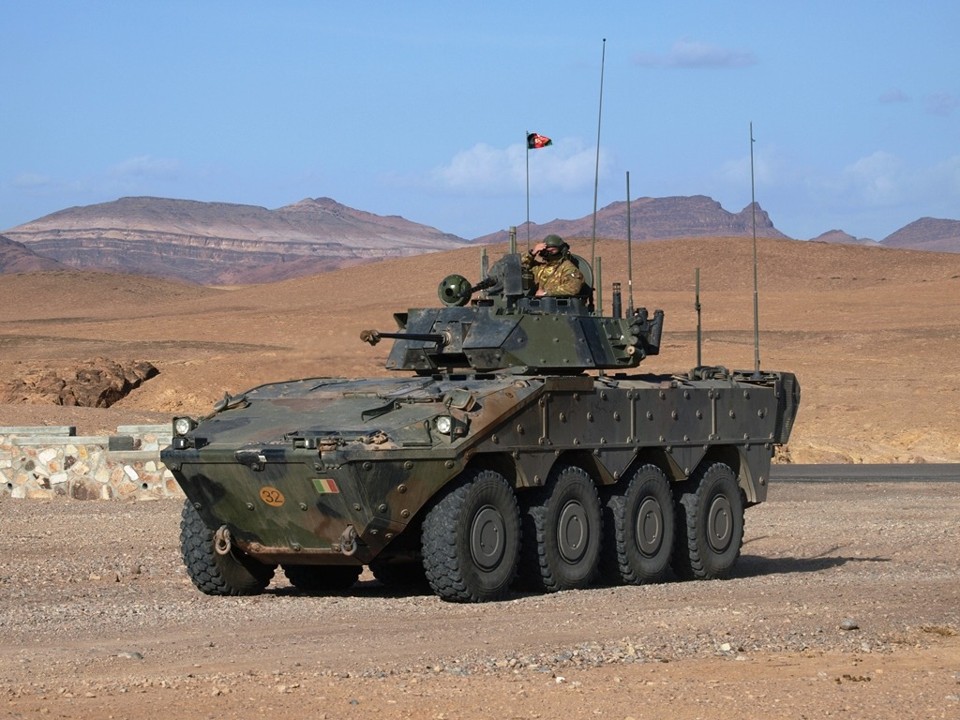

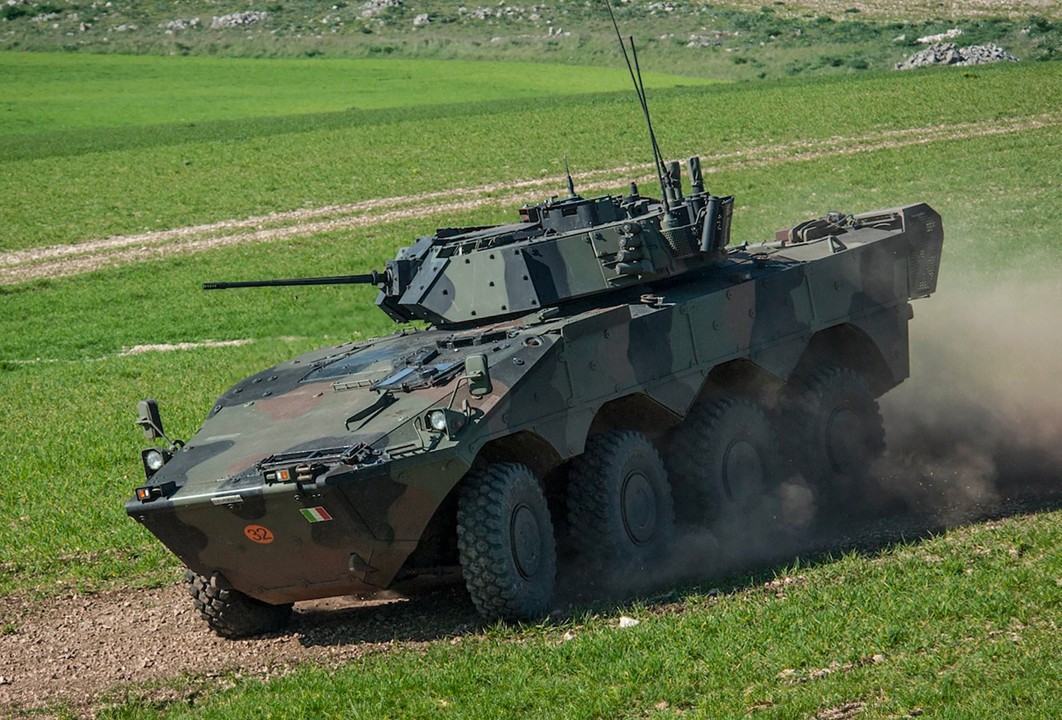

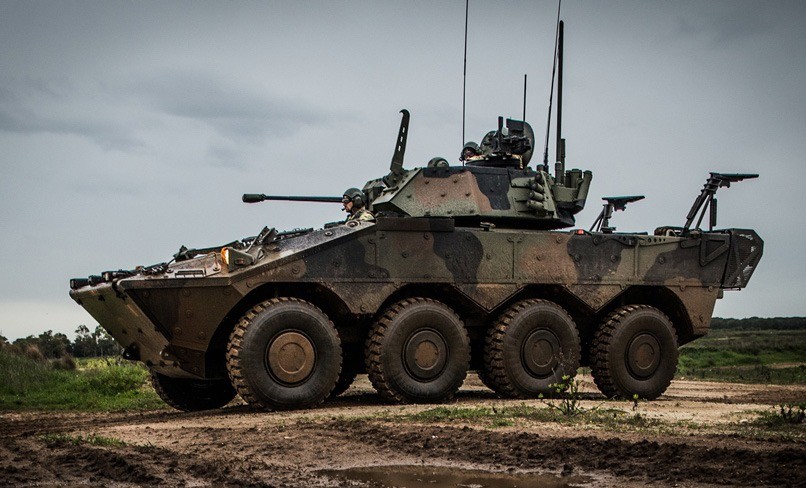

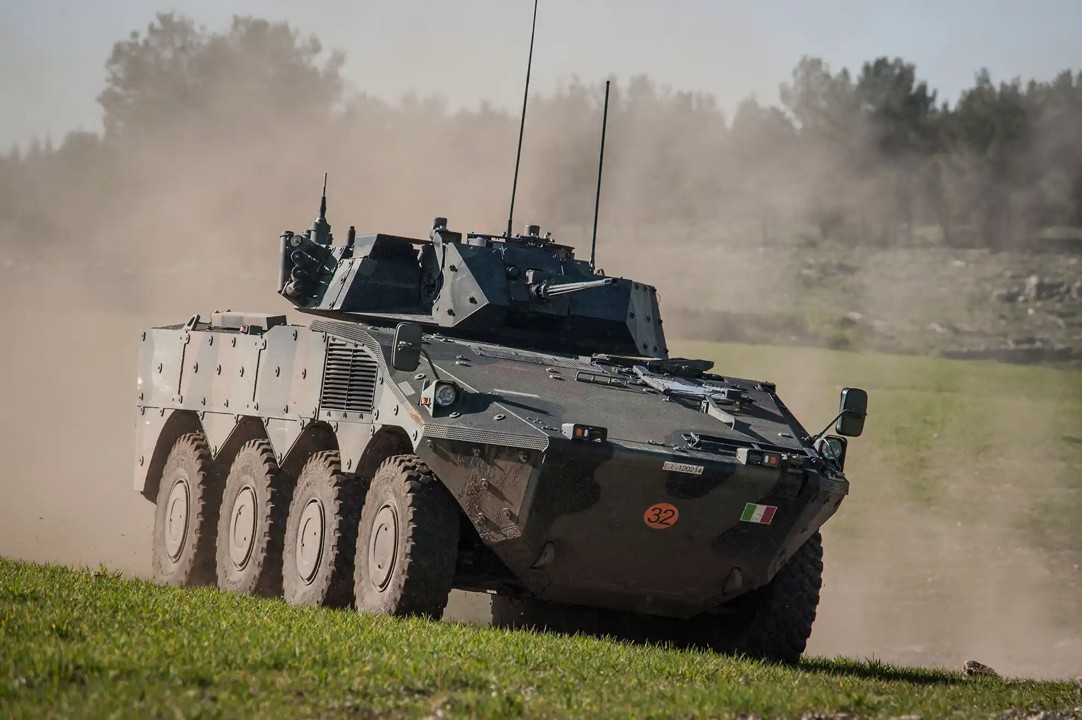

VBM Freccia Italian 8x8 Armored Infantry Fighting Vehicle

The VBM Freccia

Armored Infantry Fighting Vehicle (IFV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
VBM Freccia Italian 8x8 Armored Infantry Fighting Vehicle
Designation
The VBM Freccia
Alternate Designation
The VBM Freccia
Equipment Type
Armored Infantry Fighting Vehicle (IFV)
Manufacturer
Iveco Defense Vehicles
Date of Introduction
2009
Description

The VBM Freccia 8x8 Italian Armored Infantry Fighting Vehicle forms the backbone of the Italian Army's mechanized units. Developed by the Iveco-Oto Melara consortium, the Freccia is a versatile and advanced platform designed for a wide range of combat scenarios, from peacekeeping missions to high-intensity warfare. It is the first digitized vehicle to enter service with the Italian Army, marking a significant step forward in the nation's military capabilities. The Italian Army is currently implementing the "2025 Freccia Upgrade Program", also known as the "VBM Plus", to modernize its Freccia fleet. This program includes enhancements to the vehicle's armor, an engine upgrade to 660 hp, and the integration of next-generation digital C4I systems. Furthermore, a next-generation version, the VBM 30 NG, is under development. This new variant will feature a more powerful 720 hp engine, a redesigned hull for improved survivability, and a Leonardo Hitfist turret with a 30mm cannon capable of firing airburst munitions to counter threats like drones. The VBM 30 NG will also be equipped with Spike LR2 missiles for extended-range engagements. By 2035, the Italian Army aims to have a total of 630 VBM platforms in service.

Ground Specifications
Crew 3
Mobility Type Wheeled (8x8)
Main Weapon 30mm cannon
Engine Turbocharged Diesel (660 hp)
NBC Protection Yes
Max Speed 110.0 km/h
Range 800.0 km
Variants
VBM da Combattimento (AIFV) An infantry fighting vehicle equipped with a two-man Hitfist turret with a KBA 25 mm autocannon.
VBM Controcarro (ATGW) An infantry fighting vehicle equipped with a two-man Hitfist turret with a KBA 25 mm autocannon. Anti-tank guided missiles are included in the internal armament of the variant. A dual Spike LR anti-tank missile launcher will be added to the turret with the middle-life upgrade.
VBM Porta Mortaio A mortar carrier equipped with the TDA-2R2M 120 mm mortar system and a RCWS Hitrole L with a M2 Browning 12.7 mm NATO machine gun
Veicolo Nucleo Comando Used by the brigade commander, equipped with a RCWS Hitrole L which uses a heavy machine gun, the M2 Browning in 12.7 mm NATO. A C4 (command, control, communication and computer) installation is part of its equipment, and additional communication equipment compared to the base IFV variant. It has access to SATCOM, it is equipped with the SIACCON system (Italian Automated Information System for Command and Control), 3 servers, and 4 LRT350+ computer posts.
Veicolo Nucleo Tattico Vehicle used by the platoon commander. The base vehicle is the VBM da Combattimento (AIFV), equipped with a two-man Hitfist turret with a KBA 25 mm autocannon and the same C4 equipment as for the Veicolo Nucleo Comando is available in the armoured vehicle.
System
Alternative Designation The VBM Freccia
Type Armored Infantry Fighting Vehicle
Manufacturer Iveco Defense Vehicles
Configuration 8x8
Crew 3 ea
Passengers 8 ea
Dimensions
Length 8.56 m
Width 2.99 m
Height 3.18 m with turret
Weight, Combat 30 tons
Automotive
Engine Name Iveco Defense Vehicles
Engine Type supercharged diesel
Engine Power 660 hp
Maximum Range 800 km
Maximum Speed 110 km/h
Amphibious No
Gradient 60%
Side Slope 30%
Vertical Step 0.6 m
Trench 2.0 m
Fording 1.5 m
Main Weapon System
Note The primary armament of the standard VBM Freccia IFV is the Oto Melara Hitfist Plus turret, which is equipped with a 25mm Oerlikon KBA automatic cannon. The turret can also be armed with Rafael Spike long-range anti-tank guided missiles (ATGM), giving the vehicle a potent anti-tank capability. Some versions can be fitted with a 30mm cannon.
Coaxial Weapon System
Note 1 x 7.62mm General-Purpose Machine Gun
Auxiliary Weapon System
Note Another 7.62mm machine gun can be mounted on the roof for additional firepower.
Protection
Armor The Freccia's hull is constructed from aluminum with an additional layer of ballistic steel, providing protection against 25mm to 30mm rounds and 6kg TNT mine blasts. The protection can be upgraded to withstand 8kg mine blasts.
Applique Armor INA
NBC Protection Yes
Smoke Equipment 8 GALIX x 80 mm
Details
Country of Origin Italy
Category Land
Land
Filter Label
V
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8.56 m
Width
2.99 m
Height
3.18 m
Weight
30000 kg
Operators (1)
Italy
