Kongo

Kongo

Destroyers
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Kongo
Designation
Kongo
Alternate Designation
DDG 173, Kongou
Equipment Type
Destroyers
Manufacturer
Mitsubishi Heavy Industries
Date of Introduction
1993
Description

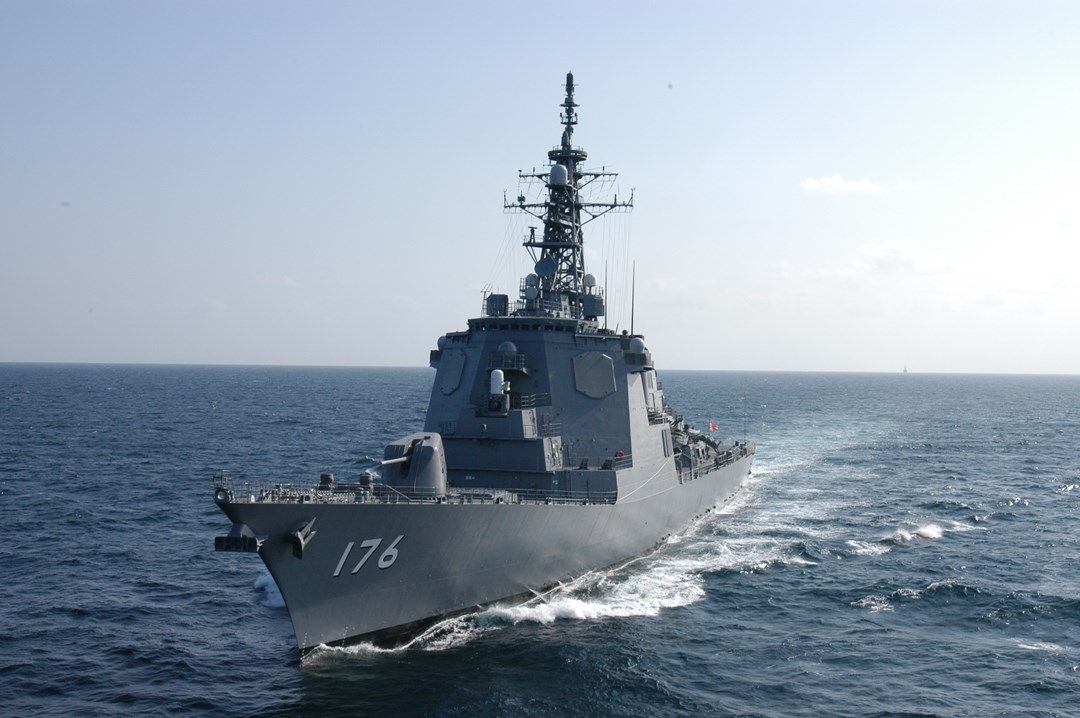

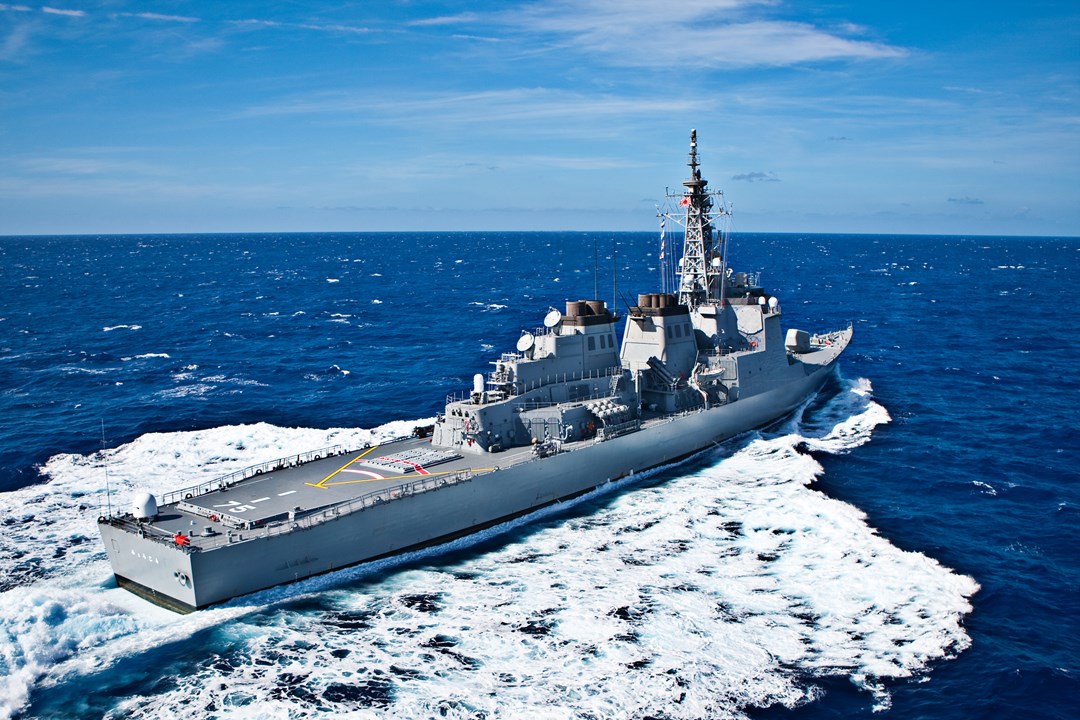

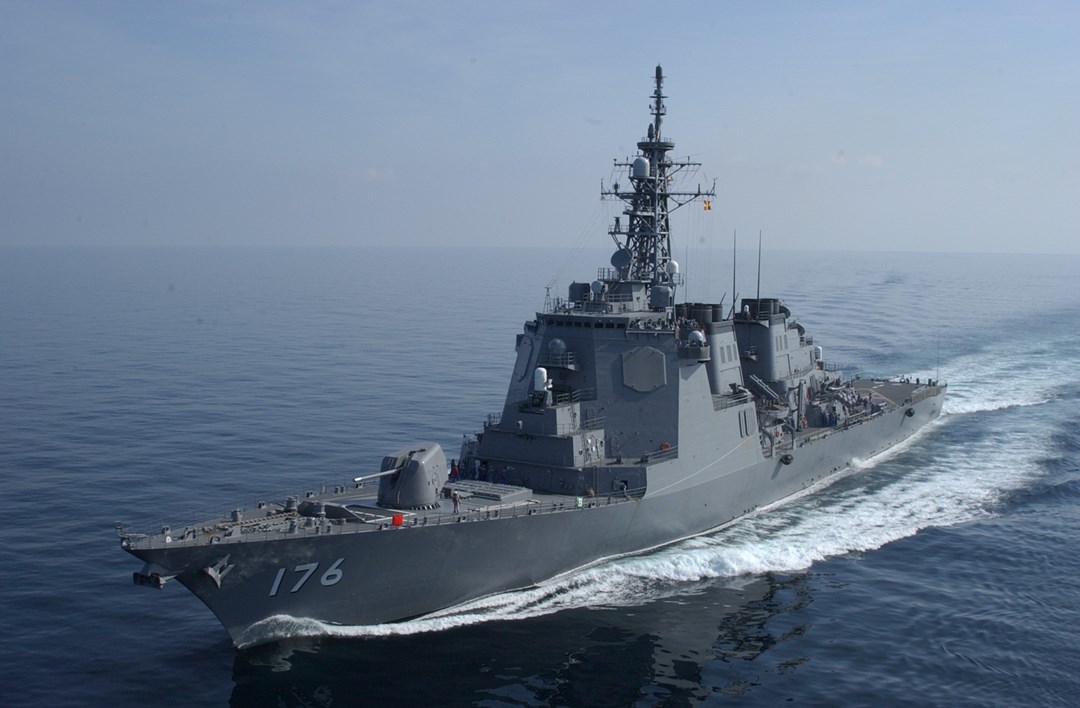

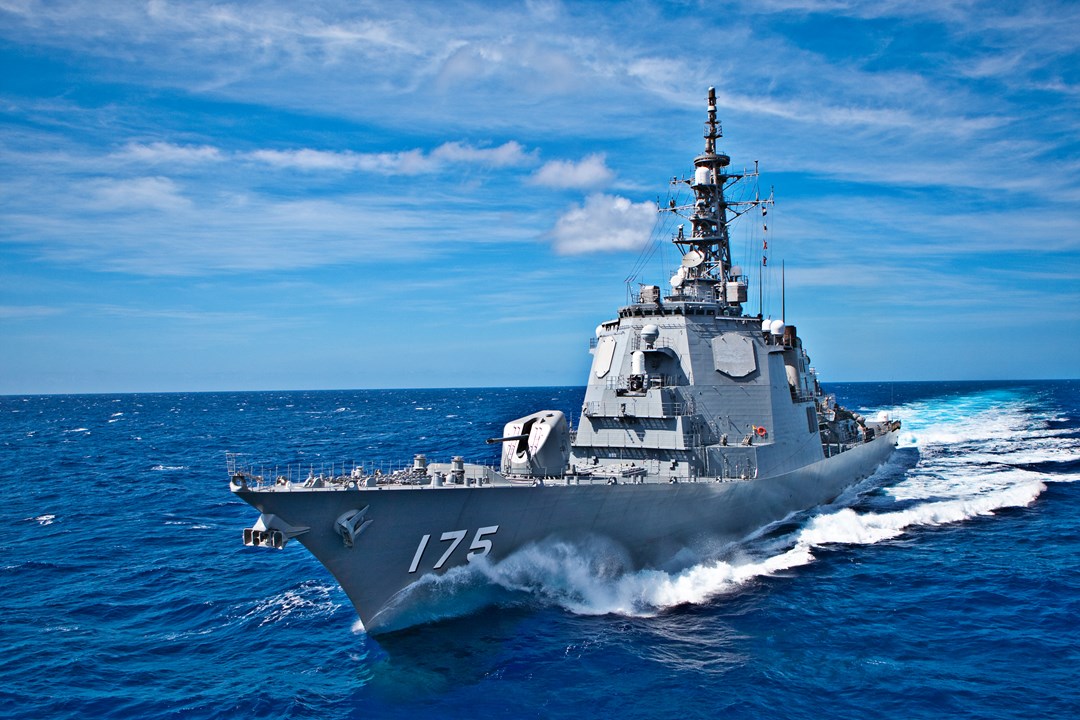

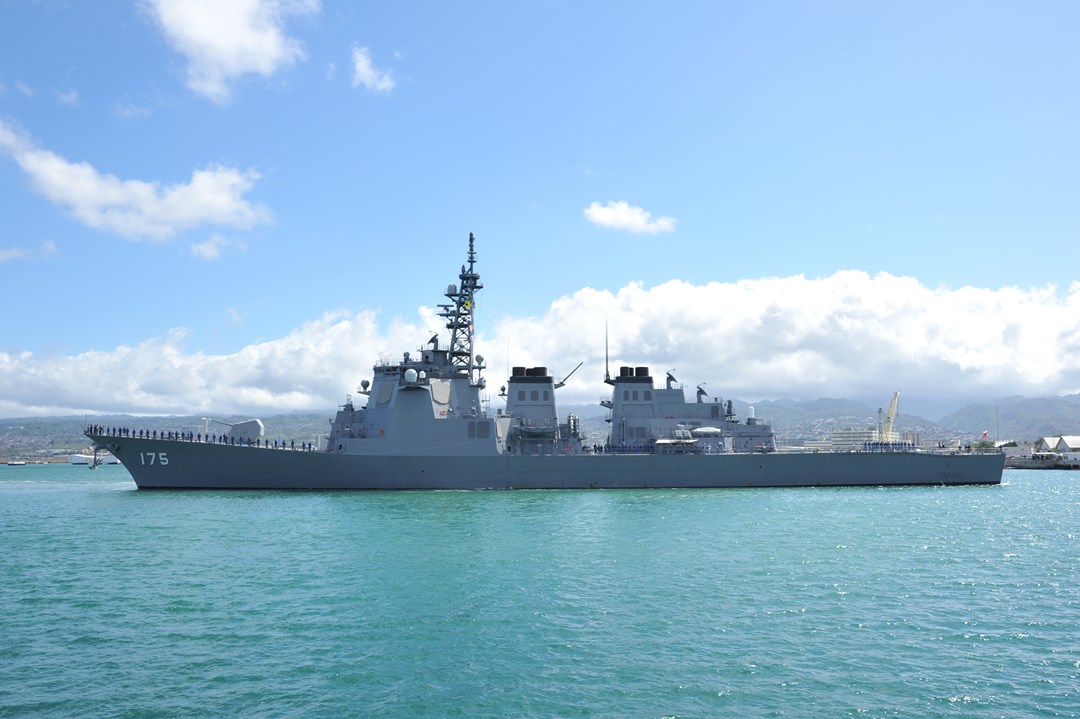

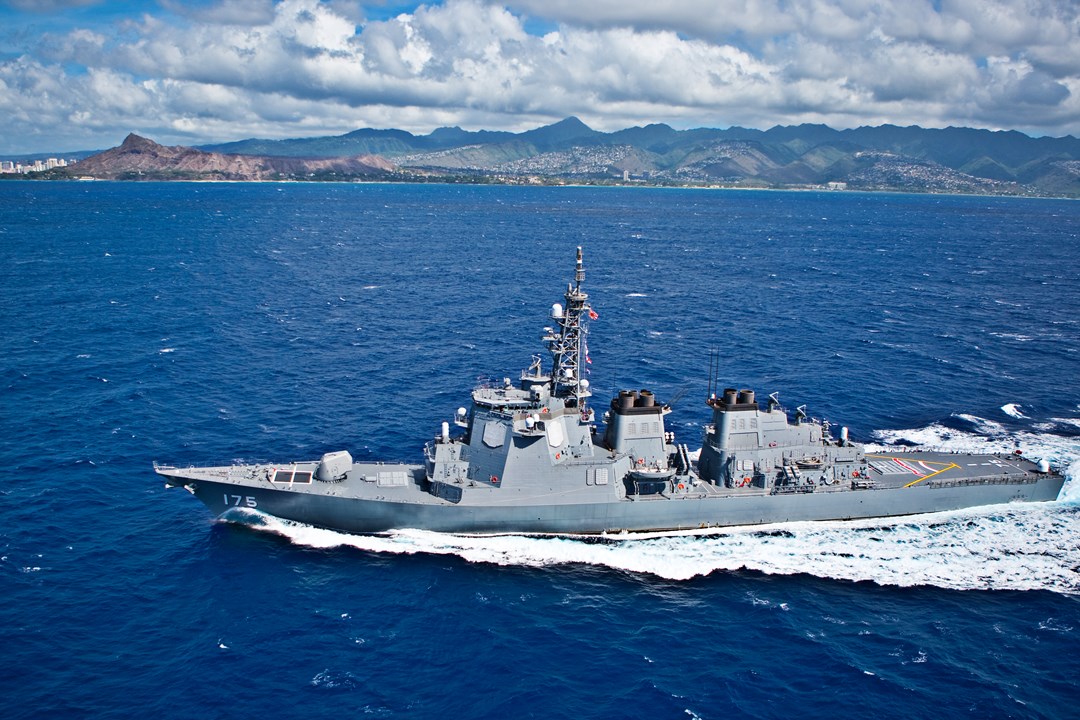

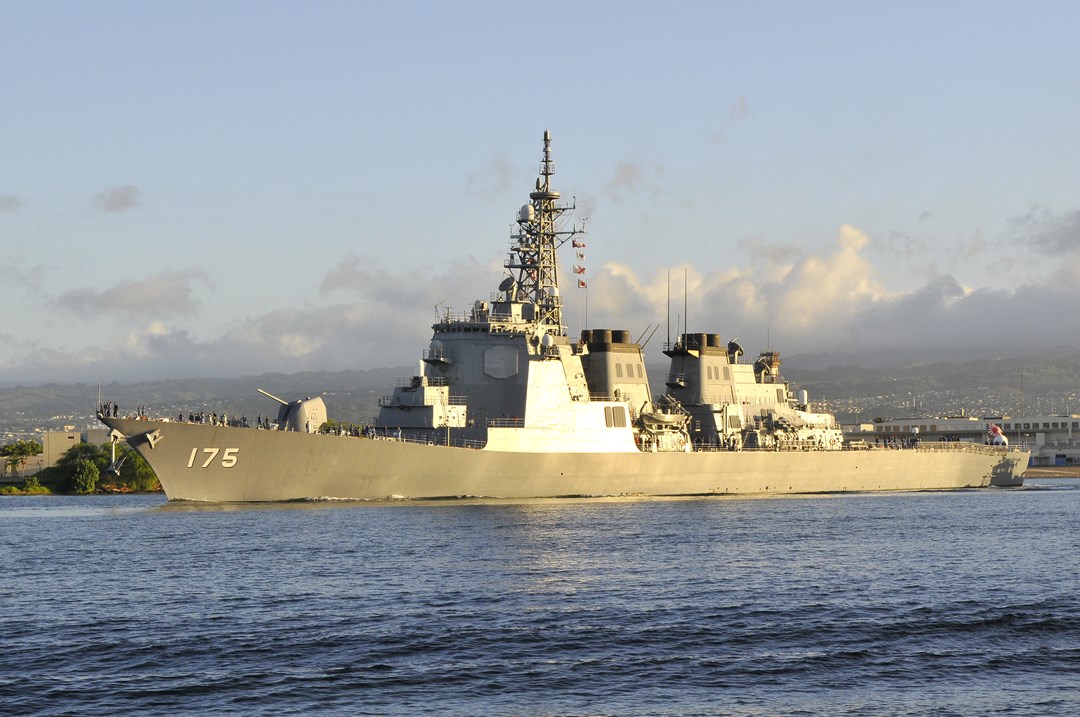

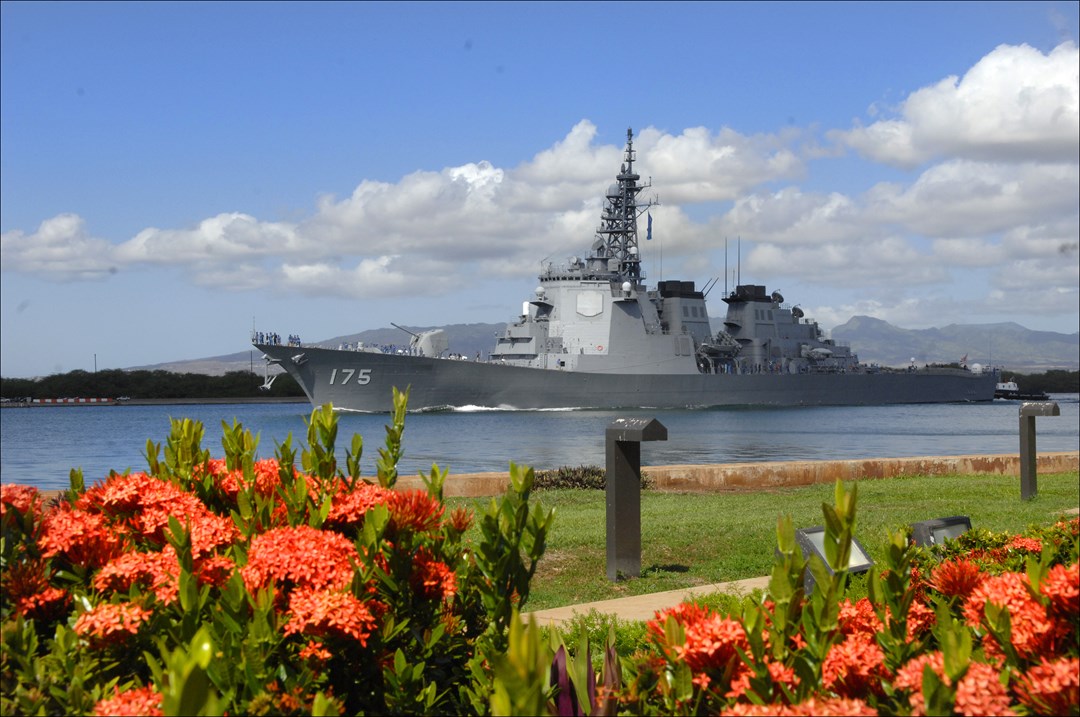

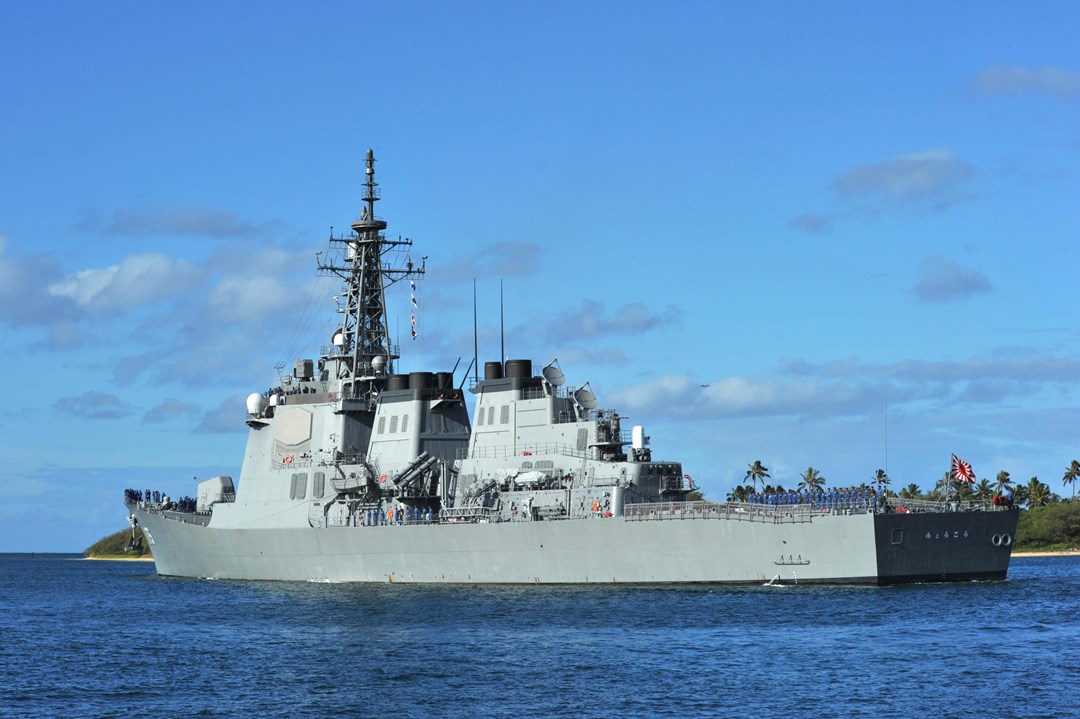

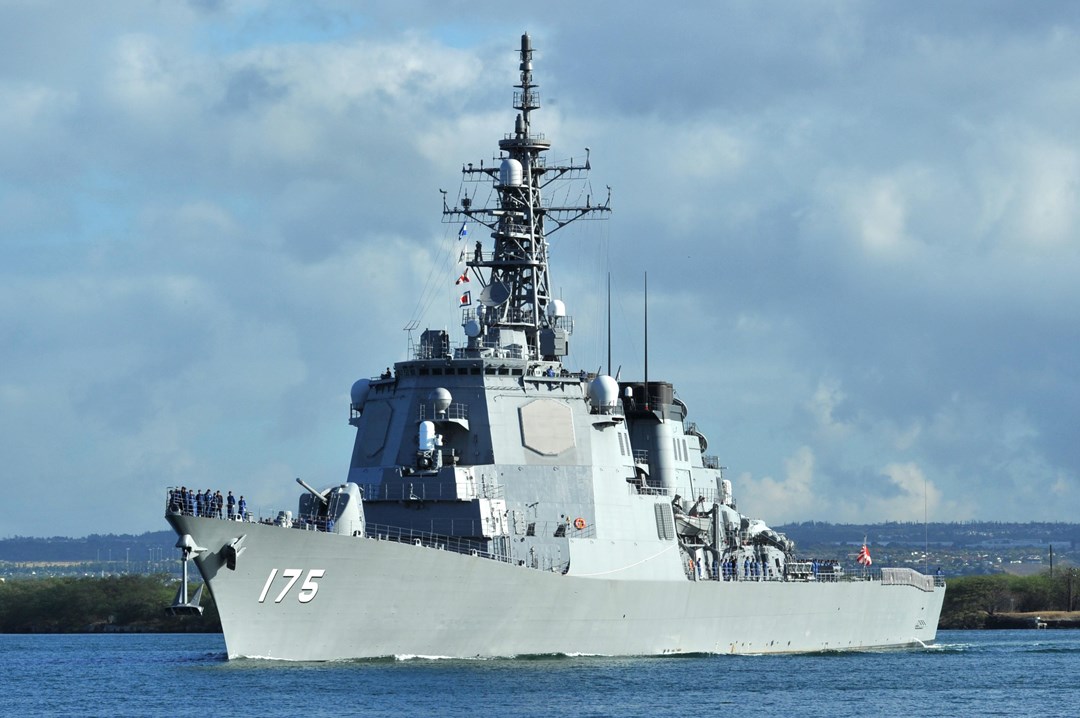

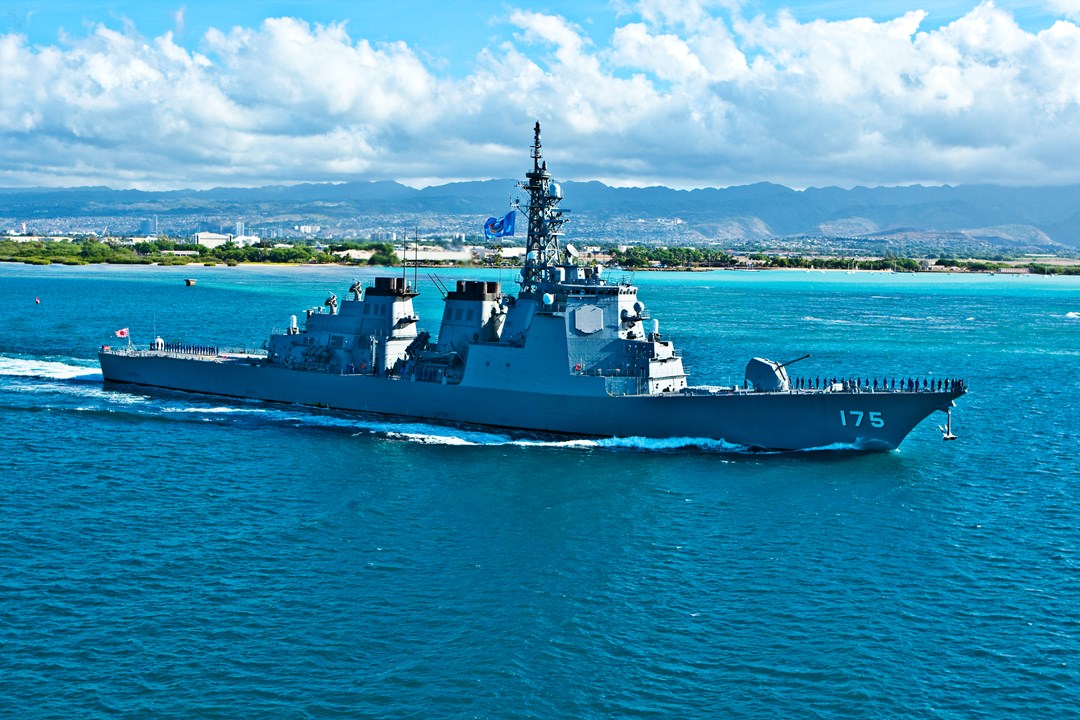

The Japan Marine Self Defense Force (JMSDF) Kongo-class destroyers, also known as Kongou or DDG 173, have been designed to provide extended air defense against advanced air breathing and ballistic threats. They feature reduced radar cross section, stealth design, for improved survivability and AEGIS weapon system. The Kongo-class design is strongly influenced by the US Navy's combat proven DDG-51 class destroyers. The class is expected to consists from six to eight ships assuming a leading role in the fleet until 2020. The JMSDF commissioned four Kongo-class destroyers in the 1990s with another two/four improved destroyers, named Atago, to be commissioned by 2010. Overall, Kongo-class destroyers are the larger and most capable surface fighting ships in the JMSDF fleet. According to Japan's National Defense Program Guidelines of 2007, the JMSDF is required to possess eight destroyer units for mobile operations with each unit consisting of four vessels. Three of these vessels are multi-role destroyers (DD) and the fourth is an Aegis-equipped ship (DDG).

Naval & Littoral Specifications
Crew 300
Displacement 9485.00 tonnes
Beam 21.00 m
Draft 6.20 m
Max Speed 30.0 knots
Overview (Deagel)
Group Destroyers
Status Active
Also Known As DDG 173, Kongou
Origin Japan
Contractor Mitsubishi Heavy Industries
Initial Operational Capability (IOC) 1993
Total Production 4
Specifications (Deagel)
Crew 300
Number of Aircraft 1
Number of Weapons 98
Torpedo Tubes 6
Dimensions — Beam 21 meter
Dimensions — Draft 6.2 meter
Dimensions — Length 161 meter
Dimensions — Main Gun Caliber 127 millimeter
Mass — Full Displacement 9,485 ton
Mass — Standard Displacement 7,250 ton
Power — Total Combined Power 100,000 shp
Speed — Top Speed 30 knot
Gear (Deagel)
Item 1 Anti-Ballistic Missiles: Standard SM-3 Block IA
Item 2 Anti-Ship Missiles: RGM-84D Harpoon (8)
Item 3 Anti-Submarine Rockets: RUM-139 VL ASROC (90)
Item 4 ASW Helicopters: SH-60J (2)
Item 5 Decoy Systems: AN/SLQ-25A SSTD (1)
Item 6 Missile Launchers: Mk 41 Strike Length (2)
Item 7 Naval Gun Systems: 127/54 Compact (1)
Item 8 Radar Systems: AN/SPG-62 (3)
Item 9 Radar Systems: AN/SPY-1D (4)
Item 10 Sea-Based Air Defense Systems: Aegis BMD (1)
Item 11 Sea-Based Air Defense Systems: Mk 15 Phalanx Block 1/1A (2)
Item 12 Ship Power Plants: LM2500 (4)
Item 13 Surface-to-Air Missiles: Standard SM-2 Block IIIA (90)
Item 14 Surface-to-Air Missiles: Standard SM-2 Block IIIB (90)
Variants
Variant 1 Kongo

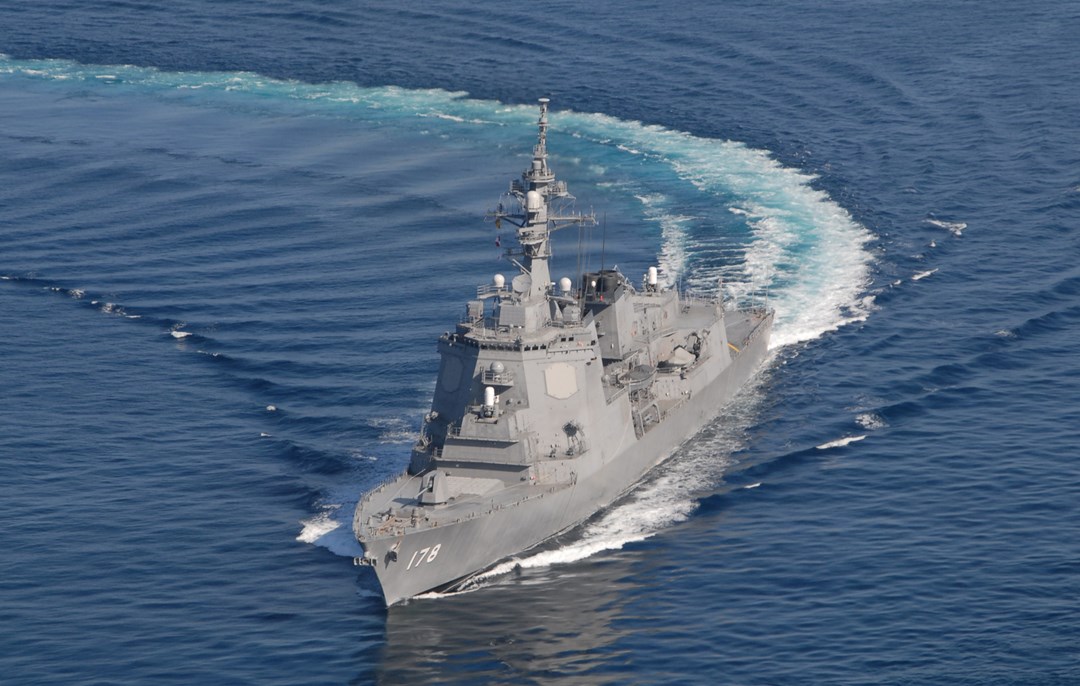

Variant 2 Atago
Details
Country of Origin Japan
Category Destroyers
Naval > Destroyers
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
161 m
Width
21 m
Height
Weight
9485000 kg
Operators (1)
Japan
