P-19 (Flat Face B) Russian Mobile 2D UHF Radar
P-19 (Flat Face B), IRL134
3D Air Surveillance and Acquisition Radar
Other
Basic Information
Name
P-19 (Flat Face B) Russian Mobile 2D UHF Radar
Designation
P-19 (Flat Face B), IRL134
Alternate Designation
P-19 (Flat Face B), IRL134
Equipment Type
3D Air Surveillance and Acquisition Radar
Manufacturer
—
Date of Introduction
1964
Description

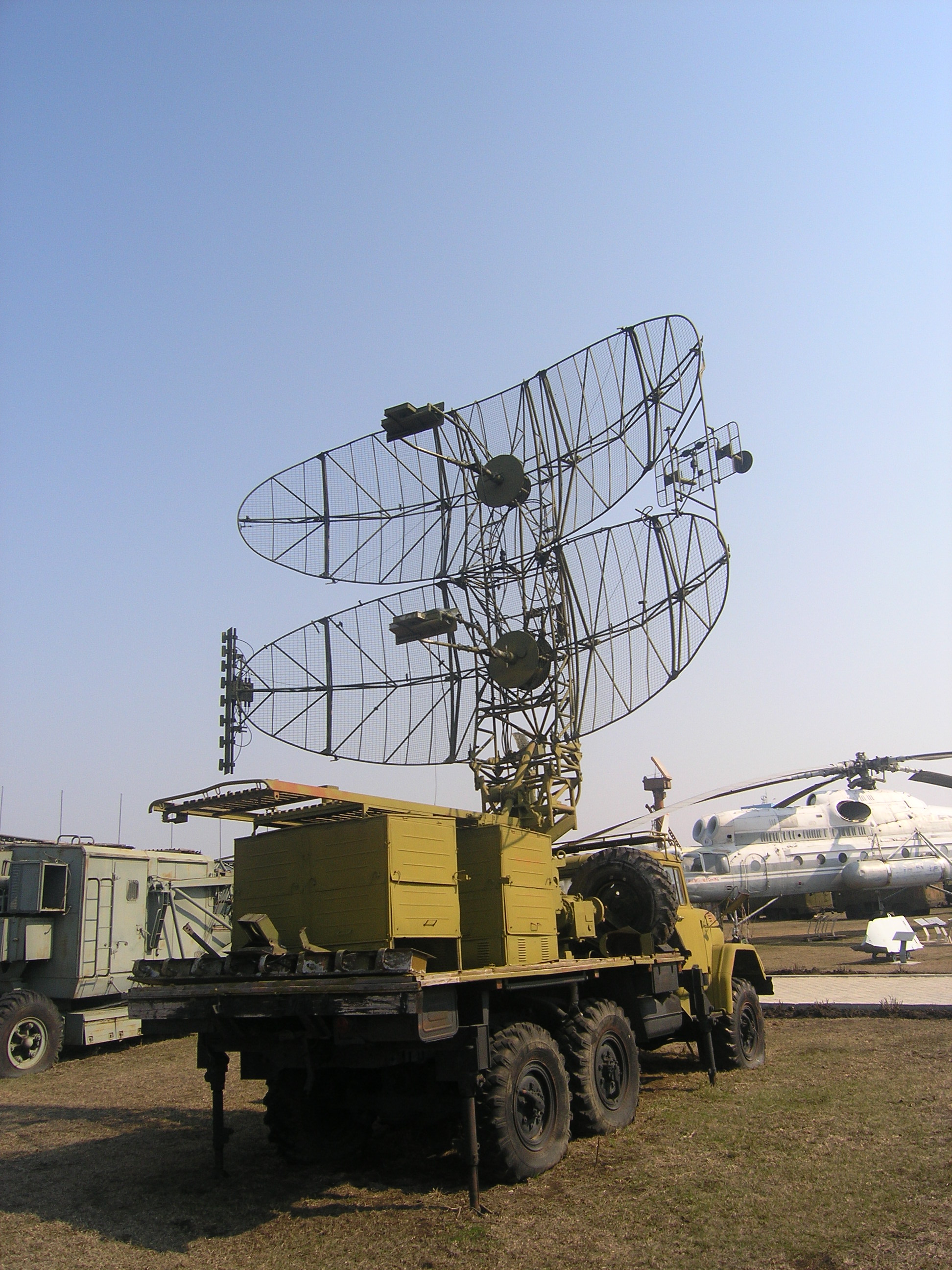

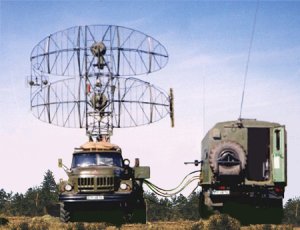

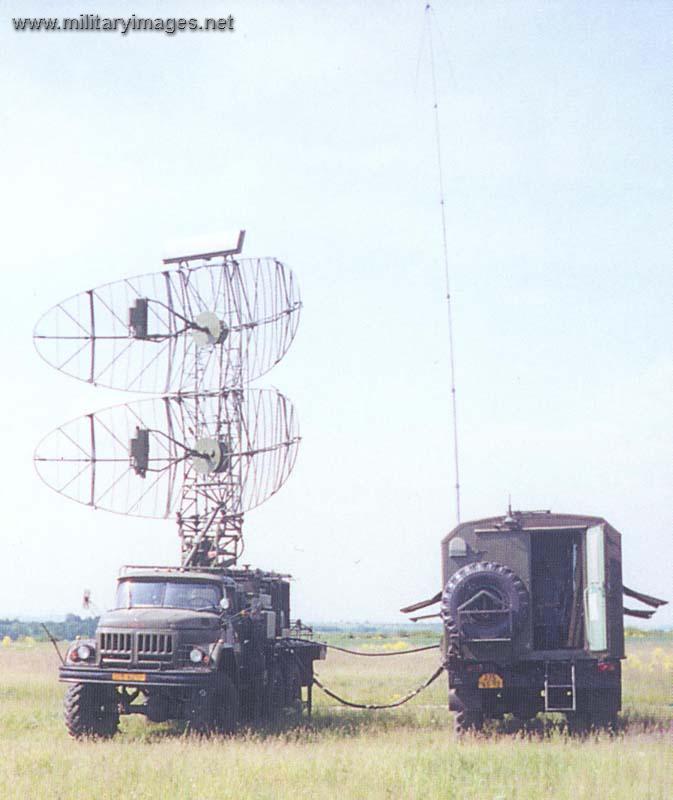

This radar was developed from the Flat Face A. It is associated with SA-2 Guideline, SA-3 Goa, SA-6 Gainful, and SA-8 Gecko SAM systems. It is also designated the 1RL134. The P-19 is truck-mounted on a 6 x 6 chassis and employs an antenna array with two elliptical reflectors mounted one above the other. Like the P-15, it uses the 1L22 Parol IFF equipment. Digital plot processing has been fitted.
Ground Specifications
Crew
3
Active Protection
None
Variants
Flat Face A (Russian P-15)
This variant is associated with SA-2 Guideline and SA-3 Goa (Russian S-125 Neva) SAM systems. Operates in C-band. It is also designated the 1RL13.
Bharat Electronics P-19 upgrade
This modernization includes a new digital signal processor providing moving target indication with staggered pulse repetition frequency; a new solid-state low-noise amplifier; color raster scan display; IFF provisions; and built-in test equipment.
ELSYS P-19 upgrade
This version from Ukrainian firm ELSYS includes an MSHB-19 low-noise microwave amplifier, which features a limiter that reportedly has an operating frequency of 700 to 1,000 MHz; a gain of 26 to 32 dB; a 3 dB noise figure; and a maximum allowable input pulsed power value of 3,000 W.
Retia RLP-19/IFF P-19 upgrade
This modernization includes an AN/TPX-56 IFF interrogator, updated communications, digital processing, new display console, Doppler filtering, planar IFF antenna and built-in test equipment.
KB Radar P-15R
This is an upgrade to the P-15 radar developed by KB Radar in Belarus. The modernization includes a MAZ truck chassis, or other chassis as requested by the customer; standard shelter; standard top and bottom antennas; upgraded bottom antenna phase switch; standard rotary support mechanism with slip rings; and an upgraded digital azimuth meter.
Ukroboronservice P-190U
This is a P-19 radar upgrade from Ukroboronservice in Ukraine. It features automated workstations; improved radar performance; wide range of narrow and broadband probing signals enabling the radar to adapt to various combat environments; digital signal processing, including matched filtration; clutter and active jamming suppression; target detection and coordinate measuring; target tracking; and data distribution. New software features a user-friendly interface.
DefTech P-19 upgrade
This is a modernization offered by DefTech Global in the United Arab Emirates. It features an all solid-state design that enhances all combat capabilities and reduces maintenance. New equipment includes a solid-state transmitter; solid-state receiver; and digital signal processing. Optional gear includes a four-channel dejammer; height-finder control software and equipment; software for guiding fighter jets; software for targeting air defense systems; and equipment for documentation.
Kasta-2E (39N6E/Casta 2E/Flat Face E)
This is an all solid-state variant of the rugged and effective Flat Face. Digital moving target indication (MTI) improves countermeasure resistance. Wide-band reflections from clouds are screened out by a special filter. To combat jamming, the radar employs automatic or manual selection of any one of 10 carrier frequencies, phase modulation and constant false-alarm rate (CFAR) processing, among other techniques. "Flicker" radiation, where the radar is turned on and off intermittently, reduces its vulnerability to anti-radar missiles. The radar is optimized to detect low-flying targets in heavy surface and weather clutter environments.
P15M2 (NATO Squat Eye)
This variant operates in the C-band and has a single antenna on a tethered latticework mast. See separate record for more information.
System
Alternative Designation
P-19 (Flat Face B), IRL134
Type
2D UHF Radar
Manufacturer
INA
Chassis
ZIL-131
Crew
3 ea
Dimensions (Chassis: ZIL-131)
Length
6.9 m
Width
2.5 m
Height
2.9 m
Weight, Empty
6,700 kg
Antenna Width
6.00 m
Antenna Height
2.15 m
Automotive (Chassis: ZIL-131)
Engine Name
ZIL-131
Engine Type
V-8, water cooled, 4 stroke, petrol
Engine Power
150 hp at 3,200 rpm
Transmission
Manual
Cruising Range
645 km
Speed, Maximum Road
80 km/h
Speed, Average Cross
INA
Speed Maximum Swim
Not Amphibious
Gradient
58%
Side Slope
INA
Vertical Step
INA
Trench
INA
Fording Depth
0.850 M
Radar System
Band
NATO C (810-850 or 880-905 MHz)
Maximum Range
360 km
Peak Power
300 kW
Beam WIdth Azimuth
10 deg
Beam Width Elevation
5 deg
Accuracy Angular
5 deg
Accuracy Range
80 m
Pulse Width
2-3 microseconds
Pulse Repetition Frequency
837.5 MHz to 880 GHz
Parabolic Reflectors
Two elliptical parabolic reflectors measuring 11x5.5 m. Reflectors arranged one above the other on van roof.
Associated Missiles and Radars
SA-2 Guideline, SA-3 Goa, SA-6 Gainful and SA-8 Gecko SAM systems
Protection
Armor
INA
Applique Armor
No
Active Protection System
No
Mine Clearing
No
NBC Protection
INA
Smoke Equipment
No
Details
Country of Origin
Russia
Category
Radars
Land > Radars
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
6700 kg
Operators (3)
Russia
Czech Republic
Algeria
