Black Hornet PRS Norwegian Unmanned Aerial Vehicle (UAV)
Black Hornet PRS
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Black Hornet PRS Norwegian Unmanned Aerial Vehicle (UAV)
Designation
Black Hornet PRS
Alternate Designation
Black Hornet PRS
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Teledyne FLIR
Date of Introduction
2014
Description
The Black Hornet PRS Norwegian Unmanned Aerial Vehicle (UAV) equips the non-specialist dismounted soldier with immediate covert situational awareness (SA). Game changing EO and IR technology bridges the gap between aerial and ground-based sensors, with the same SA as a larger UAV and threat location capabilities of UGVs. Extremely light, nearly silent, and with a flight time up to 25 minutes, the combat-proven, pocket-sized Black Hornet PRS transmits live video and HD still images back to the operator.
Air & Air Defense Specifications
Max Speed
6.0 km/h
Range
2.0 km
Endurance
25.00 hrs
Wingspan
12.30 m
System
Alternate Designation
Black Hornet PRS
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Teledyne FLIR
Flight Modes
Auto and Manual Hover & Stare;
Route and user selectable waypoint actions;
Automatic return;
Lost link
Navigation
GNSS navigation;
Vision Base Navigation for GPS-denied and indoor operation
(upgrade option);
Embedded Vector and Raster maps (upgrade option)
Mission Data
AES 256 encrypted Video, Snapshots, and Metadata;
Removeable 64 Gb SD-card for mission data; AES 256
STANAG 4609 and Cursor on Target (COT) compliant;
ATAK Compatible;
Can be integrated with selected BMS
Data Link Frequency
INA
Data Link Radio Range
2 km
Data Link Performance
Encrypted, dynamic power, frequency hopping, beyond line-ofsight
Payload (Day Imager)
2 EO Cameras
Payload (Night Imager)
Fused thermal and EO with user selectable LED light
Operating Temperature
-10°C to +43°C
Launch Time
30-120 Seconds depending on launch mode
Camera Resolution
EO Video
640x480
EO Snapshot
1600x1200
Thermal Imaging Video
160x120
Thermal Imaging Snapshot
160x120

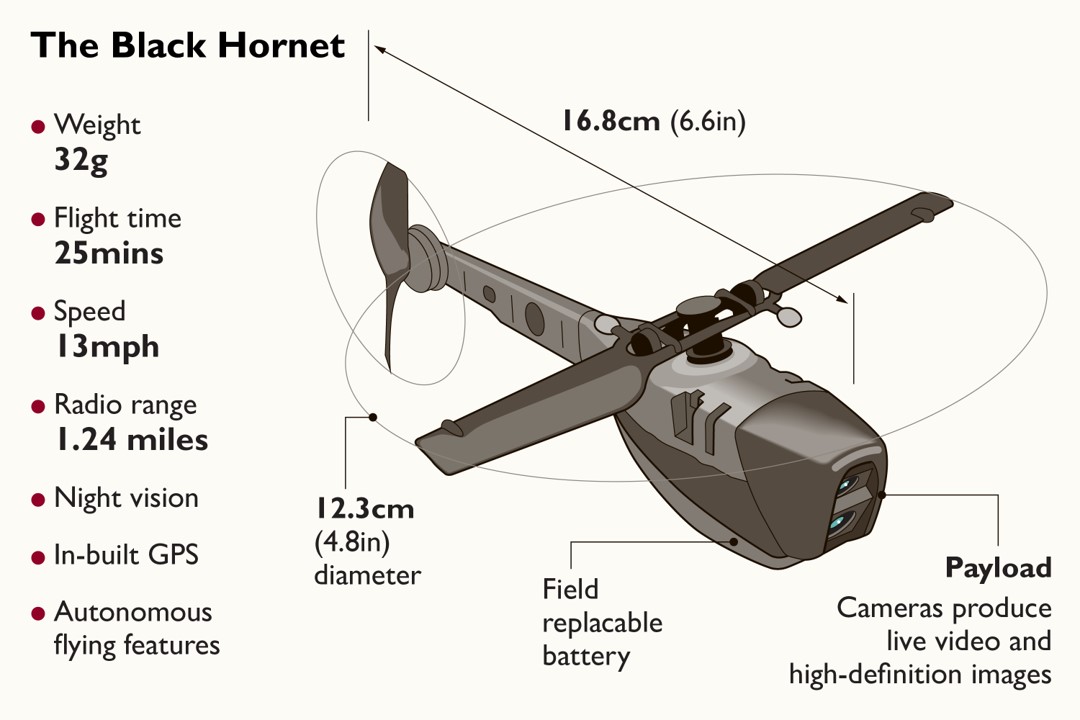

Dimensions
Length
16.8 cm
Height
INA
Wingspan
12.3 cm
Weight
32 kg
Automotive
Engine Name
INA
Engine Type
INA
Engine Power
INA
Maximum Speed
6 m/sec ground speed
Maximum Range
2 km (Radio Range)
Maximum Wind Speed
15 knots/gust 20 knots
Precipitation
2.5 mm //hr (Light rain)
Service Ceiling
INA
Endurance
25 minutes
Image Sources
Notes
https://www.womenwhodrone.co/single-post/2019/07/14/an-update-on-the-black-hornet-drone-worlds-smallest-drone-deployed-to-afghanistan; https://drones.stackexchange.com/questions/2269/does-the-tiny-helicopter-drone-black-hornet-use-a-swash-plate; https://www.turbosquid.com/fr/3d-models/3d-model-flir-drone-black-hornet-nano-uav-rigged-1918240; https://www.quora.com/What-are-micro-drones-Do-military-forces-use-them-to-accompany-soldiers;
Details
Country of Origin
Norway
Category
Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Air > Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Filter Label
B
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
0.17 m
Width
—
Height
—
Weight
32 kg
Operators (19)
Russia
United States
France
Germany
United Kingdom
Ukraine
Turkey
India
South Africa
Spain
Algeria
Australia
Denmark
Greece
Indonesia
Malaysia
Netherlands
New Zealand
Norway
