M113

M113

Self-Propelled Howitzers
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
M113
Designation
M113
Alternate Designation
Equipment Type
Self-Propelled Howitzers
Manufacturer
United Defense
Date of Introduction
Description

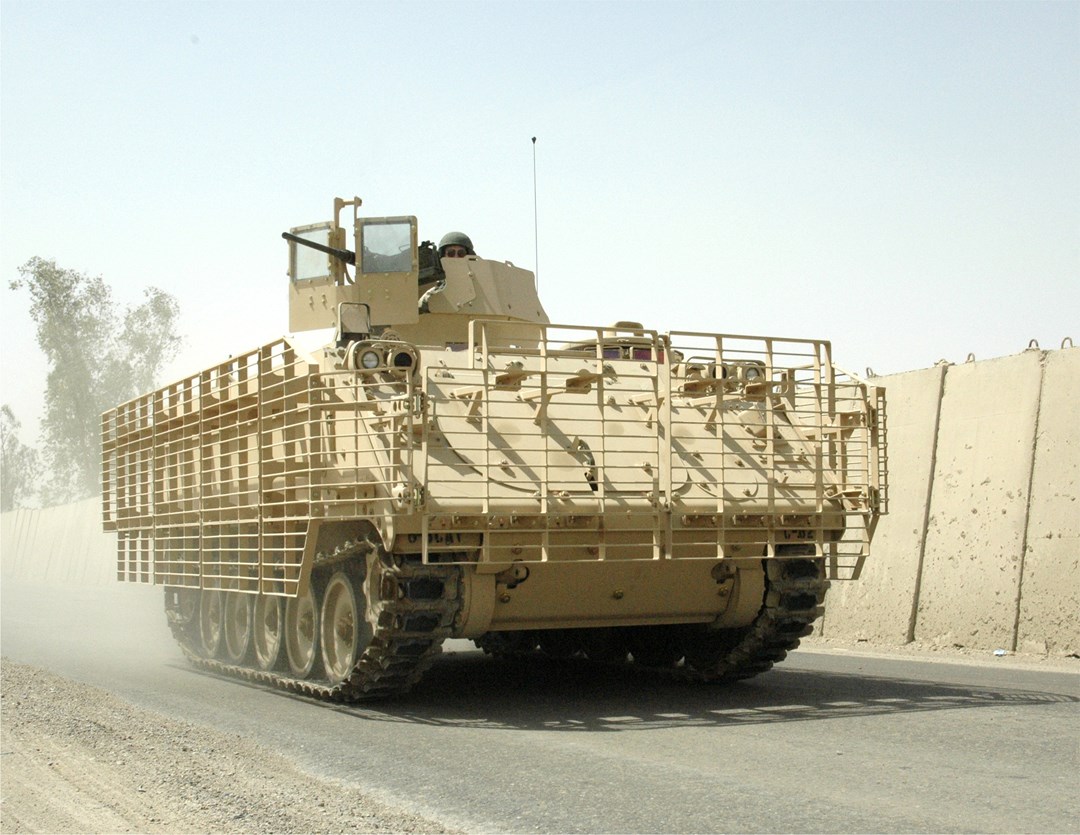

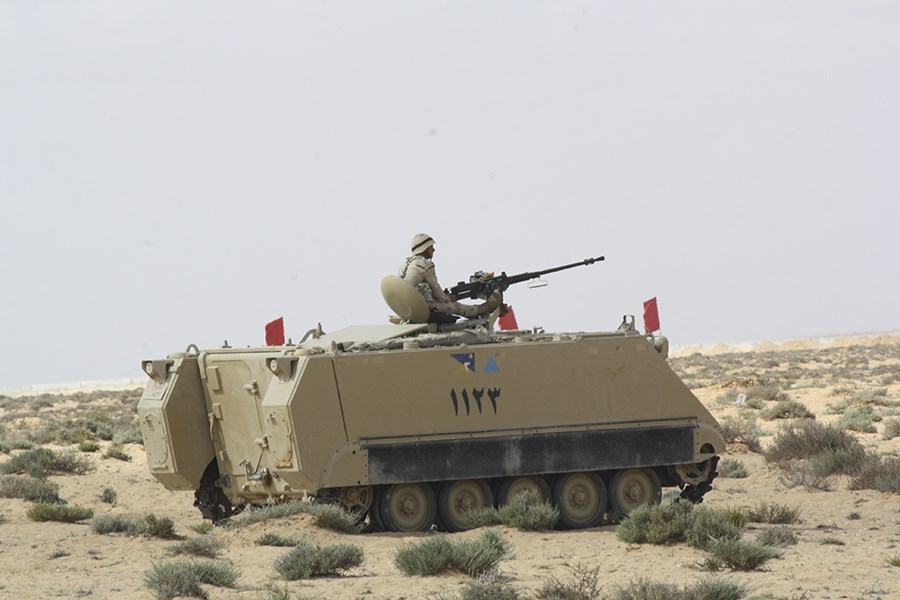

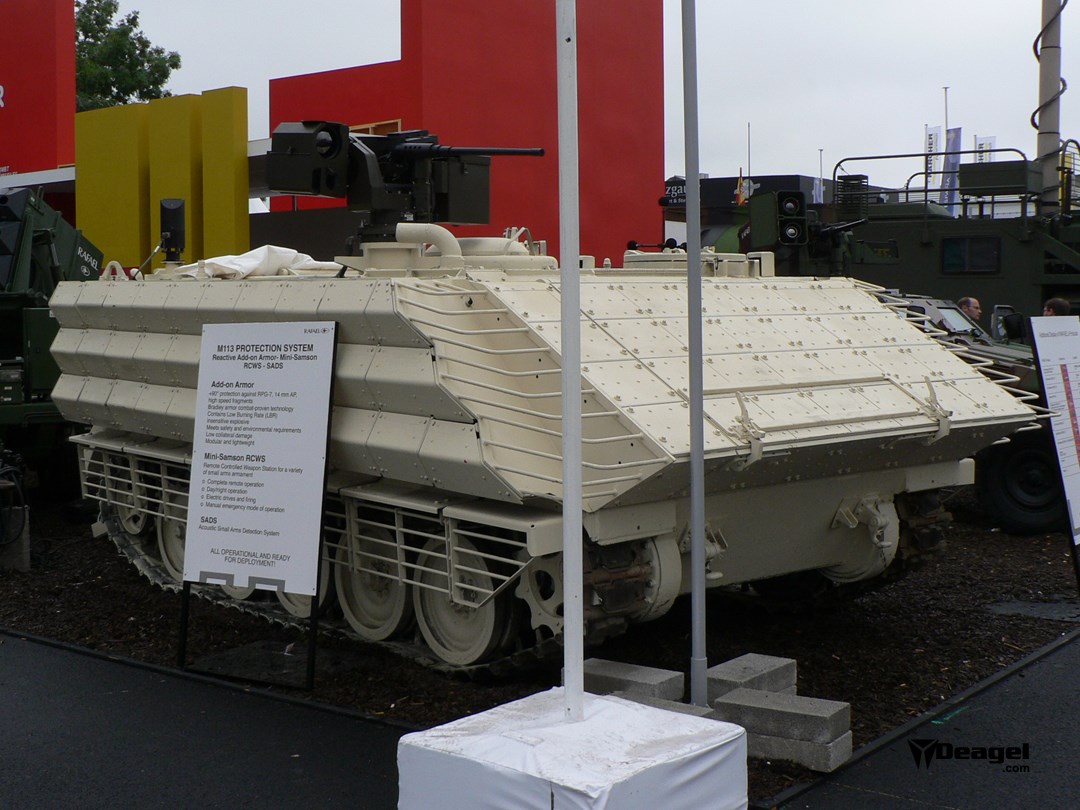

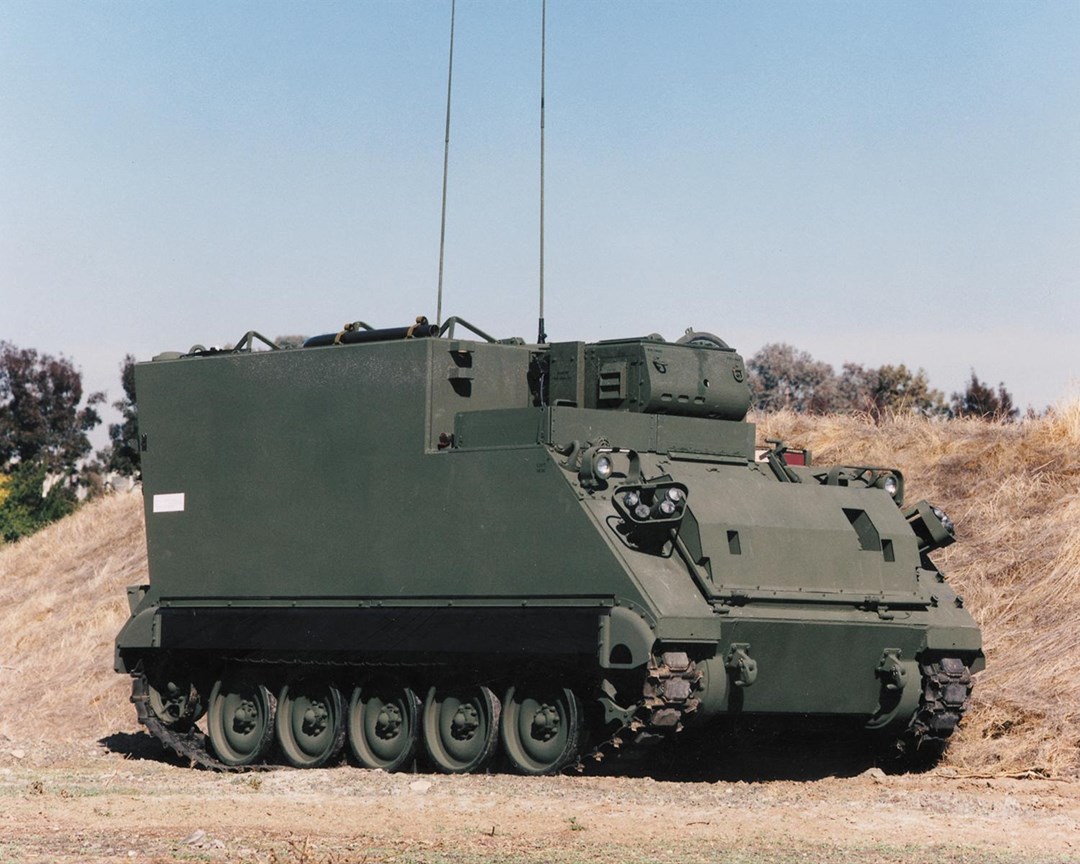

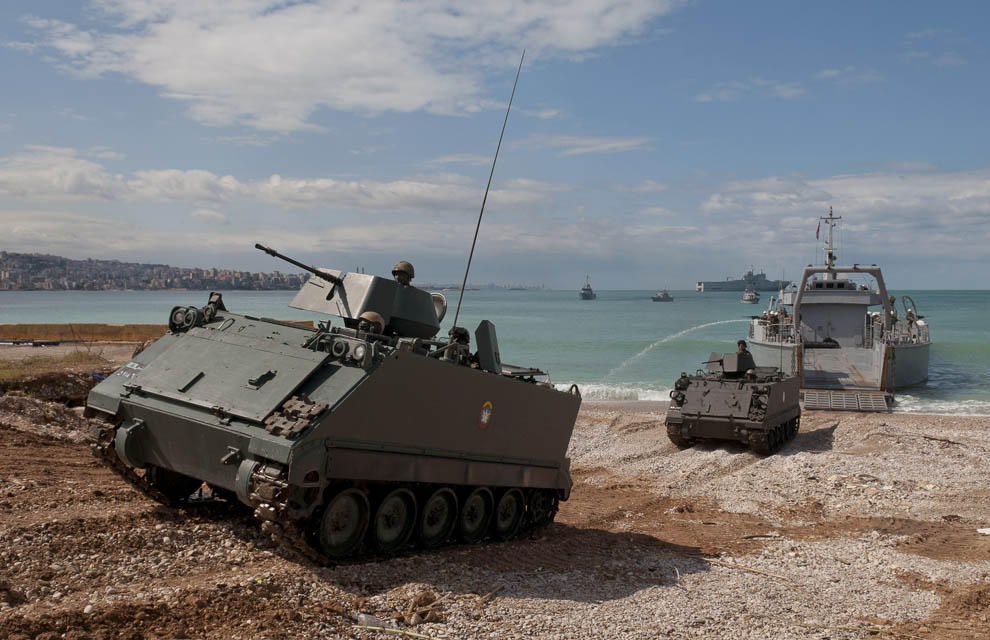

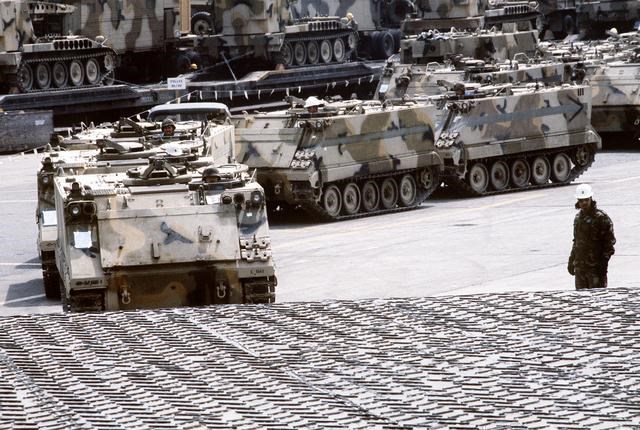

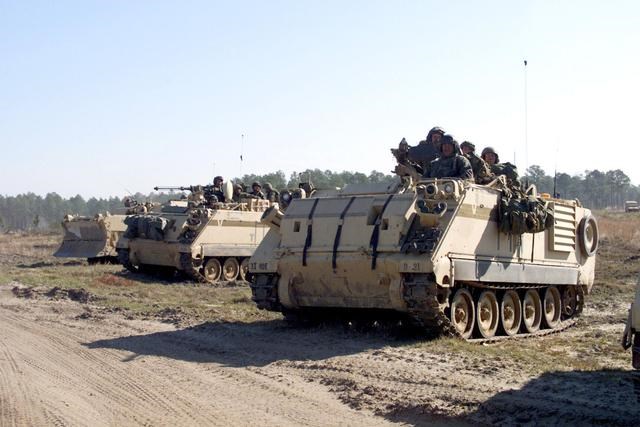

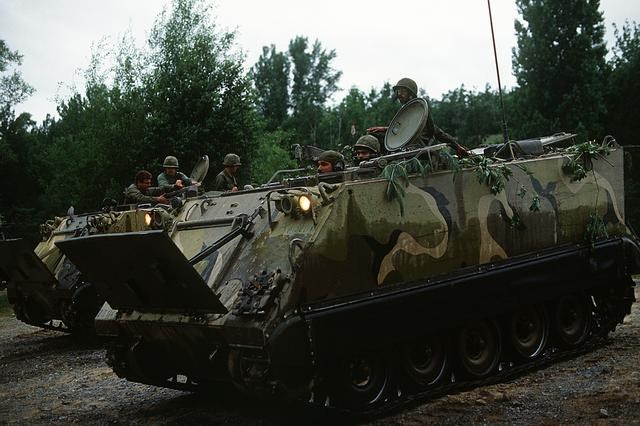

The M113 is an amphibious, air-transportable, full tracked family of light armored vehicles intended to perform a variety of battlefield missions. It includes more than 10 variants. M113 Armored Personnel Carrier (APC) entered service in 1960, M113A1 in 1964, M113A2 in 1979 and M113A3 in 1987. The other variants of M113 family feature similar capabilities of A1, A2 or A3 configuration. More than 80,000 M113 vehicles have been produced of which 70,000 are M113 models. The M113 vehicles have been sold to more than 50 countries worldwide and is being produced under license in allied nations such as Turkey and the Netherlands. M113 have seen combat in Vietnam, North of Africa, Middle East and Southeast Asia. It was deployed during the Gulf War (1990-1991) and during operation Iraqi Freedom (2003). The US Army utilizes M113A2 and A3 models and is expected to standardize to the A3 configuration before the arrival of its replacement, the Future Combat Systems (FCS) family of manned and unmanned ground vehicles, by 2010-1014 timeframe. In 2011 the FCS program was cancelled. In 2014 the US launched the AMPV program as the replacement for the M113 family of vehicles.

Ground Specifications
Crew 2
Mobility Type Tracked
Main Weapon 107 millimeter
Max Speed 66.2 km/h
Range 483.0 km
Overview (Deagel)
Group Self-Propelled Howitzers
Status Active
Also Known As M106A2, M106A3
Origin United States of America
Contractor United Defense
Total Production ?
Specifications (Deagel)
Crew 2
Troops 11
Dimensions — Height 2.2 meter
Dimensions — Length 4.9 meter
Dimensions — Main Gun Caliber 107 millimeter
Dimensions — Width 2.7 meter
Mass — Combat Weight 14,000 kilogram
Performance — Max Range 483 kilometer
Power — Power 275 shp
Speed — Top Speed 18.4 mps
Variants
Variant 1 M106
Variant 2 M548
Variant 3 M577
Variant 4 M125
Variant 5 M1064
Variant 6 M730
Variant 7 M901
Variant 8 M981
Variant 9 M1059
Variant 10 M1068
Variant 11 M113
Variant 12 M58
Details
Country of Origin United States
Category Artillery
Land > Artillery
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
4.9 m
Width
2.7 m
Height
2.2 m
Weight
14000 kg
Operators (3)
United States
Turkey
Netherlands
