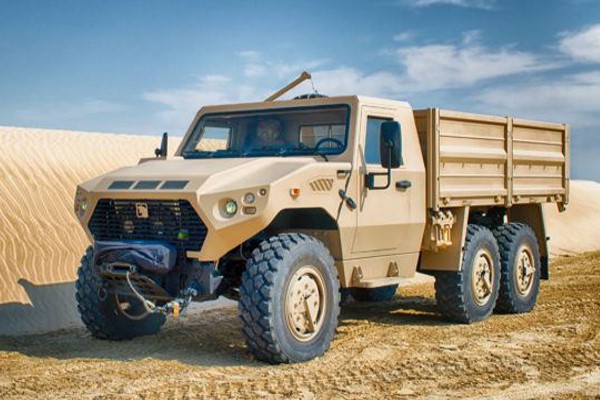

Nimr Hafeet 620 Emirati 6x6 Light Utility Truck

Nimr Hafeet

Light Utility Vehicle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Nimr Hafeet 620 Emirati 6x6 Light Utility Truck
Designation
Nimr Hafeet
Alternate Designation
Nimr Hafeet
Equipment Type
Light Utility Vehicle
Manufacturer
NIMR
Date of Introduction
2018
Description

The Nimr Hafeet 620 Emirati 6x6 Light Utility Truck provides a multipurpose platform for all military requirements at 13,000 kg capacity from utility vehicles to fully protected patrol vehicles. A universal 6x6 chassis is utilized for a common logistic basis. All vehicles in the HAFEET Class can be protected, and specific protected models are included for crew survivability with fully tested and certified cabins. The main role of the Hafeet is to provide troops with logistical and utility support. Also, there are some specialized versions of this vehicle. It is a purpose-designed military vehicle, which can operate in demanding conditions. It has good cross-country mobility and can travel over difficult terrain. The Hafeet has a payload capacity and size of a light truck. However, due to its military nature, the Hafeet can withstand heavy use or even abuse, far exceeding that of militarized commercial vehicles or those based on commercial drivelines. Most versions of the Hafeet can carry loads with a maximum weight of 2 400-5 000 kg. This military vehicle can also tow trailers and light artillery pieces. There are 2-, 3- or 4-door versions of the Hafeet. All versions can be armored. The armored cab provides protection for the passengers against small arms fire and artillery shell splinters, mines, and improvised explosive devices.

Ground Specifications
Engine Diesel (296 hp)
Range 650.0 km
Variants
HAFEET 620A Logistics and Utility Vehicle
HAFEET 640A Artillery Support Vehicle (Observation and Command & Control configurations)
System
Alternative Designation Nimr Hafeet
Type Light Utility Truck
Manufacturer Nimr LLC
Configuration 6x6
Cab Seating 1 + 1/3 men ea
Cargo Capacity 13,000 kg
Airlift Capable INA
Note There are 2-, 3- or 4-door versions of the Hafeet. All versions can be armored.
Dimensions
Length 6.9 m
Width 2.3 m
Height 2.1 m
Weight, Empty 8 - 11.5 tons
Payload Capacity 2.4-5.0 tons
Automotive
Engine Name Cummins ISBe 300
Engine Type Diesel
Engine Power 296 hp
Maximum Road Speed 110 km/h
Maximum Range 650 km
Gradient 43 %
Side Slope 30 %
Vertical Step 0.4 m
Trench 0.5 m
Fording 1 m
Note #1 This military vehicle can also tow trailers and light artillery pieces.
Note #2 Vehicle is fitted with a central tyre inflation system and run-flat tyres as standard. Also there is a recovery winch, which also comes as standard.
Main Weapon System
Note This armored vehicle has a roof hatch and can be fitted with a roof-mounted 7.62 mm or 12.7 mm machine gun machine gun, or 40-mm grenade launcher. Sometimes the Nimr II is even fitted with a heavy machine gun. Depending on customer requirements this vehicle can be fitted with remotely controlled weapon station. Some vehicles are fitted with smoke grenade dischargers.
System
Name 1 x Caracal Assault Rifle 817
Type Assault Rifle
Caliber 7.62 mm
Country United Arab Emirates
Manufactuer Caracal International company
Caliber 7.62 mm
Length, Stock Extended 884 mm
Length, Stock Retracted 802 mm
Barrel Length 406 mm
Weight, Without Magazine 3.3 kg
Muzzle Velocity 750 m/s
Cyclic Rate of Fire 650-750 rds/min
Practical Rate of Fire 30-90 rds/min
Magazine Capacity 10, 20, 25 rounds
Range of Effective Fire 600 m
Sight Iron
Ammunition
Type Rifle
Caliber 7.62 mm
Cartridge 7.62x51 mm
Basic Load INA
Protection
Armor The armored cab provides protection for the passengers against small arms fire and artillery shell splinters, mines and improvised explosive devices.
Applique Armor Available, There are numerous versions of the Nimr Hafeet. Due to its modular nature the vehicle can be configured to suit various battlefield roles.
Explosive Reactive Armor No
Active Protection System INA
NBC Protection Optional
Smoke Equipment Available, smoke grenade dischargers
Fire Suppression System Yes
Protective Net Protective net against anti-tank rocket launchers
Battle Field Management System Available
Details
Country of Origin United Arab Emirates
Category Tactical Utility Vehicles
Land > Infantry Vehicles > Tactical Utility Vehicles
Filter Label
N
Classification
Domain
Ground
Equipment Status
Active
Operators (7)
Algeria
Egypt
Jordan
Lebanon
Libya
Tunisia
United Arab Emirates
