Basic Information
Name
River
Designation
River
Alternate Designation
Amazonas (Brazil), Krabi (Thailand), Ocean Patrol Vessel, Port of Spain (Trinidad and Tobago), Tyne
Equipment Type
Patrol Boats
Manufacturer
BAE Systems, Bangkok Dock
Date of Introduction
2002
Description

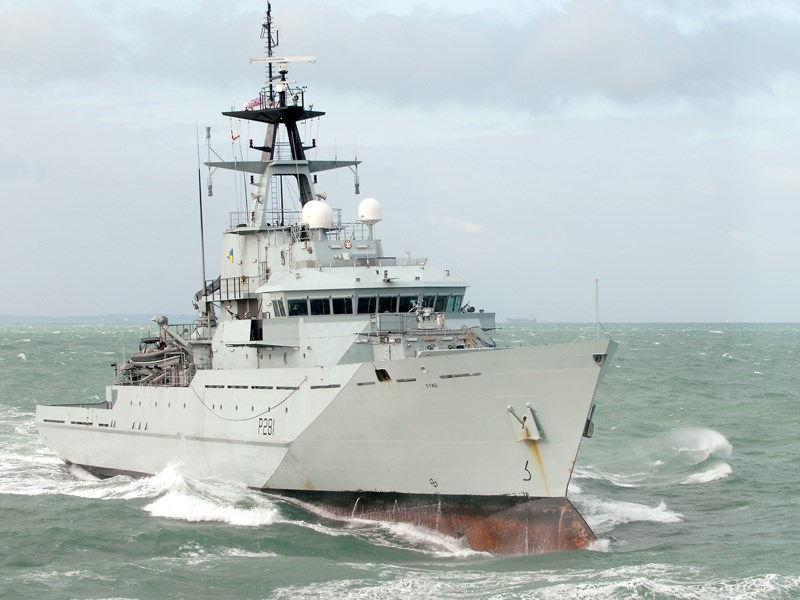

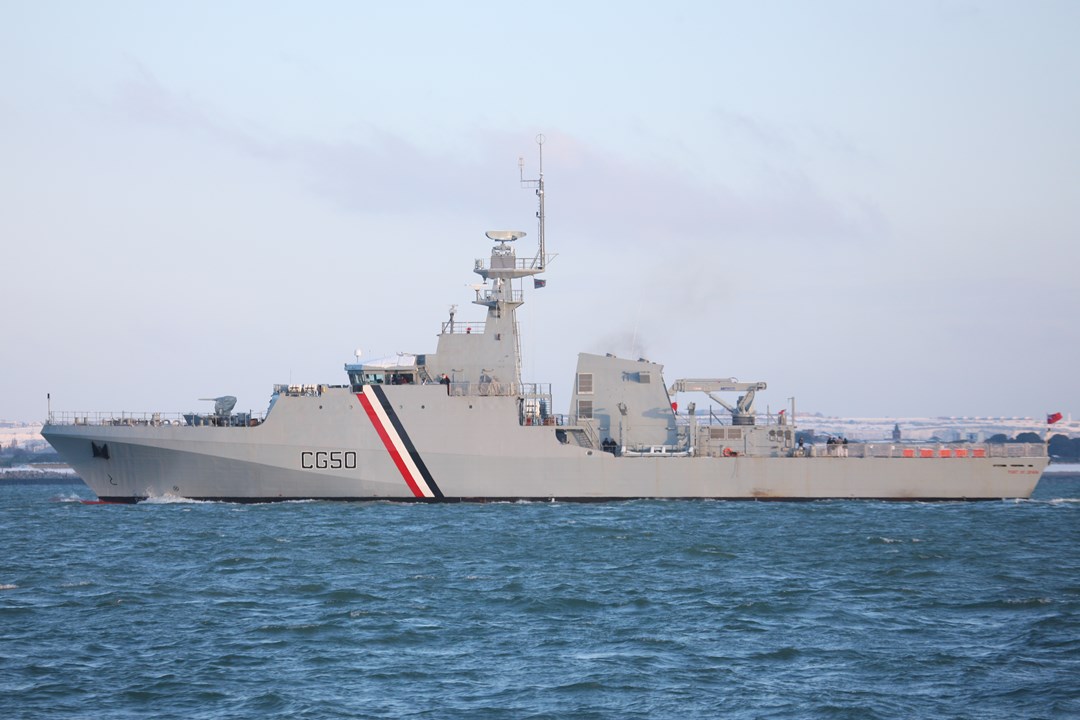

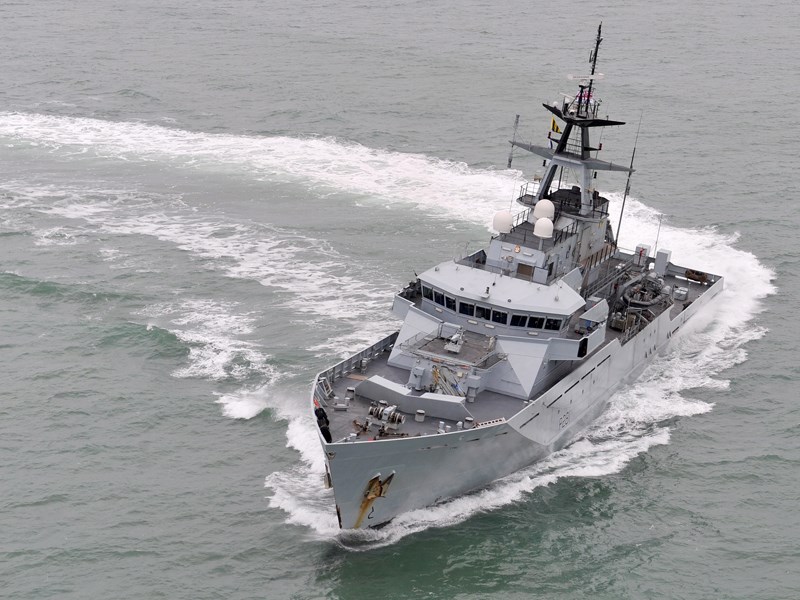

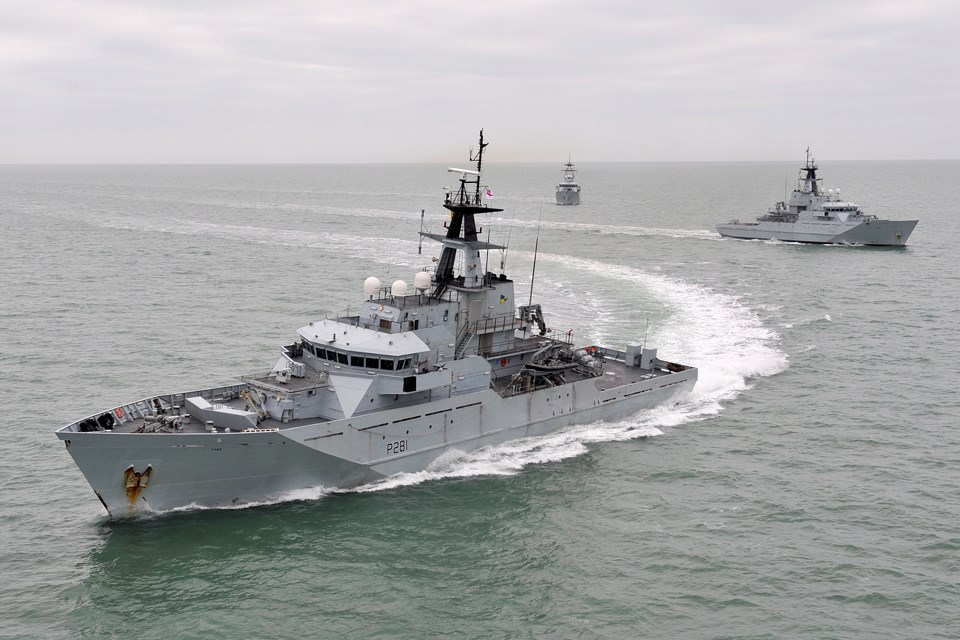

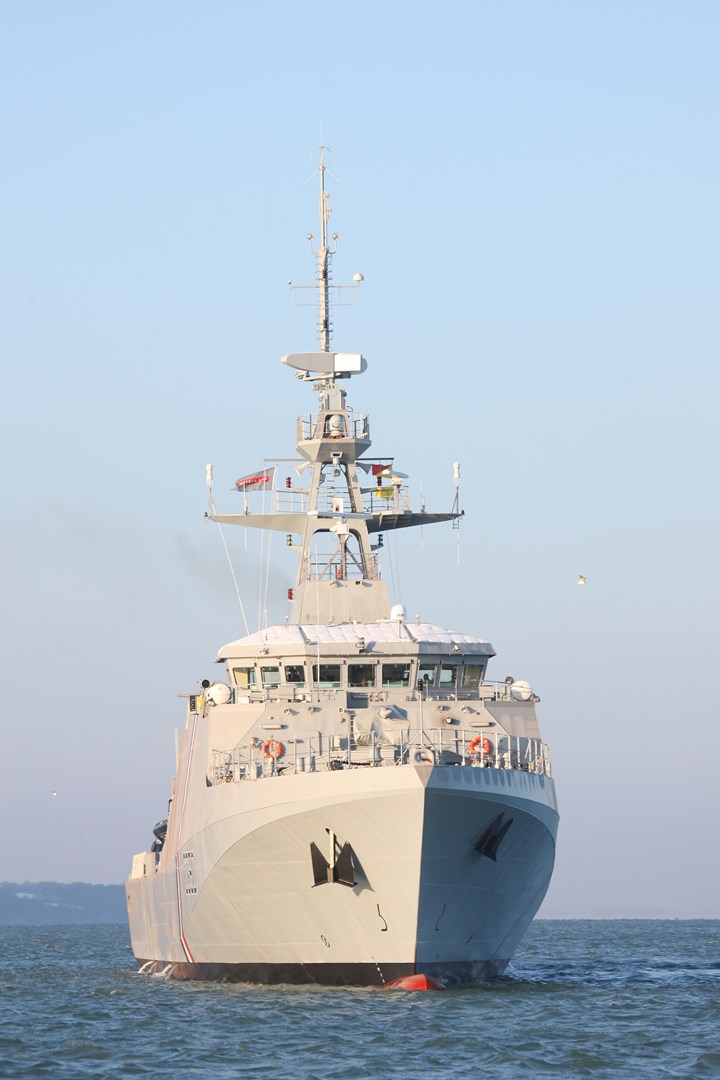

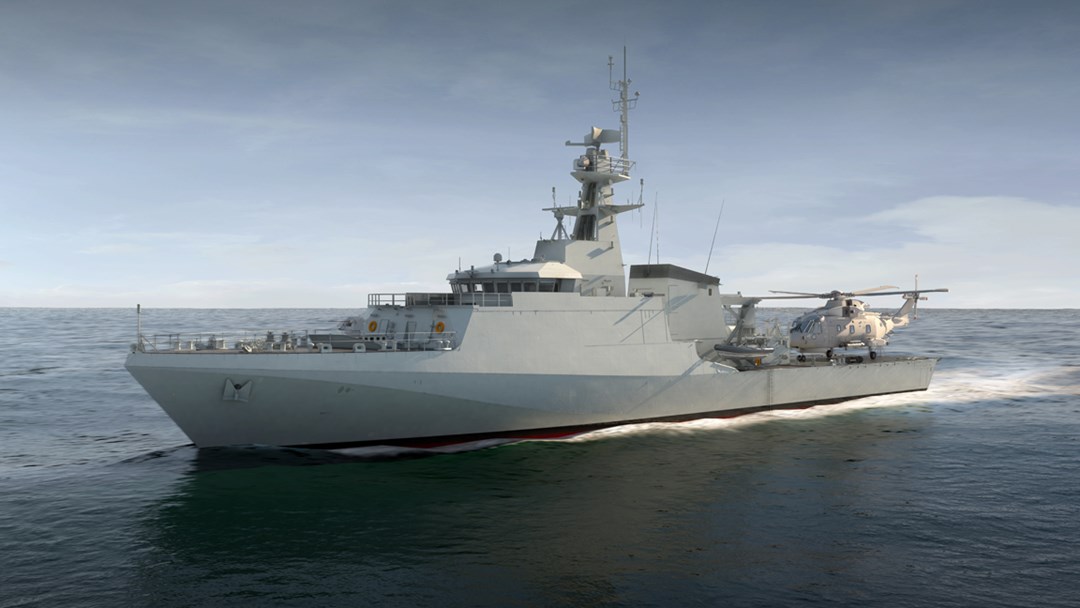

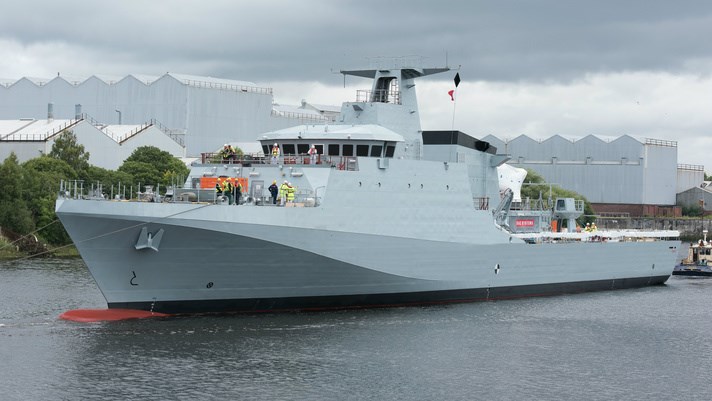

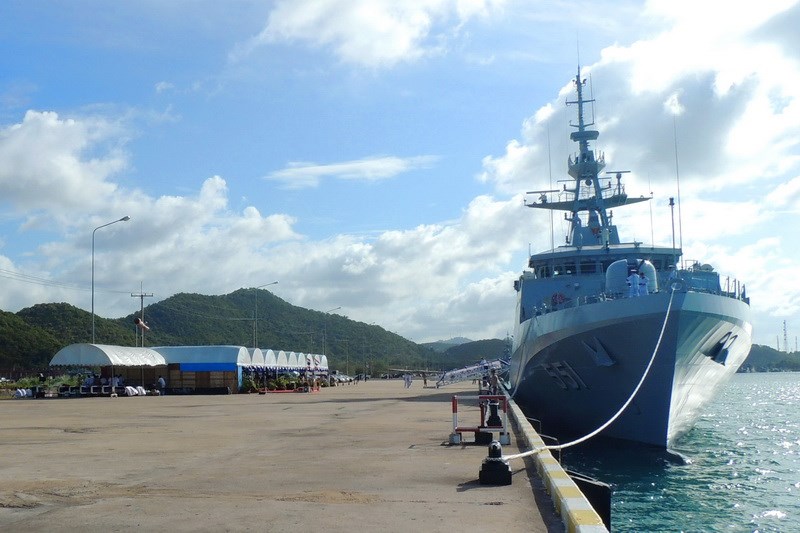

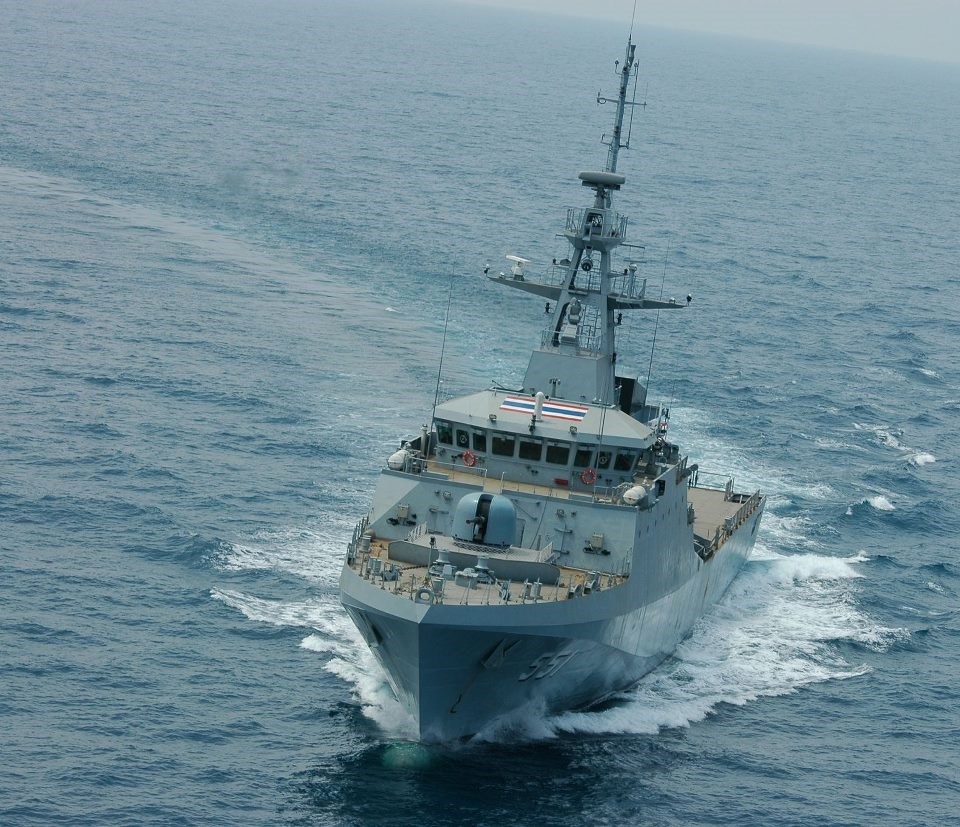

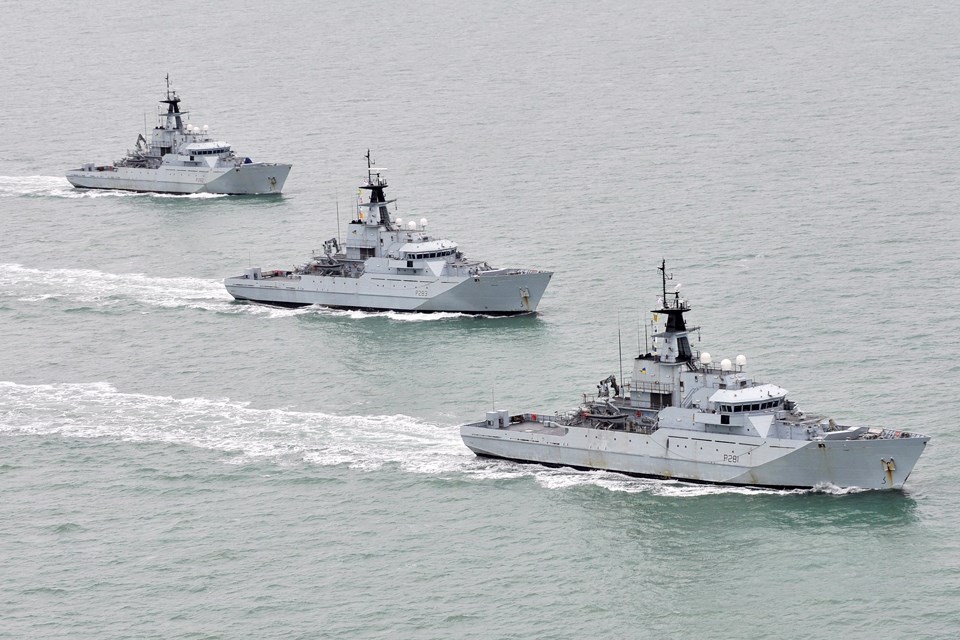

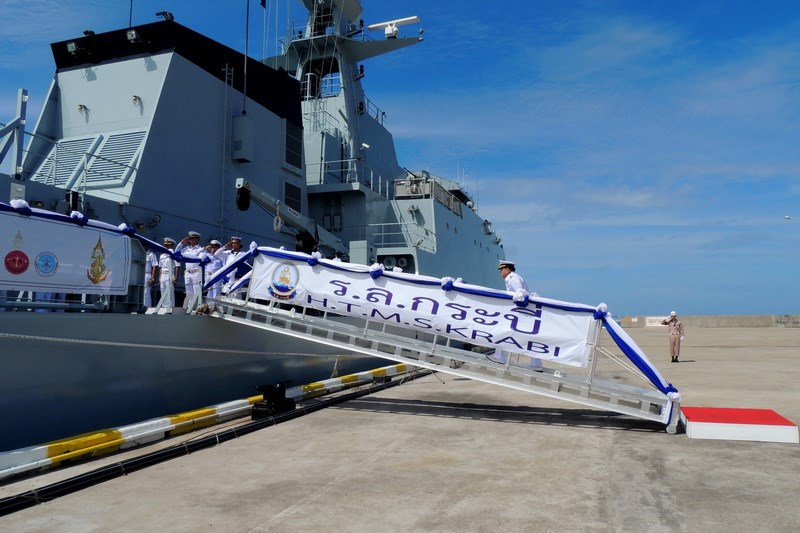

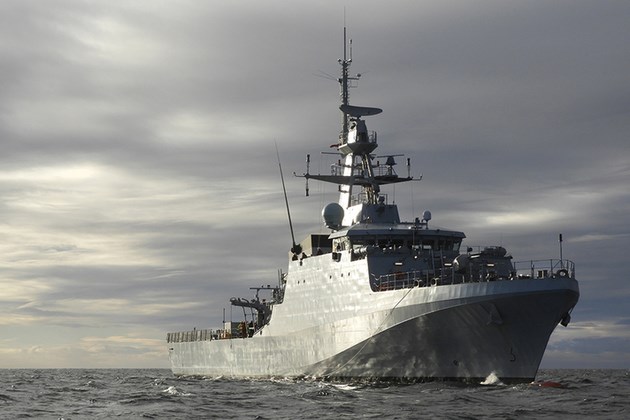

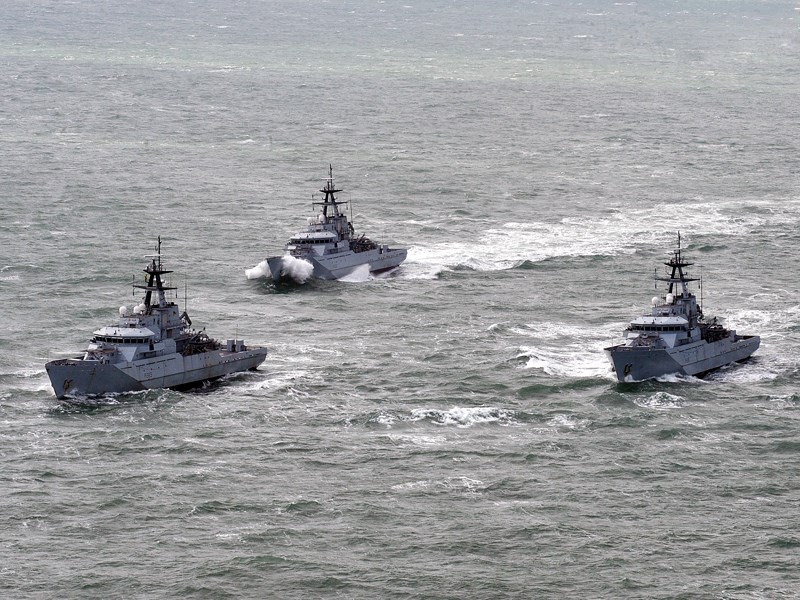

The River-class of offshore patrol vessels has been designed as the replacement for the Island-class built and commissioned by the Royal Navy in the late 1970s. The propulsion system of these vessels consists of two diesel engines developing a top speed of 16.5 knots. The main purpose is fishery protection. These 90-meter ships are armed with a 20mm cannon. The Royal Navy commissioned three vessels in 2002 and 2003. In April 2007, Trinidad and Tobago ordered three vessels from VT Shipbuilding under a £150 million contract. In June 2009, Thailand ordered one 90-meter offshore patrol vessel based on the River-class design. The ship is being built in Thailand by Bangkok Dock with the keel laying ceremony held in late August 2010. The ship design has been modified to include combat systems utilized by the Royal Thai Navy. The Royal Navy ordered three additional vessels in November 2013 as replacement for the three smaller River class.

Naval & Littoral Specifications
Crew 60
Displacement 1677.00 tonnes
Beam 13.50 m
Draft 3.50 m
Max Speed 25.0 knots
Overview (Deagel)
Group Patrol Boats
Status Active
Also Known As Amazonas (Brazil), Krabi (Thailand), Ocean Patrol Vessel, Port of Spain (Trinidad and Tobago), Tyne
Origin United Kingdom
Contractors BAE Systems*, Bangkok Dock
Initial Operational Capability (IOC) 2002
Total Production 8
Unitary Cost GBP £50 million
Specifications (Deagel)
Crew 60
Dimensions — Beam 13.5 meter
Dimensions — Draft 3.5 meter
Dimensions — Length 90.5 meter
Dimensions — Main Gun Caliber 20 millimeter
Mass — Full Displacement 1,677 ton
Performance — Max Range 5,500 nautical mile
Speed — Cruise Speed 16.5 knot
Speed — Economical Speed 12 knot
Speed — Top Speed 25 knot
Time — Mission Endurance 35 day
Gear (Deagel)
Item 1 Naval Gun Systems: 76/62 Compact (1)
Variants
Variant 1 River
Variant 2 Forth
Details
Country of Origin United Kingdom
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
90.5 m
Width
13.5 m
Height
Weight
1677000 kg
Operators (4)
United Kingdom
Brazil
Thailand
Trinidad and Tobago
