Ondatra Class (Project 1176 Class) Russian Landing Craft

Ondatra Class

Landing Craft

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

Ondatra Class (Project 1176 Class) Russian Landing Craft

Designation

Ondatra Class

Alternate Designation

Ondatra Class; Project 1176 Class

Equipment Type

Landing Craft

Manufacturer

Azovskiy Shipyard, Rybinsk Shipyard and Vladivostok Shipyard

Date of Introduction

1971

Description

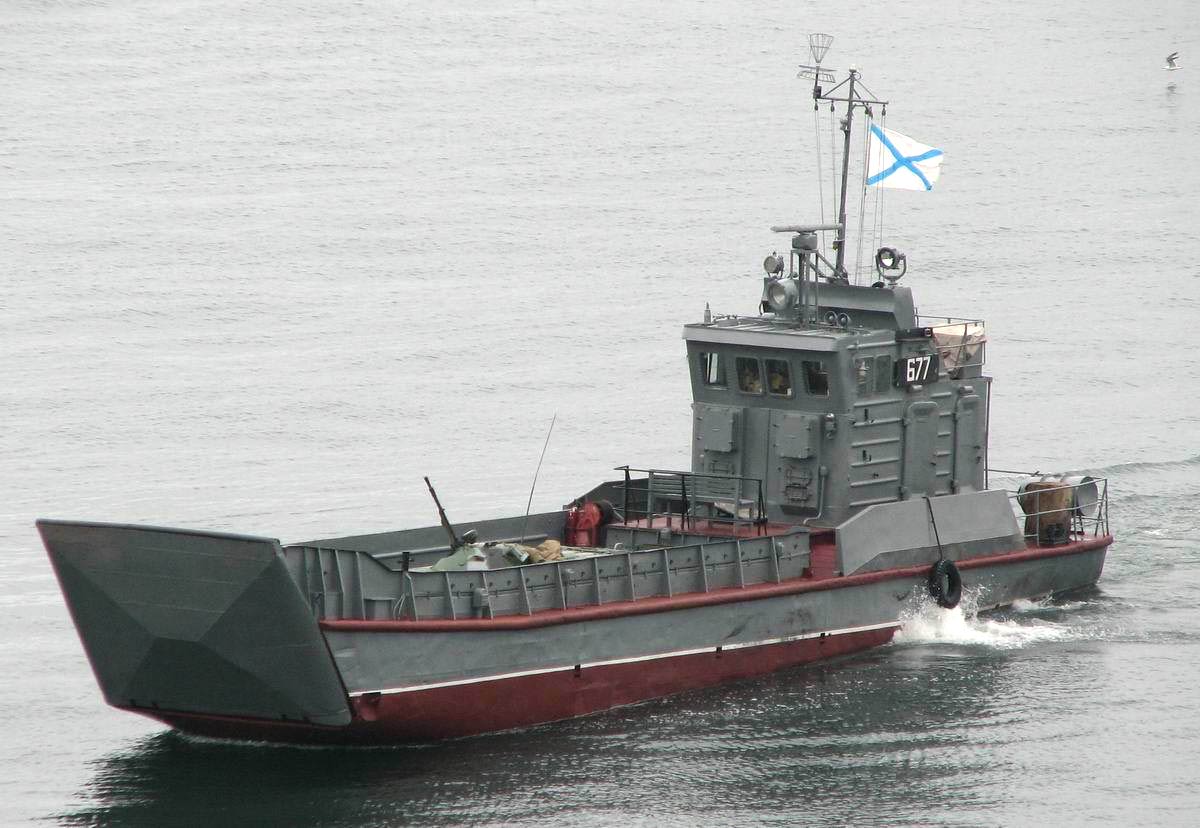

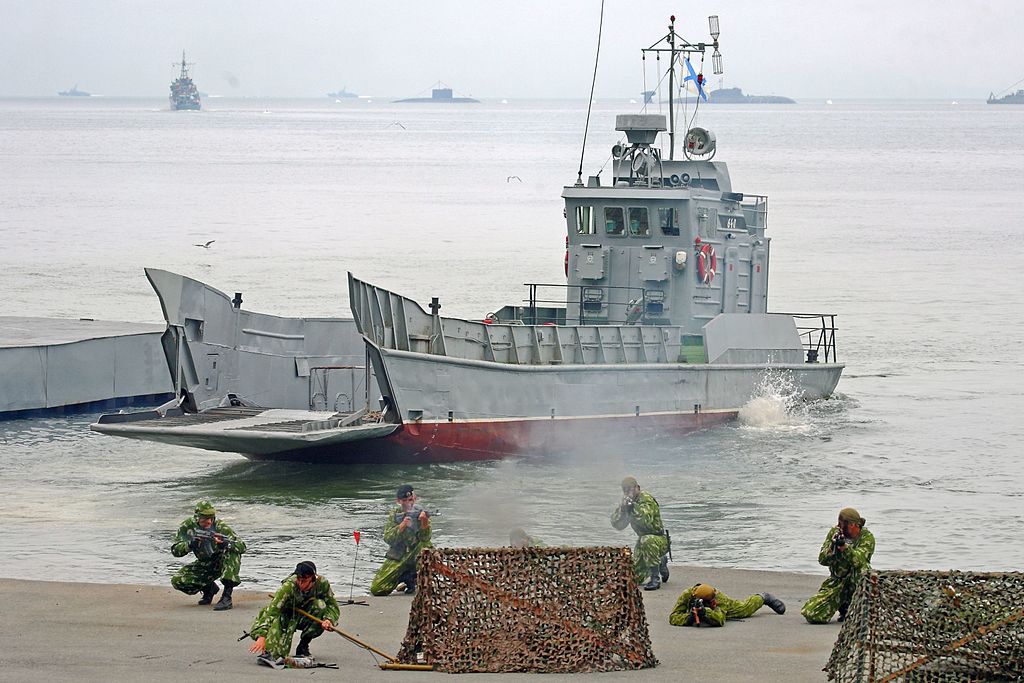

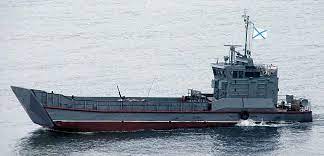

The Ondatra Class (Project 1176 Class) Russian Landing Craft is a class of landing craft built for the Soviet Navy and Russian Navy between 1971 and 2009. The vessels were built by the Azovskiy Shipyard, Rybinsk Shipyard, and Vladivostok Shipyard. Over 30 vessels of this type were built for service with the Soviet and Russian navies, and additional vessels were built for export. The vessels are designated as type DKA Desantanyy Kater and are similar in type to the US Navy Landing Craft Mechanized. The Ondatra landing craft with an open dry cargo hold and a bow ramp has a limited range and has a shallow draught that makes them ideal for amphibious operations and littoral combat. The Ivan Rogov-class landing ship carries one Ondatra for use as a tug for its Lebed-class air-cushioned landing craft.

Ground Specifications

Crew 4

Max Speed 18.5 km/h

Range 926.0 km

Variants

D-335 Commissioned: 1971 Status: Decommissioned in 1990 Fleet: Decommissioned

D-236 Commissioned: 1974 Status: Decommissioned in 1990 Fleet: Decommissioned

MDK-01 (ex-D-237) Commissioned: 1974 Status: Actve Fleet: From 1992 with the Georgian Navy

D-393 Commissioned: 1975 Status: Decommissioned in 1993 Fleet: Decommissioned

D-704 Commissioned: 1976 Status: Active Fleet: INA

Svatovo (ex-D-305) Commissioned: 1979 Status: From 1998 with the Ukrainian Navy Fleet: INA

D-70 Commissioned: 1981 Status: Active Fleet: INA

Azov' Commissioned: 1981 Status: Active Fleet: INA

D-464 Commissioned: 1984 Status: Active Fleet: INA

D-464 Commissioned: 1986 Status: Active Fleet: INA

D-288 Commissioned: 1990 Status: Active Fleet: INA

MDK-02 (ex-D-293) Commissioned: 1990 Status: Active Fleet: From 1992 with the Georgian Navy

D-295 Commissioned: 1989 Status: Reserve Fleet: INA

D-325 Commissioned: 1991 Status: Active Fleet: INA

D-148 Commissioned: 1993 Status: Active Fleet: INA

D-365 Commissioned: 1994 Status: Active Fleet: INA

PSKA-771 Commissioned: 1995 Status: Active Fleet: INA

PSKA-772 Commissioned: 1995 Status: Active Fleet: INA

D-182 Commissioned: 1996 Status: Active Fleet: INA

D-185 Commissioned: 2005 Status: Active Fleet: INA

Nikolai Rubtsov (ex-D-163) Commissioned: 2005 Status: Active Fleet: INA

D-57 Commissioned: 2007 Status: Active Fleet: INA

D-184 Commissioned: 2008 Status: Active Fleet: INA

D-106 Commissioned: 2009 Status: Active Fleet: INA

System

Alternative Designation Ondatra Class; Project 1176 Class

Type Landing Craft

Builder The vessels were built by the Azovskiy Shipyard, Rybinsk Shipyard and Vladivostok Shipyard.

Crew 4 total (all enlisted)

Cargo Capacity The cargo well is 13.7 m x 3.9 m and can accommodate one main battle tank or 50 tons of cargo.

Dimensions

Length 24.20 m

Beam 5.0 m

Draft 1.5 m

Cargo Deck, Length 13.7 m

Cargo Deck, Width 3.9 m

Cargo Deck, Height INA

Displacement, Standard 90 tons

Displacement, Full Load 145 tons

Propulsion System

Engine Name 2 x Type 3D12

Engine Type Diesel

Engine Power 600 total bhp

Maximum Range 500 nm at 5 knots

Maximum Speed 10 knots

Main Weapon System

Note There is no crew-served weapons associated with the Ondatra Class (Project 1176 Class) Russian Landing Craft.

Radar Systems

Navigation Radar 1 x Mius (Spin Trough) navigation radar.

Protection

Hull INA

Countermeasures INA

NBC Water Washdown System Yes

Image Sources

Note https://en.wikipedia.org/wiki/Ondatra-class_landing_craft; https://www.the-sun.com/news/5689724/russia-sinks-its-own-warship-with-sea-mine/; https://twitter.com/ChuckPfarrer/status/1542580009348599815

Details

Country of Origin Russia

Category Naval

Naval

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

24.2 m

Width

5 m

Height

—

Weight

90000 kg

Operators (4)

Russia

Ukraine

Soviet Union

Georgia
