PD1 Chinese Handheld Drone Detector
PD1
Counter-UAS System
Other
Basic Information
Name
PD1 Chinese Handheld Drone Detector
Designation
PD1
Alternate Designation
PD1
Equipment Type
Counter-UAS System
Manufacturer
Terjin
Date of Introduction
2024
Description

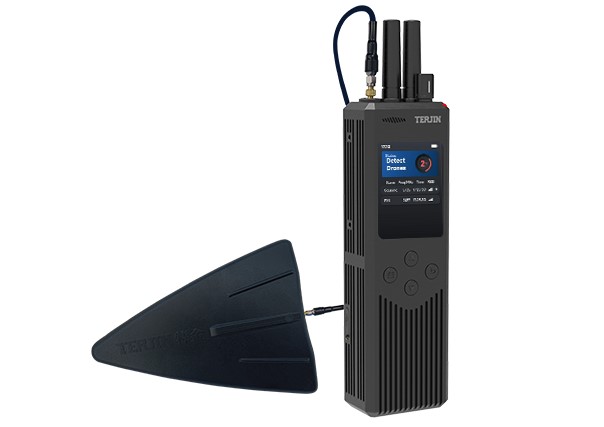

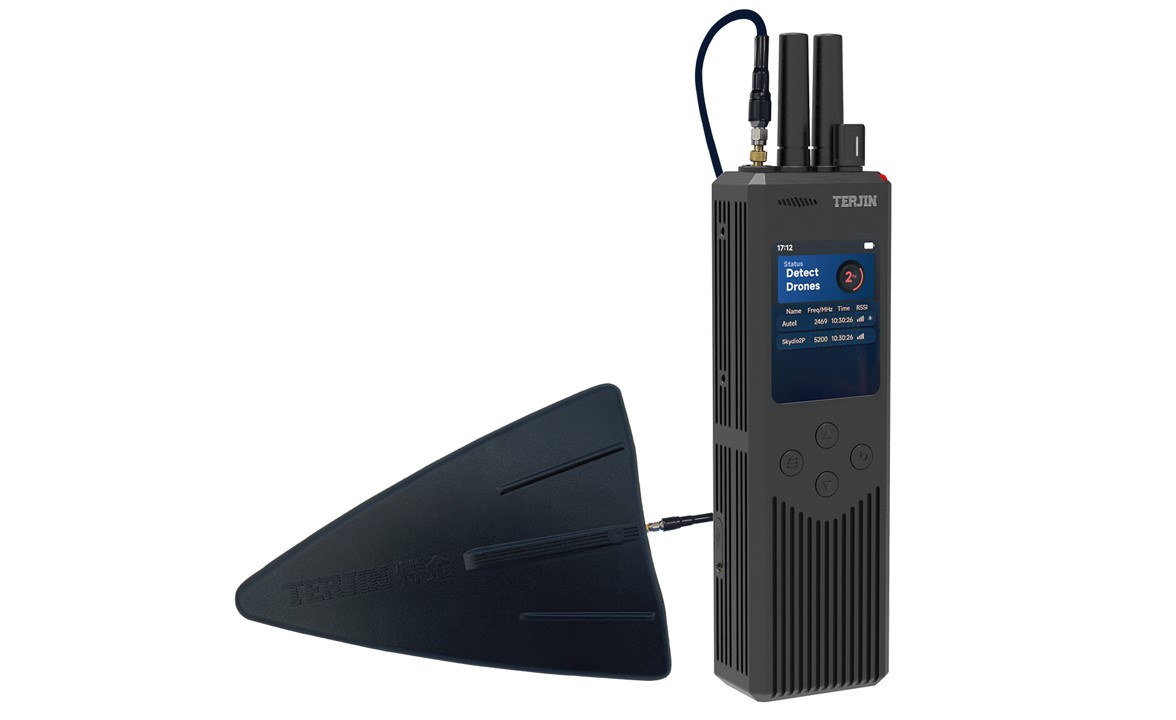

The PD1 Chinese Handheld Drone Detector is a carry-on device for drone detection, identification and alarm. An optional direction finding antenna comes with the device, giving it the capability to determine the rough direction of a coming drone.The device collects surrounding radio signals and sorts drone signals out via deep learning. When a drone is identified, it alerts people through sound and/or light alarms.The device not only detects typical DJI drone models, but also PARROT, AUTEL, FIMI, YUNEEC, HUBSAN series, DIY, FPV and racing drone models included.
Ground Specifications
Range
3.0 km
System
Alternate Designation
PD1
Type
Handheld Drone Detector
Manufacturer
Terjin
Frequency
Omni-directional antenna：1.1GHz、1.2GHz、1.4GHz、2.4GHz、5.8GHz
Alarm
Light, sound
Work Mode
RF sensing
DF Error
Azimuth error < 30° (at 1 km)
Target
DJI, AUTEL, FIMI, YUNEEC, HUBSAN, FPV and racing drone models
Range
Omni-directional antenna 0.7 - 1.2 km, DF antenna 2 - 3 km
Screen Display
Number of drones detected, frequency and possible model of each drone
DF Function
Optional
Work Temperature
-20℃ - 55℃
Dimensions
Length
240 mm
Width
66 mm
Height
48 mm
Antenna
300 mm Long; 217 mm Width
Weight
Handset ≤ 800g;DF Antenna ≤ 310g
Image Sources
Details
Country of Origin
China
Category
Land Based Electronic Warfare (EW) Systems
Land > Land Based Electronic Warfare (EW) Systems
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.24 m
Width
0.07 m
Height
0.05 m
Weight
800 kg
Operators (1)
China
