La Fayette

La Fayette

Frigates
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
La Fayette
Designation
La Fayette
Alternate Designation
Equipment Type
Frigates
Manufacturer
Naval Group
Date of Introduction
1995
Description

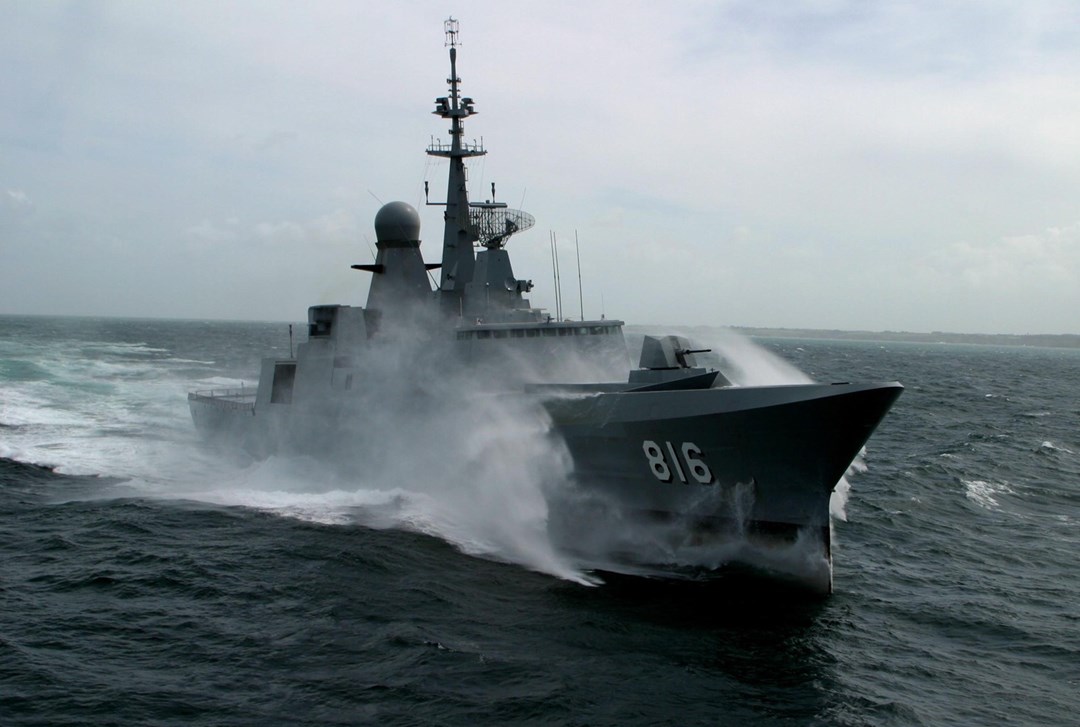

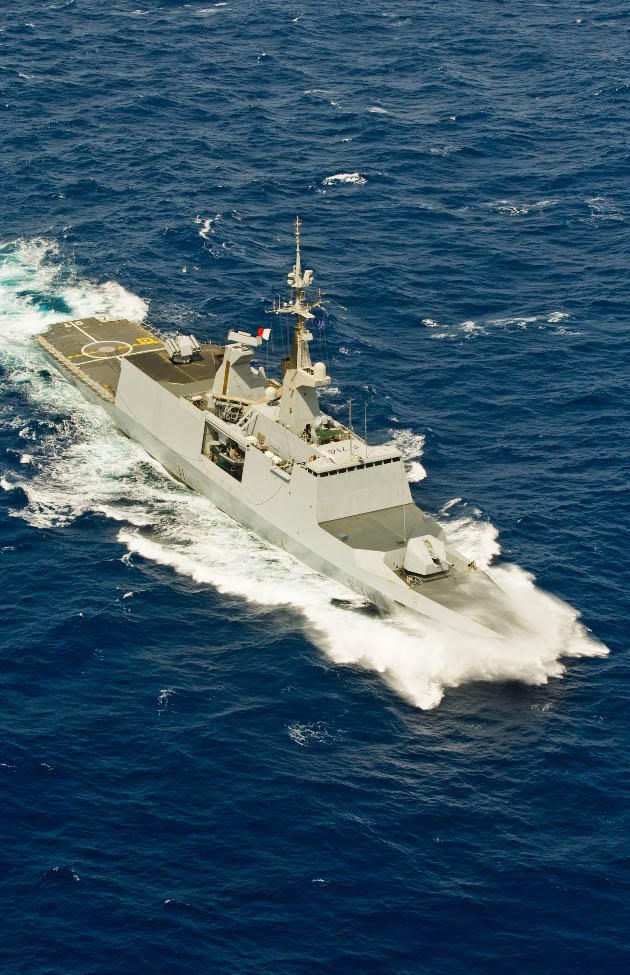

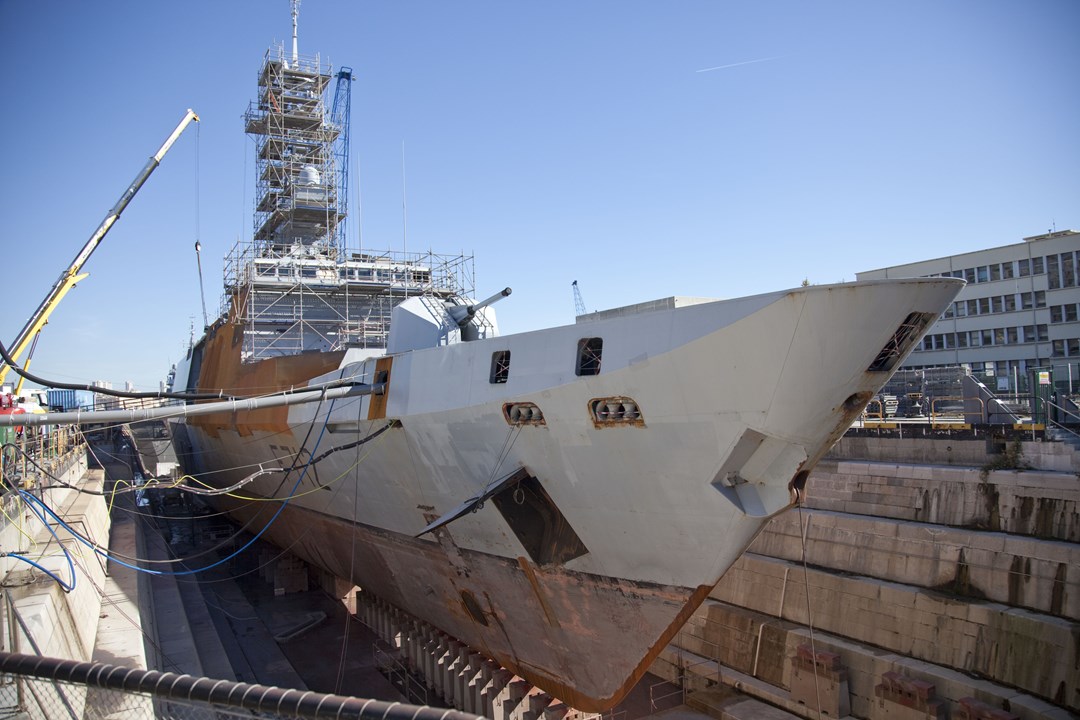

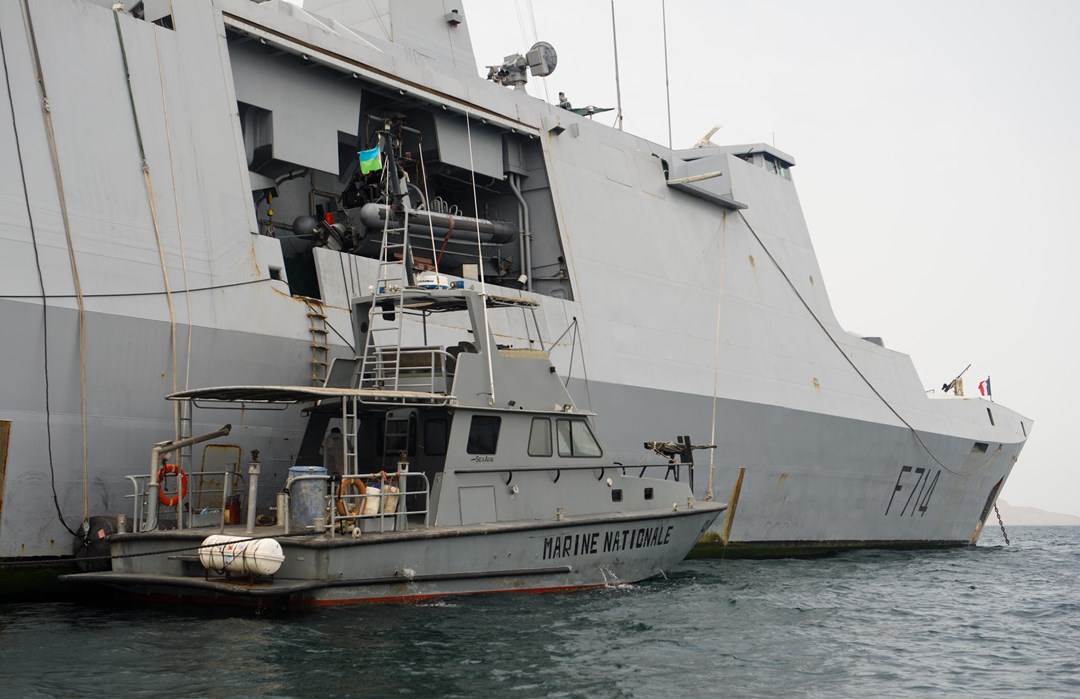

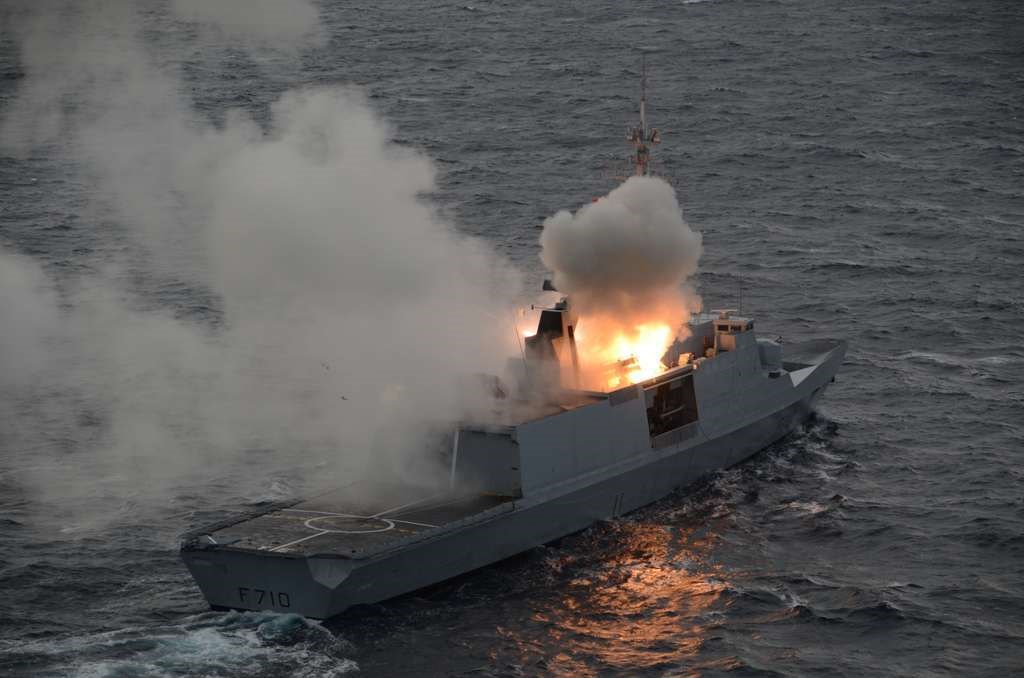

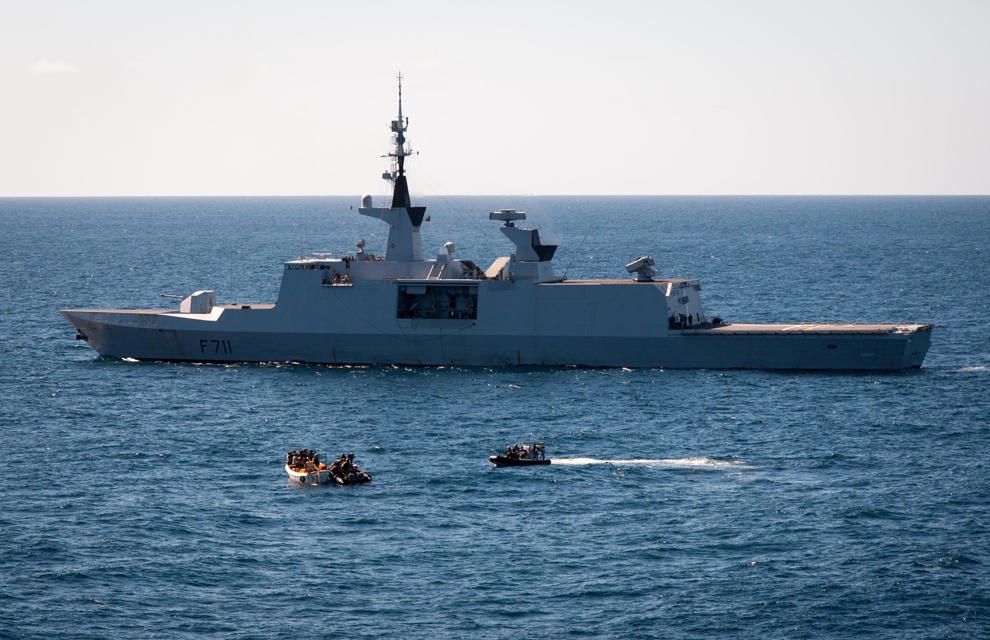

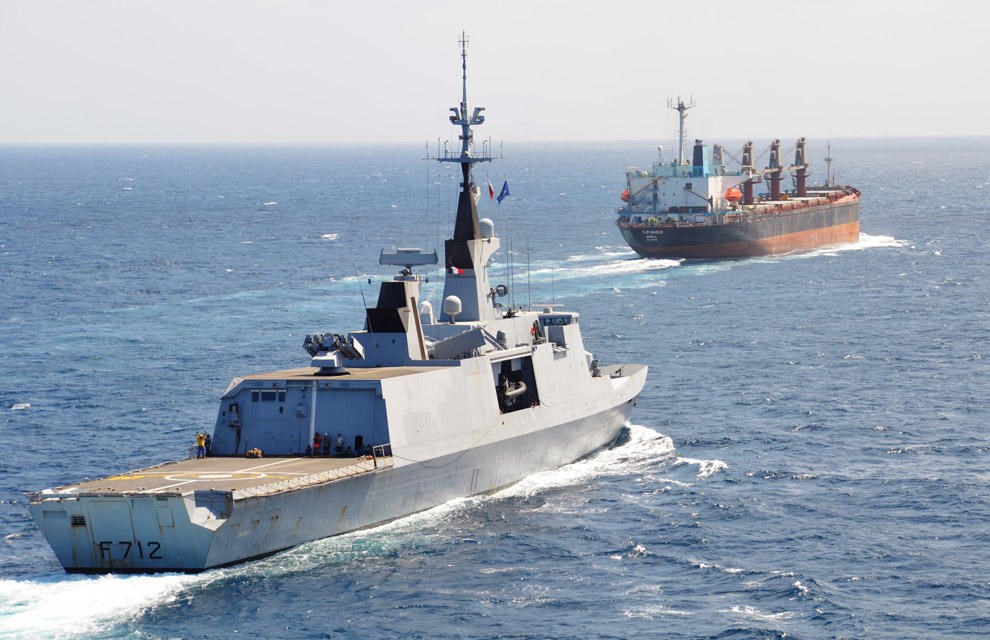

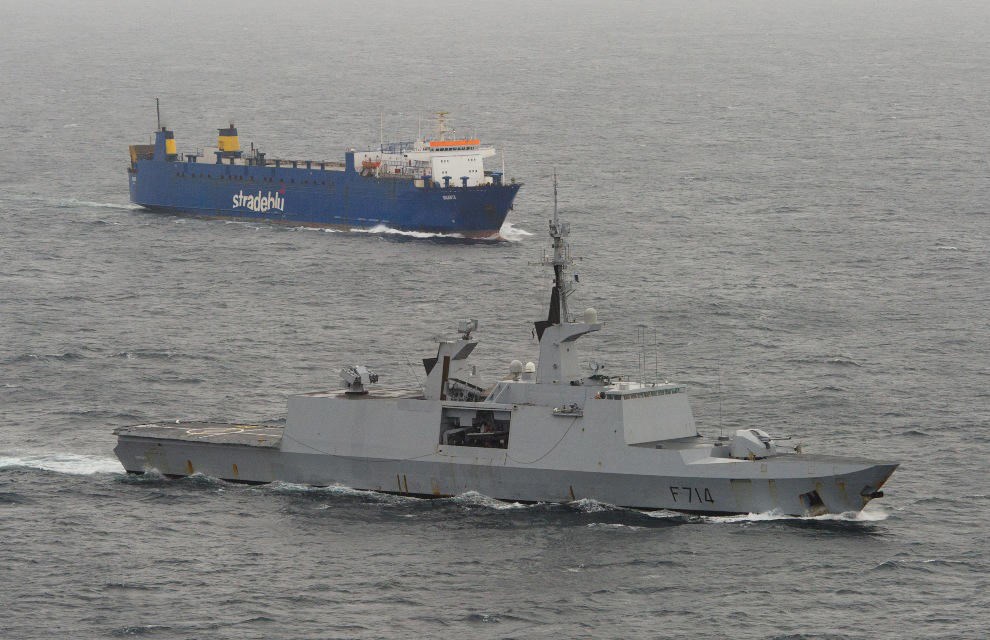

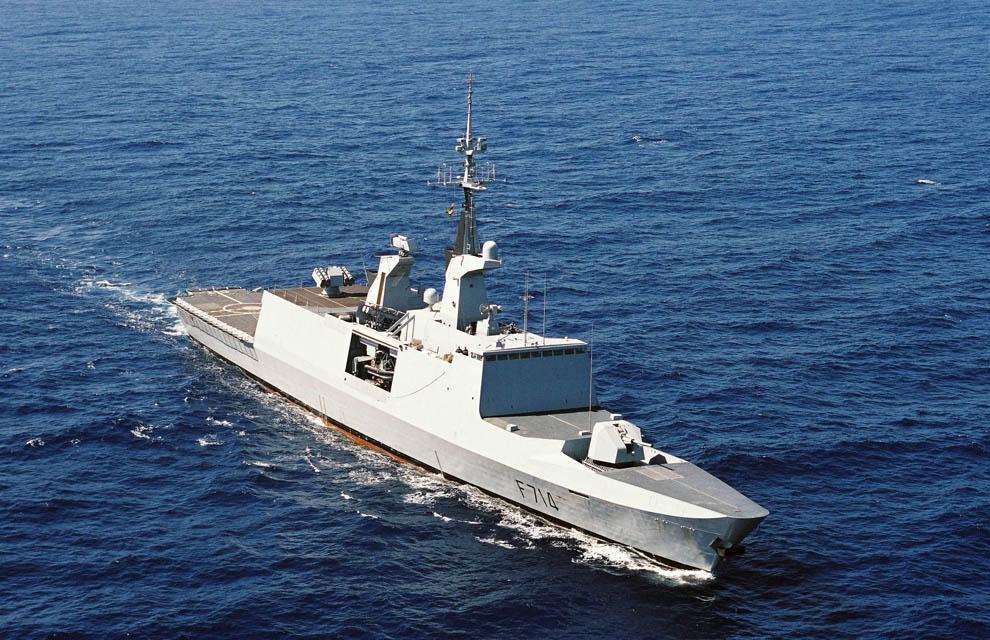

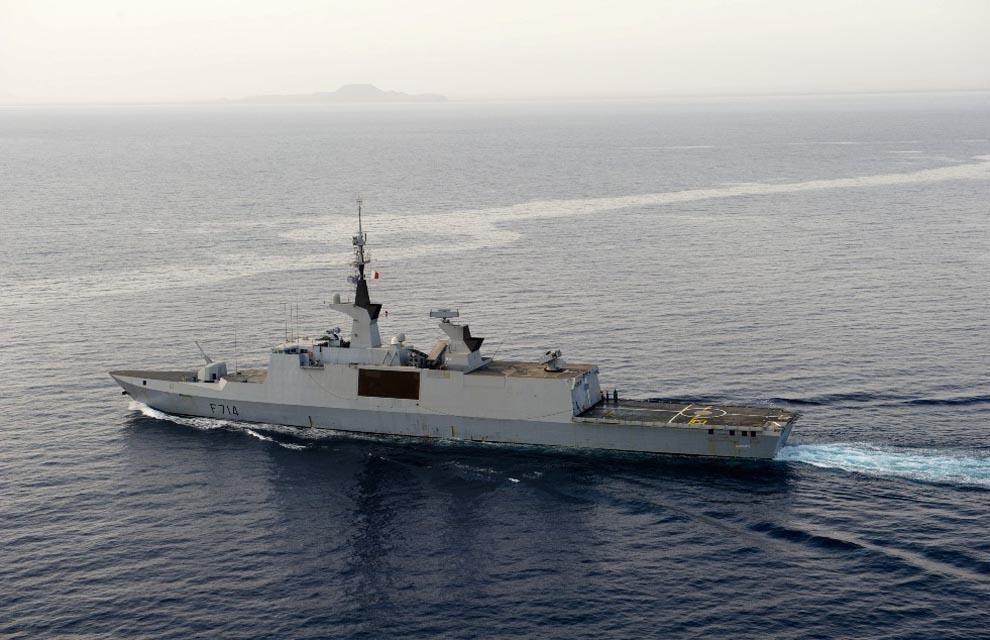

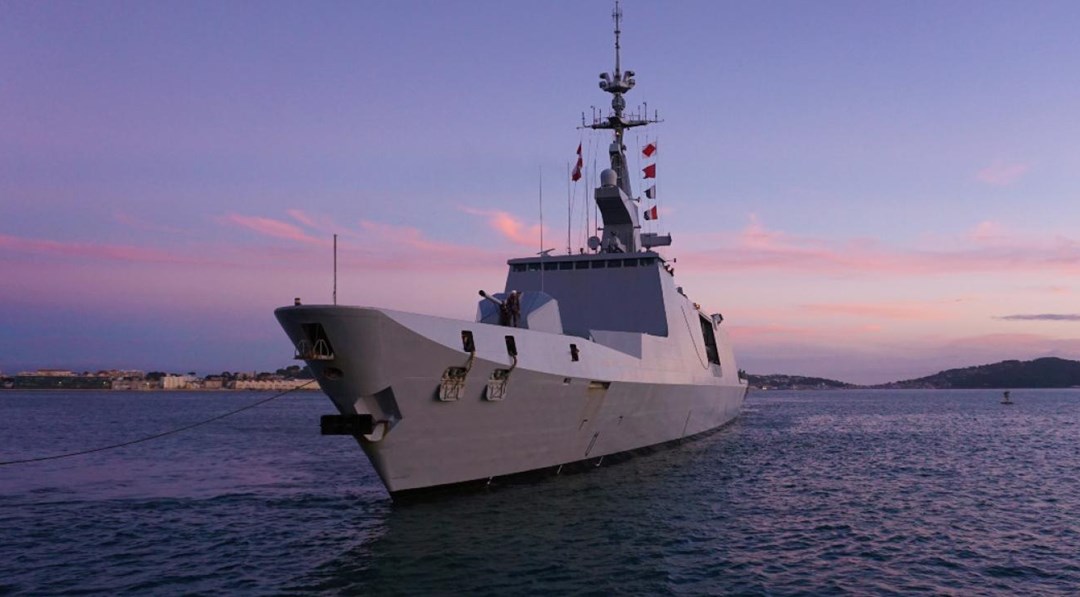

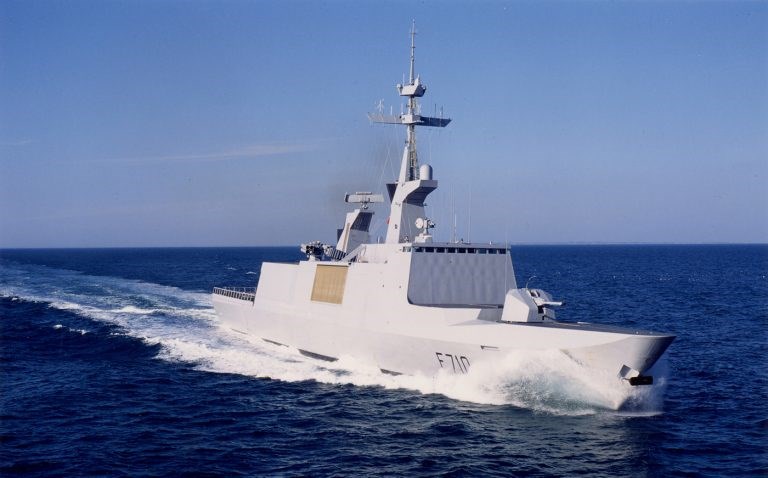

The La Fayette-class frigates were designed with innovative stealth features with reduced radar cross section and infrared signatures. The modular design of these ships permits them to be configured as anti-submarine warfare (ASW), anti-air warfare (AAW), and Multi-role frigates. The ships can be armed with surface-to-air and surface-to-surface missiles, torpedoes, advanced sensors and one helicopter. La Fayette-class frigates have been ordered by France, Taiwan and Saudi Arabia. The frigates ordered by the French have been configured as multi-role frigates. They feature MM40 Exocet anti-ship missiles, Crotale air defense system employing the VT-1 missile with 8 missiles ready to fire and 18 in storage, a 100mm gun, and a NH90 or AS565 ASW helicopter. Jamming and decoy capabilities have also been provided to these ships. It may be possible to upgrade French Navy's La Fayette-class frigates with the SAAM air defense system, but it has not been confirmed yet. Three frigates were upgraded and delivered back to the French Navy in February 2024. The upgrade did not include the SAAM air defense system and was aimed at keeping the ships relevant until 2030.

Naval & Littoral Specifications
Crew 139
Displacement 3600.00 tonnes
Max Speed 25.1 knots
Overview (Deagel)
Group Frigates
Status Active
Origin France
Contractor Naval Group
Initial Operational Capability (IOC) 1995
Total Production 5
Specifications (Deagel)
Crew 139
Number of Weapons 16
Troops 25
Dimensions — Length 124 meter
Dimensions — Main Gun Caliber 100 millimeter
Mass — Full Displacement 3,600 ton
Performance — Max Range 13,000 kilometer
Power — Total Combined Power 21,000 shp
Speed — Cruise Speed 7.8 mps
Speed — Top Speed 12.9 mps
Time — Mission Endurance 50 day
Gear (Deagel)
Item 1 Anti-Ship Missiles: MM40 Exocet (8)
Item 2 ASW Helicopters: NH90 NFH (1)
Item 3 Decoy Systems: NGDS
Item 4 Surface-to-Air Missiles: VT1 (26)
Variants
Variant 1 La Fayette

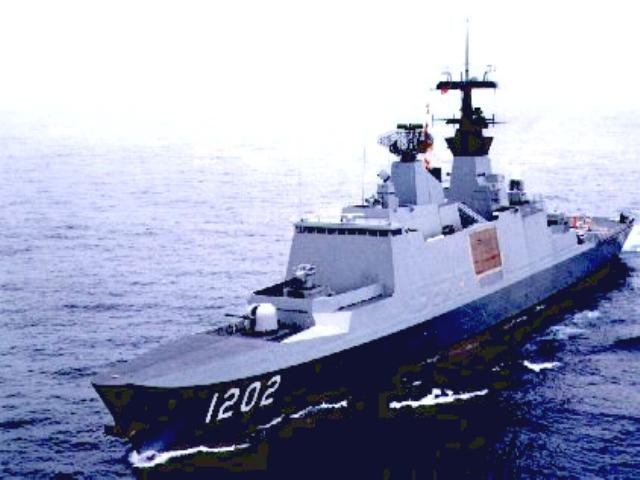

Variant 2 Kang Ding
Variant 3 Sawari II
Details
Country of Origin France
Category Frigates
Naval > Frigates
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
124 m
Width
Height
Weight
3600000 kg
Operators (1)
France
