M830r LRF American 8x30 Laser Rangefinder
M830r LRF
8x30 Laser Rangefinder
Other
Basic Information
Name
M830r LRF American 8x30 Laser Rangefinder
Designation
M830r LRF
Alternate Designation
M830r LRF
Equipment Type
8x30 Laser Rangefinder
Manufacturer
—
Date of Introduction
2017
Description

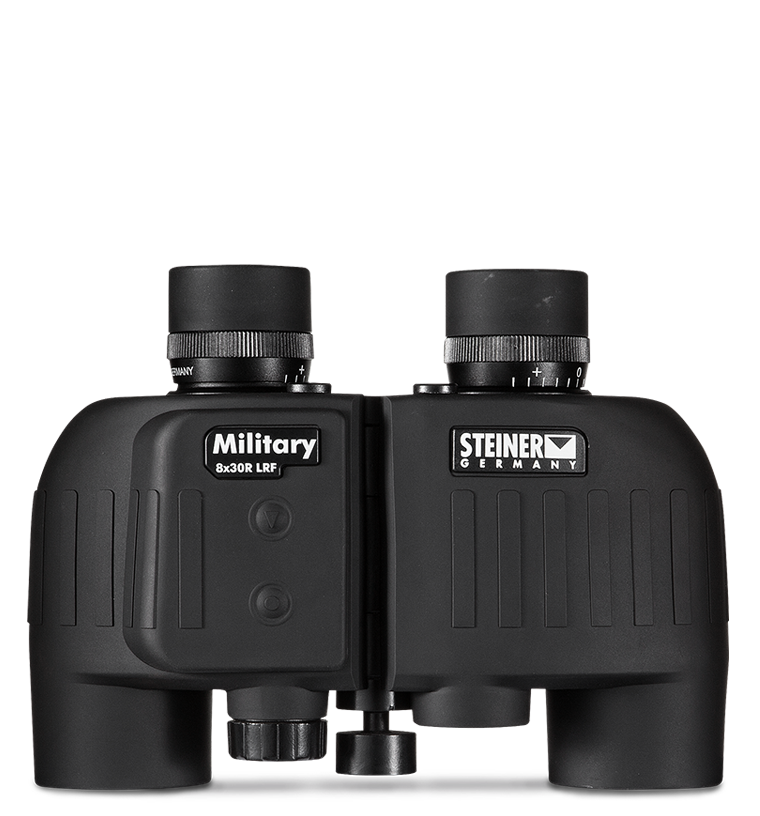

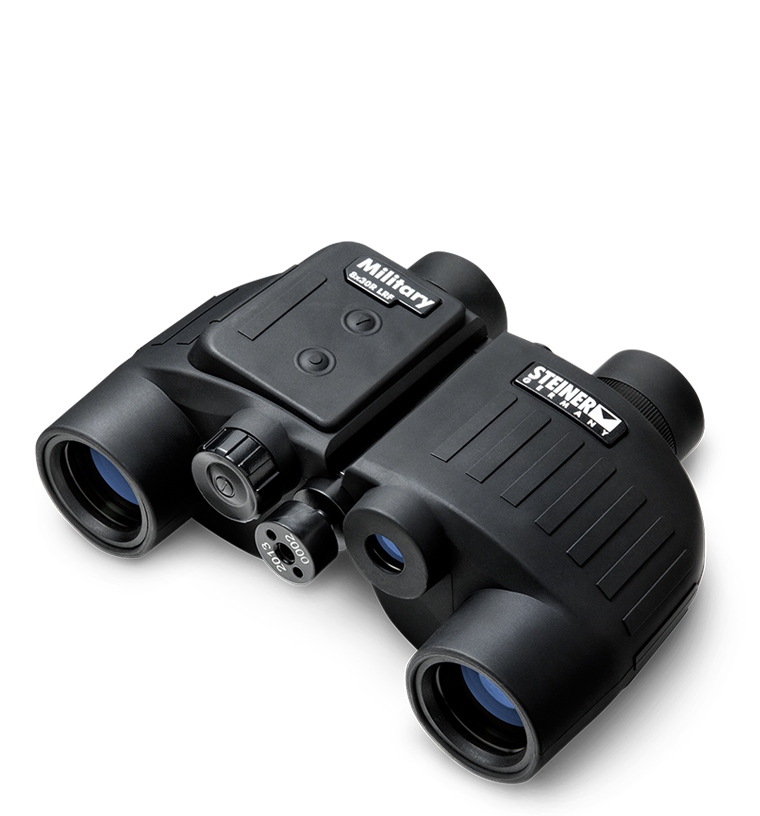

This compact, powerful laser rangefinder is universally suited for all military services and tactical units. It’s the perfect combination of premium Steiner binoculars with a powerful class 1/eye safe laser for determining range to targets, plus a SUMR reticle for targeting redundancy in case of battery failure or out-of-range target. No other bino/rangefinder combo will deliver the image and ranging accuracy and reliability of these military veterans. Perfect for mobile troops who travel light. Lenses and prisms are combined with state-of-the-art coatings to provide bright, crisp images at any range. Ranges can be set to meters or yards.
Ground Specifications
Crew
1
System
Alternative Designation
M830r LRF
Type
8x30 Laser Rangefinder
Crew
1 ea
Magnifaction
8x
Ergonomic Design
shifts the center of gravity into the palms for comfortable, long-time observation and round-the-shoulder shape won't hang up on hatches and doors in urgent situations.
Floating Prism System
uses flexible silicone lens mount to absorb severe shock, impact and abuse without damage
N2 Injection system
seals 14-psi pressurized dry nitrogen into the optic, for fogproof clarity in any condition - from artic cold to desert heat.
Sports-Auto Focus System
lets you focus each eyepiece to your vision once, then keeps images razor sharp from 20 yards to infinity. No more chasing focus on moving objects.
NBR Rubber Armoring
is durable, slip-proof and noiseless to ensure secure, chassis-protecting grip in all conditions.
Makrolon Housing
is durable polycarbonate with NBR Long Life rubber armoring, creating a lightweight, rugged chassis that withstands 11 Gs of impact. Impervious to harsh conditions for generations of trusted use.
Field of View
319 feet at 1,000 yards
Ranging Distance
27 to 1,860 Yds.
Dimensions
Length
INA
Width
6.7 In
Height
4.5 in
Weight, Combat
26.5 oz
Image Sources
Details
Country of Origin
United States
Category
Land Based Sensors
Land > Land Based Sensors
Filter Label
M
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
0.17 m
Height
0.11 m
Weight
26.5 kg
Operators (2)
United States
Australia
