AV4 Lipan Bara Malaysian 4x4 Mine Resistant Ambush Protected (MRAP)

AV4 Lipan Bara

Mine-Resistant Ambush Protected (MRAP)

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

AV4 Lipan Bara Malaysian 4x4 Mine Resistant Ambush Protected (MRAP)

Designation

AV4 Lipan Bara

Alternate Designation

AV4 Lipan Bara

Equipment Type

Mine-Resistant Ambush Protected (MRAP)

Manufacturer

DefTech

Date of Introduction

2016

Description

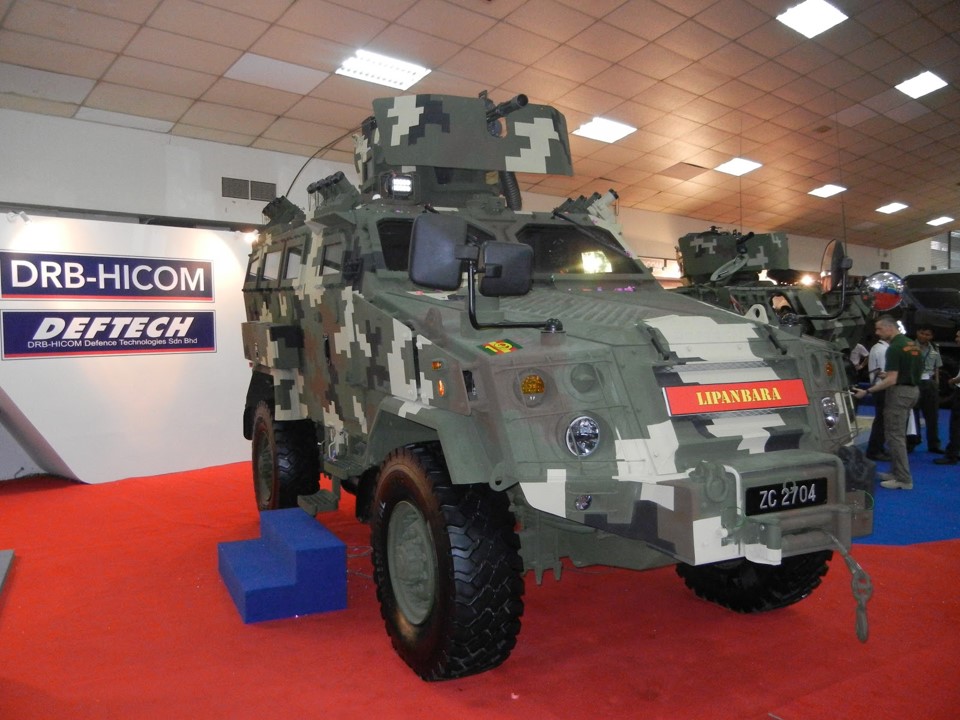

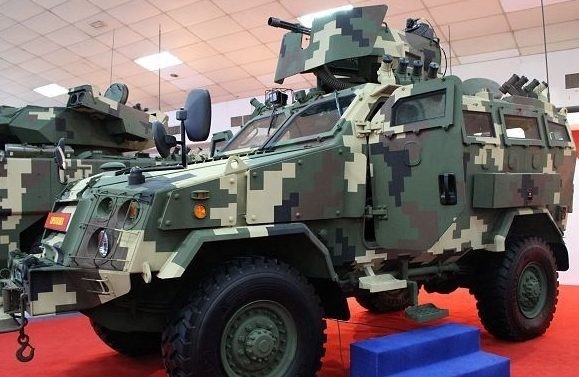

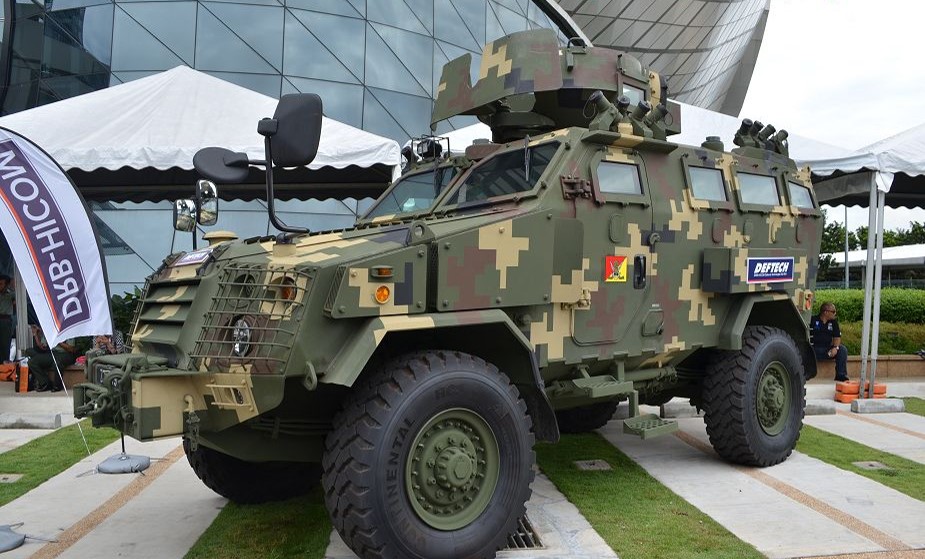

The AV4 Lipan Bara Malaysian 4x4 Mine Resistant Ambush Protected (MRAP) is a co-produced version of the First Win, designed and manufactured to NATO standards so that it can be used during UN and international missions.

Ground Specifications

Crew 1

Mobility Type Wheeled (4x4)

Main Weapon M134D-H 7.62 × 51 mm minigun

Engine Diesel (300 hp)

NBC Protection Yes

Max Speed 110.0 km/h

Range 600.0 km

Variants

First Win The original model. Known as First Win Armored Multi-Purpose Vehicle.

First Win II Model developed from First Win ICV. To offer in the Royal Thai Navy 4x4 Armored Multi-Purpose Vehicle procurement project. And it's the same model that was exported to the Malaysian Army.

First Win AAV (Armored Ambulance Vehicle) Developed from First Win II.

First Win AFV (Armored Fighting Vehicle) It is a wheeled armored vehicle used for tactical 4 x 4 combat or other missions. It is strong enough to withstand local conditions.

First Win AIFV (Armored Infantry Fighting Vehicle) Developed from First Win AFV.

First Win ALV (Armored Light Vehicle) Can carry personnel with maneuverability in limited terrain. It is robust enough to withstand the operating conditions in an area of operation where there are armed attacks and improvised explosive devices.

First Win Anti-Riot Used by the Royal Thai Police with a remote control weapon system turret on top. Has a capacity of eight occupants.

First Win ATV (Armored Tactical Vehicle) A armored Vehicle used in reconnaissance missions, Operating in risk areas.

First Win ATV II Slightly different on the front of the car from the First Win ATV.

First Win AWAV (Armored Wheel Amphibious Vehicle) Prototype, in testing.

First Win-E A more compact variant with gross vehicle weight of 10 tons, comparable to the HMMWV.

First Win IFV (Infantry Fighting Vehicle) Equipped with automatic armed turrets can fire from inside the car. Developed from First Win II.

First Win RV (Reconnaissance Vehicle) Introduced in 2019 at the 2019 Navy Training, it equipped M134 on top of a vehicle. And proposed to the Royal Thai Army to consider as a reconnaissance vehicle for infantry. Developed from First Win II.

AV4 Lipanbara License built by DefTech for Malaysian Armed Forces and Royal Malaysian Police.

Hanuman Version made by Indonesia.

System

Alternative Designation AV4 Lipan Bara

Type Mine Resistant Ambush Protected (MRAP)

Manufacturer DefTech

Configuration 4x4

Crew 1 ea

Passengers 10 ea

Payload Capacity 2,000 kg

Dimensions

Length 6.50 m

Width 2.45 m

Height 2.65 m

Weight, Standard 11,000 kg

Weight, Combat 13,000 kg

Ground Clearance 0.54 m

Wheelbase 3.42 m

Automotive

Engine Name Cummins ISBe300E4

Engine Type Diesel

Engine Power 300 hp at 2,850 rpm

Power-to-Weight Ratio 23 hp/t

Fuel Capacity 200 liters

Maximum Speed 110 km/h

Maximum Range 600 km

Amphibious No

Angle of Approach 38°

Angle of Departure 40°

Gradient 60%

Side Slope 40%

Vertical Obstacle 0.5 m

Trench INA

Turning Radius 9.2 m

Main Weapon System

Note The Lipan Bara can be armed with an M134D-H 7.62 × 51 mm minigun mounted in a protected weapon station. The M134D-H differs from the standard M134D in that some of its components are titanium. The M134D-H Minigun is a remotely-powered, electrically-driven machine, the basic design of which remains based on the original, manually-operated Gatling gun principle in which a high rate of fire is achieved by having six rotating barrels that fire in turn when the one o'clock position is reached.

Protection

Hull Armor The Lipan Bara is protected to STANAG 4569 Level 2 against ballistic threats and Level 3 against blast, although it is not known whether the blast protection is at the A or B level.

Applique Armor Available

Mine Protection INA

NBC Protection Yes

Smoke Equipment Yes

Image Sources

Notes https://21stcenturyasianarmsrace.com/2016/05/14/armored-cars-deftech-av4/; https://twitter.com/defence_blog/status/722689494525284352; https://worlddefencenews.blogspot.com/2018/04/deftech-av4-lipan-bara-4x4-armored.html;

Details

Country of Origin Malaysia

Category Mine-Resistant Ambush Protected (MRAP)

Land > Infantry Vehicles > Mine-Resistant Ambush Protected (MRAP)

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

6.5 m

Width

2.45 m

Height

2.65 m

Weight

13000 kg

Operators (2)

Malaysia

Thailand
