Uragan

Uragan

Rocket Artillery Systems
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Uragan
Designation
Uragan
Alternate Designation
9K57, 9P140, BM-27
Equipment Type
Rocket Artillery Systems
Manufacturer
Splav
Date of Introduction
1977
Description

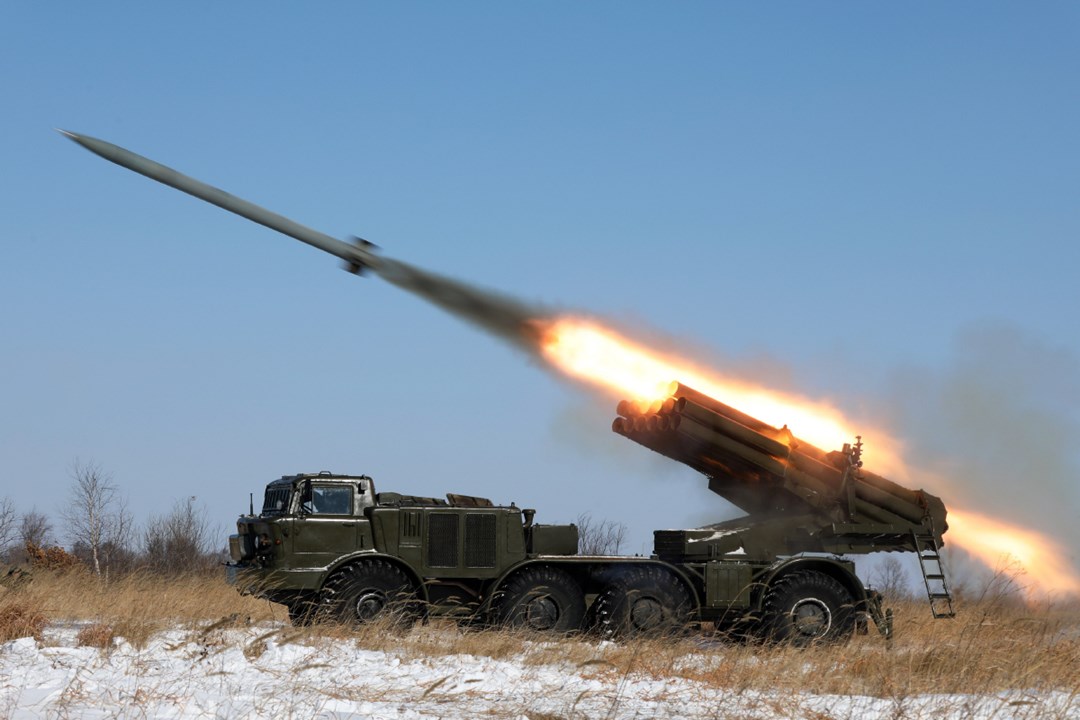

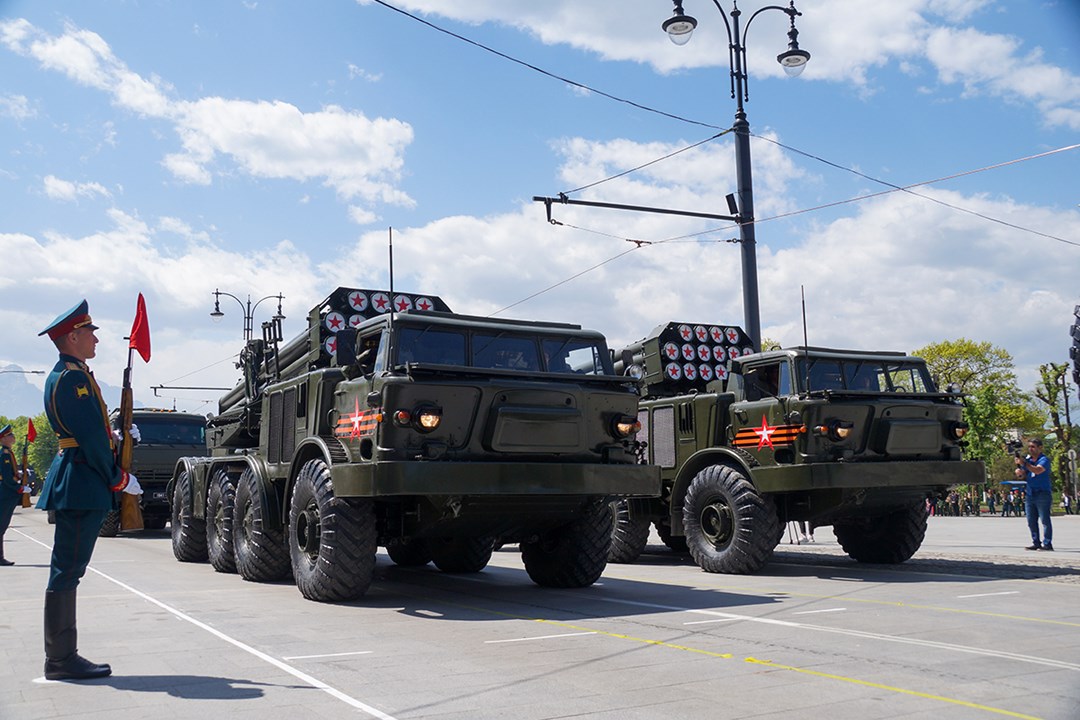

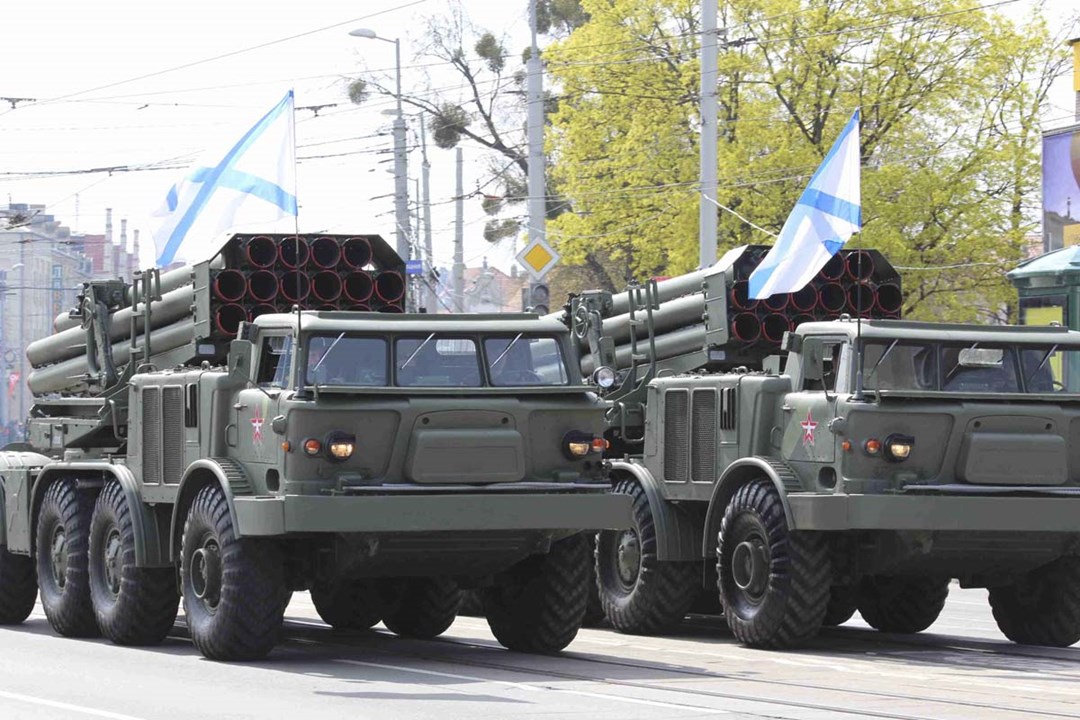

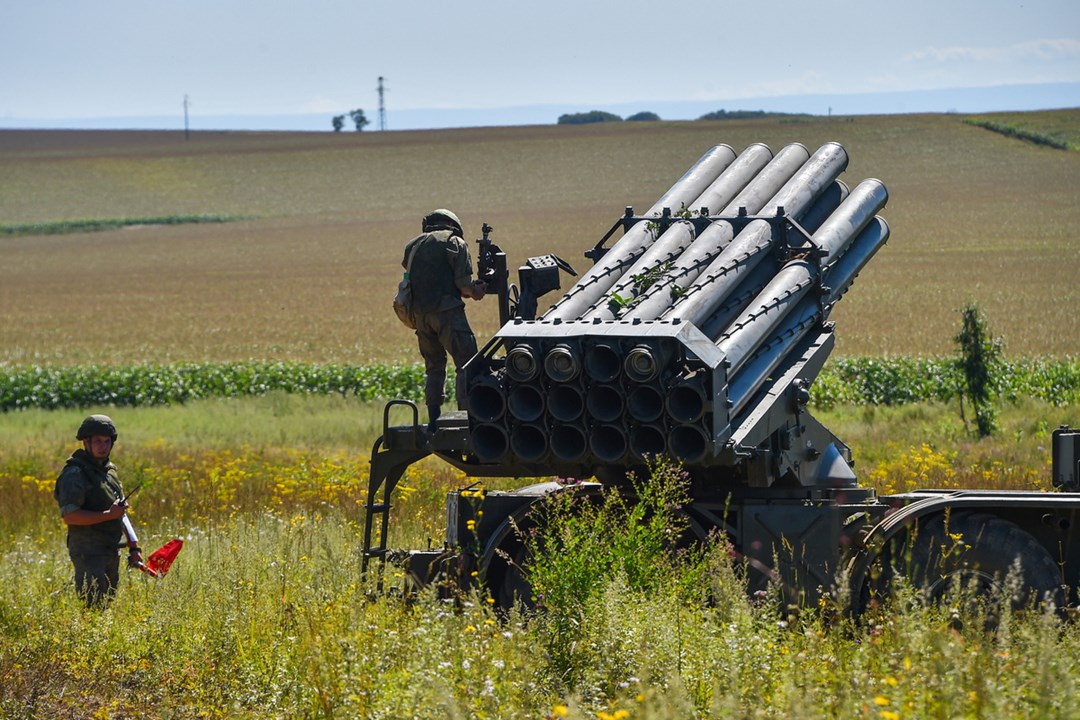

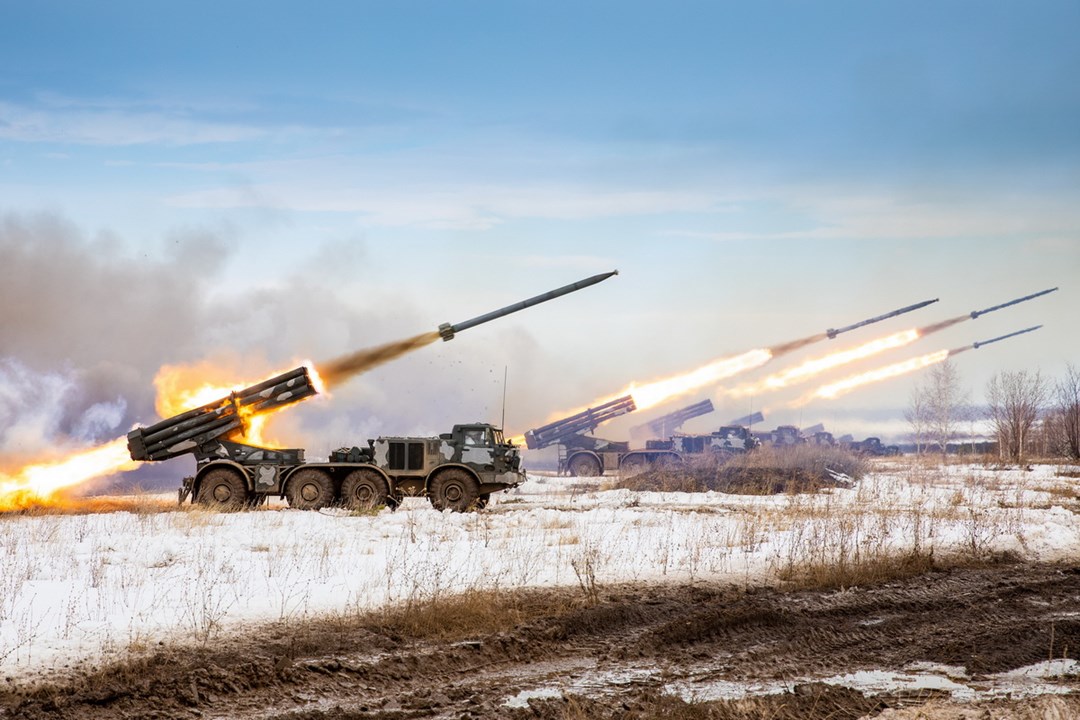

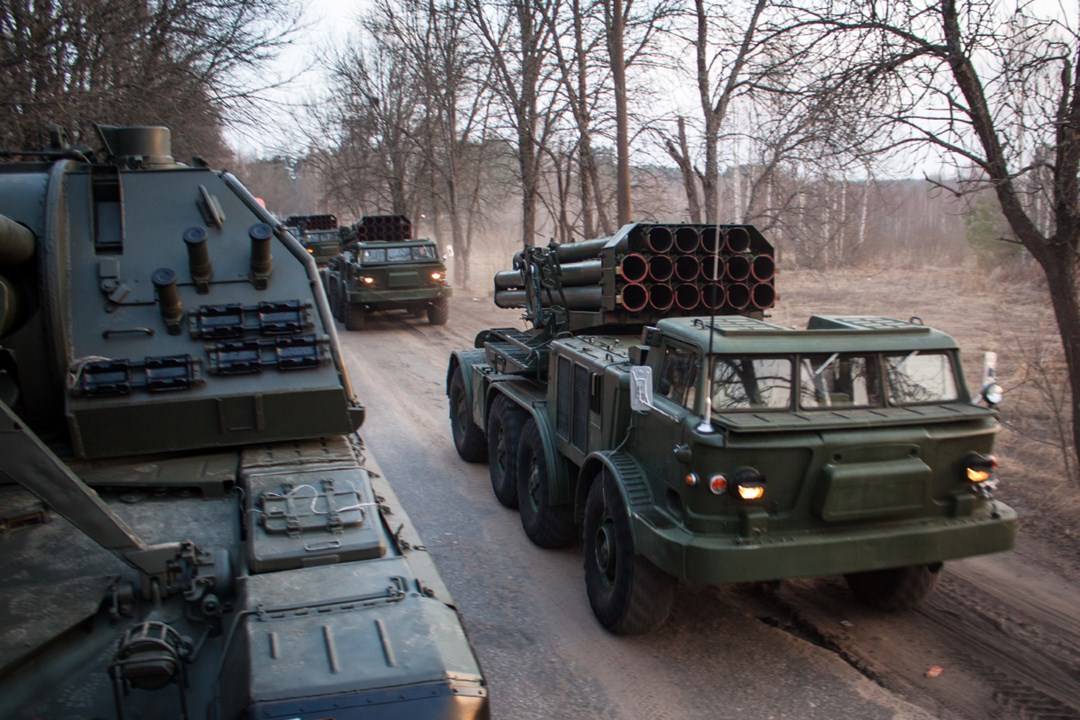

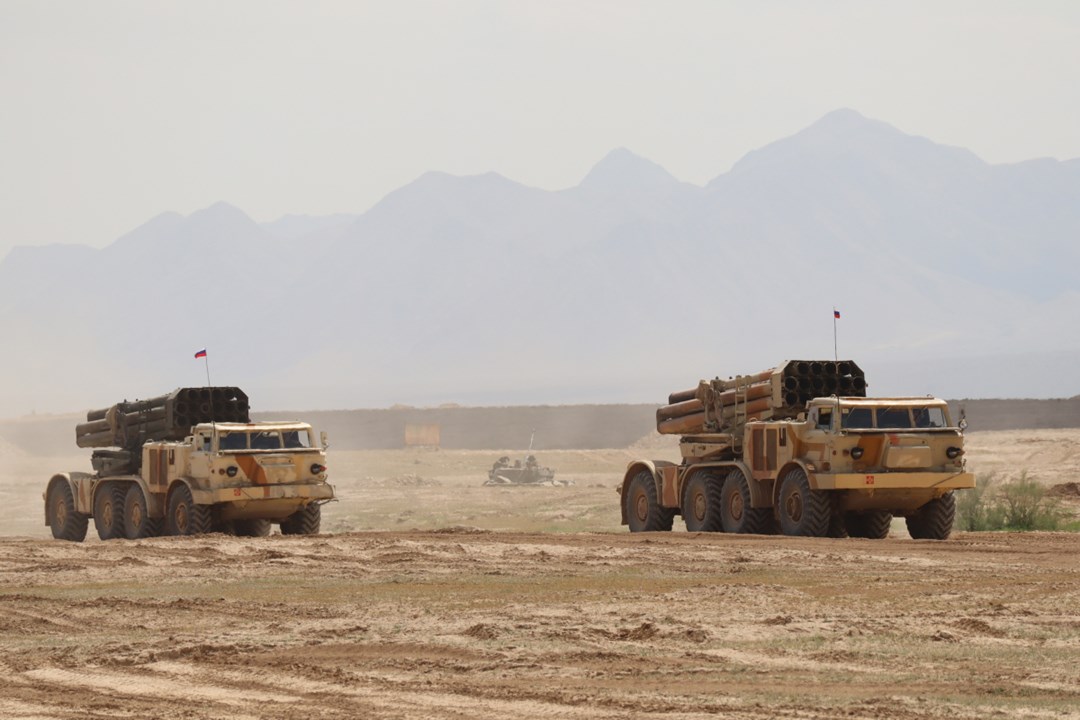

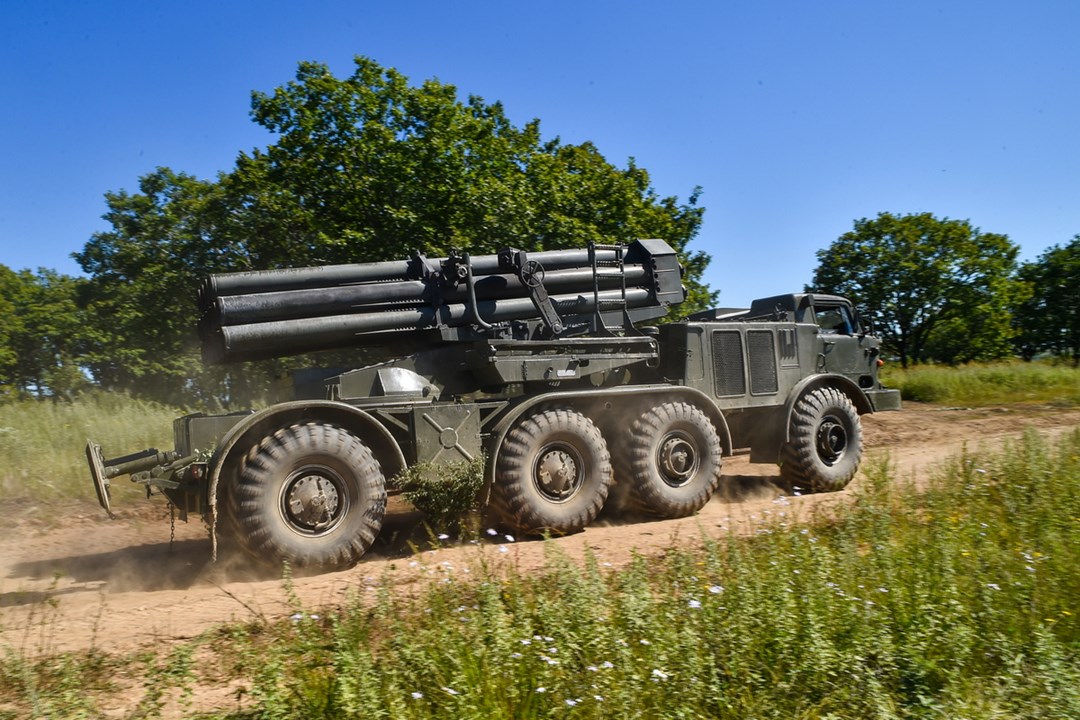

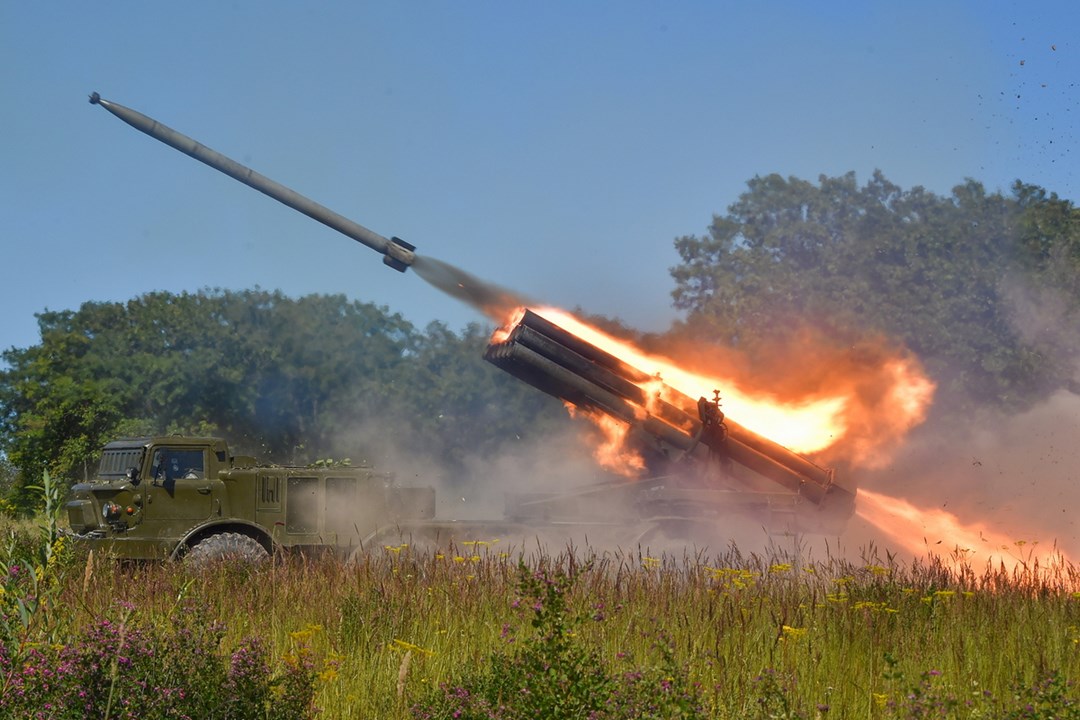

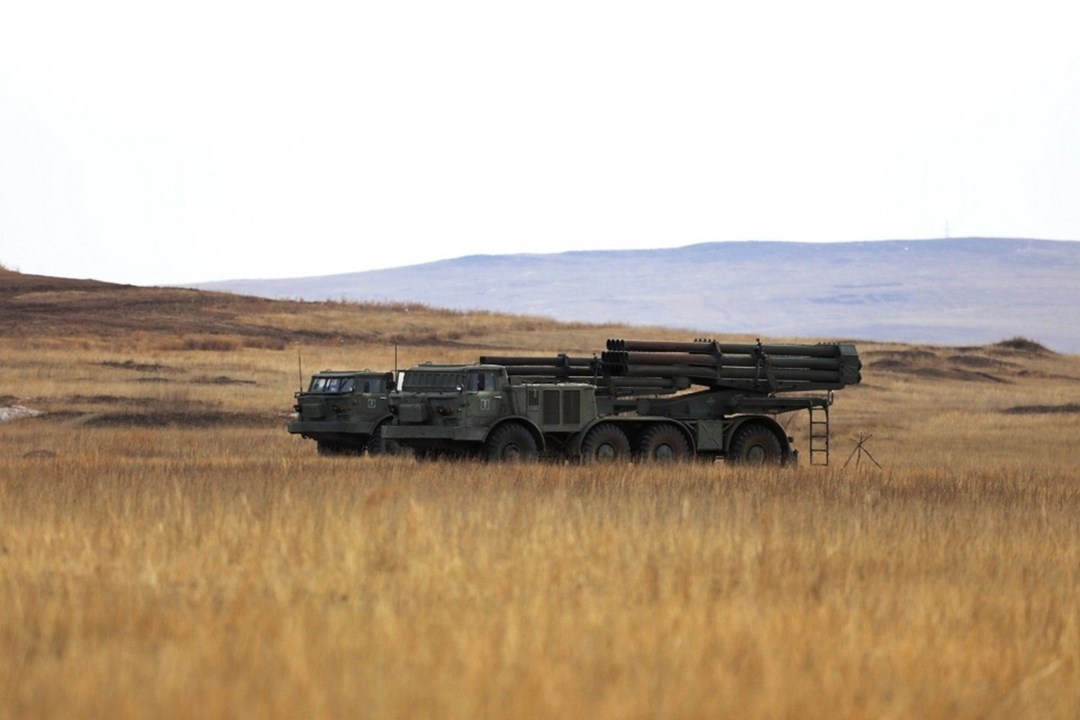

Uragan, also known as the BM-27, is a 220mm multiple launch rocket system developed as a replacement for Grad 122mm rocket artillery system. Equipped with 16 (6+4+6) 220mm rocket tubes Uragan, Hurricane in English, is based on a ZIL-135 8x8 truck providing enhanced mobility. The vehicle is powered by a single diesel engine rated at 260-hp. Uragan can fire artillery spin-stabilized rockets carrying High Explosive (HE), chemical or incendiary payloads. These rockets are able to engage targets at ranges of between 35,000 to 40,0000 meters. Overall, this artillery system was more sophisticated than its antecessors and delivered greater firepower at longer ranges. The Soviet Army fielded Uragan artillery system by mid-1970s. It was exported to Soviet Union customers all over the world. It was deployed in a military conflict for the first time in the early 1980s by Syria that was fighting Israel at that time.

Ground Specifications
Crew 6
Mobility Type Wheeled (8x8)
Main Weapon 220mm multiple launch rocket system
Max Speed 65.2 km/h
Range 500.0 km
Overview (Deagel)
Group Rocket Artillery Systems
Status Active
Also Known As 9K57, 9P140, BM-27
Origin Russia
Contractor Splav
Initial Operational Capability (IOC) 1977
Total Production ?
Specifications (Deagel)
Artillery Tubes 16
Crew 6
Wheel Drive 8
Wheels 8
Dimensions — Artillery Tube Caliber 220 millimeter
Dimensions — Height 3.2 meter
Dimensions — Length 9.3 meter
Dimensions — Width 2.8 meter
Mass — Combat Weight 22,750 kilogram
Performance — Max Range 500 kilometer
Performance — Weapon Max Range 40,000 meter
Power — Power 260 shp
Speed — Top Speed 18.1 mps
Time — SetUp Time 3 minute
Gear (Deagel)

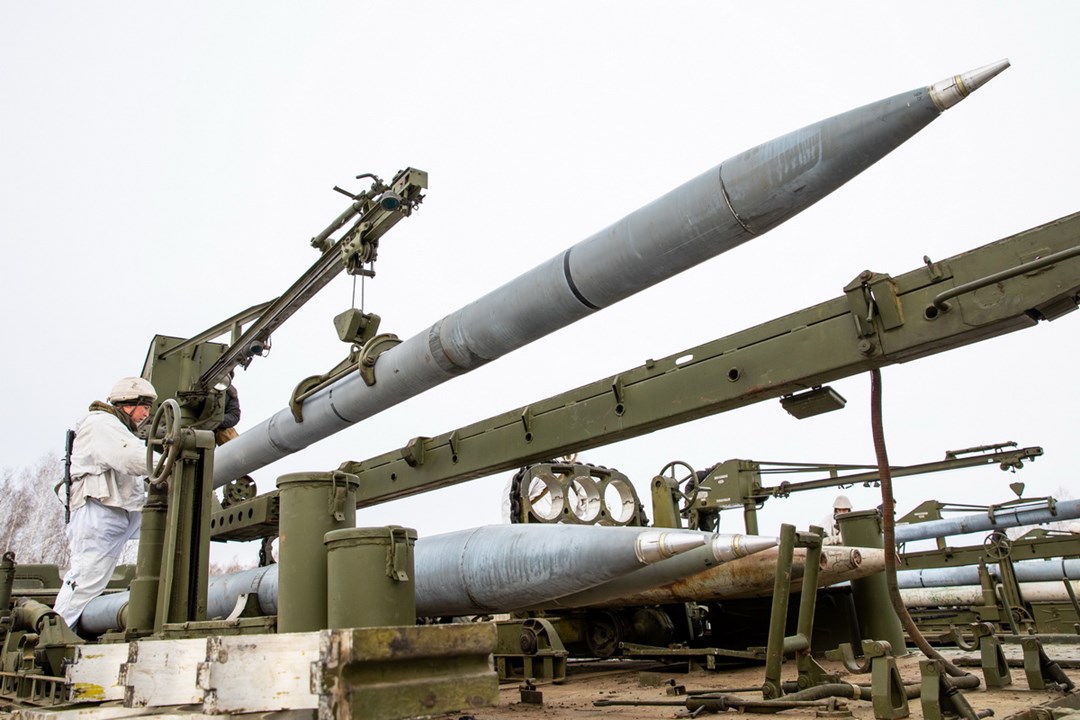

Item 1 Rockets: 9M27F (16)
Item 2 Rockets: 9M27K (16)
Item 3 Rockets: 9M27K2 (16)
Item 4 Rockets: 9M27K3 (16)
Variants
Variant 1 Uragan
Variant 2 Uragan 1-M
Details
Country of Origin Russia
Category Artillery
Land > Artillery
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.3 m
Width
2.8 m
Height
3.2 m
Weight
22750 kg
Operators (22)
Russia
Ukraine
India
Iran
North Korea
Belarus
Afghanistan
Angola
Armenia
Eritrea
Georgia
Guinea
Kazakhstan
Kyrgyzstan
Moldova
Myanmar
Syria
Tajikistan
Tanzania
Turkmenistan
Uzbekistan
Yemen
