9K116 Bastion (AT-10 Stabber) Russian Anti-Tank Guided Missile (ATGM)

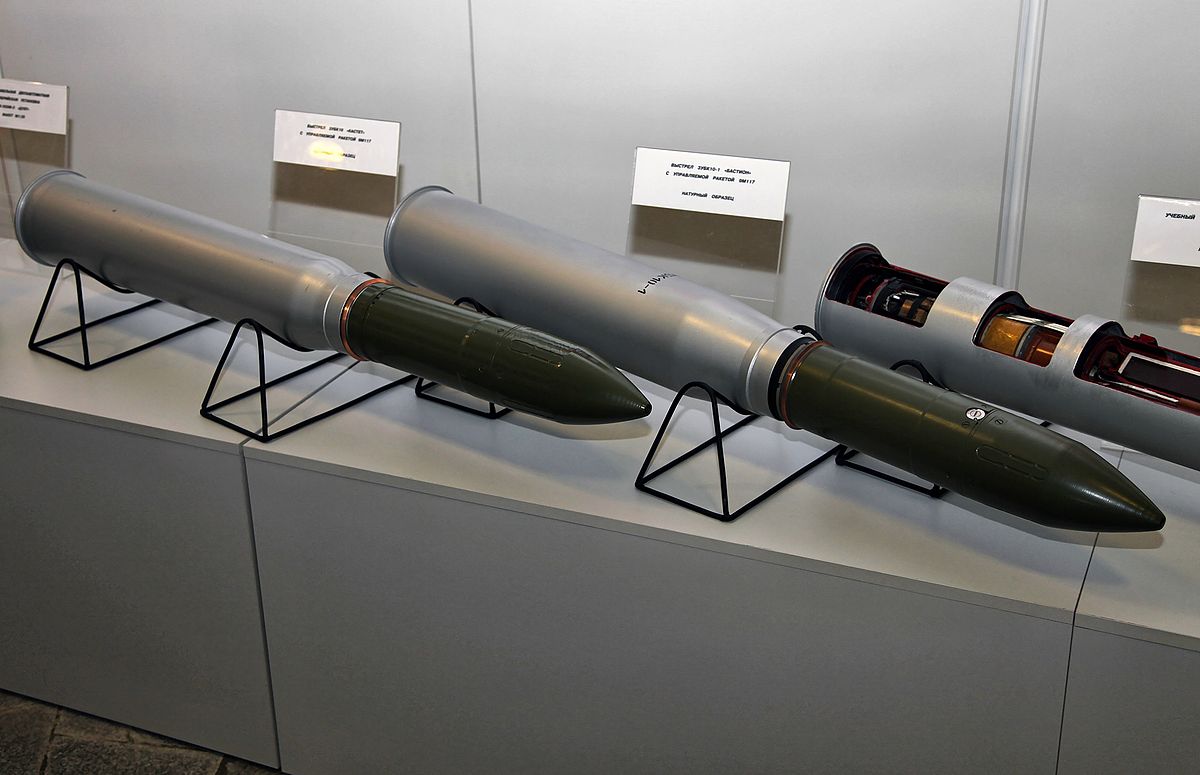

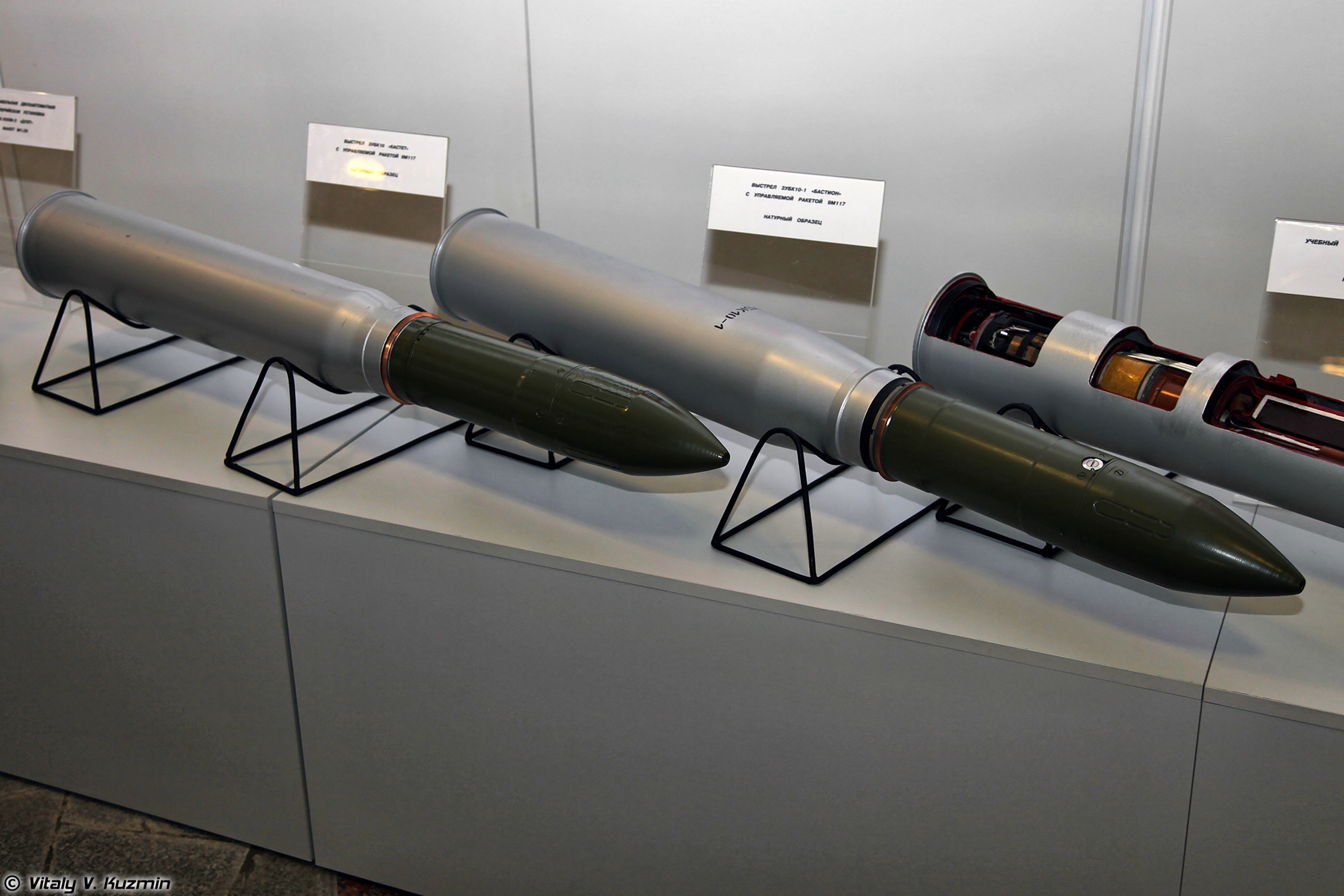

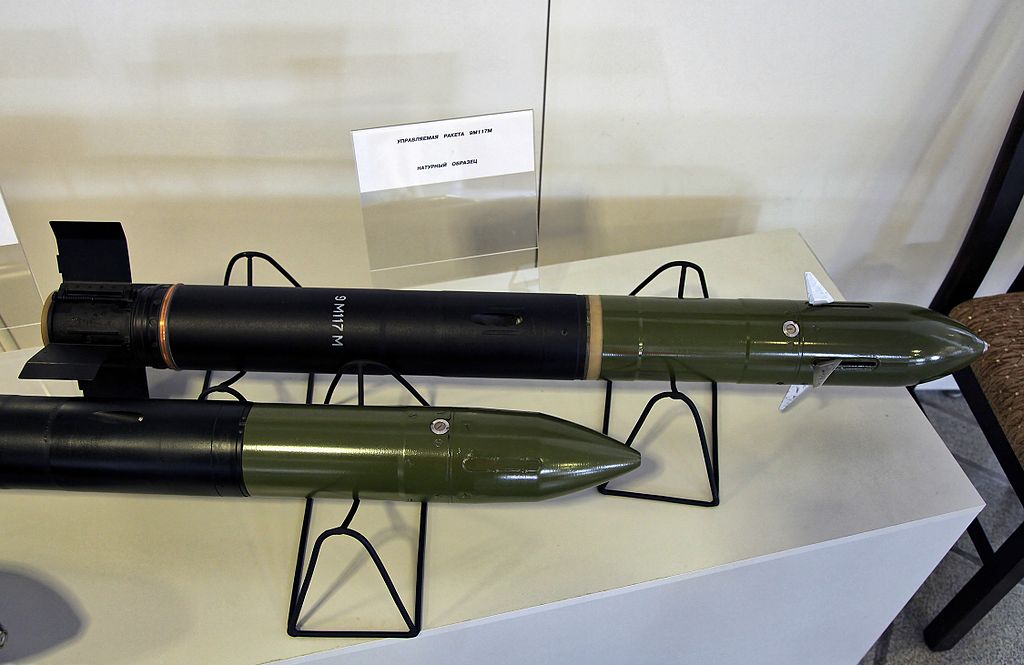

The 9M117 Bastion is a Russian laser beam-riding anti-tank missile. It is used in a number of separate weapon systems, including the 9K116-1 Bastion missile system (AT-10 Stabber), 9K118 Sheksna (AT-12 Swinger), and T-12 antitank gun, and the 3UBK12 fired from the BMP-3. The 100 mm projectile entered service in 1981. The 100 mm round resembles a normal 100 mm anti-tank round, and is loaded and fired in the same fashion. The round uses a reduced explosive charge to launch the projectile out of the barrel of the gun at around 400 to 500 m/s. After leaving the gun barrel, a small cover falls away from the window on the rear of the missile. The rocket motor ignites 1.5 seconds after firing the missile, and it burns for 6 seconds. The projectiles use beam-riding laser guidance. A cone of laser light divided into sectors is projected from the launching tank/vehicle/gun, each sector having a different frequency or modulation. The missile has a small window in the rear with a laser sensor to detect the modulation of the light. Using this modulation, the missile steers itself, maintaining its position in the cone. The laser beam is zoomed during the missile flight so it has the same diameter (about 6 meters) throughout the missile flight path. The laser beam-riding guidance system is smaller than a radio command one and cheaper and simpler than semi-active laser guidance. The missile is also not prone to radio or optical jamming. On the other hand, a target has to be tracked by laser sight all the time, and the system can not be reliably used on the move. The missile's flight time to 4,000 meters is approximately 12 seconds. After 26 to 41 seconds, the missile self-destructs.
