Bittium Tactical Wireless IP Network (TAC WIN) Finnish High-Data-Rate Wireless IP Network
Bittium Tactical Wireless IP Network (TAC WIN)
High-Data-Rate Wireless IP Network
Other
Basic Information
Name
Bittium Tactical Wireless IP Network (TAC WIN) Finnish High-Data-Rate Wireless IP Network
Designation
Bittium Tactical Wireless IP Network (TAC WIN)
Alternate Designation
Bittium Tactical Wireless IP Network (TAC WIN)
Equipment Type
High-Data-Rate Wireless IP Network
Manufacturer
Bittium Corporation
Date of Introduction
2016
Description
With the Software Defined Radio (SDR) based Bittium Tactical Wireless IP Network (TAC WIN) battlegroups can create high-data-rate wireless IP networks as a backbone to support command and control (C2) data transmission during military operations. Compared to existing tactical data link networks, flexibility to use the Bittium solution in different frequency bands and network structures provides cost-effectiveness, ease of use, and efficiency. Bittium TAC WIN network can be deployed in any location. It enables the formation of an independent IP network and is compatible with existing infrastructure, both wire-line and wireless. As it is software-defined, the system is versatile, can be easily upgraded, and is easy to adapt. The system enables a mesh network solution with high data rates and automatic network configuration required by battlegroups on the move. Bittium TAC WIN has excellent performance and form factor as both network node and router functionalities are integrated into a single product.
System
Alternative Designation
Bittium Tactical Wireless IP Network (TAC WIN)
Type
High-Data-Rate Wireless IP Network
Manufacturer
Bittium Corporation
Crew
INA
Components
Bittium TAC WIN Tactical Router;
Bittium TAC WIN Radio Head III;
Bittium TAC WIN Radio Head IV;
Bittium TAC WIN Waveform;
Bittium Network Manager.
Configuration
The Bittium TAC WIN can operate in point-to-point (P2P) links, point-to-multipoint (P2MP) connections, and MANETs in one logical network. MANET configuration The TAC WIN MANET configuration is used to build a network between independent nodes that can freely enter and exit the network while on the move or at a quick halt. Communication between the nodes is by direct and multi-hop connections with omnidirectional antennas. The usual number of nodes in one network varies between 5 and 30.
Flexibility
Single system for MANET, Point-to-Multipoint and Link use;
Wireless and wired connections seamlessly integrated to one network using OLSR routing;
Supporting multiple frequency bands: NATO I, III and IV.
Intergration
Standard IP interfaces and protocols supported;
Built in support for integration of legacy CNR-radios using audio and serial data;
Time and location information available for 3rd party systems.
Associated Systems
M18 C3 system
Security
Bittium TAC WIN Waveform has TRANSEC that encrypts all data using AES-256.
Tactical VoIP Service
With built-in Bittium Tough VoIP Service, TAC WIN offers seamless and reliable voice in tactical network;
Supporting tactical voice features, user and device mobility, integration to 3rd party SIP systems.
Range
Up to 45 km range per hop in Link/Point-to-Point use.
Management
Simple setup procedure.
Self-organizing network. No need for user interaction during operation.
Intuitive and visual Bittium Tactical Network Management system for the networks and nodes.
Bittium TAC WIN Tactical Router
System
Services
Custom OLSR in TACTICAL network;
Custom multicast in TACTICAL network;
OSPF / BGP routing for external connections;
Automatic IP address configuration;
VLANs and configurable bridges;
QoS: Traffic classifying and priority queues
Interfaces
3 x TAC WIN Radio units;
4 x WAN (2 x RJ45 1000BASE-T / 2 x Fiber 1000BASE-LX);
4 x LAN (1000BASE-T) with PoE (802.3af);
8 x ITU-T G991.2 (GSHDSL);
4 x serial/audio connector;
2 x USB;
GPS in/out;
ERASE -button and ON/OFF -switch
Ingress Protection
IP 67
Other Services
Network configuration with single configuration file;
SNMP interface;
IPsec tunneling;
Netflow;
Firewall;
3 different user levels;
Easy to use local web GUI
Routing Services
Custom OLSR in TACTICAL network;
Custom multicast in TACTICAL network;
OSPF / BGP routing for external connections;
Automatic IP address configuration;
VLANs and configurable bridges;
QoS: Traffic classifying and priority queues (8 queues);
SNMP v3;
Radius server support;
AAA;
802.1X port authentication;
Call admission control
Tactical VoIP Service
Integrated Bittium Tough VoIP Service
EMC
MIL-STD-461F
Environment
MIL-STD-810G
Power Consumption
<120 W (with PoE 250 W)
Operating Voltage
10 - 60Vdc
Operating Temperature
-40° to +55°C
Storage Temperature
-40° to+ 70°C
Dimensions
Height
23 mm
Width
356 mm
Depth
400 mm
Weight
19.4 kg
Bittium TAC WIN Radio Head I
System
Frequency Band
225-400 MHz
Signal Bandwidth
5 MHz
Data Throughput with Bittium TAC WIN Waveform
12 Mbps
MIMO Support
Supports 2x2 MIMO
Channel Raster
250 kHz
TAC WIN Waveform Tx Power
2 x 4 W
Operating Voltage
10-60Vdc
Operating Temperature
-40 - 55 °C
Storage Temperature
-40 - 70 °C
Ingress Protection Class
IP67
Environment
MIL-STD-810G
EMC
MIL-STD-461F
Power Supply
10–60 V DC
Dimensions
Height
160 mm
Width
256 mm
Depth
454 mm
Weight
18 kg
Bittium TAC WIN Radio Head III
System
Frequency Band
1350-2400 MHz
Signal Bandwidth
5/10 MHz
Data Throughput with Bittium TAC WIN Waveform
26 Mbps
Channel Raster
250 kHz
TAC WIN Waveform Tx Power
4 W
Operating Voltage
10-60Vdc
Operating Temperature
-40 - 55 °C
Storage Temperature
-40 - 70 °C
Ingress Protection Class
IP67
Environment
MIL-STD-810G
EMC
MIL-STD-461F
Power Supply
10–60 V DC
Dimensions
Height
160 mm
Width
256 mm
Depth
454 mm
Weight
18 kg

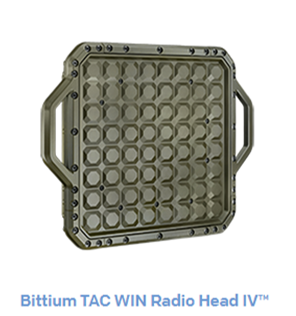

Bittium TAC WIN Radio Head IV
System
RH-IV Variant
Integrated patch antenna with 50° beam steering (gain 19dBi / beamwidth 9° / vertical polarization). Can be used with external antenna.
RH-IV High Gain Variant
Integrated fixed beam antenna with 9° beam (gain 23dBI / vertical polarization) and external rotator control interface.
Frequency Band
4400-5000 MHz
Signal Bandwidth
5/10/20 MHz
Data Throughput with Bittium TAC WIN Waveform
50Mbps
Channel Raster
250 kHz
TAC WIN Waveform Tx power
1250 mW
Operating Voltage
16-60Vdc
Operating Temperature
-40 - 55 °C
Storage Temperature
-40 - 70 °C
Ingress Protection Class
IP67
DImensions
Height
385 mm
Width
520 mm
Depth
67 mm
Weight
10 kg
Bittium TAC WIN Waveform
System
Supported Bandwiths
5 / 10 / 20 MHz
Frequency Hopping
Slow and Fast
GNSS
Yes and can operate without GNSS
Radio Resource Management
QoS based network radio resource management
Nodes Support
> 1000 nodes in one network
Bittium Network Manager
System
Tactical Network Management

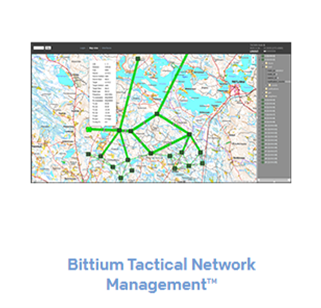

Bittium Tactical Network Management system provides intuitive and visual tools for tactical network planning, real-time management of the networks and performance analysis based on big data collected from the network. This enables quick and effective deployment of the networks and successful operations.
Tactical Network Planner Tool
Yes
Tactical Network Manager Tool
Yes
Network Analytics Tool
Yes
Supported Networks and Nodes
Bittium TAC WIN;
Bittium Tough Comnode;
Bittium Tough SDR Vehicular;
Bittium Tough SDR Handheld
Supported Services
Bittium Tough VoIP Service
Supported Waveforms
Bittium TAC WIN Waveform;
Bittium Narrowband Waveform;
ESSOR High Data Rate Waveform
Details
Country of Origin
Finland
Category
Tactical Broadband Wireless Modules
Land > Communication Equipment > Tactical Broadband Wireless Modules
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Operators (2)
Estonia
Finland
