UM620 Norwegian Tactical Broadband Wireless Module

UM620

Tactical, Handheld, Software-defined Radio (SDR)
Spotted an error? Sign in to suggest an edit.
UM620 Norwegian Tactical Broadband Wireless Module
Other

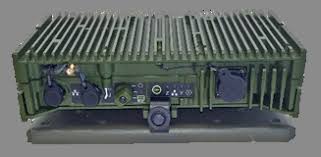

Kongsberg_UM_620_Radio(B).jpgTRADOC ODIN WEG
Thumbnail
Thumbnail
Basic Information
Name
UM620 Norwegian Tactical Broadband Wireless Module
Designation
UM620
Alternate Designation
UM620
Equipment Type
Tactical, Handheld, Software-defined Radio (SDR)
Manufacturer
Kongsberg
Date of Introduction
2017
Description

UM620 – TACTICAL BROADBAND WIRELESS MODULE test Robust broadband wireless connection for mobile combat zone users UM620 operates without any Master in the network. UM620 provides ad-hoc Functionality for fast and easy establishment of networks. Voice connection to intercom systems is utilized through a digital or analogue interface. UM620 provides DHCP services and routing for connected LAN subscribers. Multi-hop capability ensures the user can reach the intended destination for both voice and data. The software-defined solution of UM620 and the radio’s flexible software facilitates new services to be implemented in support of customer-specific applications. The UM620 is easy to use and is managed using the integrated web-based management system or by using the SNMP interface. DISMOUNTED CAPABILITY The UM620 is fully compatible with the soldier radio SR600, and enables integration between vehicles and dismounted troops. NETWORK SERVICES The UM620 provides an Ethernet interface with DHCP server capability to the local LAN of the vehicle. Various IP routing services are provided within the radio network and towards external networks. Multicast and Unicast services are supported.

Ground Specifications
Crew 1
System
Alternative Designation UM620
Type Tactical Broadband Wireless Module
Crew 1 ea
Radio Features The UM620 operates from 225 to 400 MH z to provide a good balance bet ween range in non-LOS terrain, data rate and RF power output. The radio has proven multipath capabilities and selec table RF output from 100mW to 20W. The radio can provide different net work capacities based on selec ted RF bandwidth and coding. The radio may operate in a pure data radio mode or in combined voice and data modes. Dynamic configuration of wave-form is possible.
Software Depending on chosen net work operation, the radio can handle a number of parallel voice net works and IP multi hop data net works in one RF network.
Mounting The UM620s small size and weight allows for flexible mounting in the Power Mounting Unit (PMU) or in a combined Dual Channel Radio mount.
MIL-STD The UM620 complies with MIL-STD 810G requirements to tac tical equipment.
Protocols IP versions IPv4 / IPv6 LAN protocols Ethernet
Services Network Service DHCP External networks OSPF/RIP/Static routing Multi hop capability Voice and data Multicast Unicast
Mangement Web (https) SNMPv3
RF Characteristics Frequency Range 225-400 MHz Power 100mW to 20 W
Network Capacity Voice: up to 5 voice nets Data rates: up to 2500 kbps RF bandwidth: up to 5 MHz
LAN IEEE 802.3 10/100 Base-T/TX
Audio Dual channel
GPS External Internal
Power Supply Input Voltage 11-32 V DC
Operating Temperature -35ºC to +55ºC
Dimensions
Height 55 mm
Width 245 mm
Depth 156 mm
Weight, Combat 2.2 kg
Image Sources
Notes https://www.kongsberg.com/kda/what-we-do/defence-and-security/defence-communications/k-tacs-on-the-move/tactical-broadband-ip-vehicle-radio/;
Details
Country of Origin Norway
Category Tactical Broadband Wireless Modules
Land > Communication Equipment > Tactical Broadband Wireless Modules
Filter Label
U
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
0.25 m
Height
0.06 m
Weight
2.2 kg
Operators (4)
United States
United Kingdom
Australia
United Nations
