Eagle 4x4

Eagle 4x4

Tactical Vehicles
Spotted an error? Sign in to suggest an edit.
Eagle 4x4

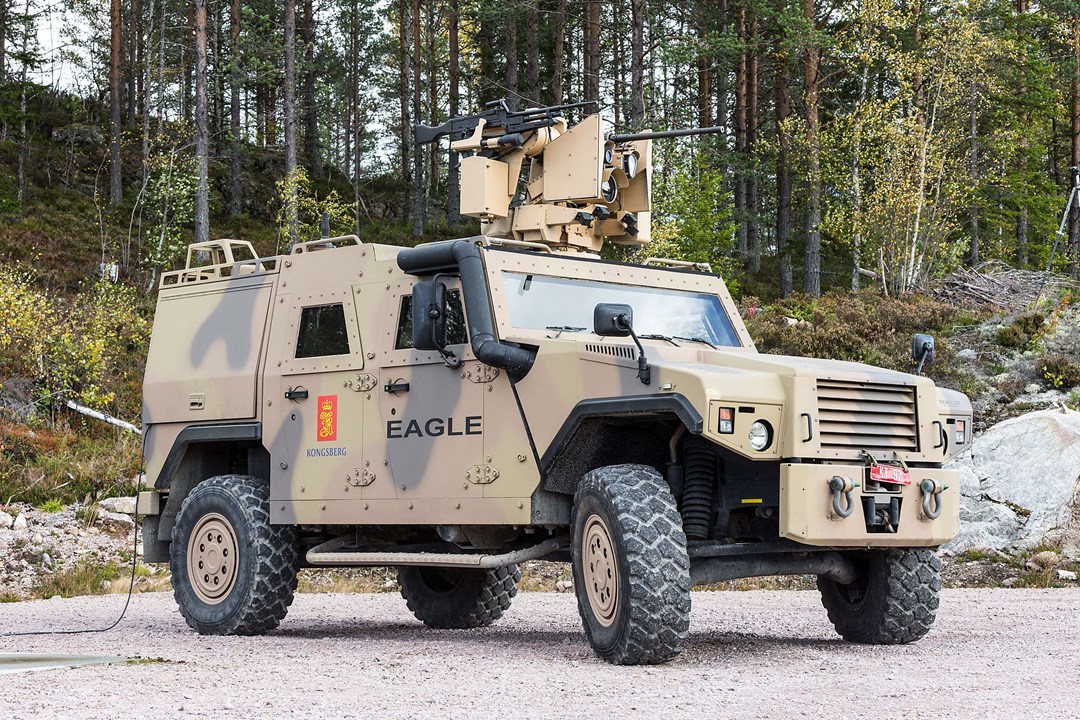

Operational Photo
deagel.com
Basic Information
Name
Eagle 4x4
Designation
Eagle 4x4
Alternate Designation
Eagle I
Equipment Type
Tactical Vehicles
Manufacturer
MOWAG GmbH
Date of Introduction
1988
Description

The Eagle 4x4 armored reconnaissance vehicle is based on the chassis of the proven HMMWV Hummer. It is suitable for reconnaissance, surveillance, liaison, escort, border patrol and police missions. The Eagle vehicle comprises a modified Hummer chassis, an armored superstructure designated and manufactured by MOWAG, and the armored observation cupola MBK2 also developed and manufactured by MOWAG. The Eagle can be armed with a 7.62mm machine gun mounted on the MBK2 turret. The EAGLE retains the basic features of Hummer and is air transportable by C-130 and helicopter. The MBK 2 cupola offers 360-degree observation coverage being operated from inside of the Eagle vehicle. In addition of the MBK2 turret the Eagle can accommodate different turrets to meet several missions. For example: a Mistral missile turret to provide short range air defense.

Ground Specifications
Crew 1
Troop Capacity 4
Mobility Type Wheeled (4x4)
Main Weapon 7.62mm machine gun (8mm)
Max Speed 124.9 km/h
Range 450.0 km
Overview (Deagel)
Group Tactical Vehicles
Status Active
Origin Switzerland
Contractor MOWAG GmbH
Total Production ?
Specifications (Deagel)
Crew 1
Troops 4
Wheel Drive 4
Wheels 4
Dimensions — Height 1,750 millimeter
Dimensions — Length 4.9 meter
Dimensions — Main Gun Caliber 7.6 millimeter
Dimensions — Width 2.3 meter
Mass — Empty Weight 4,100 kilogram
Mass — Max Weight 5,500 kilogram
Mass — Payload 1,400 kilogram
Performance — Max Range 450 kilometer
Power — Power 190 shp
Speed — Top Speed 33.1 mps
Variants
Variant 1 Eagle II

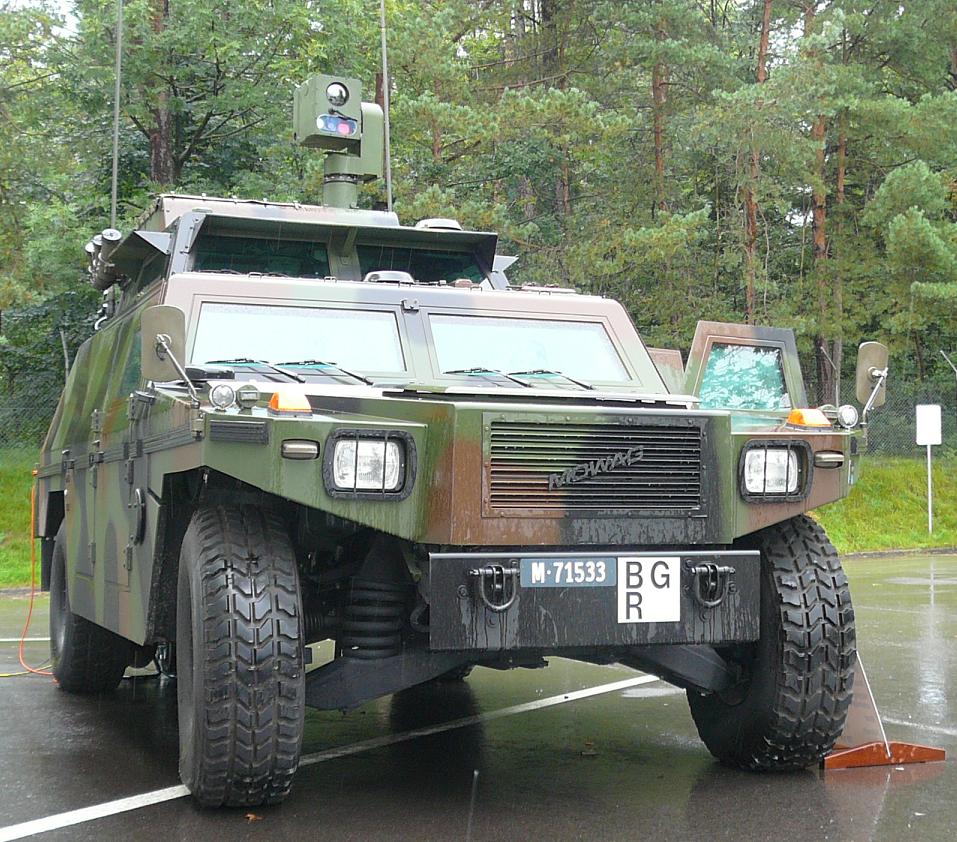

Variant 2 Eagle III
Variant 3 Eagle 4x4

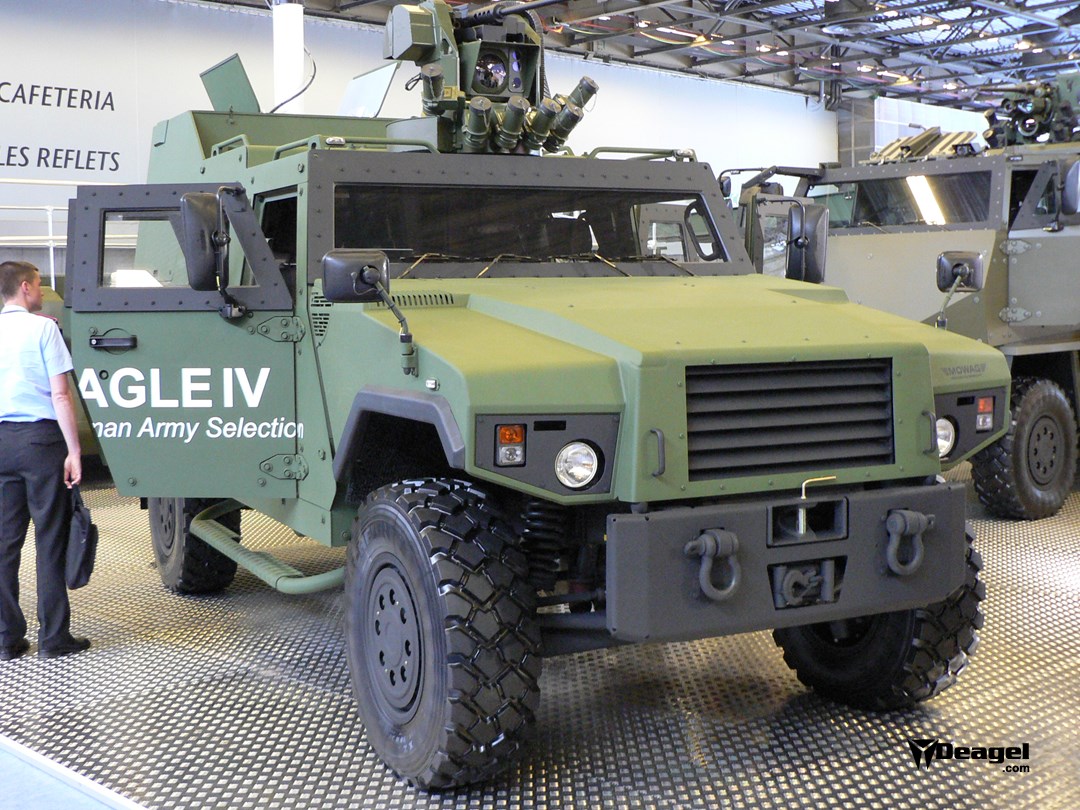

Variant 4 Eagle IV

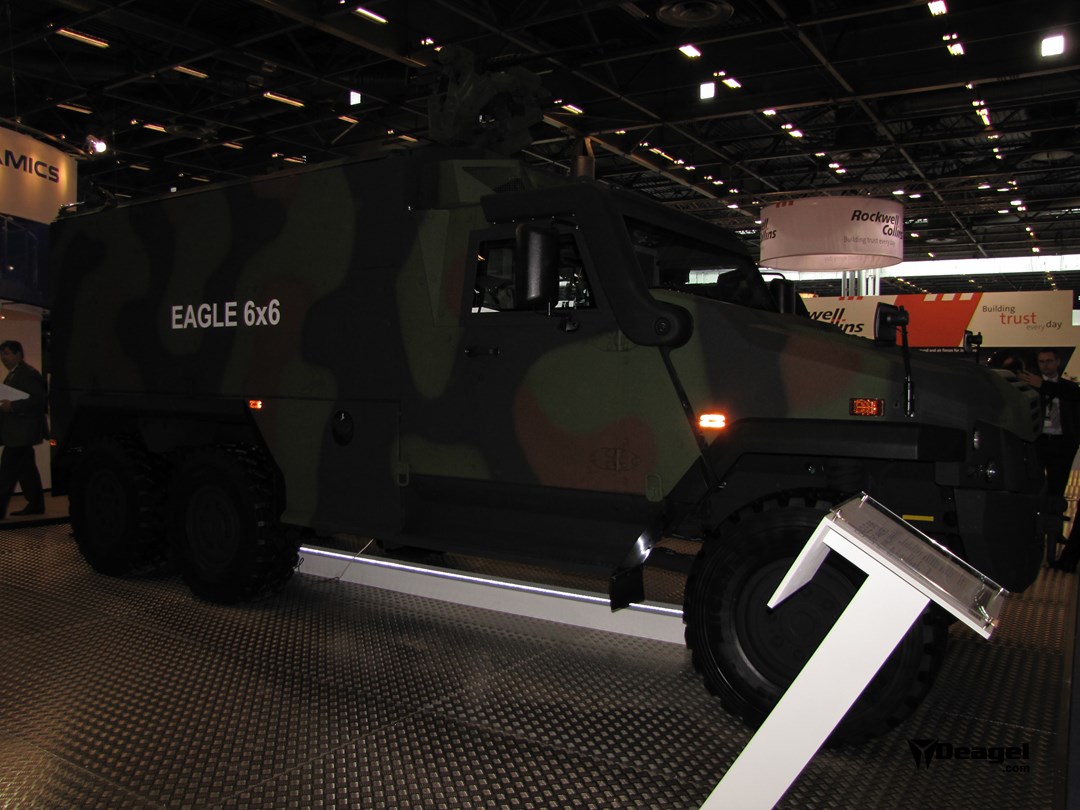

Variant 5 Eagle 6x6

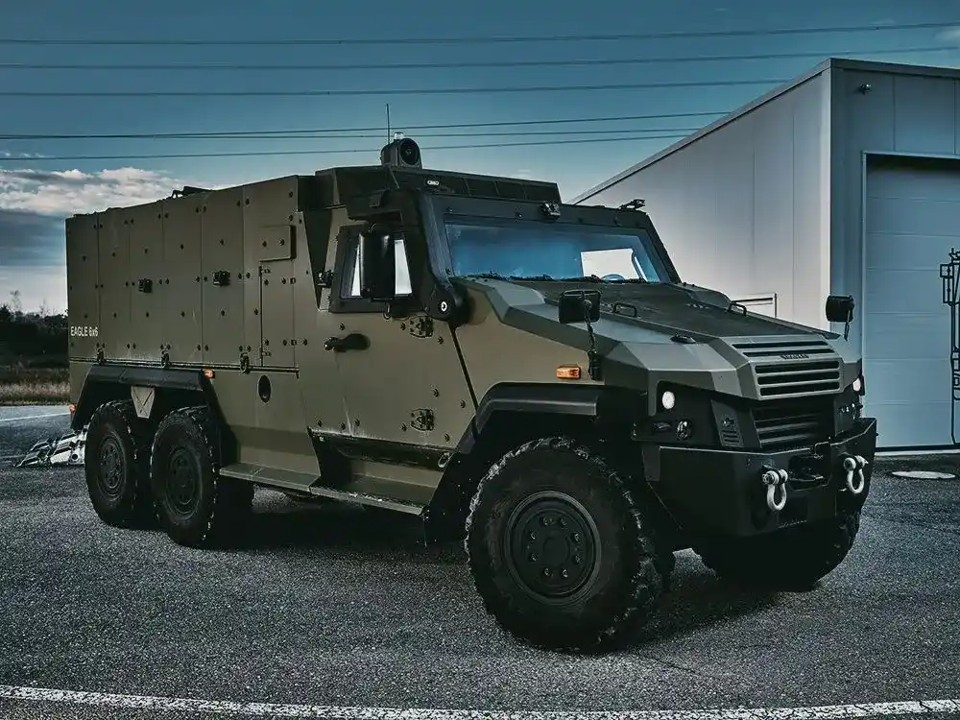

Variant 6 Eagle V
Details
Country of Origin Switzerland
Sources

deagel.com: https://www.deagel.com/x/x/a000562

Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
4.9 m
Width
2.3 m
Height
1.75 m
Weight
5500 kg
Operators (2)
Denmark
Switzerland
