F370

Frigates

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

F370

Designation

F370

Alternate Designation

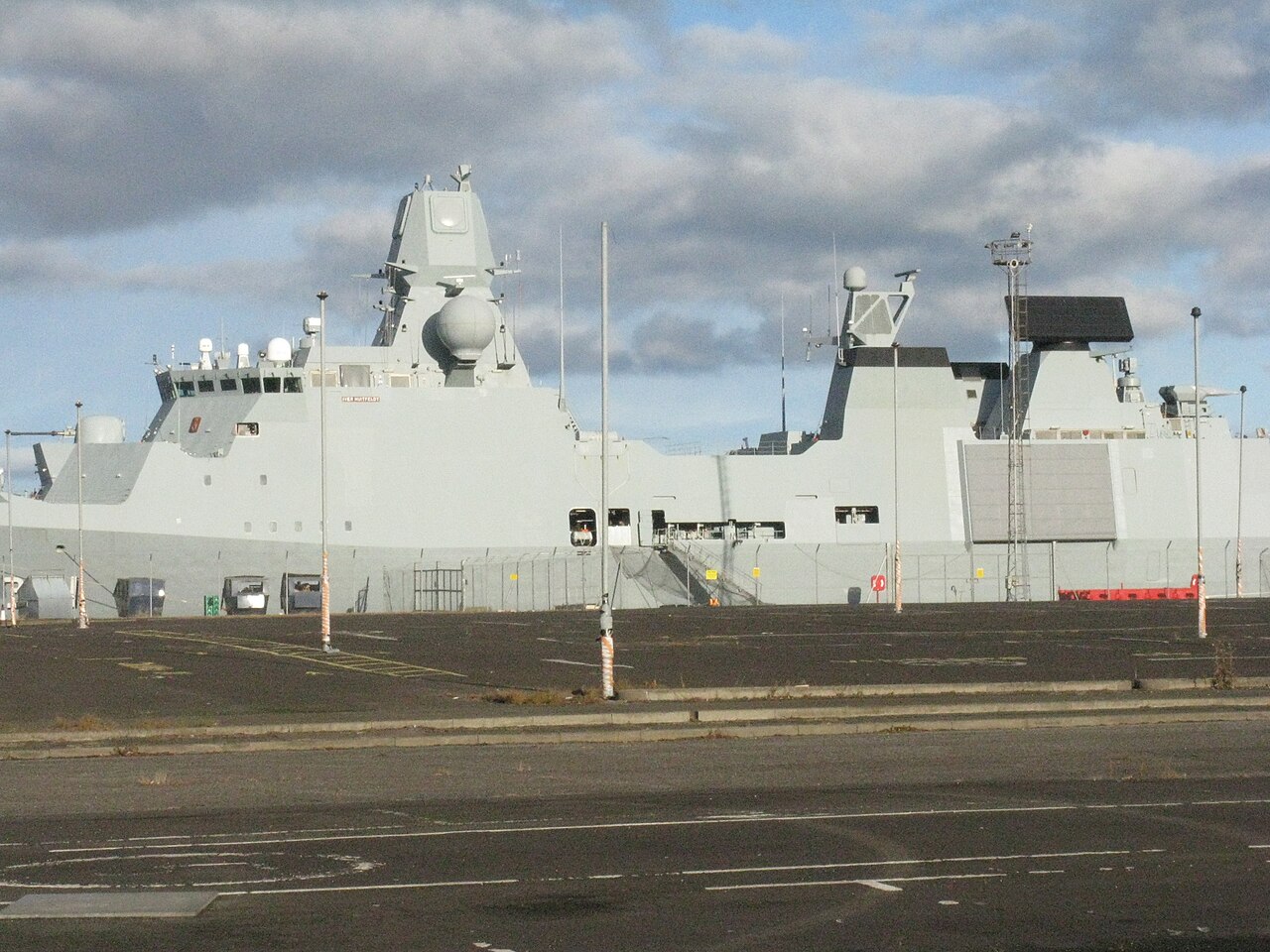

Iver Huitfeldt

Equipment Type

Frigates

Manufacturer

Odense Staalskibsvaerft

Date of Introduction

2012

Description

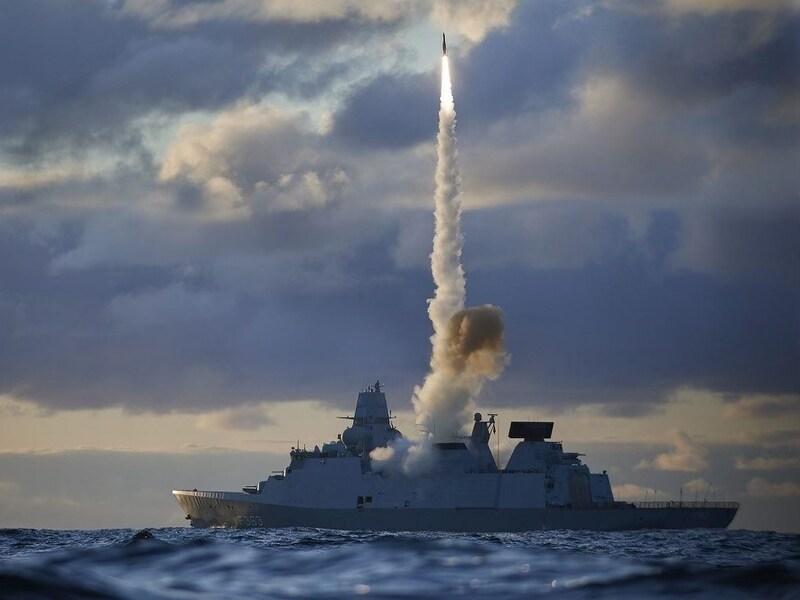

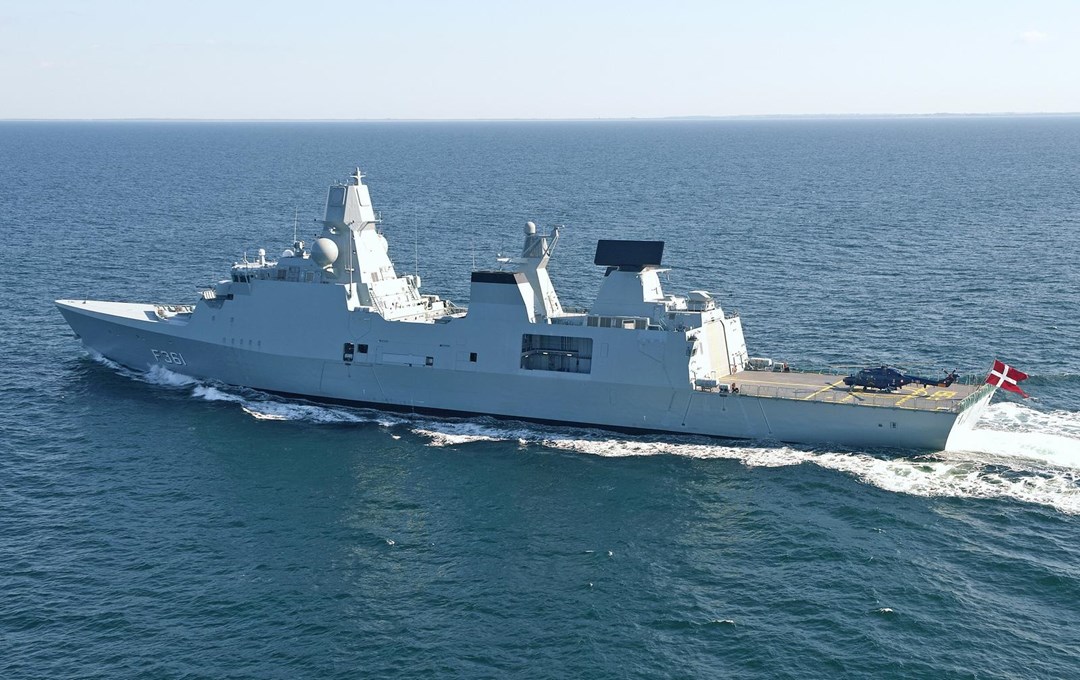

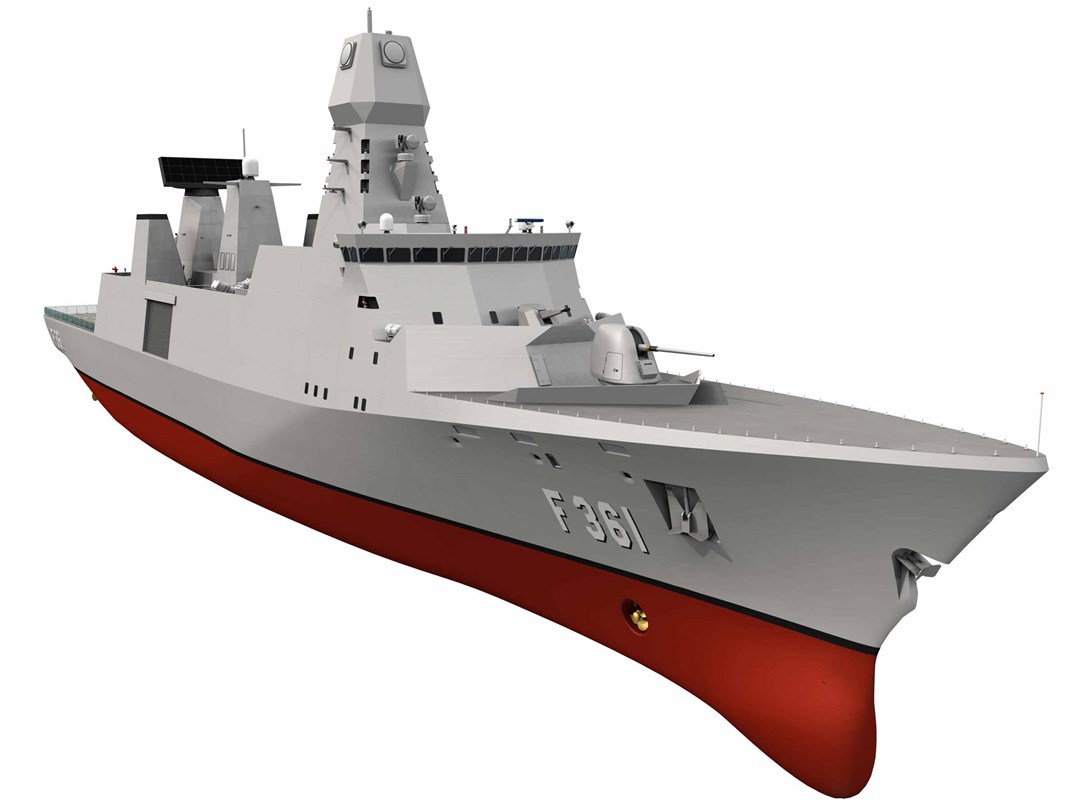

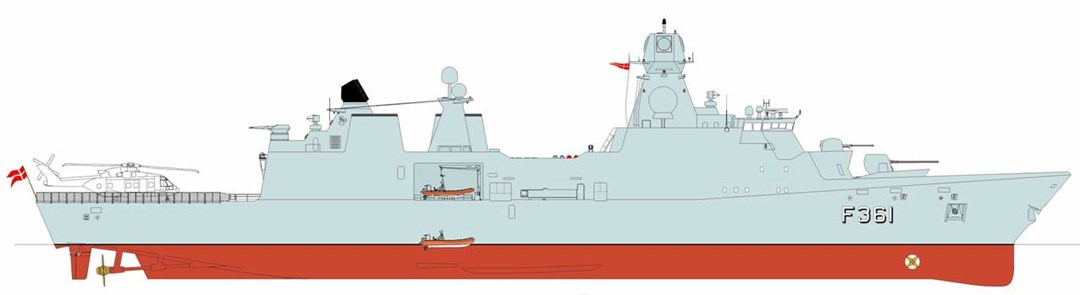

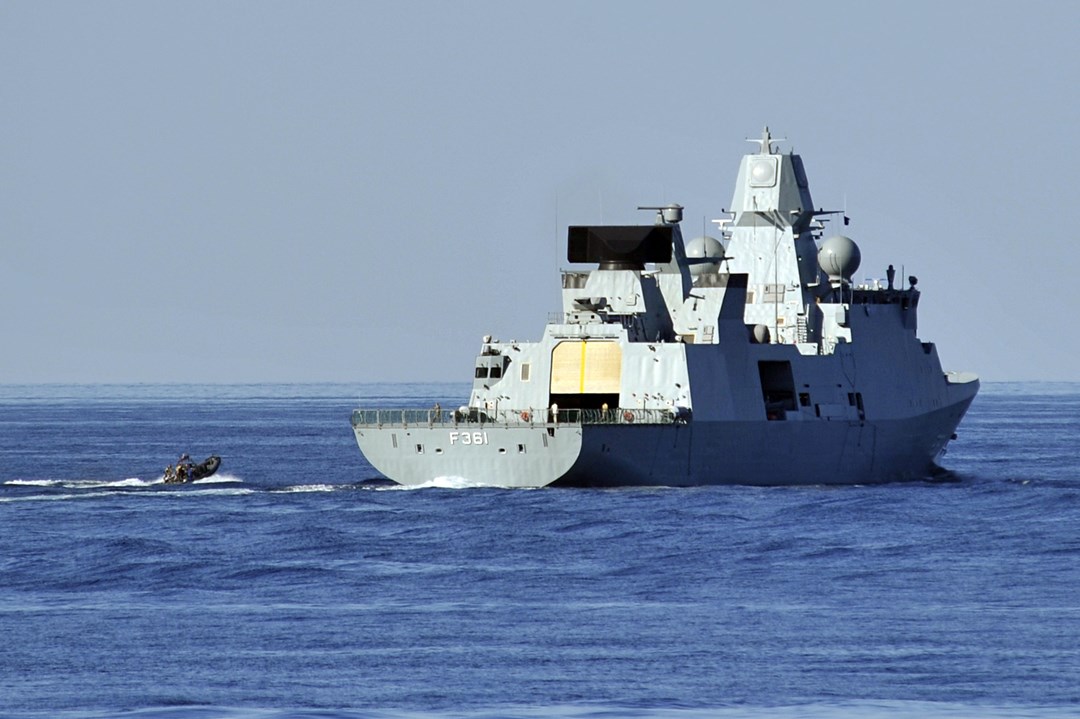

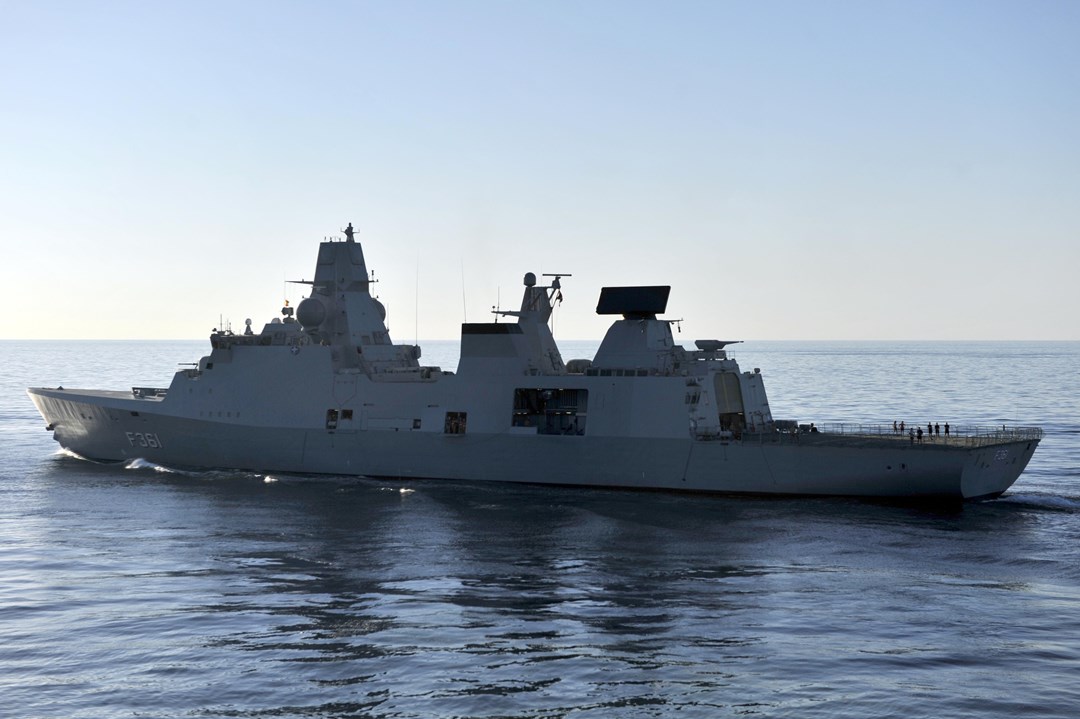

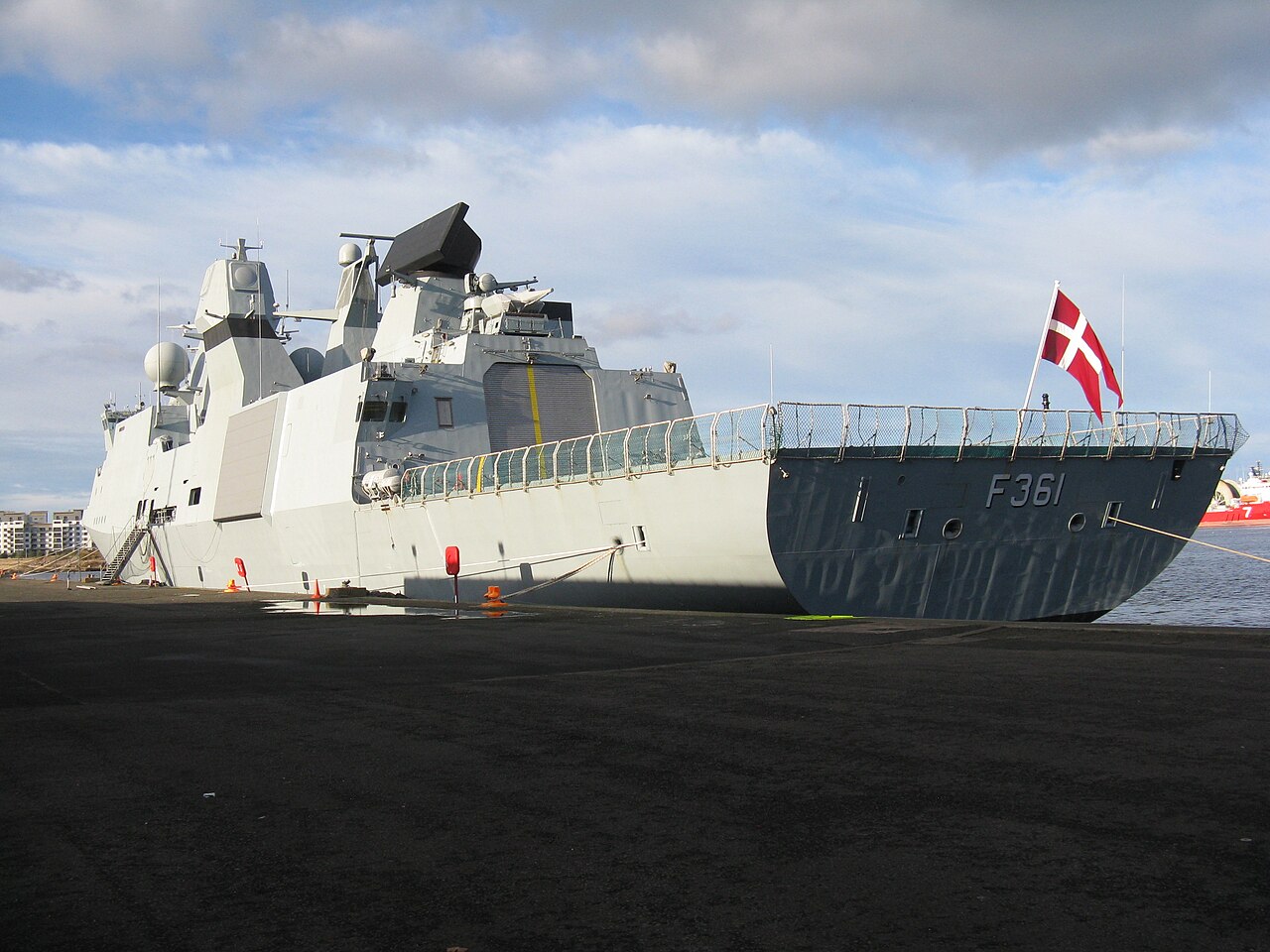

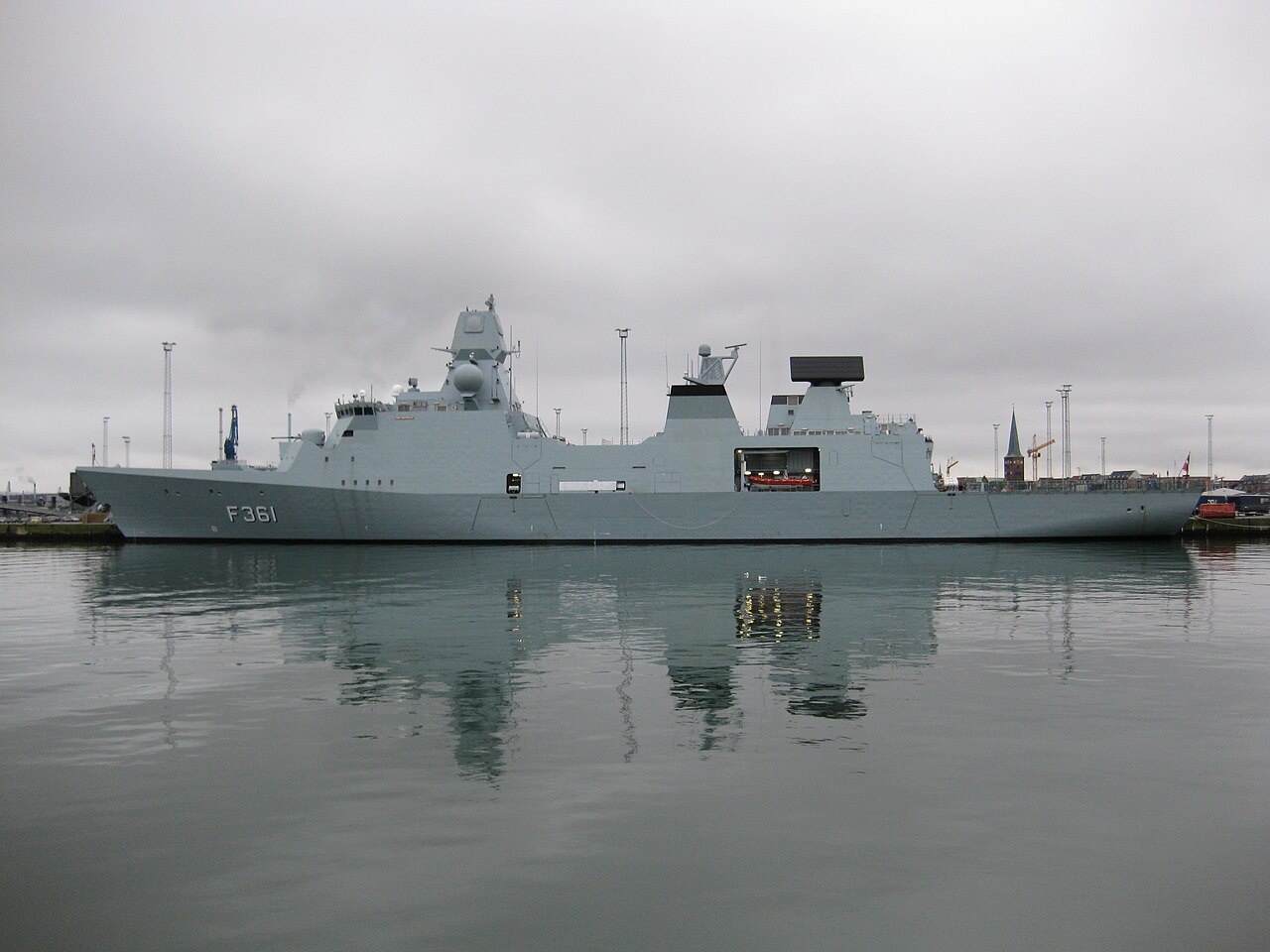

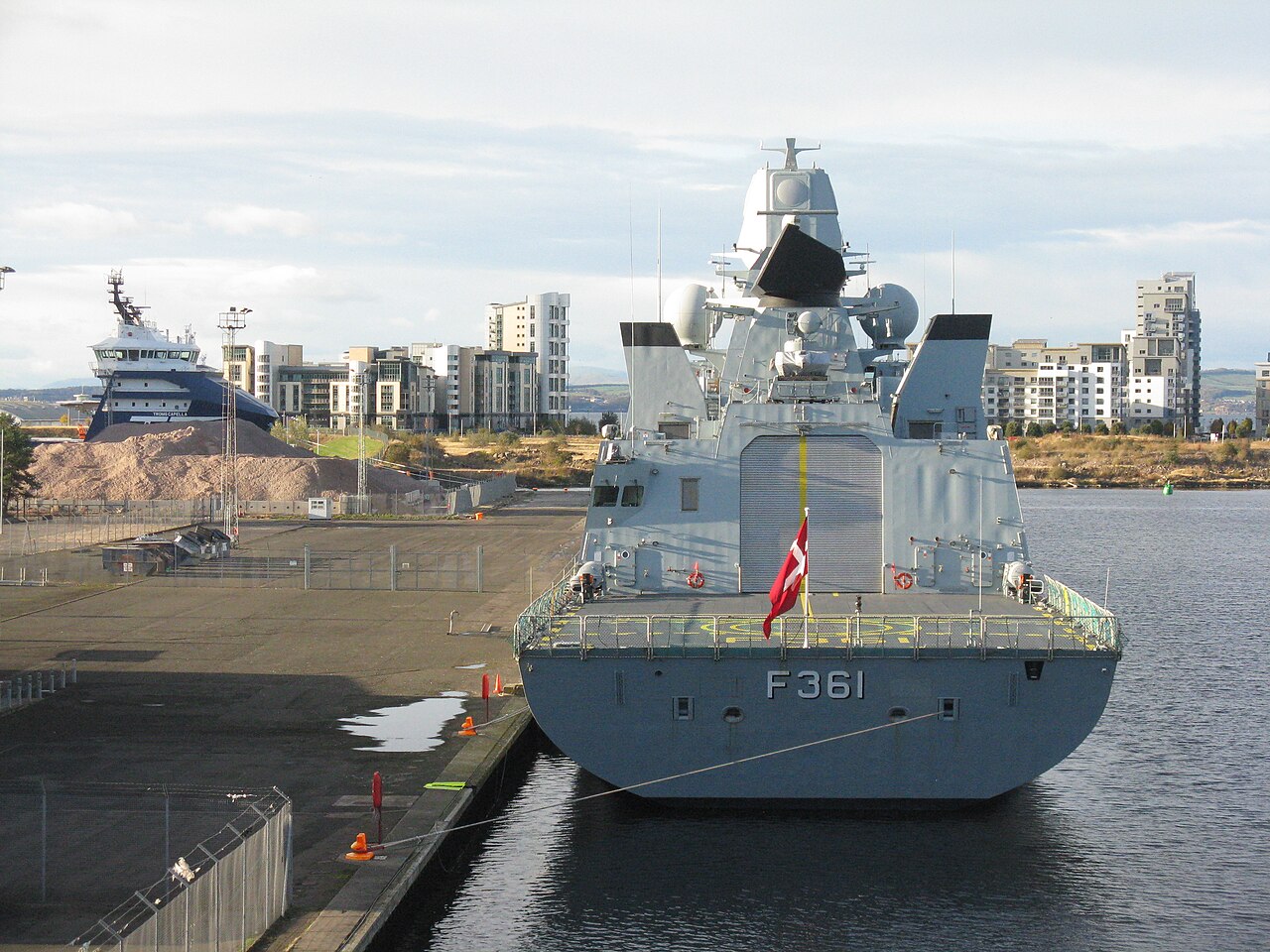

The F370-class frigates have been designed to meet the requirements for an expeditionary multi-purpose ship capable of performing anti-ship (ASuW) and anti-submarine (ASW) warfare missions with point air defense capabilities. Reduced radar cross section, infrared, acoustic, and magnetic emissions will be requested to fulfill the highly survivable stealth concept. The Royal Danish Navy plans to procure three F370-class frigates with the lead ship, Iver Huitfeldt, achieving initial operational capability in 2012. The F370 frigate will feature a modular design architecture, a 127mm MK45 Mod 4 naval gun, a flight deck for and a single EH101 Merlin helicopter. ESSMs as well as MK 56 launching systems will be provided to these ships. No further information has been released yet about this project. In November 2004, the Royal Danish Navy selected 35mm Millennium cannon to provide close-in air defense capability. One guns controlled by CEROS fire control system will be installed on each F370-class frigate one aft on the helicopter hangar roof. A 76mm naval gun system has been installed at the bow to defend the frontal section from air strikes.

Naval & Littoral Specifications

Crew 101

Displacement 6645.00 tonnes

Beam 19.80 m

Draft 4.60 m

Max Speed 28.0 knots

Overview (Deagel)

Group Frigates

Status Active

Also Known As Iver Huitfeldt

Origin Denmark

Contractor Odense Staalskibsvaerft

Initial Operational Capability (IOC) 2012

Total Production 3

Specifications (Deagel)

Crew 101

Number of Aircraft 1

Troops 64

Dimensions — Beam 19.8 meter

Dimensions — Draft 4.6 meter

Dimensions — Length 139 meter

Dimensions — Main Gun Caliber 127 millimeter

Mass — Full Displacement 6,645 ton

Performance — Max Range 9,000 nautical mile

Speed — Cruise Speed 15 knot

Speed — Top Speed 28 knot

Gear (Deagel)

Item 1 Anti-Ship Missiles: RGM-84L Harpoon (8)

Item 2 Combat Management Systems: CEROS 200 FCS

Item 3 Missile Launchers: Mk 41 Strike Length

Item 4 Naval Gun Systems: 76/62 Super Rapid (1)

Item 5 Naval Gun Systems: Mk 45 mod 4 (1)

Item 6 Radar Systems: APAR (1)

Item 7 Radar Systems: SMART-L (1)

Item 8 Surface-to-Air Missiles: ESSM

Item 9 Surface-to-Air Missiles: Standard SM-2 Block IIIB

Item 10 Torpedoes: MU90 Impact

Item 11 Utility & Transport Helicopters: EH101 (1)

Item 12 Weapon Stations: Millennium (1)

Details

Country of Origin Denmark

Category Frigates

Naval > Frigates

Sources

deagel.com: https://www.deagel.com/x/x/a000391

Classification

Domain

Naval & Littoral

Equipment Status

Active

Dimensions

Length

139 m

Width

19.8 m

Height

—

Weight

6645000 kg

Operators (1)

Denmark
