AH-64D Apache

AH-64D Apache

Attack Helicopters
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
AH-64D Apache
Designation
AH-64D Apache
Alternate Designation
Equipment Type
Attack Helicopters
Manufacturer
Boeing
Date of Introduction
1998
Description

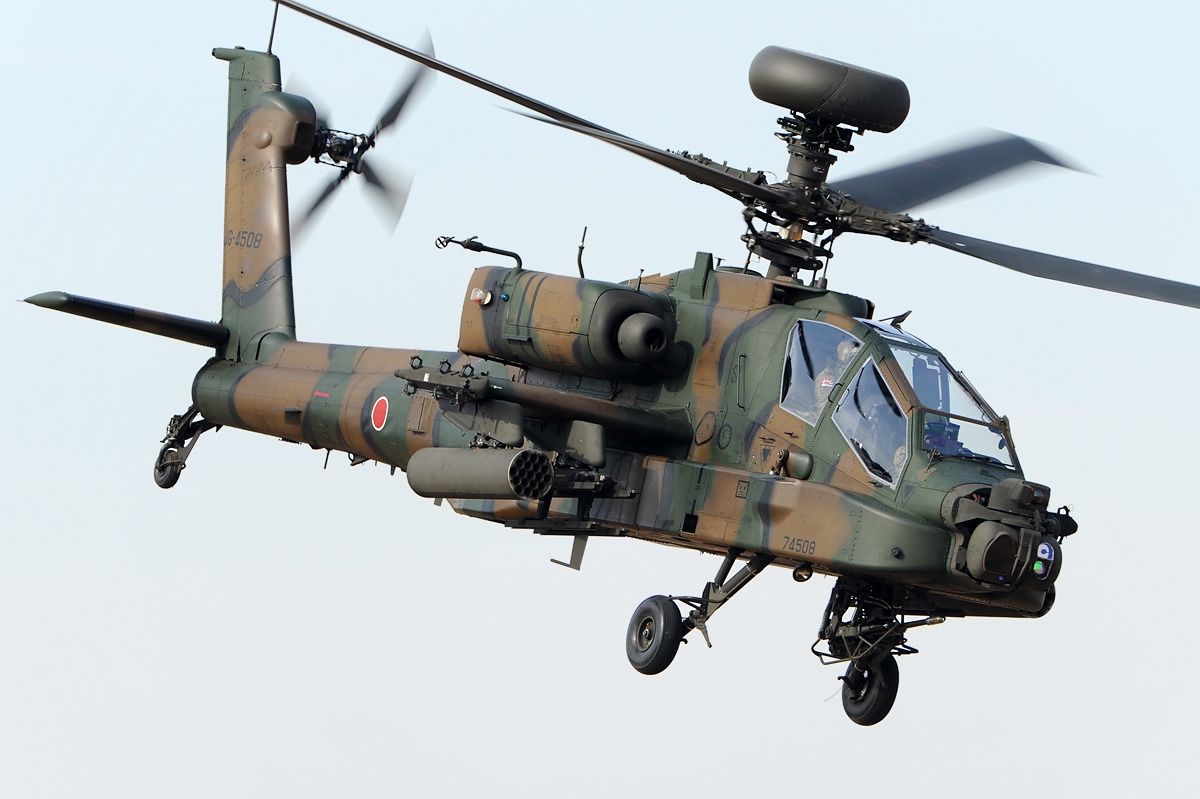

The AH-64D Apache (Block II) is an improved derivative of the combat-proven AH-64A Apache attack helicopter. It features 400% more lethality over current AH-64As, 720 percent more survivable, can hit moving and stationary targets in presence of obscurants when optical systems are rendered ineffective, and only needs 3.4 hours-man of maintenance per flight hour. It can accommodate up to four Stinger air-to-air missiles for self-defense purposes. The Apache Block II is compatible with the digitized battlefield of the 21st century. The AH-64D Apache attack helicopter entered service in 1998. In late 1990s, the Netherlands purchased 30 new-built AH-64Ds. In 2000, Egypt launched a $400 million modernization program to upgrade existing -64A models to -64D standard. In August 2001, The Japan Defense Agency (JDA) selected the AH-64D Apache attack helicopter for the land arm of Japanese Defense Force (JDF). The deal includes between 60 and 80 AH-64Ds powered by General Electric T700-GE-701C engines and up to 23 Longbow fire control radars. The aircraft and related equipment will be procured for 10-year period with final assembly to be carried out in Japan under a licensed production program.

Air & Air Defense Specifications
Crew 2
Max Speed 276.1 km/h
Range 483.0 km
Overview (Deagel)
Group Attack Helicopters
Status Active
Origin United States of America
Contractor Boeing
Initial Operational Capability (IOC) 1998
Total Production 87
Specifications (Deagel)
Crew 2
Main Rotor Blades 4
Number of Engines 2
Dimensions — Height 4.1 meter
Dimensions — Length 17.7 meter
Dimensions — Main Gun Caliber 30 millimeter
Dimensions — Main Rotor Diameter 14.6 meter
Dimensions — Width 5.2 meter
Mass — Max Takeoff Weight 7,270 kilogram
Performance — Max Range 483 kilometer
Power — Max Power at TakeOff 3,780 shp
Speed — Top Speed at High Altitude 76.7 mps
Time — Flight Endurance 3 hour
Gear (Deagel)
Item 1 Anti-Ship Missiles: AGM-114B Hellfire (16)
Item 2 Anti-Tank Guided Missiles: AGM-114A Hellfire (16)
Item 3 Anti-Tank Guided Missiles: AGM-114C Hellfire (16)
Item 4 Anti-Tank Guided Missiles: AGM-114F Hellfire (16)
Item 5 Anti-Tank Guided Missiles: AGM-114K Hellfire II (16)
Item 6 Anti-Tank Guided Missiles: AGM-114L Longbow Hellfire (16)
Item 7 ESM & Warning Systems: AN/AAR-57 CMWS (1)
Item 8 ESM & Warning Systems: AN/APR-48A RFI (1)
Item 9 ESM & Warning Systems: AN/AVR-2A(V) (1)
Item 10 Jamming Systems: AN/ALQ-136 (1)
Item 11 Jamming Systems: AN/ALQ-211 SIRFC
Item 12 Jamming Systems: AN/ALQ-212 ATIRCM
Item 13 Jamming Systems: DASS (1)
Item 14 Medium Caliber Cannons: M230 Chain Gun (1)
Item 15 Missile Launchers: M299 (4)
Item 16 Optronic Systems: Arrowhead (1)
Item 17 Surface-to-Air Missiles: FIM-92 Stinger (4)
Item 18 Surface-to-Air Missiles: Stinger Block 1 (4)
Item 19 Turboshaft Engines: T700-GE-701C (2)
Variants
Variant 1 AH-64A Apache
Variant 2 AH-64D Apache
Variant 3 AH-64D Apache Longbow
Variant 4 AH-64E Apache Guardian
Details
Country of Origin United States
Category Rotary Wing Aircraft
Air > Rotary Wing Aircraft
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
17.7 m
Width
Height
4.1 m
Weight
7270 kg
Related Equipment (1)
Operators (3)
Japan
Egypt
Netherlands
