LSS

LSS

Replenishment Ships
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
LSS
Designation
LSS
Alternate Designation
Batiments Ravitailleurs de Force, BRF, FLOTLOG, Logistic Support Ship, Vulcano
Equipment Type
Replenishment Ships
Manufacturer
Fincantieri, Chantiers de l'Atlantique, Naval Group, SELEX ES
Date of Introduction
2021
Description

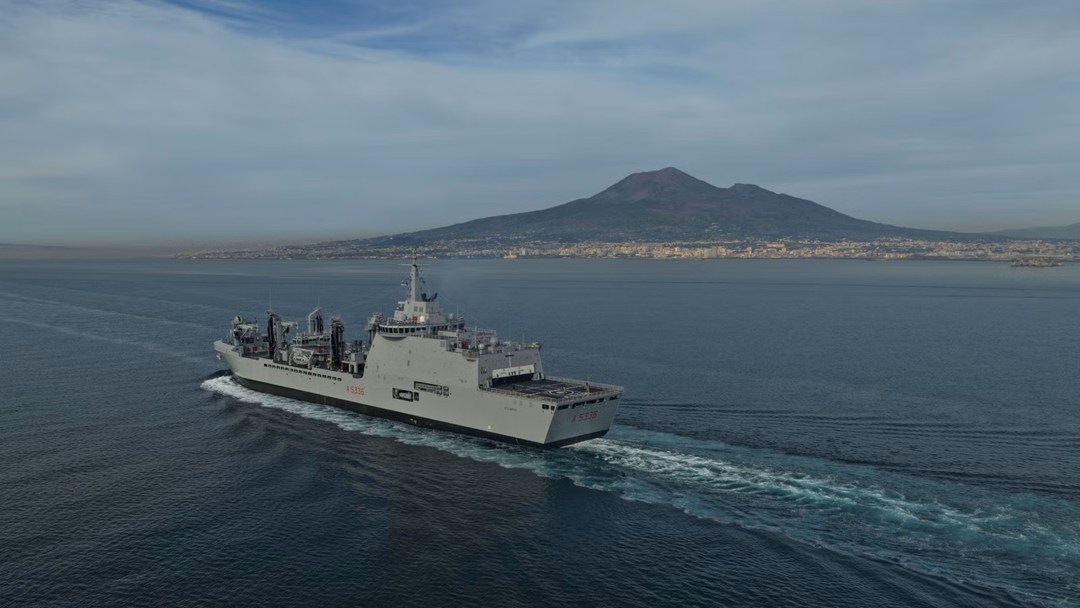

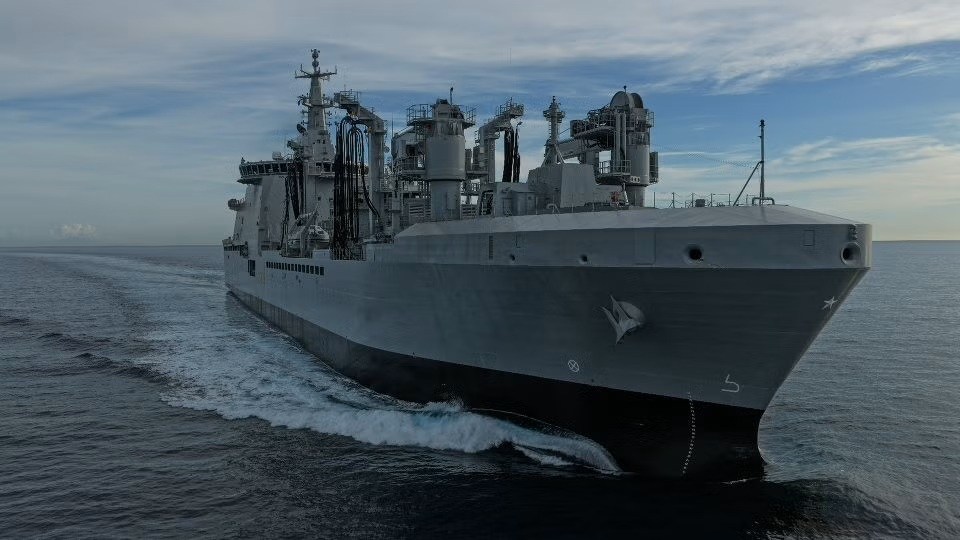

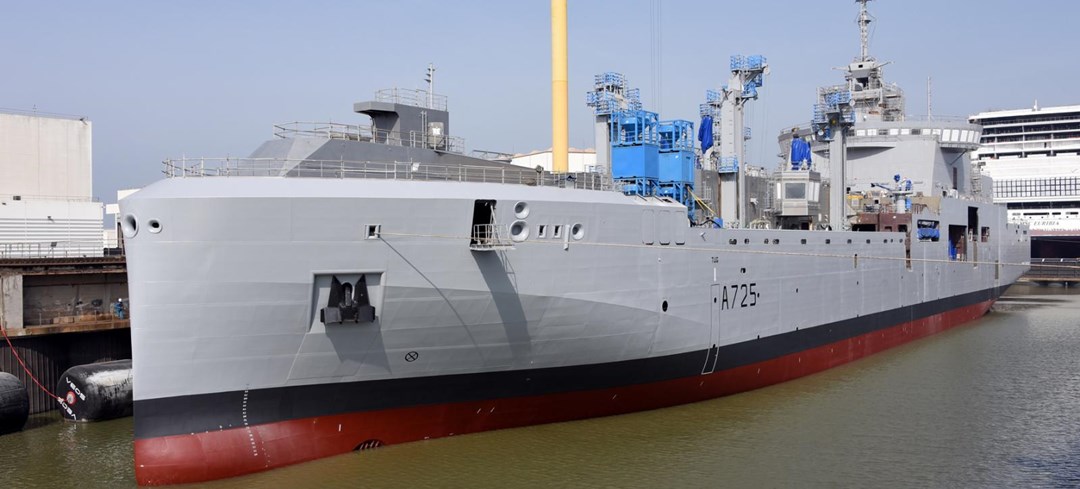

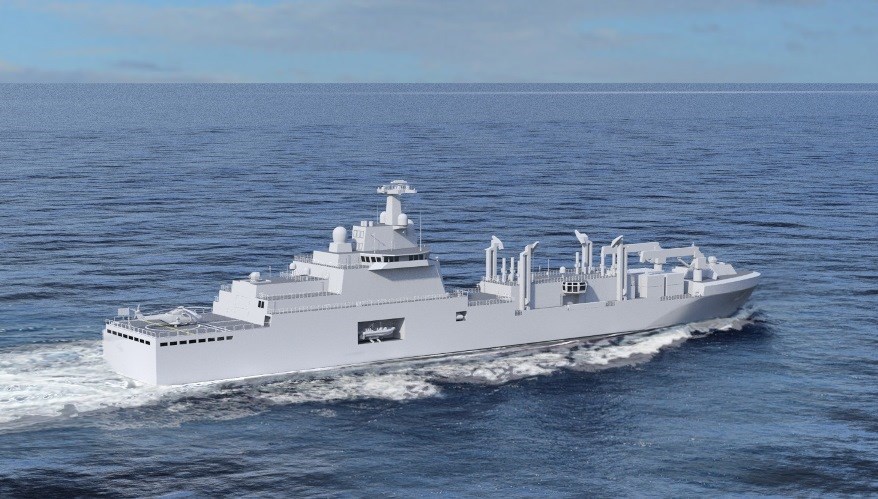

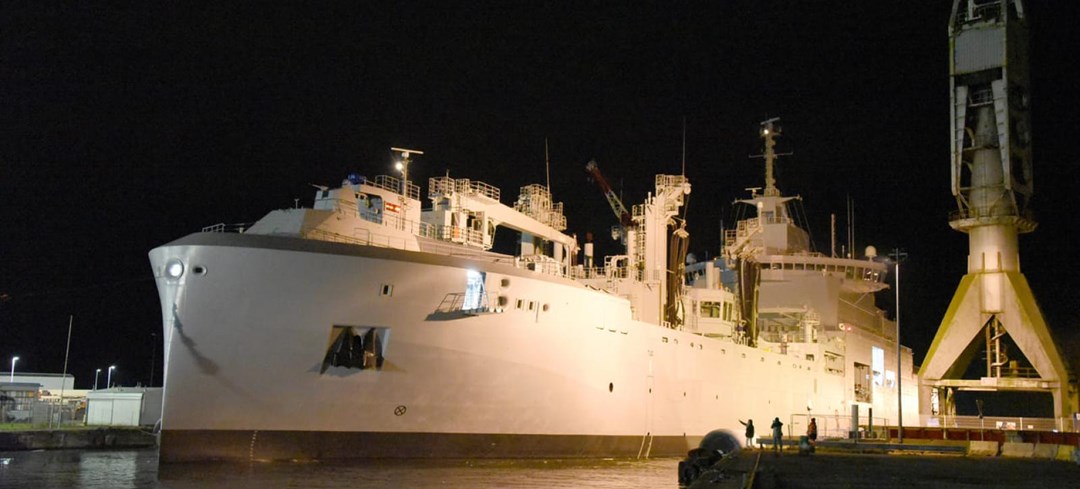

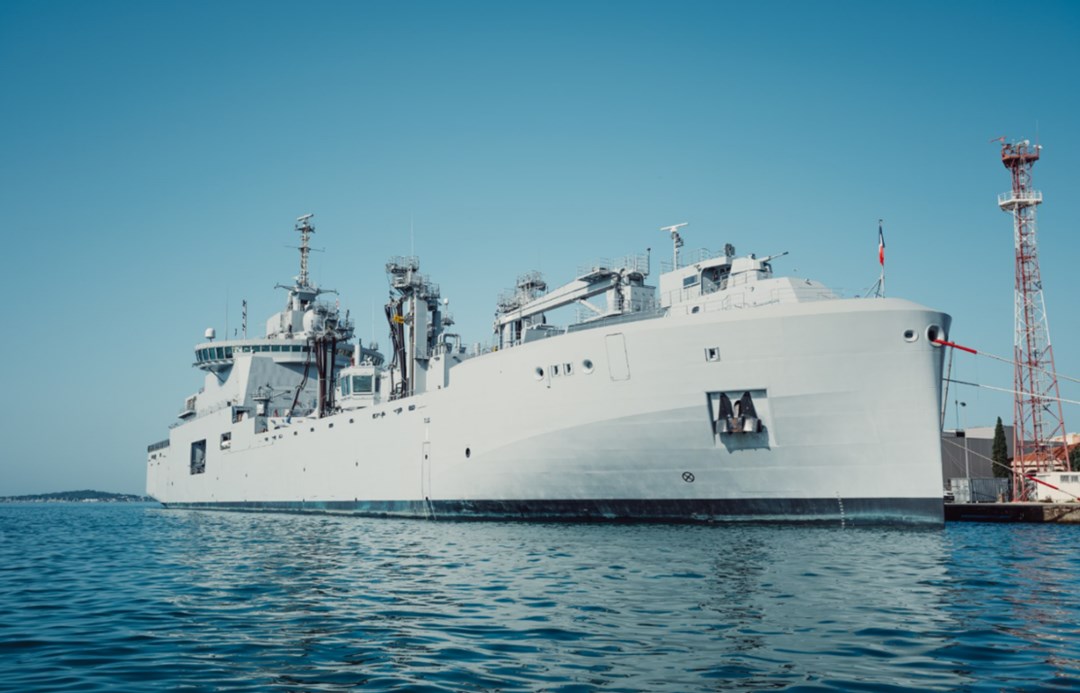

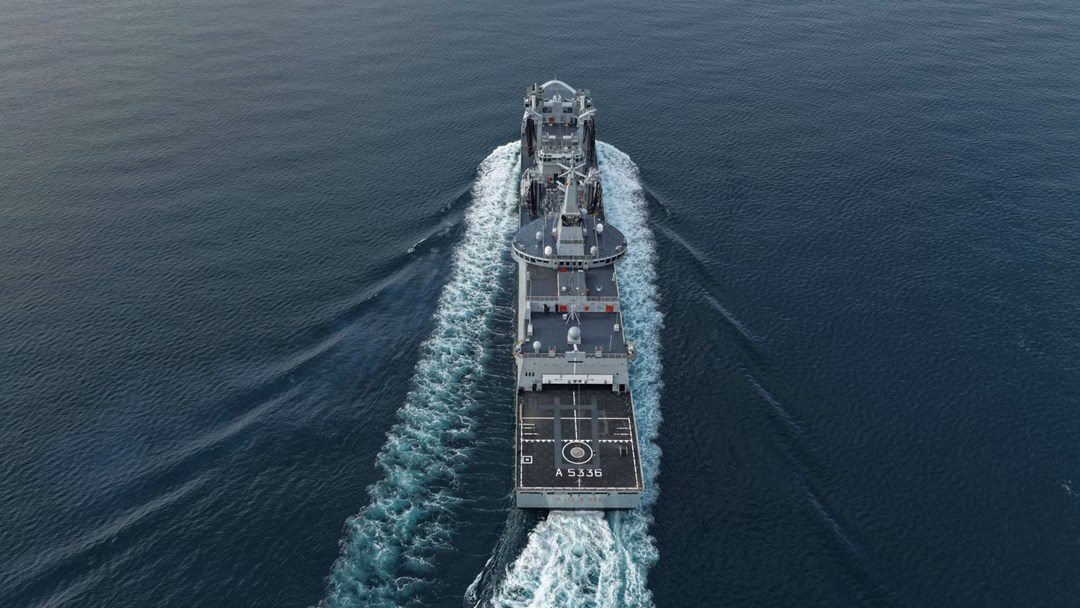

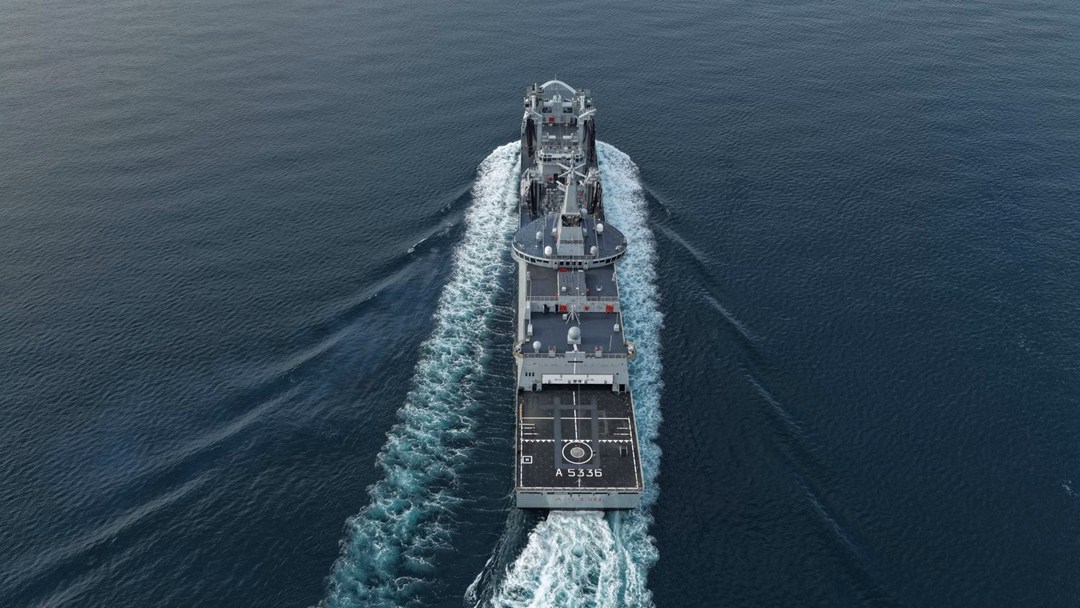

The Logistic Support Ship (LSS) is a vessel that provides logistics support to the fleet, endowed with hospital and healthcare capabilities thanks to the presence of a fully equipped hospital. The LSS's hospital comprises operating rooms, radiology and analysis rooms, a dentist's office and hospital rooms capable of hosting up to 12 seriously injured patients. The LSS is capable of transporting cargo and transfer both liquids (diesel fuel, jet fuel, fresh water) and solids (emergency spare parts, food and ammunitions) to other ships at sea. Besides, the LSS can carry out repair and maintenance work for other vessels at sea. The ship is provided with an state-of-the-art tactical command and control system (C2), communications and non-lethal defense systems. Optionally the LSS may embark more sophisticated electronic systems becoming an intelligence and electronic warfare ship. The Italian Navy will take delivery of the LSS built by Fincantieri in 2019 following the procurement contract awarded in May 2015. In January 2019 the French Navy ordered four ships to be delivered between 2022 and 2029. The LSS ship features four replenishment station abeam and one astern, is equipped with an 30 tons offshore stabilized crane and is capable of providing up to 2,500 kW of electric power to land. The ship also features facilities to perform rescue operations at sea through helicopters and special vessels. The LSS is provided with a high level of innovation to achieve a considerable degree of efficiency and flexibility allowing to serve both military and civil purposes. In addition, the ship has a low environmental impact thanks an electric auxiliary propulsion system generating a low level of pollution and biological waster control system.

Naval & Littoral Specifications
Crew 190
Displacement 14870.00 tonnes
Beam 27.60 m
Max Speed 20.0 knots
Overview (Deagel)
Group Replenishment Ships
Status Active
Also Known As Batiments Ravitailleurs de Force, BRF, FLOTLOG, Logistic Support Ship, Vulcano
Origin France, Italy
Contractors Fincantieri*, Chantiers de l'Atlantique, Naval Group, SELEX ES
Initial Operational Capability (IOC) March 2021
Total Production 6
Unitary Cost EUR €410 million
Specifications (Deagel)
Crew 190
Stretchers 12
Dimensions — Beam 27.6 meter
Dimensions — Length 194 meter
Dimensions — Main Gun Caliber 40 millimeter
Mass — Full Displacement 14,870 ton
Power — Electric Output 2,500 kW
Power — Total Combined Power 24 MW
Speed — Top Speed 20 knot
Volume — Displacement 28,700 metric ton
Volume — Payload Capacity 13,000 metric ton
Details
Country of Origin France
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
194 m
Width
27.6 m
Height
Weight
14870000 kg
Operators (2)
France
Italy
