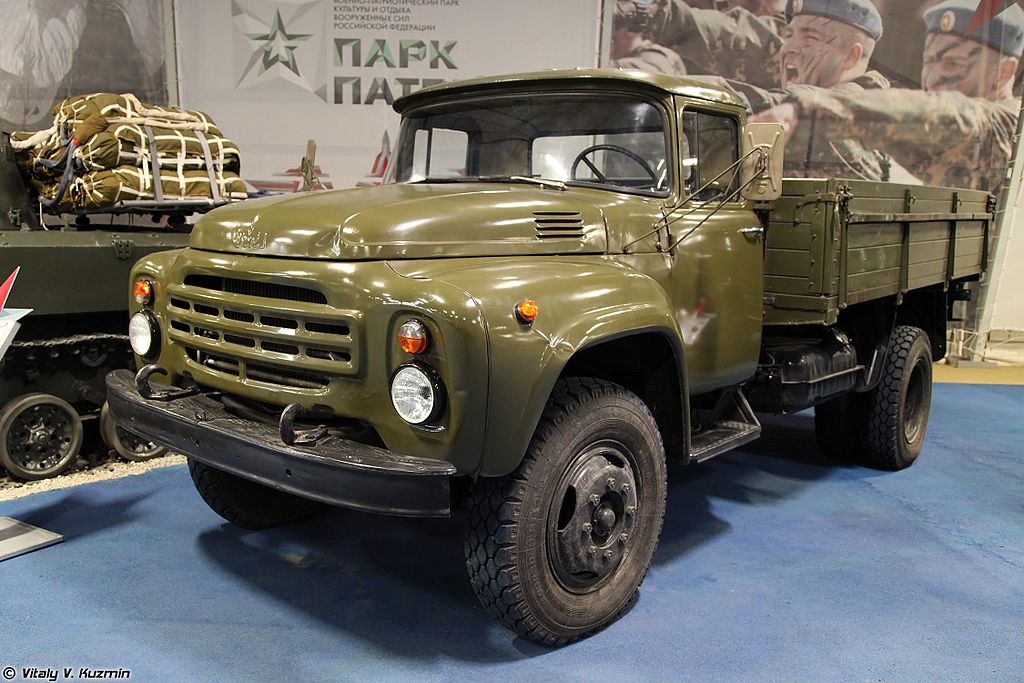

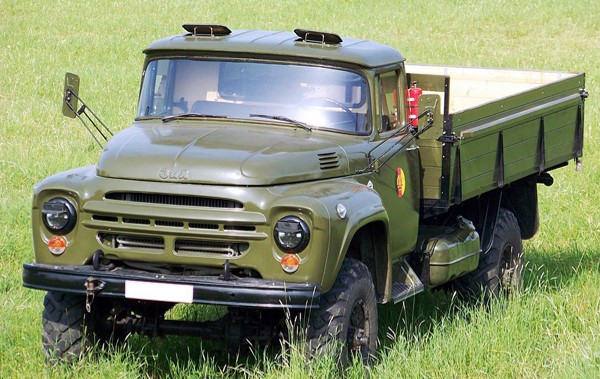

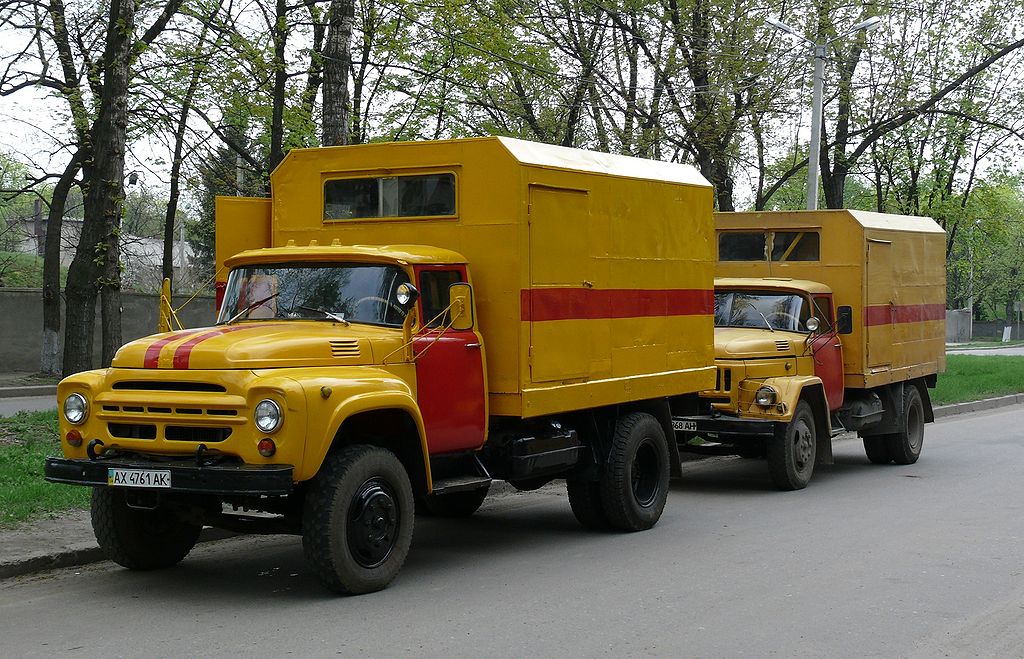

ZIL-130 Russian 4x2 Light Utility Truck
ZIL-130
Light Utility Vehicle
Other
Basic Information
Name
ZIL-130 Russian 4x2 Light Utility Truck
Designation
ZIL-130
Alternate Designation
ZIL-130; UamZ-43140
Equipment Type
Light Utility Vehicle
Manufacturer
ZIL
Date of Introduction
1964
Description
The ZiL-130 is a Soviet/Russian truck produced by ZiL in Moscow, Russia. The first prototype was built in 1956. Production began in 1962, while mass production started in 1964. It was one of the most numerous cargo trucks in the USSR and Russia, in total ZIL built 3,380,000 trucks up to 1994. In 1995, production was moved to the now-defunct Ural Motor Plant (UamZ, its trucks were known as UamZ-43140).
Ground Specifications
Crew
1
Engine
6 liter, V-8, water cooled, 4 stroke, petrol (170 hp)
Active Protection
None
Variants
ZiL-130A1
cargo truck capable of pulling trailers.
ZiL-130D1
chassis for ZiL-MMZ-555 dump truck with 3.3 m wheelbase.
ZiL-130D2
dump truck chassis.
ZiL-130D1E
ZiL-MMZ-555 dump truck chassis, temperate climate export model.
ZiL-130D1T
export model of ZiL-130D1E for tropical climates.
ZiL-130G
long cargo bed (length 4.686 m) with 4.5 m wheelbase.
ZiL-130GE
temperate climate export model of ZiL-130G.
ZiL-130GT
tropical climate export model of ZiL-130G.
ZiL-130S
for use in northern RFAS.
ZiL-130T
temperate climate export model.
ZiL-1361
export model with Perkins diesel engine.
ZiL-1361G
long wheelbase export model with Perkins diesel engine.
ZiL-1361D1
dump truck chassis with Perkins diesel engine.
ZiL-130V1
tractor truck with 3.3 m wheelbase.
ZiL-130V1T
tropical climate export model of ZiL-130V1.
ZiL-130Ye
ZiL-130 with shielded electrical system.
ZiL-130YeT
tropical climate export model of ZiL-130Ye.
ZiL-130YeE
temperate climate export model of ZiL-130Ye.
ZiL-MMZ-554
agricultural dump truck.
ZiL-MMZ-555
agricultural dump truck.
ATs 4,2-130
4,200 litre fuel tanker.
ATs 3,8-130
3,800 litre fuel servicing truck.
AVTs 2,8-130
2,800 litre water tanker.
DDA-53B
NBC decontamination vehicle.
PAZS-3152
mobile refuelling unit.
PSG-160
POL transfer pump unit.
System
Alternative Designation
ZIL-130; UamZ-43140
Type
Light Utility Truck
Manufacturer
ZIL
Configuration
4x2
Family
ZIL-130 Series
Crew
1 ea
Cab Seating
2 ea
Cargo Capacity
4,500 kg
Towed Load Capacity
6,400 kg
Dimensions
Length
6 m
Width
2.5 m
Height, Cab
2.35 m
Height, Body
3.5 m
Height, Cargo Area
1.43 m
Wheelbase
3.8 m
Weight, Unladen
4,500 kg
Weight, Laden
9,000 kg
Ground Clearance
0.275 m
Automotive
Engine Name
ZIL-130
Engine Type
6 litre, V-8, water cooled, 4 stroke, petrol
Engine Power
170 hp at 3,600 rpm
Power-to-Weight Ratio
INA
Fuel Capacity
150 Liters
Electrical System
12 V
Batteries
1 (6–ST 78EMSZ)
Steering
screw and nut with hydraulic booster
Suspension
(front) semi-elliptic leaf springs with telescopic shock-absorbers; (rear) semi-elliptic leaf springs and check springs
Brakes
Air
Tires
9.00 × 20
Angle of Approach
38°
Angle of Departure
27°
Gradient
36%
Vertical Obstacle
INA
Amphibious
No
Fording Depth
0.700 m
Turning Radius
8 m
Main Weapon System
Note
There are no crew-served weapons associated with the ZIL-130.
Protection
Armor
None
Applique Armor
No
Active Protection System
None
Mine Clearing
No
NBC Protection
INA
Smoke Equipment
No
Details
Country of Origin
Russia
Category
Logistics
Land > Combat Support Vehicles > Logistics
Filter Label
Z
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6 m
Width
2.5 m
Height
—
Weight
9000 kg
Operators (22)
Russia
Ukraine
Poland
North Korea
Czech Republic
Belarus
Bosnia and Herzegovina
Bulgaria
Cambodia
Croatia
Cuba
Hungary
Kazakhstan
Kosovo
Kyrgyzstan
Latvia
Moldova
Romania
Slovakia
Slovenia
Vietnam
Kurdistan
