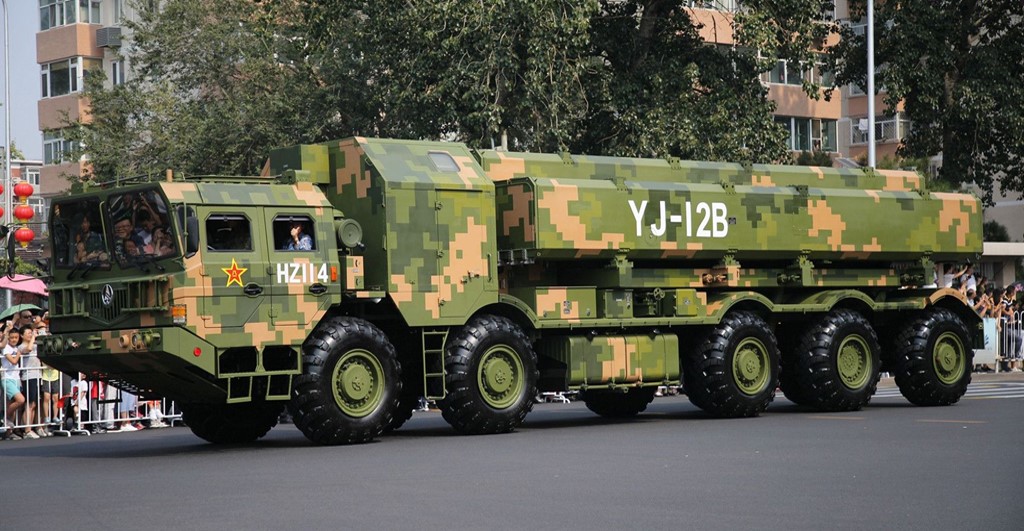

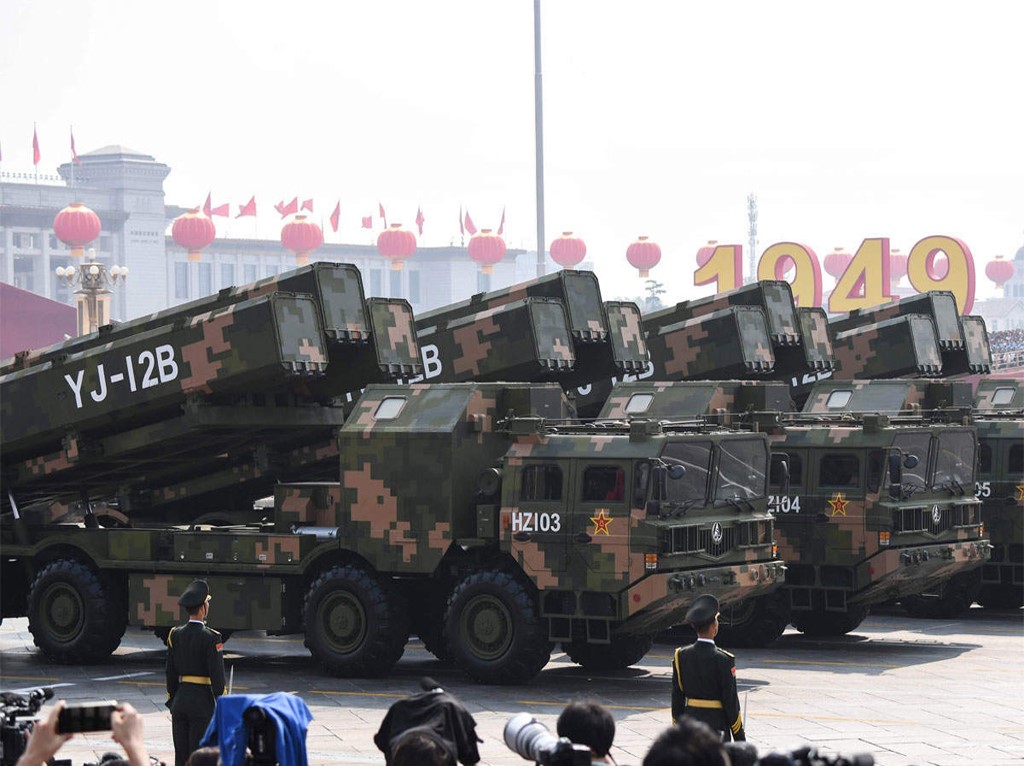

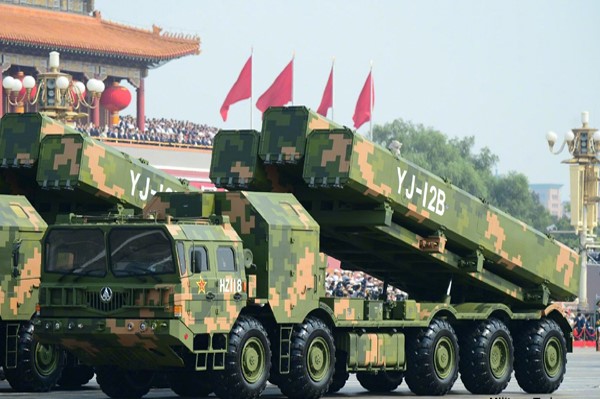

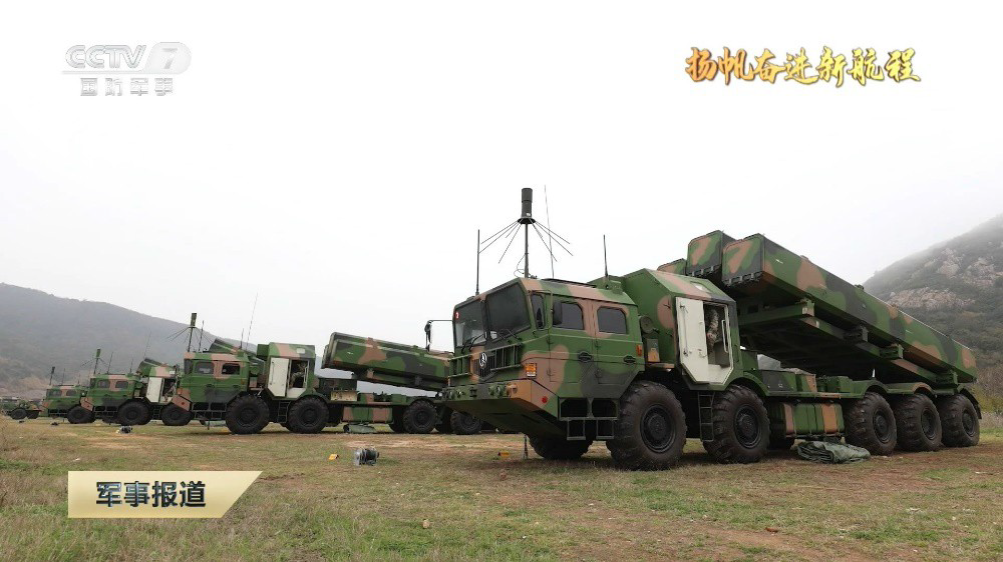

YJ-12B Chinese Coastal Defense Missile System

YJ-12B

Coastal Defense System
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
YJ-12B Chinese Coastal Defense Missile System
Designation
YJ-12B
Alternate Designation
YJ-12B
Equipment Type
Coastal Defense System
Manufacturer
Wanshan Special Vehicle
Date of Introduction
2015
Description

The YJ-12B is a new China's coastal defense missile system. Its images first emerged in 2018. This system was first publicly revealed in 2019. It is in service with the China's military. It is a general purpose heavy duty missile transporter developed from the original WS2500 and is built by Wanshan Special Vehicle. Its other contemporary is the larger HTF5680A1. The WS2600 is a heavy duty TEL co-developed by a joint Chinese and Belarusian venture. The WS2600 is slightly bigger than the WS2500 and a larger version of the original WS2400 with an additional axle to support the increased payload. Due to its larger size, the WS2600 is able to carry much heftier missiles, of which its most common payload is the DF-21C medium-range ballistic missile and the DF-21D anti-ship ballistic missile. Both the WS2500 and WS2600 form one of the main TEL carriers of China's MRBM and ASBM stockpiles. Like the WS2500, the TEL has a 4-door cab, which allows the WS2600 to easily accommodates the driver and 7 additional passengers.

Ground Specifications
Crew 8
Mobility Type Wheeled (8x8)
Main Weapon DF-21C medium-range ballistic missile and the DF-21D anti-ship ballistic missile
Engine Diesel (544 hp)
Active Protection None
Max Speed 70.0 km/h
Range 500.0 km
System
Alternative Designation YJ-12B
Type Coastal Defense Missile System
Manufacturer INA
In Service 2019-Present
Crew INA
Configuration 10x8
Cab Seating INA
Dimensions
Length 16.35 m
Width 3.05 m
Height 2.82 m
Weight, Curb 22.5 t
Payload Capacity 42.5 t
Automotive
Engine Name Deutz
Engine Type Diesel
Engine Power 544 hp
Cruising Range 650 km
Speed, Maximum Road 70 km/h
Speed, Average Cross INA
Speed Maximum Swim Not Amphibious
Gradient 40 deg
Side Slope 20 deg
Vertical Step 0.4 m
Trench 2.5 m
Fording Depth 1.2 m
Main Weapon System
Launcher
Name YJ-12B

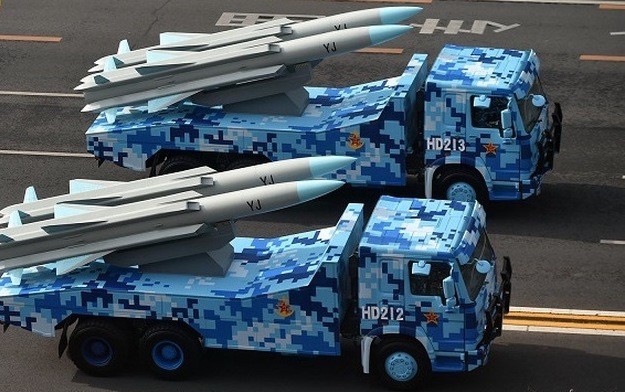

Note The YJ-12B can be seen as a ground-launched version of the naval YJ-12 anti-ship missile, that is carried by warships.
Missile
Name YJ-12 Missile
Type Supersonic Anti-Ship Cruise Missile
Length 6.3 m
Diameter 0.756 m
Weight 2,500 kg
Warhead Type HE-FRAG
Engine integrated ramjet/booster propulsion system
Operational Range 500 km
Maximum Speed Mach 3
Guidance System Inertial with active radar homing
Protection
Armor Protection from small arms and shell splinters
Applique Armor INA
Active Protection System No
Mine Clearing No
NBC Protection INA
Smoke Equipment No
Details
Country of Origin China
Category Radar Guided Missile Systems
Land > Air Defense > Radar Guided Missile Systems
Filter Label
Y
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
16.35 m
Width
3.05 m
Height
2.82 m
Weight
22500 kg
Operators (1)
China
