Alta X American Unmanned Aerial Vehicle (UAV)
Alta X
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Alta X American Unmanned Aerial Vehicle (UAV)
Designation
Alta X
Alternate Designation
Alta X
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Freefly
Date of Introduction
2022
Description

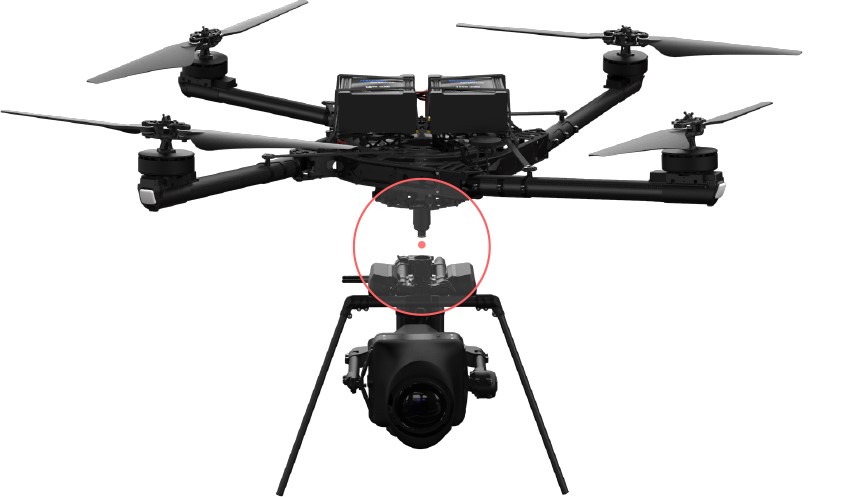

The Alta X American Unmanned Aerial Vehicle (UAV) folds to half its normal size with the push of a finger. The folding linkages stiffen the booms to ensure low vibration and precise flight characteristics. Alta X is built to carry just about anything with our integrated quick release system on top and bottom of the aircraft.
Air & Air Defense Specifications
Payload Capacity
15 kg
System
Alternate Designation
Alta X
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Freefly
Flight Modes
Manual, altitude, position, mission, loiter, orbit, return
Payload Capacity
15.06 kg
Supported Radios
Futaba, Spektrum, PX4 compatible SBUS and PPM receivers
Minimum Radio Controller Channels Required
5 (roll, pitch, yaw, throttle, mode)
Supported GNSS
GPS/Glonass/Beidou/Galileo
Dimensions
Unfolded Diameter (not including props)
1,415 mm
Unfolded Diameter (Including Props)
2,273 mm
Folded Diameter
877 mm
Height
387 mm
Height (Skyview)
434 mm
Typical Standard Empty weight
10.86 kg
Maximum Gross for Takeoff
34.86 kg
Automotive
Engine Name
Freefly F45
Number of Motors
4 ea
Battery
320 Amps per battery (assumes two batteries) 20C for a 16A-hr pack.
Motor Max Continuous Power Output
100 A
Motor Max Instantaneous Peak Power Output
130 A (>3s)
Equivalent Kv
115 rpm/V
Details
Country of Origin
United States
Category
UAVs
Air > UAVs
Filter Label
A
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
—
Width
2.27 m
Height
0.39 m
Weight
10.86 kg
Operators (1)
United States
