Panther V (BCC 67/VRQ 327) British Portable VHF Frequency Hopping Secure EPM Radio
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
Panther V (BCC 67/VRQ 327) British Portable VHF Frequency Hopping Secure EPM Radio
Designation
—
Alternate Designation
—
Equipment Type
—
Manufacturer
Thales
Date of Introduction
1995
Description
The Panther V manpack transceiver provides 5 and 20 watts of RF power with un-matched co-site capability enabling operation in multiradio locations where the majority of similar manpack radios would fail. The transceiver’s superior co-site performance also enables the manpack to be operated in a vehicle clip-in configuration, with co-located 50 watt VHF radios, delivering up to 20 watts through the vehicle antenna. The Panther V (BCC 67/VRQ 327) British Portable VHF Frequency Hopping Secure EPM Radio consists of the following: 1. BCC 67 PANTHER V-VHF Manpack Radio 2. BCC 69 PANTHER P-VHF Handheld Radio 3. Option - VRQ 327 PANTHER V-VHF Vehicle Station
System
Country of Origin
United Kingdom
Description
Hand-held Squad/Platoon
Manufacturer
Thales
In Service
Yes
Frequency Range
30-180 MHz
Vehicle Fit
20 Watts
Applique Amplifier
Yes, a 50 Warr Amplifier is avalable
Integral Vehicle Harness Interface
Yes
Dedicated GPS Interface
Yes
2 and 3 way re-broadcast Facility
Yes
Display
Alphanumeric Display
Note
Smallest 20 Watt EPM manpack/
vehicle transceiver available

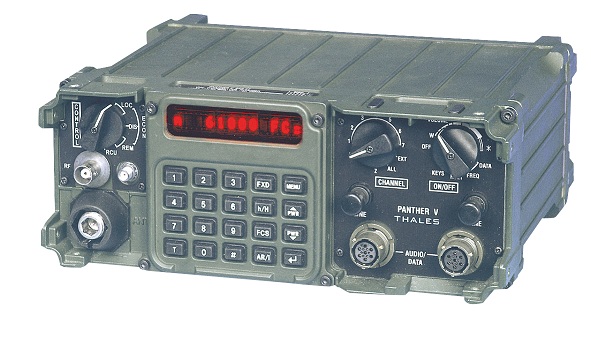

BCC 67 PANTHER V-VHF Manpack Radio
Type
VHF
Frequency
30-108 MHz
RF Output Power
selectable up to 5 W
Power
20 W boosted mode at 24 V DC (vehicle configuration)
Weight
5.9 kg with battery
Battery Life
32 hr with rechargeable Li-Ion battery pack
Mount Type
Portable or Vehicle

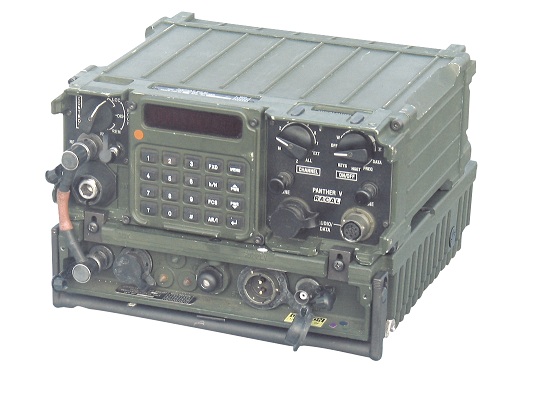

VRQ 327 PANTHER V-VHF Vehicle Station
Type
VHF
Frequency
30-108
RF Output Power
selectable up to 50 W
Width
230 mm
Height
160 mm
Depth
230 mm
Weight
INA
Mount Type
Vehicle

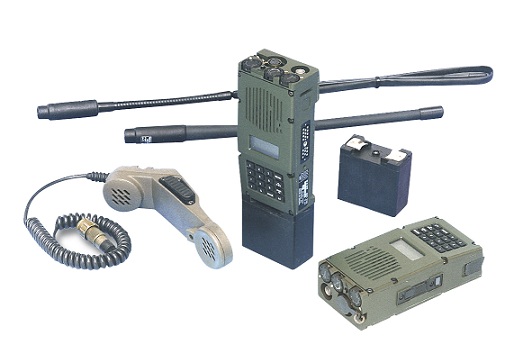

BCC 69 PANTHER P-VHF Handheld Radio
Type
VHF
Frequency
30-88
RF Output Power
selectable up to 5 W
Weight
900 g with battery
Battery Life
18 hr with rechargeable Li-Ion battery
Details
Country of Origin
United Kingdom
Category
Very High Frequency (VHF) Radios
Land > Communication Equipment > Very High Frequency (VHF) Radios
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
0.23 m
Height
0.16 m
Weight
5.9 kg
Operators (1)
United Kingdom
