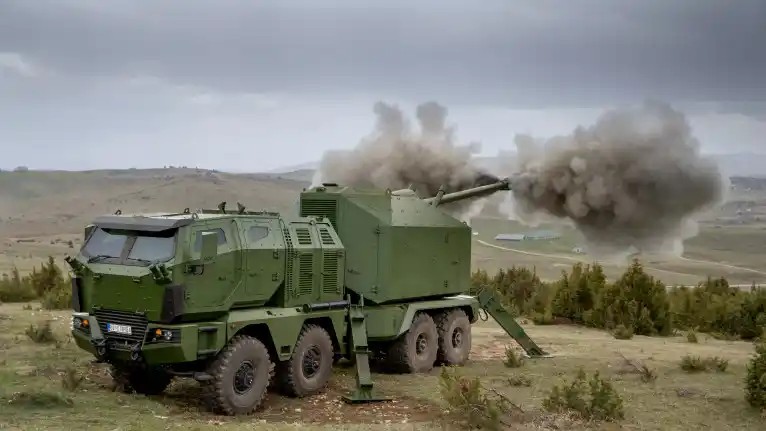

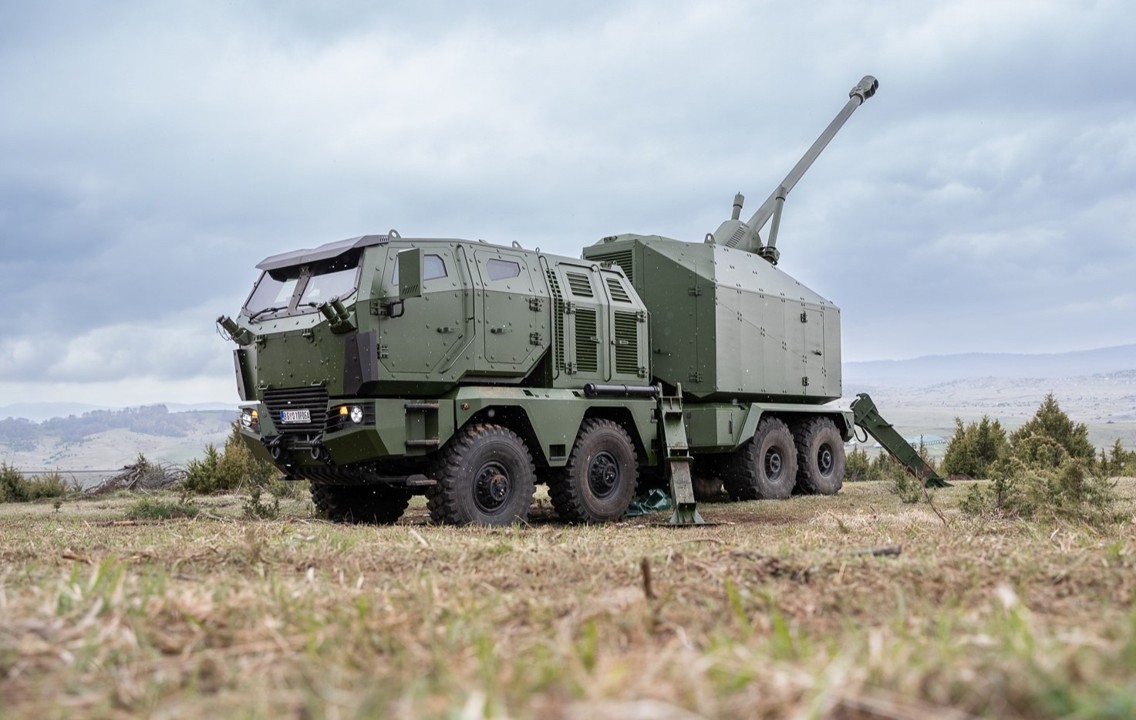

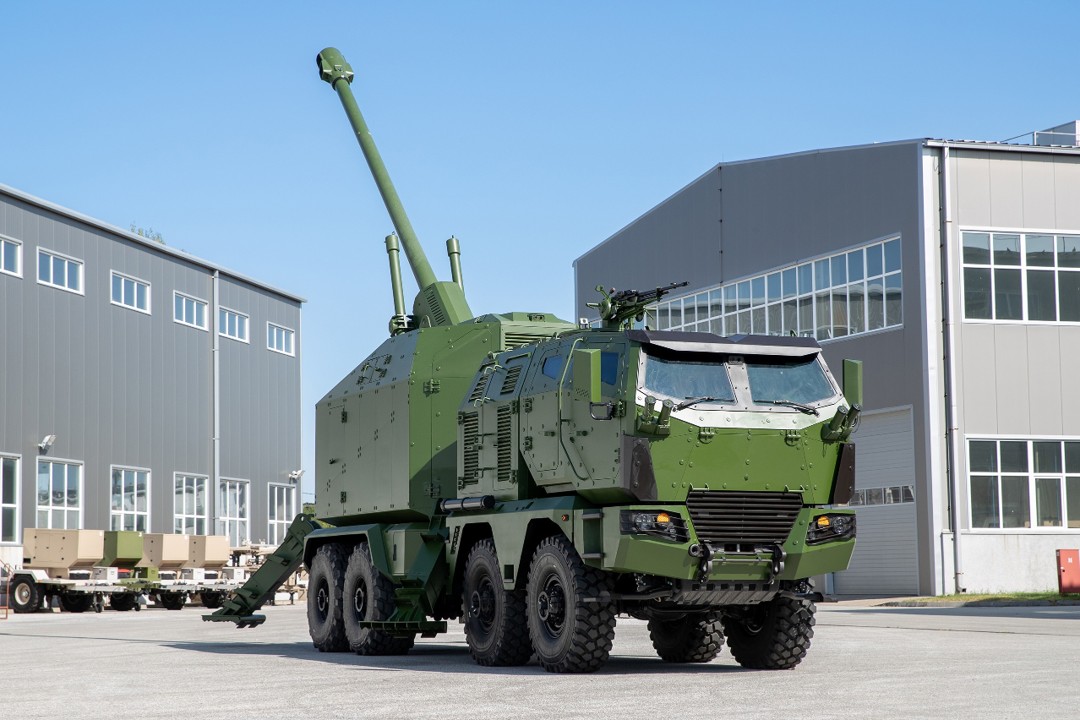

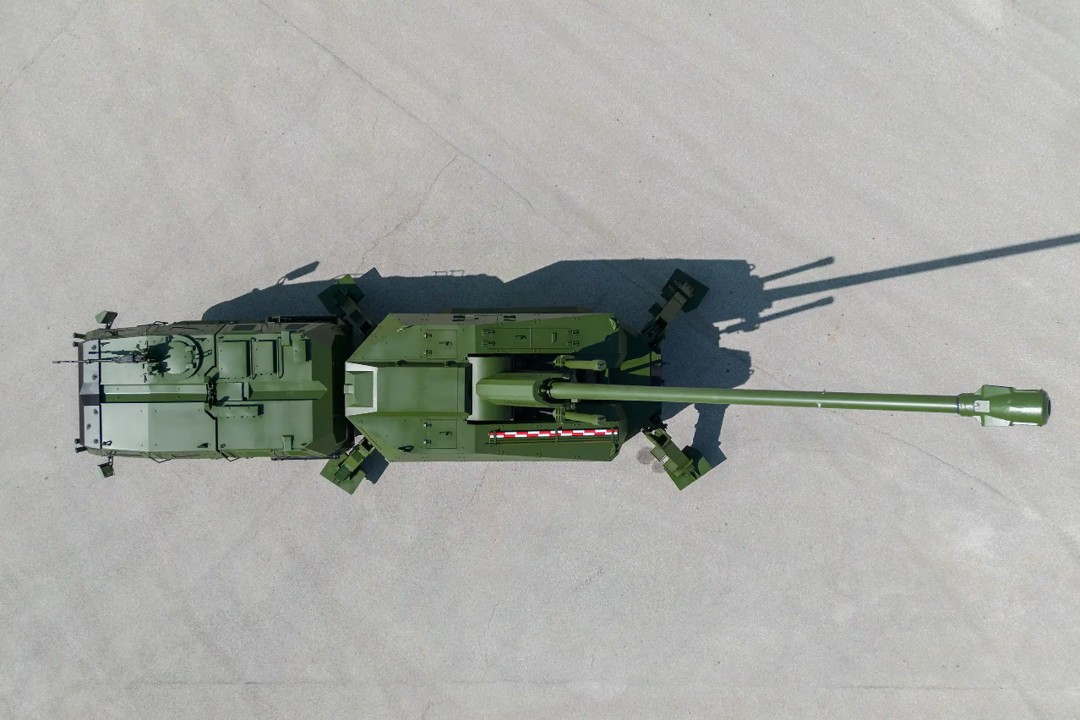

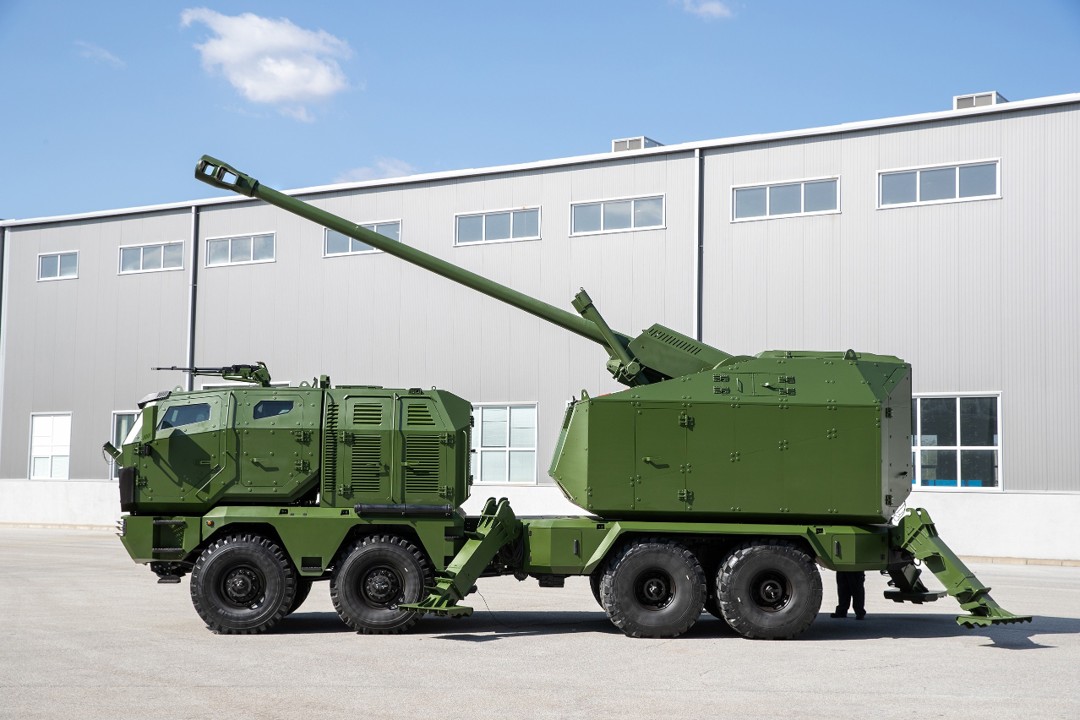

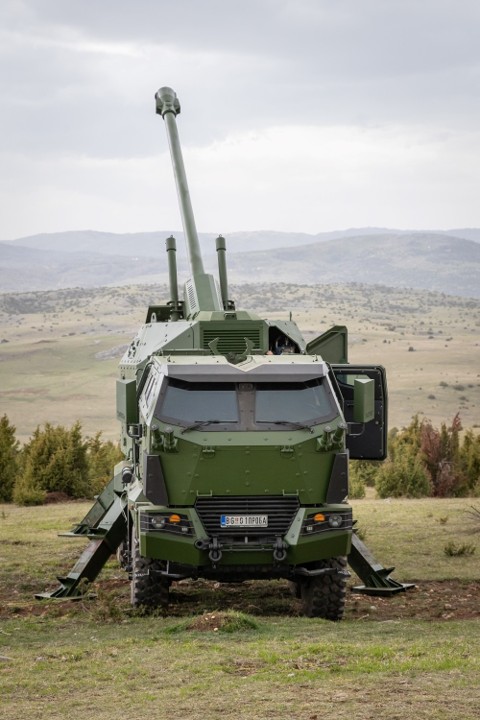

Nora B-52 NG Serbian 155mm Self-Propelled Howitzer

Nora B-52 NG

Self-Propelled Howitzer (SPH)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Nora B-52 NG Serbian 155mm Self-Propelled Howitzer
Designation
Nora B-52 NG
Alternate Designation
Nora B-52 NG
Equipment Type
Self-Propelled Howitzer (SPH)
Manufacturer
Yugoimport
Date of Introduction
2023
Description

The Nora B-52 NG Serbian 155mm Self-Propelled Howitzer is a state-of-the-art artillery weapon developed by the Serbian defense industry. It is renowned for being the most powerful fully automated fire support artillery system in the 155mm caliber, boasting a high level of autonomy. This advanced weapon is built by integrating a 155mm weapon module onto an 8x8 chassis. The weapon module is operated from the vehicle cabin and can be classified as a 155mm Remote Controlled Weapon Station (RCWS) due to its innovative characteristics. The weapon module features a 155mm autofrettaged barrel assembly that complies with the Joint Ballistic Munitions Operating Unit (JBMOU) standards. The barrel itself is 52 calibers long and has a powder chamber capacity of 23 liters. A key component of the weapon module is its fully automatic loader, which can hold 30 projectiles and propellant charges. This loader allows for a rate of fire of up to 4 rounds per minute. Additionally, the platform can accommodate 6 more rounds for automatic reloading purposes, bringing the total combat-ready ammunition to 36 rounds.

Ground Specifications
Crew 4
Mobility Type Wheeled (8x8)
Main Weapon 155mm weapon module
Range 52.0 km
System
Alternative Designation Nora B-52 NG
Type Self-Propelled Howitzer
Manufacturer Yugoimport
Configuration 8x8
Crew 4 ea
Dimensions
Length 10.5 m in marching position
Width 2.62 m in marching position
Height 3.9 m in marching position
Weight, Combat 40 tons
Automotive
Engine Name INA
Engine Type INA
Engine Power INA
Chassis 8x8 chassis
Maximum Range INA
Maximum Speed INA
Main Weapon System
Type Howitzer
Caliber 155 mm
Barrel Length 52 caliber
Powder Chamber Volume 23 liters
Range with ERFB Projectile 32.5 km
Range with ERFB BB Projectile 41.5 km
Range with VLAP Projectile 52 km
Ammuntion Compatibility All types of 155 mm ammunition
MRSI Capability 3 rounds at 30 km
Maximum Rate of Fire 4 rounds per minute
Loading Fully automatic, with back-up manual mode
Weapon Ammunition Set 30 in the automatic loader + 6 on the vehicle
Traverse ± 30º
Elevation from -5° to 65°
Navigation, Positioning and Orientation System Inertial navigation system with a back-up satellite navigation system (GPS, GLONASS, …) Fully automatic fire data setting with error < 1 mil
Ready to Fire in (from halting to first round) 60 seconds
Protection
Armor INA
Applique Armor INA
NBC Protection INA
Smoke Equipment INA
Details
Country of Origin Serbia
Category Self-Propelled Gun/Howitzer Artillery Systems
Land > Artillery > Self-Propelled Gun/Howitzer Artillery Systems
Filter Label
N
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.27 m
Width
0.07 m
Height
0.1 m
Weight
40000 kg
Operators (1)
Serbia
