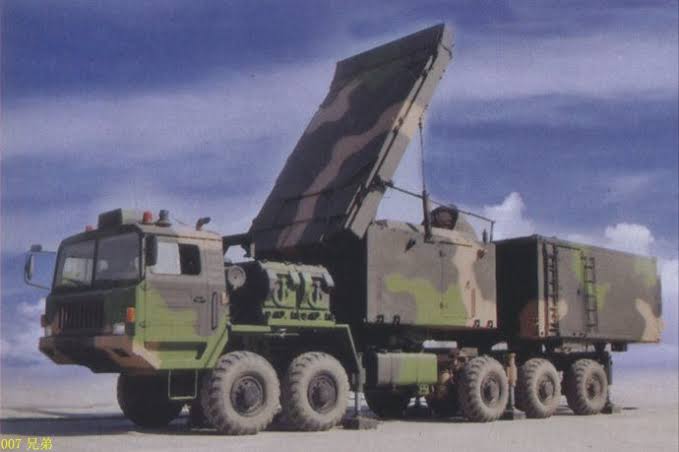

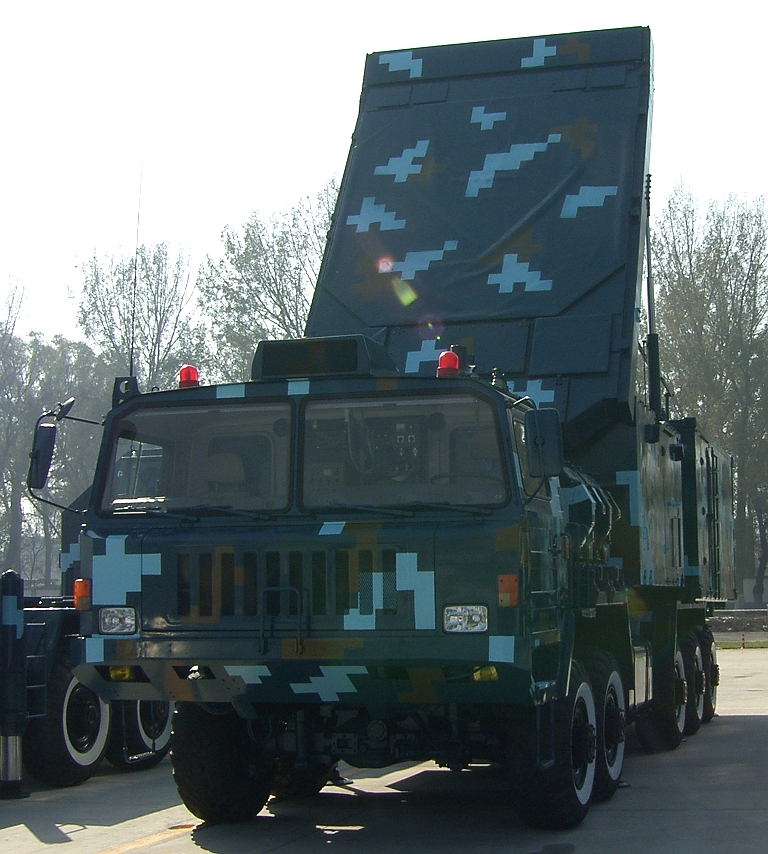

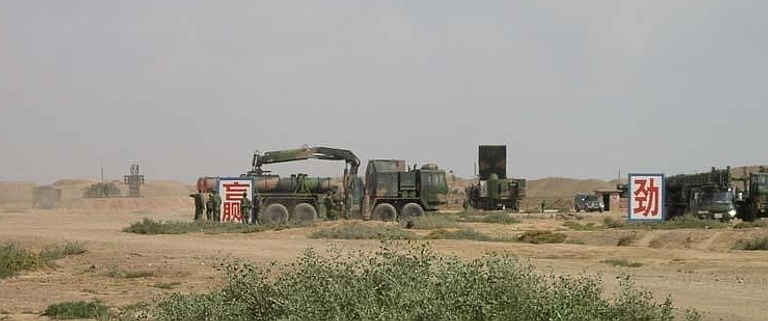

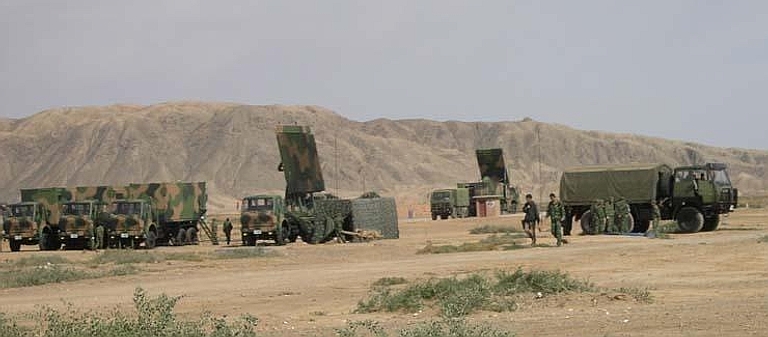

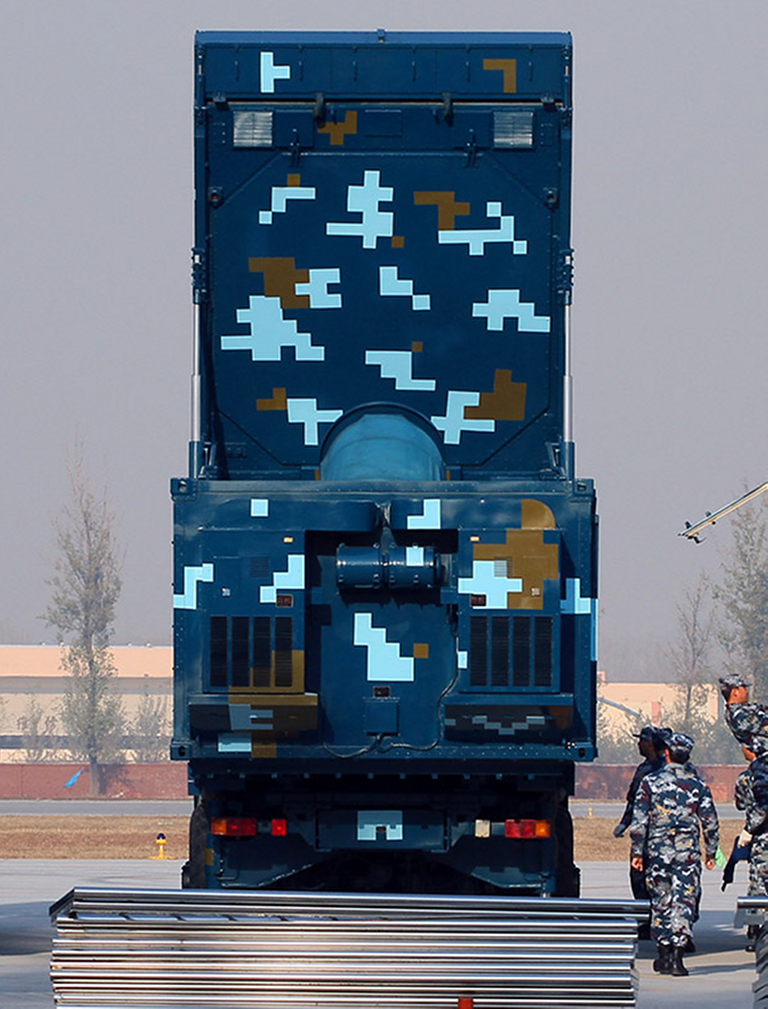

HT-233 Chinese 8x8 Self-Propelled Engagement Radar System

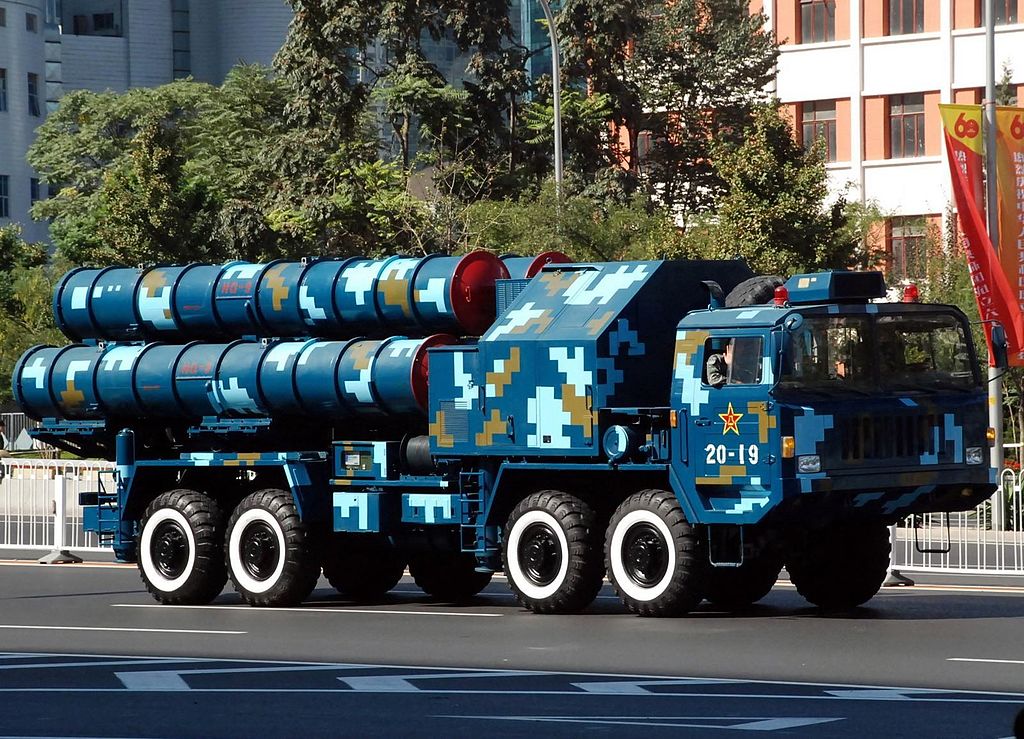

Designated as HT-233, this radar is the most advanced FCRs HQ-9 could employ, and it has greater similarities to the MIM-104 Patriot's MPQ-53 than the S-300's 30N6 (Flap-Lid) series, working in the NATO G-band (4–6 GHz) also as a search and targeting radar. This could be due to an alleged transfer of a Patriot missile to China from Israel.[12][13] The radar can search a 120 degree arc in azimuth and 0-90 degrees in elevation out to 300 km, with a peak power output on 1MW (average 60 kW). The radar is credited as being able to track 100 targets and guides up to 6 missiles to 6 targets, or alternatively, to 3 targets with a pair of missile for each target. HT-233 is the FCR used by HQ-9 that is closest to AN/MPQ-53: In comparison to earlier H-200 radar used by early models of KS-1 SAM which uses a simple horn instead of lens arrangement, HT-233 radar adopts lens arrangement of AN/MPQ-53. In comparison to SJ-231 radar used by the latest model of KS-1, HT-233 has a thousand more phase shifter on its antenna array, totaling four thousand, as opposed to the three thousand of SJ-231. In contrast, both AN/MPQ-53 & 30N6E radars have ten thousand phase shifters on their antenna arrays respectively. HT-233 radar is mounted on Tai'an TAS5501 10 x 10 high mobility cross country truck, and operates in C-band at 300 MHz. When deployed as a search radar TH-233 is fielded at brigade level, while FCR radars deployed would be SJ-212, H-200 or SJ-231. HT-233 is credited with a detection range of 120 km, scanning 360 degrees in azimuth and 0-65 degrees in elevation. It can track 100 targets and designate 50 for engagements.
