Soldati

Soldati

Frigates
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Soldati
Designation
Soldati
Alternate Designation
Artigliere
Equipment Type
Frigates
Manufacturer
Fincantieri
Date of Introduction
1985
Description

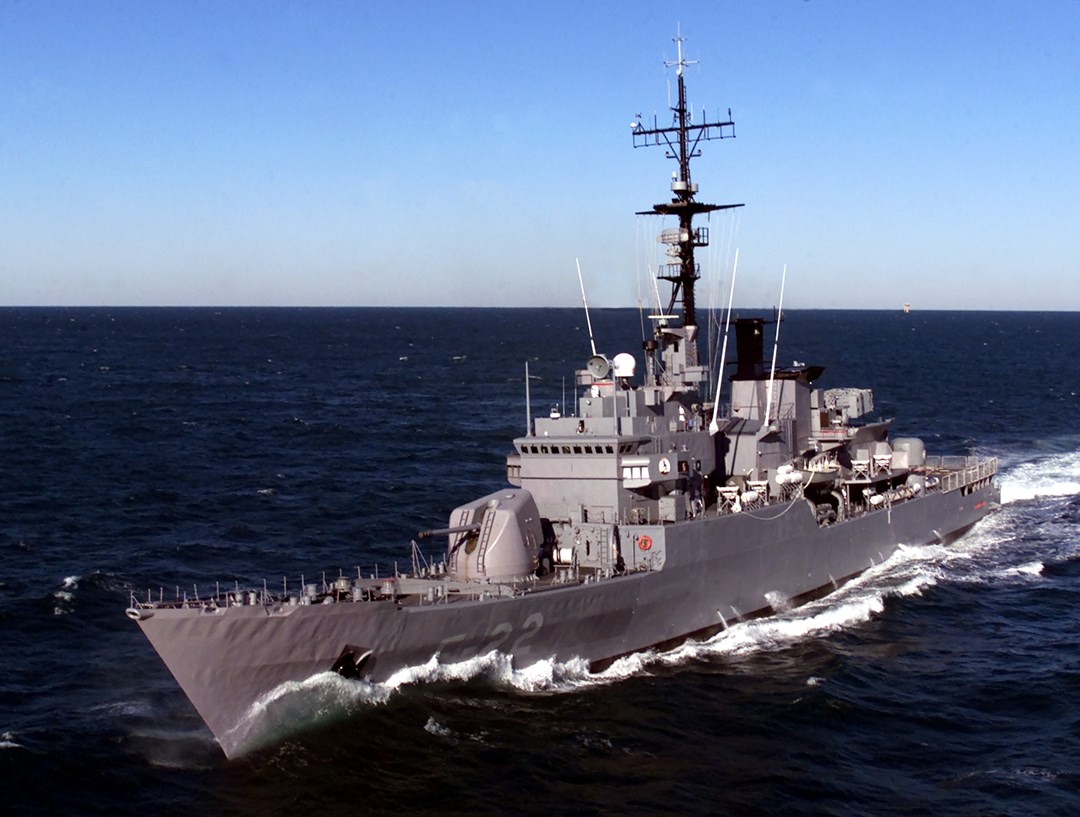

Lupo is a class of small, light, and fast multi-role frigates built by Fincantieri between the late 1970s and early 1980s for the Navies of Italy, Peru and Venezuela. Its CODOG propulsion system is based on two cruise diesel engines and two General Electric LM2500 gas turbines developing 50,000-shp. Lupo-class frigates weapon system includes eight Otomat anti-ship missiles, eight Aspide/Sea Sparrow SAM missiles, one 127mm 54-caliber naval gun, two 40mm anti-aircraft guns and two triple 323mm torpedo tubes. These frigates also include an aft hangar and flight deck for an AB-212 ASW helicopter. Soldati, also known as Artigliere, class frigates are a modified variant of Lupo design originally ordered by the Iraqi Navy. Four ships were ordered by Iraq in the late 1970s when was ruled by Saddam Hussein but were not handed over due to the arms embargo caused by the Iran-Iraq war in the 1980s. Finally, the Italian Navy took over these frigates in October 1994.

Naval & Littoral Specifications
Crew 185
Displacement 2525.00 tonnes
Beam 12.00 m
Max Speed 35.0 knots
Overview (Deagel)
Group Frigates
Status Active
Also Known As Artigliere
Origin Italy
Contractor Fincantieri
Initial Operational Capability (IOC) 1985
Total Production 4
Specifications (Deagel)
Crew 185
Number of Weapons 16
Dimensions — Beam 12 meter
Dimensions — Length 113 meter
Dimensions — Main Gun Caliber 127 millimeter
Mass — Full Displacement 2,525 ton
Performance — Max Range 9,300 kilometer
Power — Total Combined Power 50,000 shp
Speed — Top Speed 18 mps
Gear (Deagel)
Item 1 Anti-Ship Missiles: Otomat Mk2 Block IV (8)
Item 2 Civil Helicopters: AB212 (1)
Item 3 Naval Gun Systems: 127/54 Compact (1)
Item 4 Sea-Based Air Defense Systems: Albatros (1)
Item 5 Ship Power Plants: LM2500 (2)
Item 6 Surface-to-Air Missiles: Aspide (8)
Variants
Variant 1 Lupo
Variant 2 Soldati
Details
Country of Origin Italy
Category Frigates
Naval > Frigates
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
113 m
Width
12 m
Height
Weight
2525000 kg
Operators (1)
Italy
