Sosna-R
Sosna-R
Surface-to-Air Missiles
Operational Photo
Basic Information
Name
Sosna-R
Designation
Sosna-R
Alternate Designation
9M337, 9M340
Equipment Type
Surface-to-Air Missiles
Manufacturer
TsNIITochMash
Date of Introduction
2011
Description

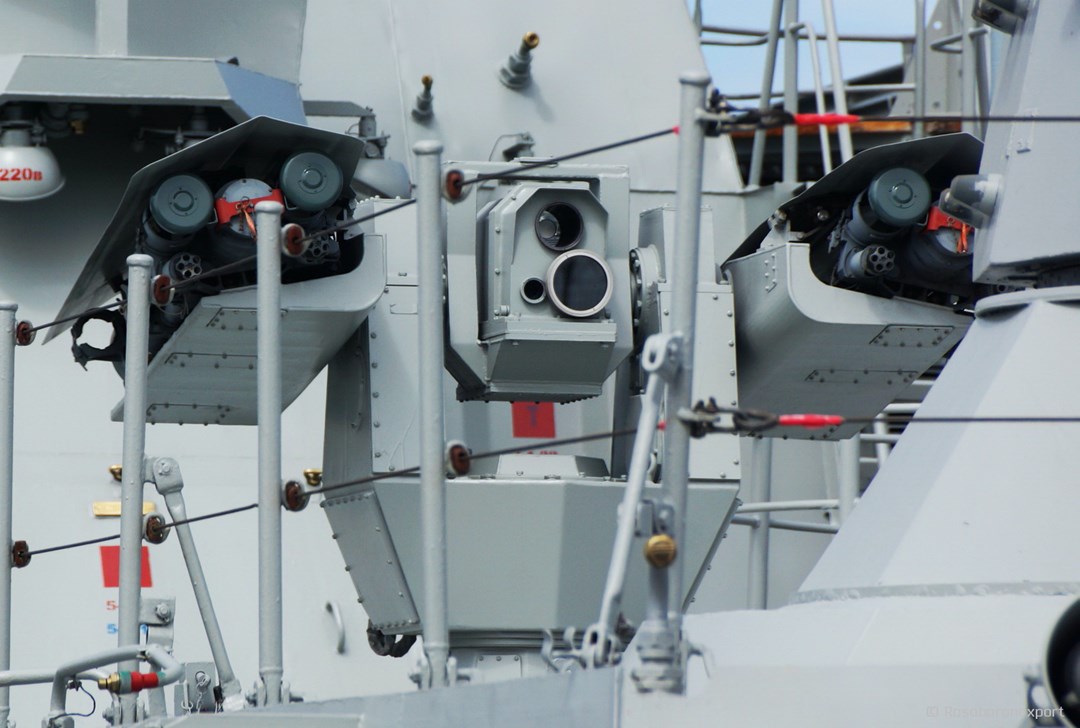

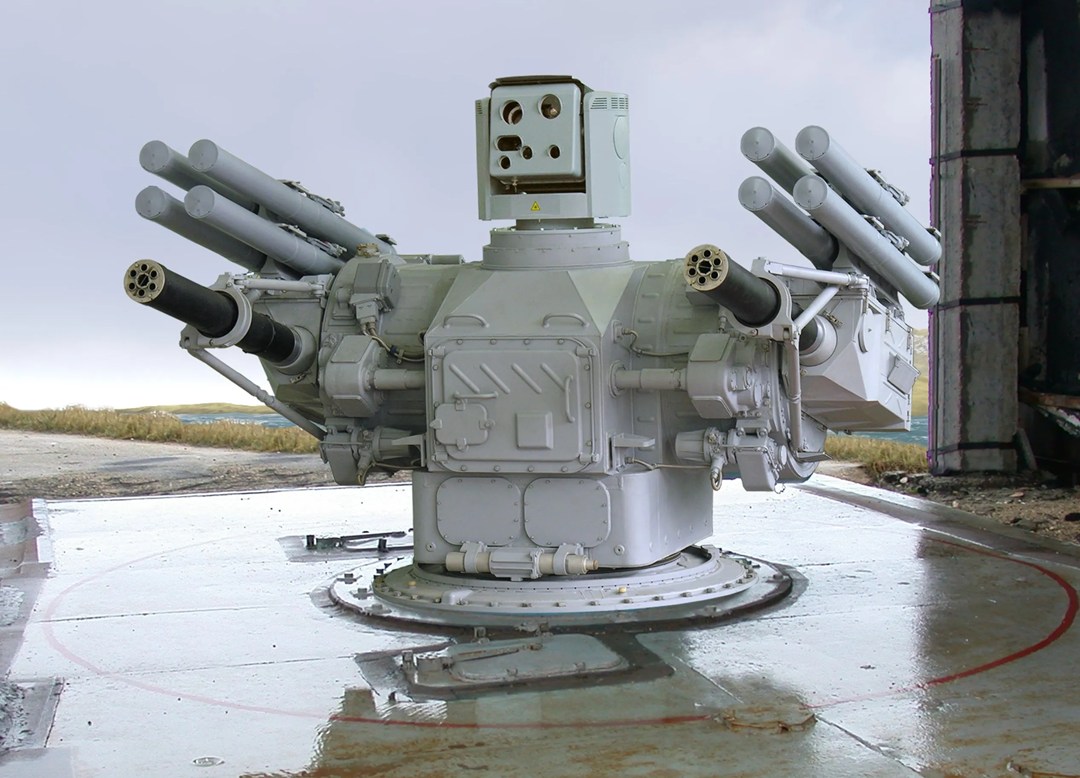

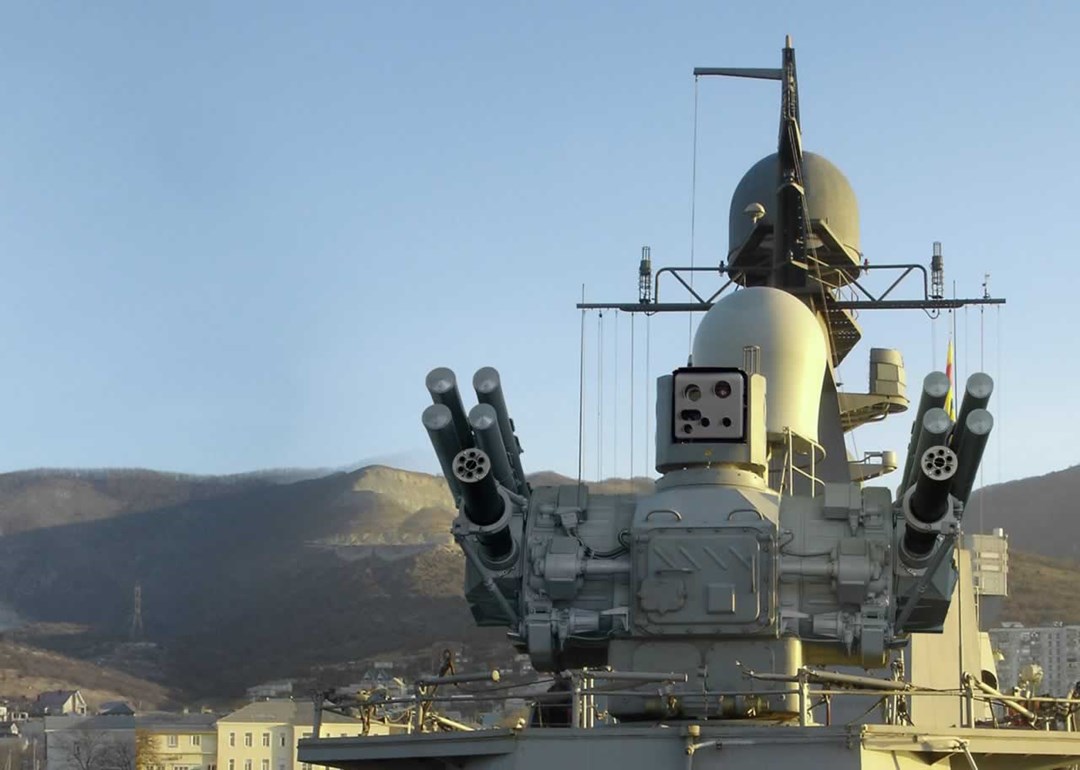

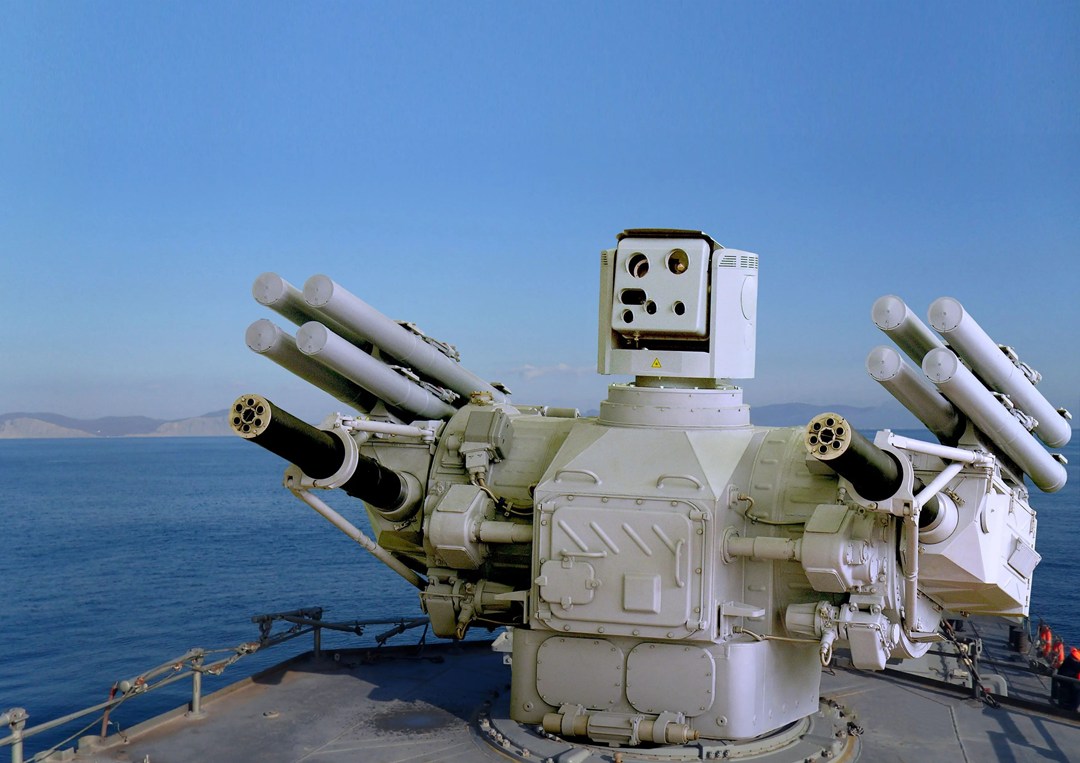

The Sosna-R is a laser-guided supersonic surface-to-air missile (SAM) designed to engage aircraft, guided aerial bombs and cruise missiles at ranges between 1,300 and 8,000 meters at altitudes of up to 3,500 meters. The highly maneuverable Sosna-R missile can withstand lateral load factors of 52g and engage airborne targets flying at altitudes above two meters. With a top speed of approximately Mach 4, the missile travels 5/8 kilometers in just 6/11.5 seconds respectively. The Palma ship-based air defense system is equipped with eight Sosna-R missiles.
Air & Air Defense Specifications
Max Speed
3312.0 km/h
Range
10.0 km
Overview (Deagel)
Group
Surface-to-Air Missiles
Status
Active
Also Known As
9M337, 9M340
Origin
Russia
Contractor
TsNIITochMash
Initial Operational Capability (IOC)
2011
Total Production
?
Specifications (Deagel)
Dimensions — Diameter
72 millimeter
Dimensions — Launch Unit Length
2.4 meter
Dimensions — Length
2.3 meter
Dimensions — Missile Tube Diameter
130 millimeter
G-load — Max Maneuvering Load Factor
52 g
Mass — Launch Unit Weight
42 kilogram
Mass — Warhead
7.2 kilogram
Mass — Weight
30.6 kilogram
Performance — Max Range
10,000 meter
Performance — Min Range
1,300 meter
Performance — Target's Max Altitude
5,000 meter
Performance — Target's Min Altitude
2 meter
Speed — Top Speed
920 mps
Details
Country of Origin
Russia
Sources
deagel.com: https://www.deagel.com/x/x/a001903
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
2.3 m
Width
—
Height
—
Weight
42 kg
Operators (1)
Russia
