9M317
9M317
Surface-to-Air Missiles

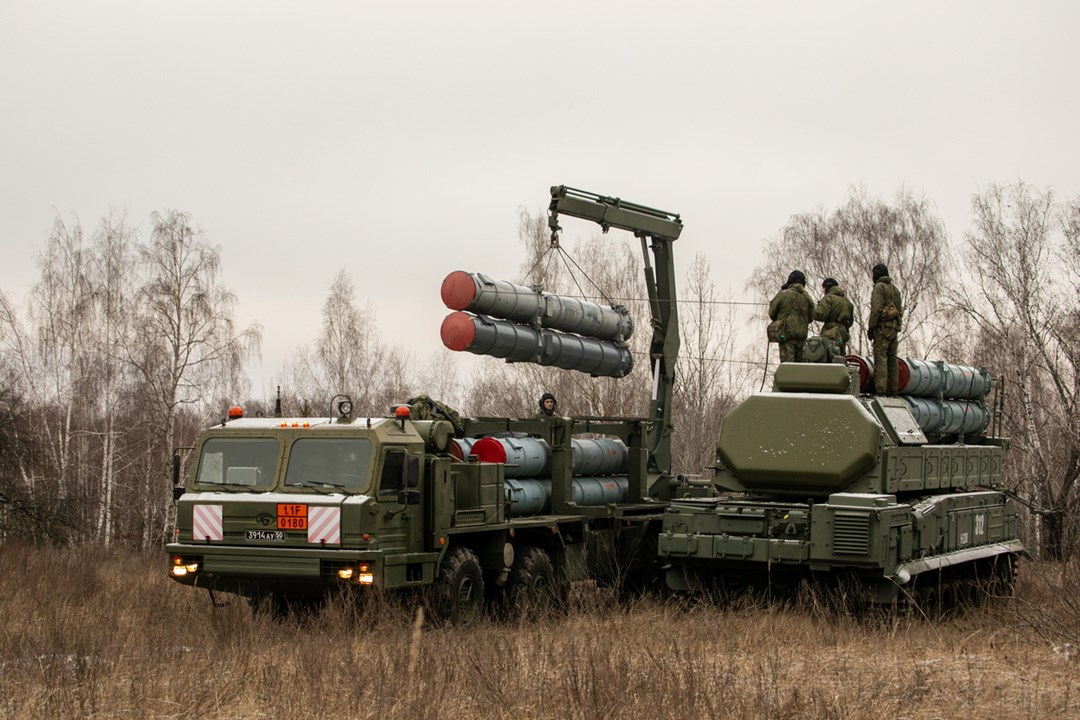

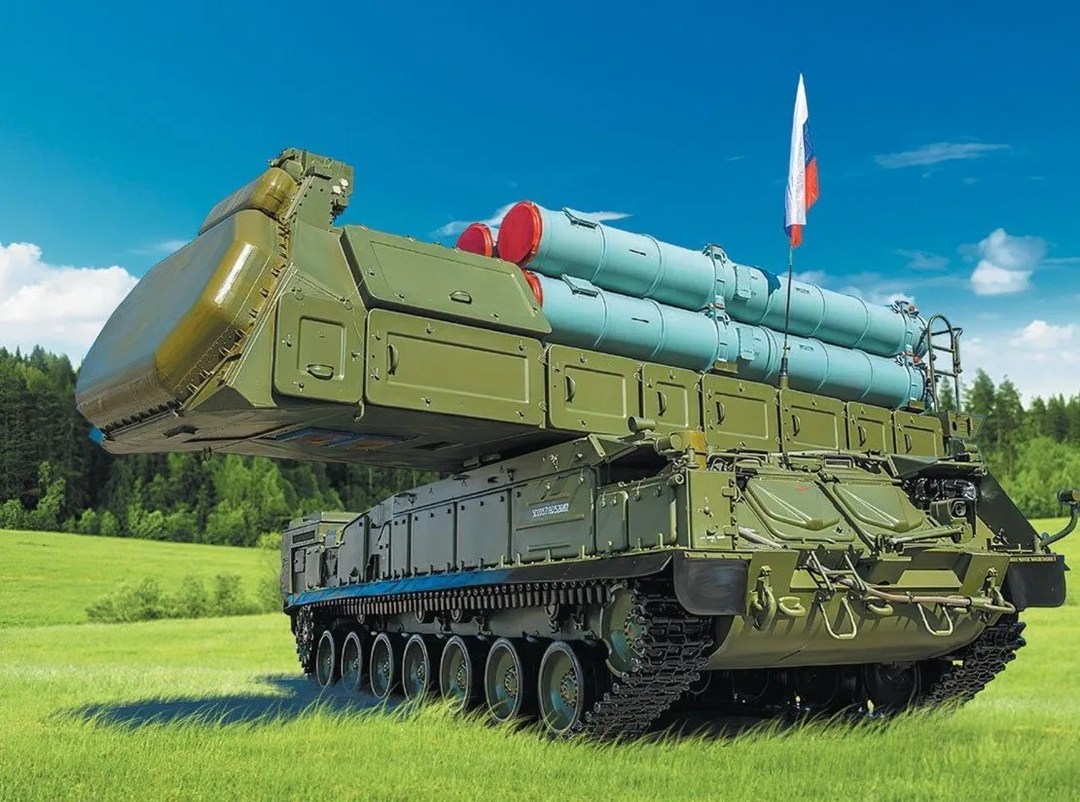

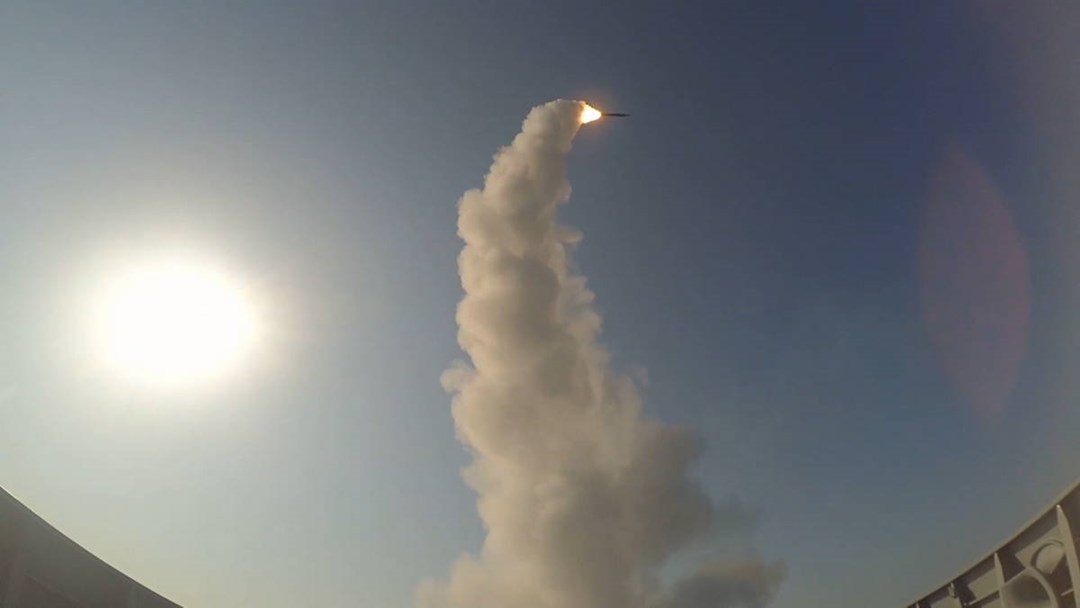

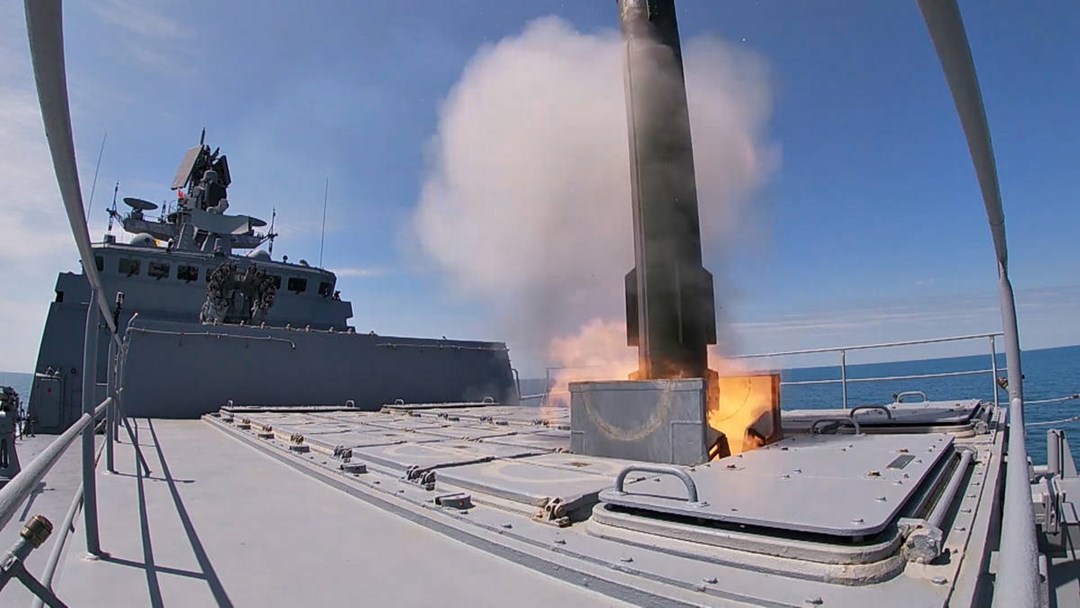

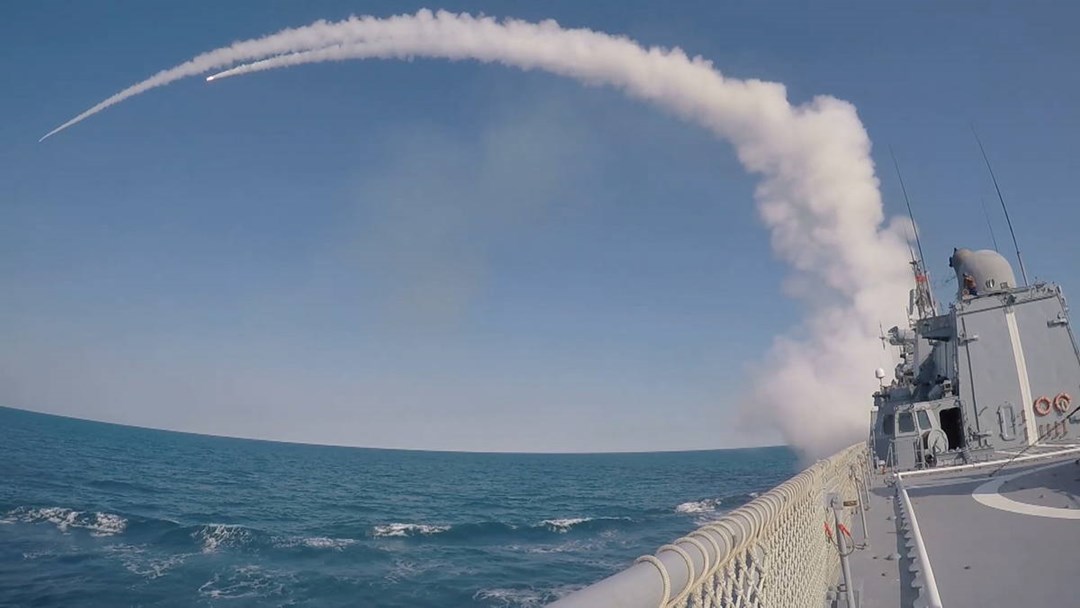

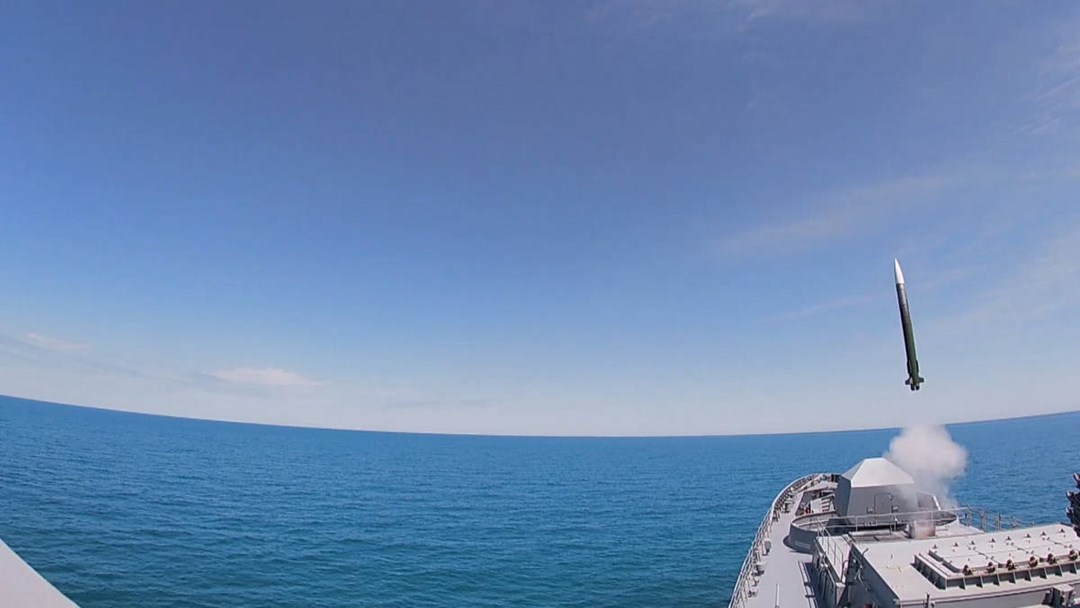

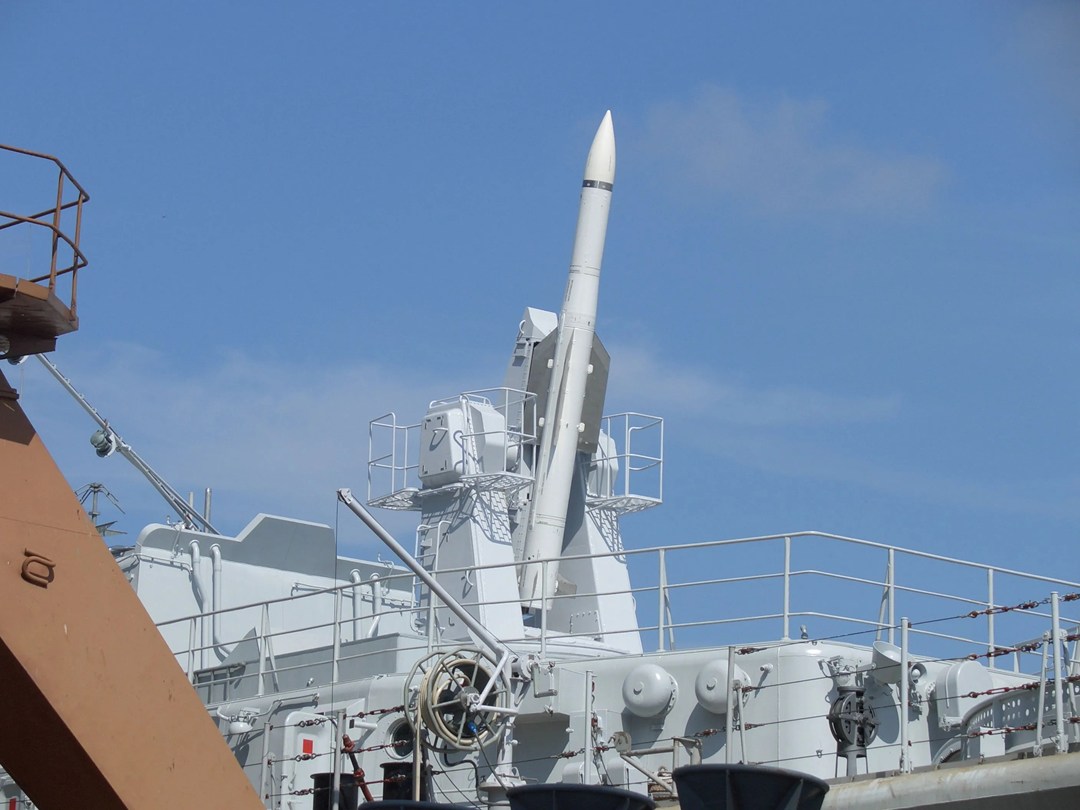

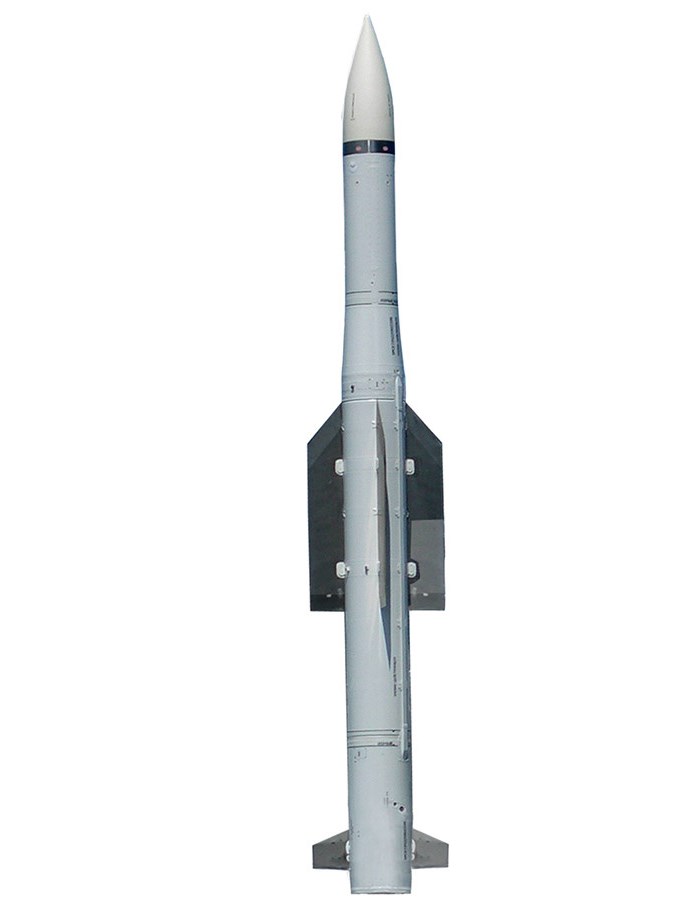

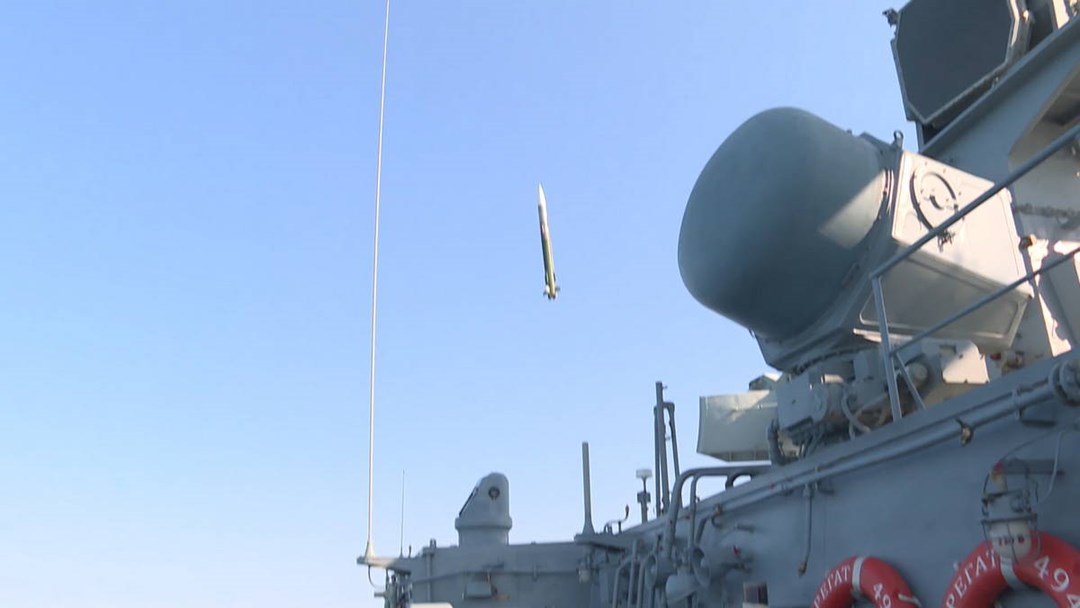

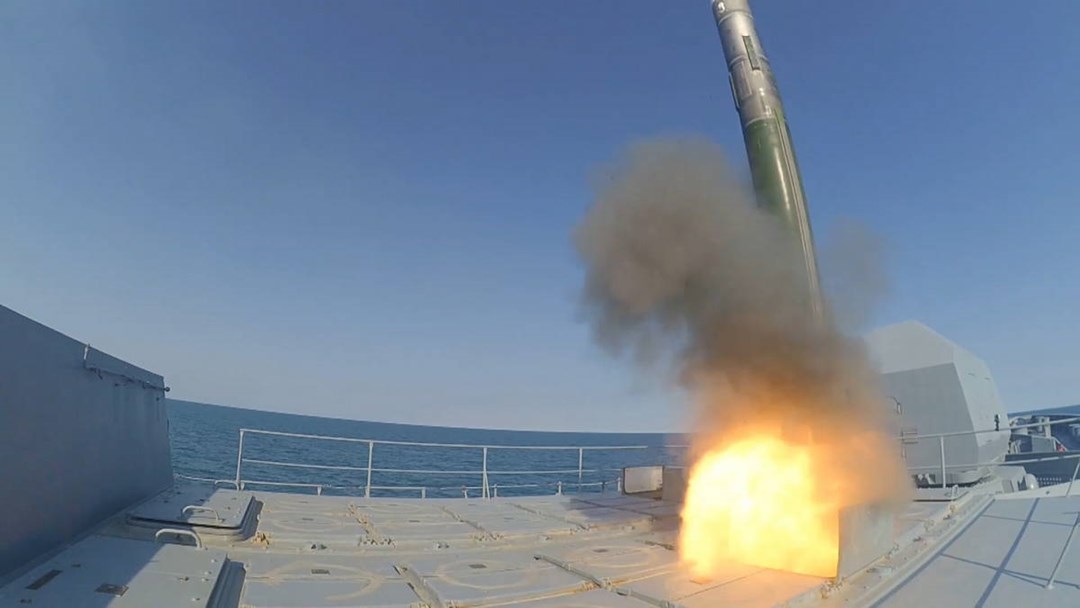

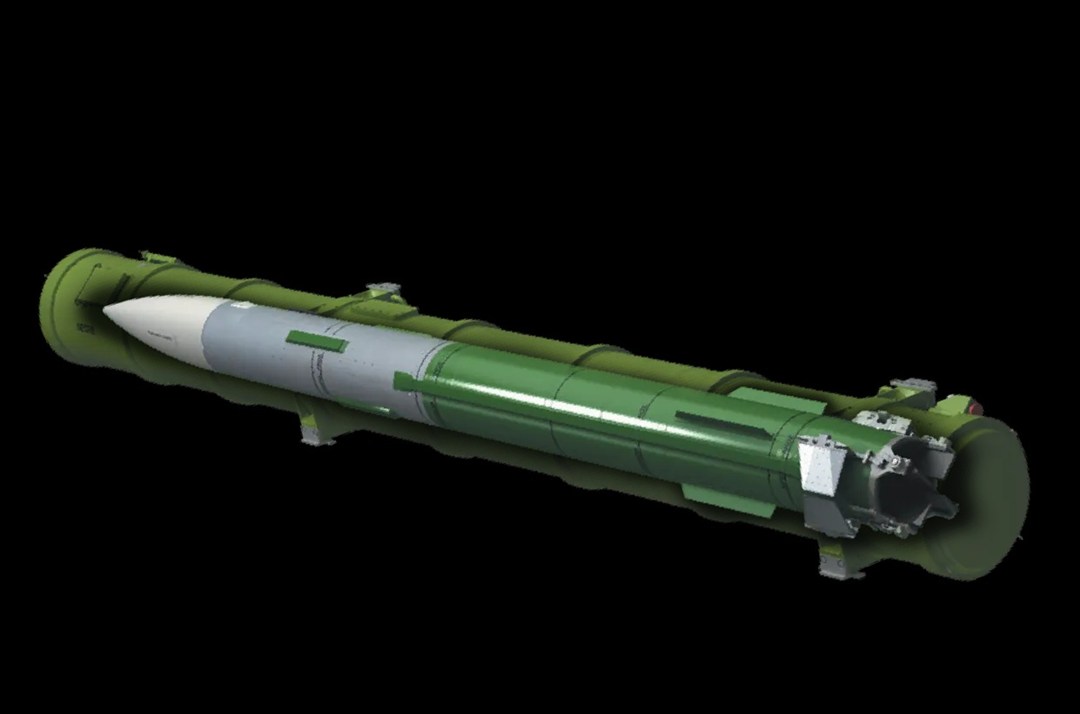

Operational Photo
Basic Information
Name
9M317
Designation
9M317
Alternate Designation
9m317E
Equipment Type
Surface-to-Air Missiles
Manufacturer
—
Date of Introduction
2003
Description
The 9M317 is a family of medium-range surface-to-air missiles employing single-stage solid-state propulsion system capable of a top speed of Mach 3-4. The missile guidance combines inertial navigation with radio-correction (9M317M) and semi-active radar homing at the terminal leg of the trajectory. The warhead is detonated by a radar fuse or impact sensors. The missile family was introduced along the Shtil-1 air defense system in 2003.
Air & Air Defense Specifications
Max Speed
3704.4 km/h
Range
32.0 km
Wingspan
860.00 m
Overview (Deagel)
Group
Surface-to-Air Missiles
Status
Active
Also Known As
9m317E
Origin
Russia
Initial Operational Capability (IOC)
2003
Total Production
?
Specifications (Deagel)
Number of Stages
1
Dimensions — Diameter
400 millimeter
Dimensions — Length
5.6 meter
Dimensions — Wingspan
860 millimeter
G-load — Max Maneuvering Load Factor
24 g
Mass — Warhead
70 kilogram
Mass — Weight
715 kilogram
Performance — Max Range
32,000 meter
Performance — Min Range
3,500 meter
Performance — Target's Max Altitude
15,000 meter
Performance — Target's Min Altitude
5 meter
Speed — Target's Max Speed
830 mps
Speed — Top Speed
3 mach
Time — Reaction Time
12 second
Time — Service Life
10 year
Variants
Variant 1
9M317
Variant 2
9M317M
Details
Country of Origin
Russia
Sources
deagel.com: https://www.deagel.com/x/x/a003645
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
5.6 m
Width
860 m
Height
—
Weight
—
Operators (2)
Russia
India
