System Zwalczania Dronów Polish Anti-Drone System
System Zwalczania Dronów
Counter-UAS System
Other
Basic Information
Name
System Zwalczania Dronów Polish Anti-Drone System
Designation
System Zwalczania Dronów
Alternate Designation
System Zwalczania Dronów
Equipment Type
Counter-UAS System
Manufacturer
Zakłady Mechaniczne "Tarnów," part of the Polish Armaments Group (PGZ)
Date of Introduction
2024
Description

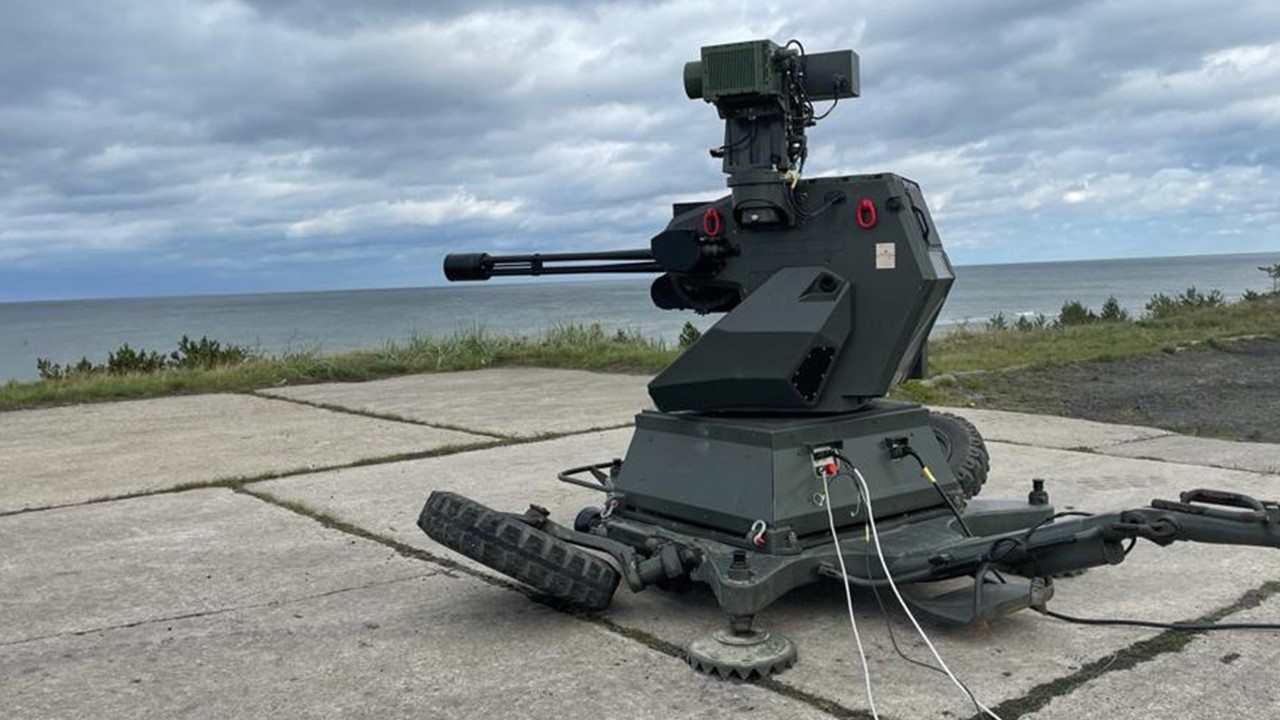

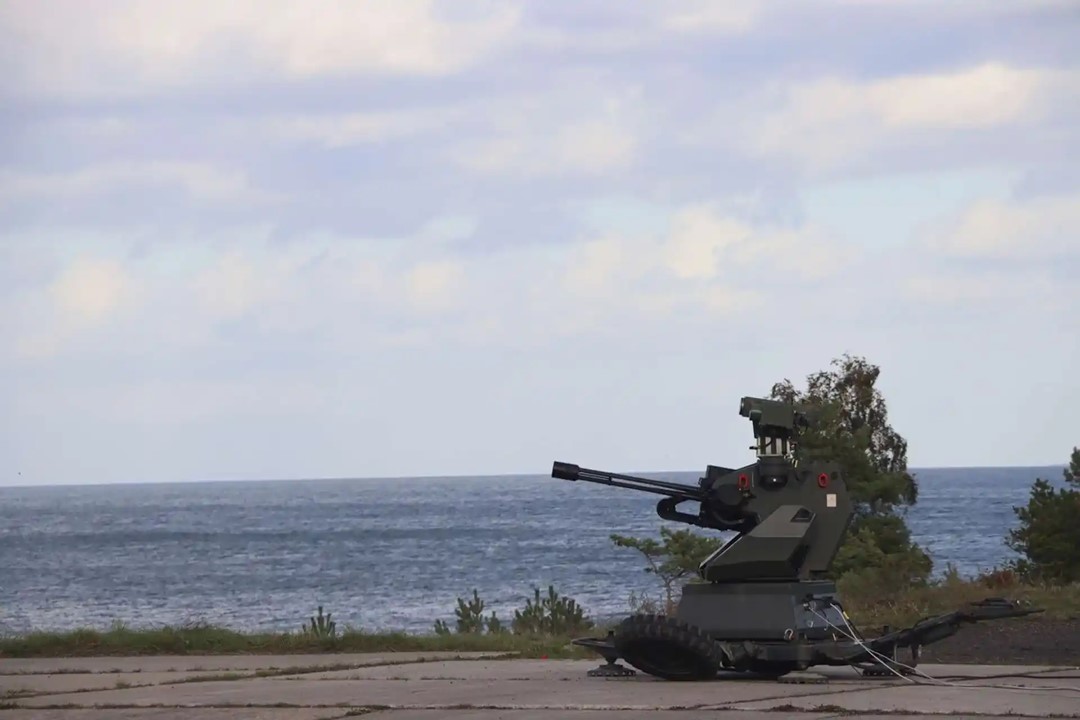

The System Zwalczania Dronów Polish Anti-Drone System is armed with a WLKM 12.7 mm Gatling-style machine gun designed to target drones at a maximum effective range of two kilometers. The Polish anti-UAV system is a product of collaboration between Zakłady Mechaniczne Tarnów and the Military University of Technology, aiming to provide a balance between cost and functionality. The design utilizes affordable ammunition and incorporates modern detection and tracking technologies.
Ground Specifications
Main Weapon
12.7 mm Gatling-style machine gun
Range
2.0 km
System
Alternative Designation
System Zwalczania Dronów
Type
Anti-Drone System
Manufacturer
Zakłady Mechaniczne "Tarnów," part of the Polish Armaments Group (PGZ)
Crew
Unmanned
Caliber
12.7 mm
Modes
The Polish anti-UAV system is designed to operate in three modes: manual, semi-automatic, and fully automatic. In manual mode, the operator directly controls the system, while in semi-automatic mode, the system assists by tracking the target within the video feed. In fully automatic mode, the system autonomously identifies and tracks targets, with the operator making the final decision to fire. The system can be controlled remotely, allowing the operator to remain at a safe location while using a control panel and a large screen that displays camera feeds, providing flexible operation and enhanced safety.
Rate of Fire
3,600 rounds per minute. (The rate of fire is adjustable between 250 and 3,600 rounds per minute, and the burst length can be set from 50 to 200 rounds).
Maximum Effective Range
2,000 m
Radar
An external radar system is included to detect UAVs, including smaller drones, at distances of up to 15 kilometers.
Thermal Cameras

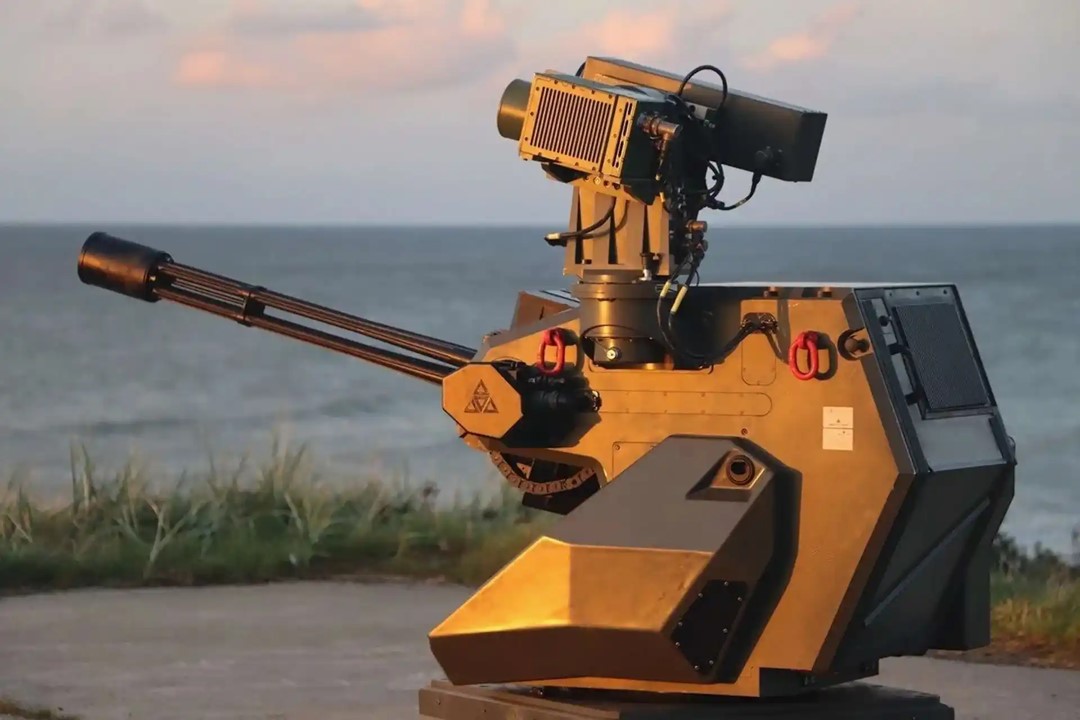

The weapon system features four rotating barrels powered by a 27 V DC electric motor and is integrated with an optoelectronic head that includes day and thermal cameras, as well as a laser rangefinder.
Dimensions
Length
INA
Width
INA
Height
INA
Weight, Combat
INA
Protection
Armor
INA
Details
Country of Origin
Poland
Category
Land Based Electronic Warfare (EW) Systems
Land > Land Based Electronic Warfare (EW) Systems
Filter Label
S
Classification
Domain
Ground
Equipment Status
Active
Operators (1)
Poland
