Formidable

Formidable

Frigates
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Formidable
Designation
Formidable
Alternate Designation
Delta Program
Equipment Type
Frigates
Manufacturer
Naval Group, ST Engineering
Date of Introduction
2005
Description

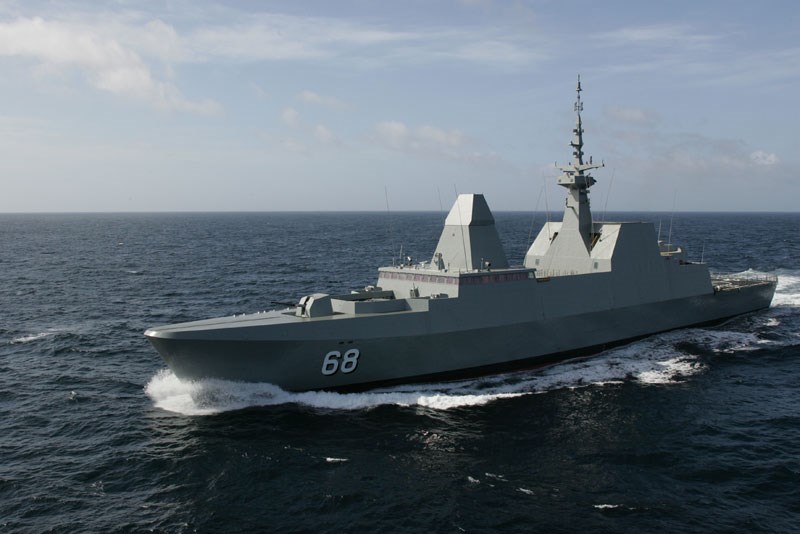

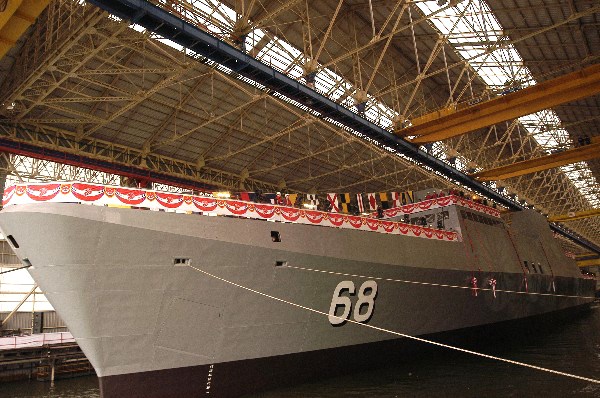

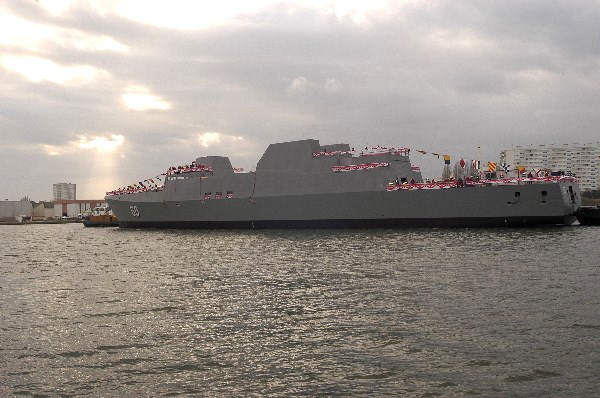

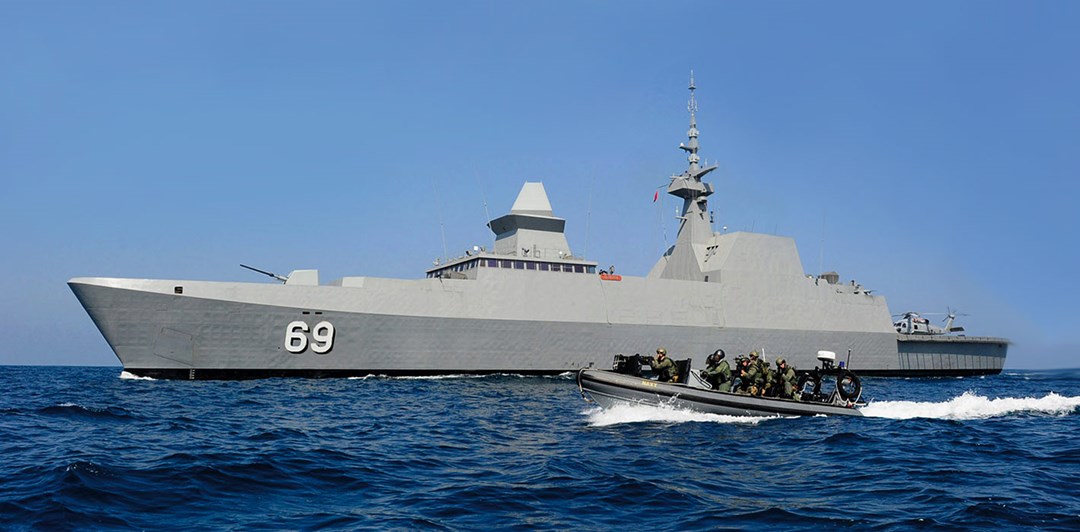

The Formidable-class frigate project is being carried out under the Republic of Singapore Delta program by DCNI (DCN International) partnered with Singapore Technologies. The Delta program comprises design and building of the lead ship, RSS Formidable, by DCN in France, with the remaining 5 ships to be built locally by Singapore Technologies Marine. Formidable-class stealth frigates will replace aging missile gunboats currently owned by Singapore. The RSS Formidable was launched at Lorient in early 2004 and is scheduled to be commissioned by the Republic of Singapore Navy (RSN) in 2005. The new frigates ordered by Singapore are stealthy ships equipped with a sophisticated combat system, while providing longer range and endurance at sea than gunboats currently owned by the RSN. The propulsion system consists of 4 MTU's diesel engines that power the ship at a maximum speed of 25 knots. Formidable-class frigates weapon system comprises one medium-weight anti-submarine/ship helicopter, the Thales Heracles multi-function radar system, up to 32 ASTER 15 anti-missile, point-defense missiles, 8 Harpoon anti-ship missiles, the EDO active low frequency towed sonar, the A244 anti-submarine torpedo, and OTO Melara 76mm Super Rapid naval gun. The six Formidable-class frigates produced under Delta program, according to official plans, should be fully operational within the Republic of Singapore Navy by 2009. On January 21, 2005, the Republic of Singapore Ministry of Defence placed an order for six new Sikorsky S-70B naval helicopters to be delivered between 2008 and 2010. The helicopters were intended for use onboard Formidable-class frigates.

Naval & Littoral Specifications
Crew 85
Displacement 3200.00 tonnes
Beam 16.30 m
Max Speed 27.0 knots
Overview (Deagel)
Group Frigates
Status Active
Also Known As Delta Program
Origin France, Singapore
Contractors Naval Group, ST Engineering
Initial Operational Capability (IOC) 2005
Total Production 6
Specifications (Deagel)
Crew 85
Dimensions — Beam 16.3 meter
Dimensions — Length 115 meter
Dimensions — Main Gun Caliber 76 millimeter
Mass — Full Displacement 3,200 ton
Performance — Max Range 7,500 kilometer
Power — Total Combined Power 11,000 shp
Speed — Cruise Speed 18 knot
Speed — Top Speed 27 knot
Gear (Deagel)
Item 1 Anti-Ship Missiles: RGM-84D Harpoon (8)
Item 2 ASW Helicopters: S-70B (1)
Item 3 Naval Gun Systems: 76/62 Super Rapid (1)
Item 4 Radar Systems: Herakles (1)
Item 5 Surface-to-Air Missiles: Aster 15 (32)
Item 6 Surface-to-Air Missiles: Aster 30 (32)
Item 7 Torpedoes: A244
Details
Country of Origin France
Category Frigates
Naval > Frigates
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
115 m
Width
16.3 m
Height
—
Weight
3200000 kg
Operators (1)
Singapore
