ChangZheng 2

ChangZheng 2

Space Launch Systems
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
ChangZheng 2
Designation
ChangZheng 2
Alternate Designation
Equipment Type
Space Launch Systems
Manufacturer
CALT
Date of Introduction
Description

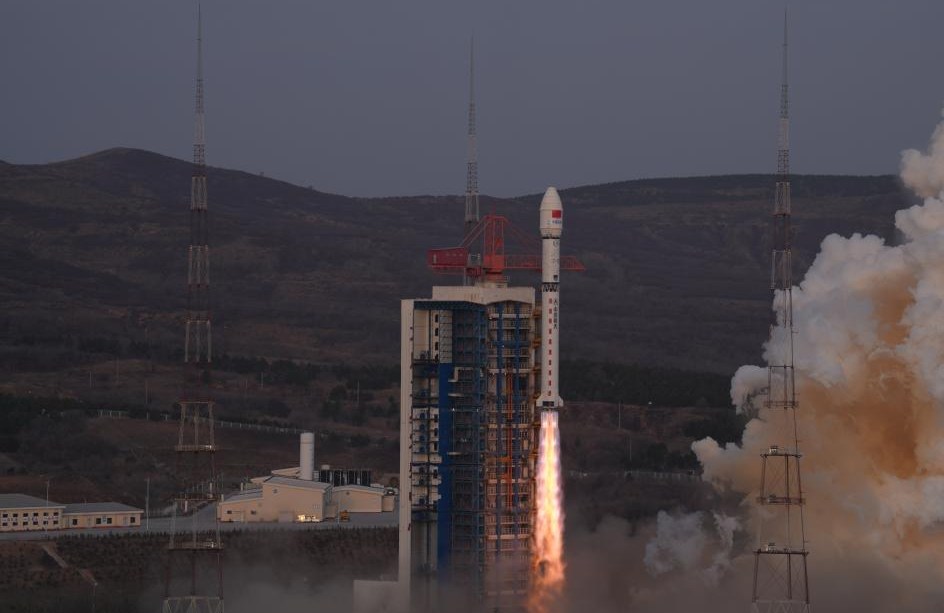

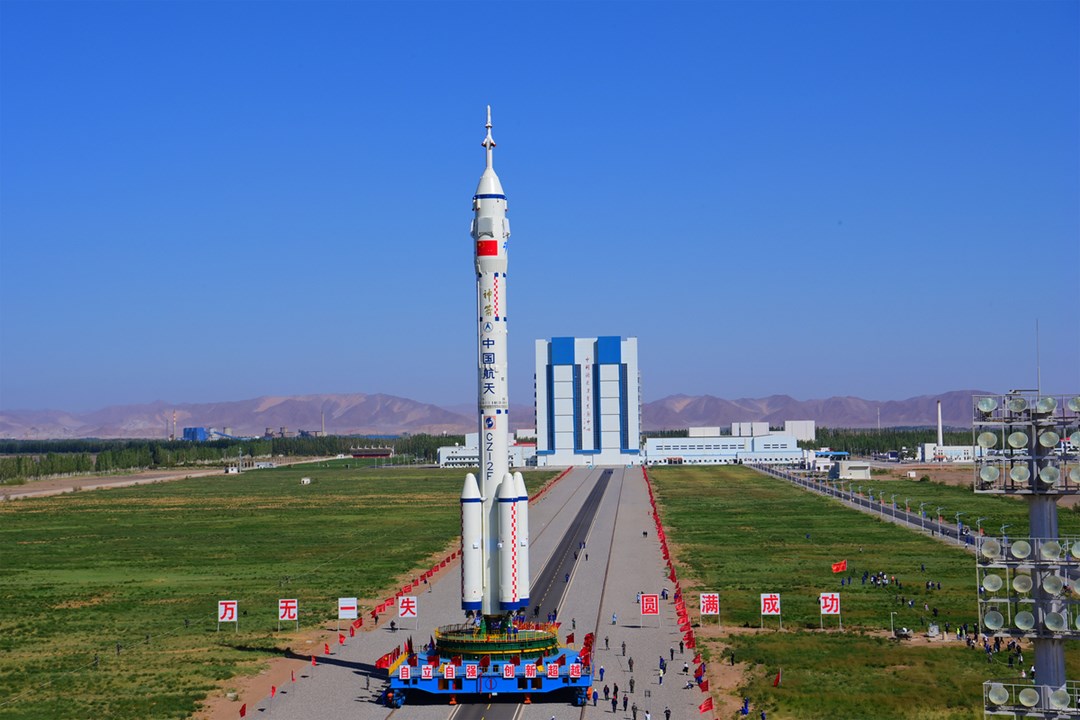

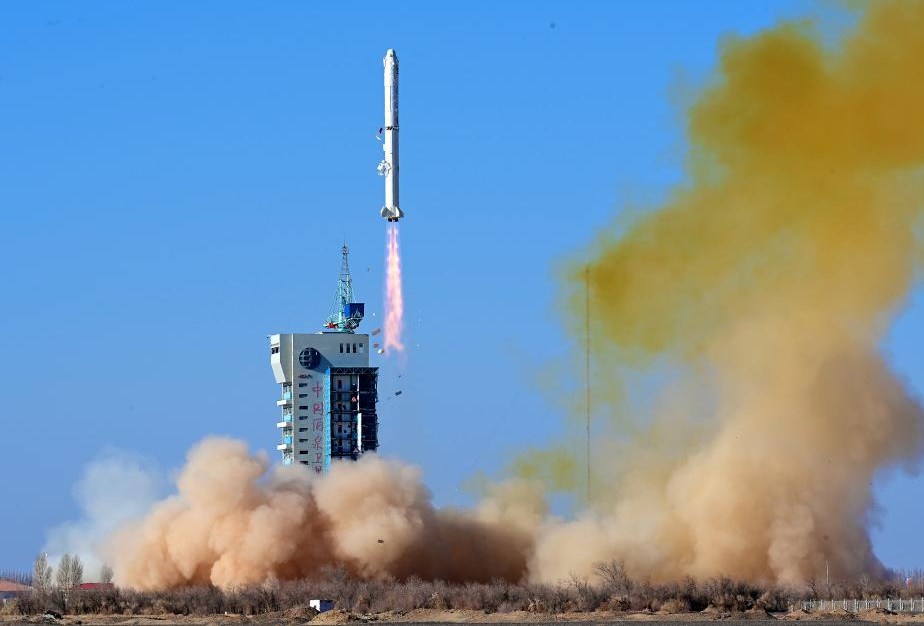

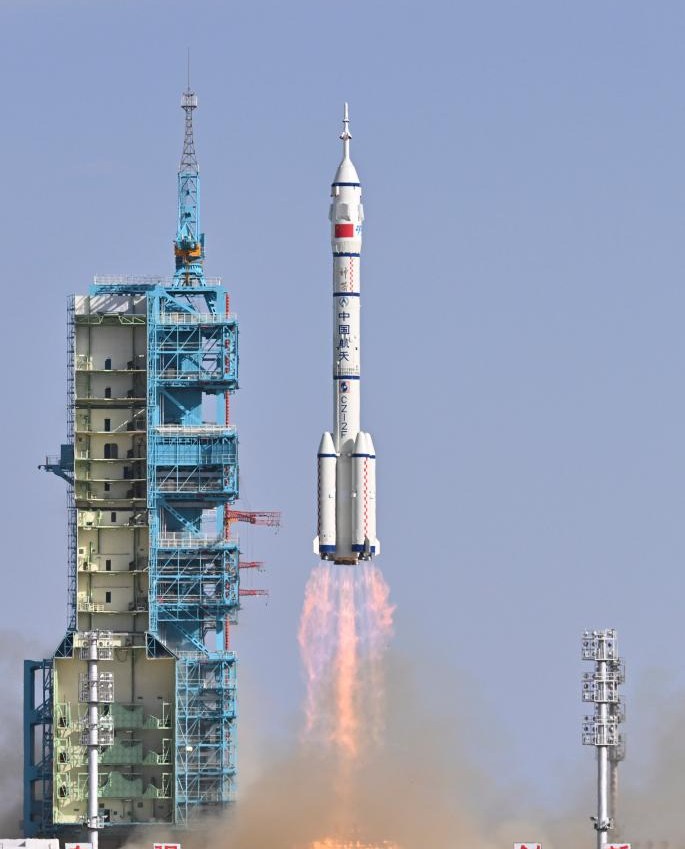

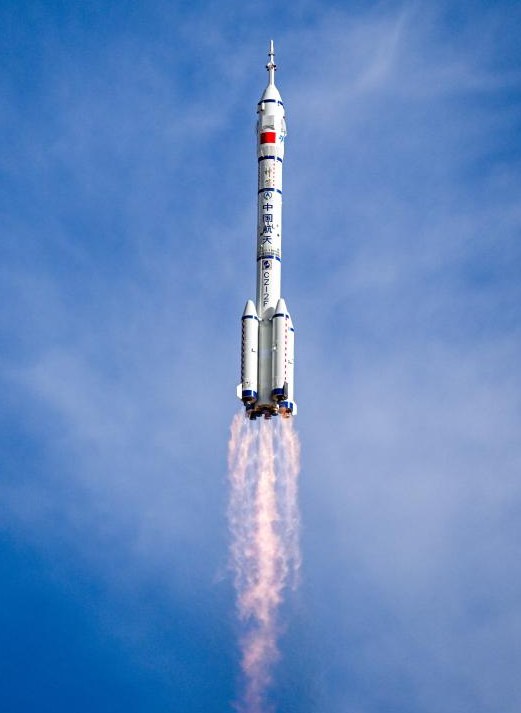

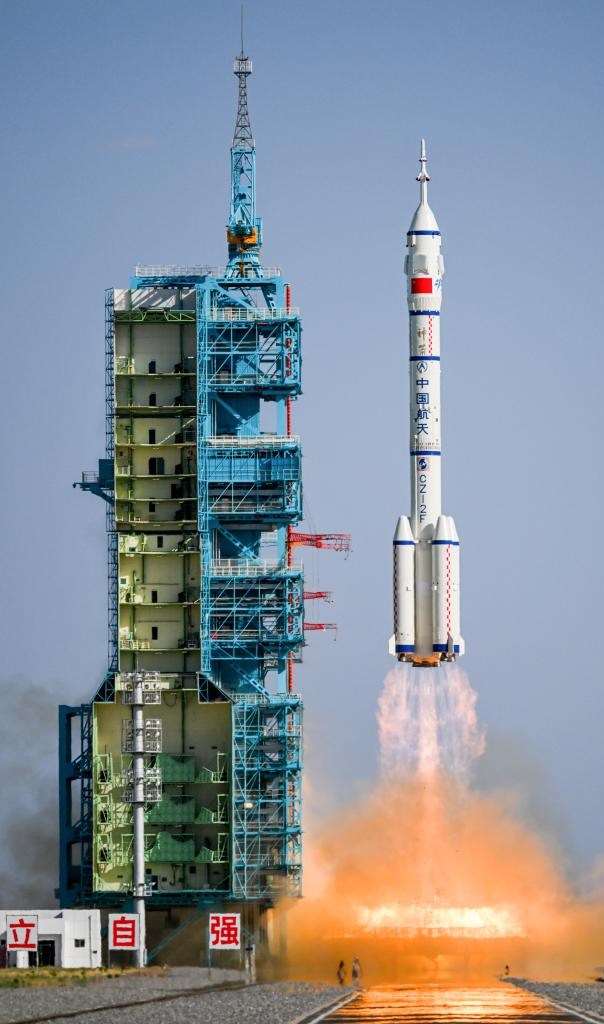

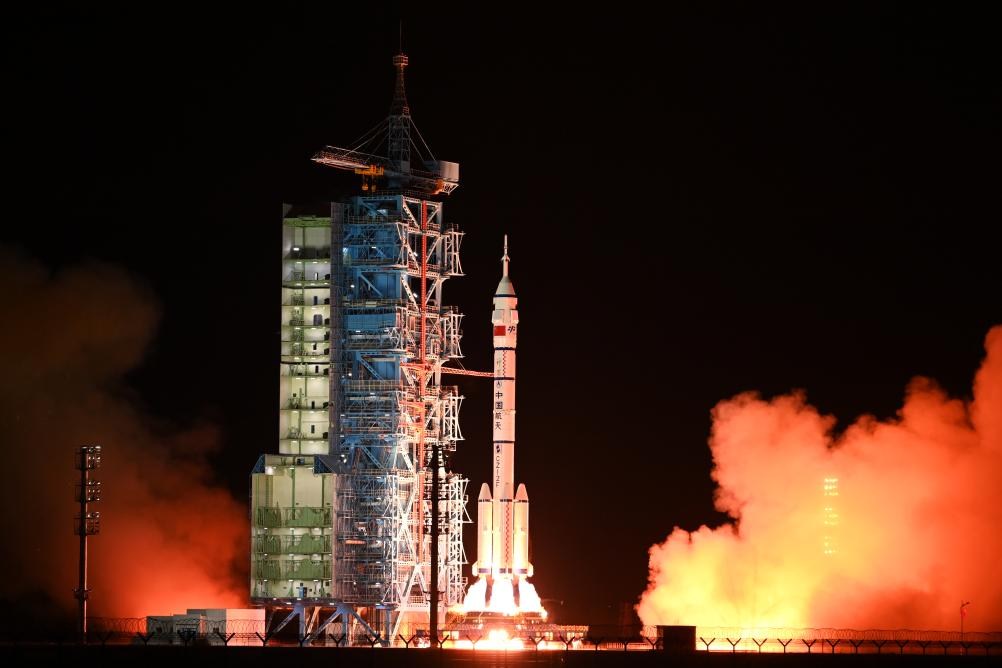

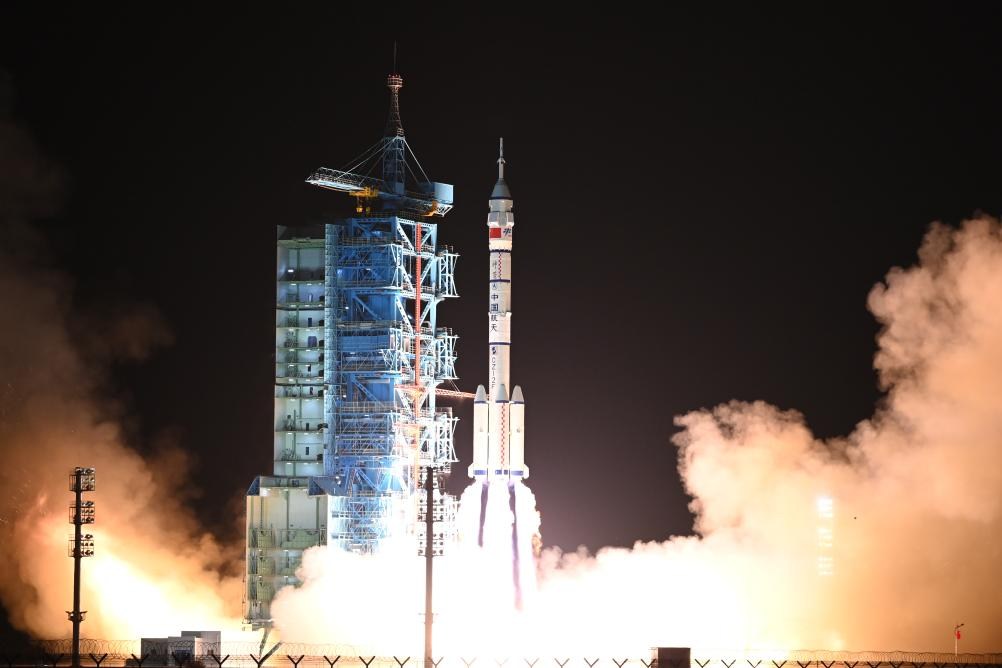

The Long March 2, ChangZheng 2 or CZ-2, is a space launch vehicle family developed by the China Academy of Launch Vehicle Technology (CALT) in support of the People's Republic of China (PRC) space program. Designed in the 1970s the launch vehicle family is intended to carry payloads to Low Earth Orbit (LEO) and Geostationary Transfer Orbit (GTO). So far, the Long March 2 space launch vehicle family consists of five versions (2, 2C, 2D, 2E and 2F) with two more in development (2G and 2H). The Long March 2F is the heaviest launch vehicle available in China. The Long March 2, 3 and 4 space launch vehicles are scheduled for replacement by the heavier Long March 5 after 2014. The basic CZ-2 was a two-stage, liquid-propellant launch vehicle developed in the 1970s based on the DF-5 intercontinental ballistic missile and intended to carry payloads of 1,400 kg into LEO. It was launched for the first time in November 1974 exploding. The first successful launch was carried out in November 1975. The CZ-2 rocket was replaced beginning in 1982 by the improved CZ-2C launch vehicle designed to carry a payload of 1,800 kg into LEO. The CZ-2D rocket was introduced in 1992 to put into LEO payloads of 3,700 kg. The CZ-2E was a three-stage launch vehicle intended to lift payloads of 3,500 kg into GTO. The first launch was carried out in July 1990 but the rocket failed several launches and was terminated in 1995.

Overview (Deagel)
Group Space Launch Systems
Status Active
Also Known As CZ-2C, Long March 2C
Origin China
Contractor CALT
Initial Operational Capability (IOC) 1983
First Flight 1982
Total Production 76
Specifications (Deagel)
Number of Stages 2
Dimensions — Height 42 meter
Dimensions — Rocket Diameter 3.4 meter
Mass — Max Lift-off Weight 233 ton
Mass — Payload to GTO 1,250 kilogram
Mass — Payload to LEO 3,800 kilogram
Mass — Payload to SSO 1,900 kilogram
Variants
Variant 1 ChangZheng 2C
Variant 2 ChangZheng 2D
Variant 3 ChangZheng 2F
Details
Country of Origin China
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
42 m
Width
3.4 m
Height
42 m
Weight
233000 kg
Operators (1)
China
