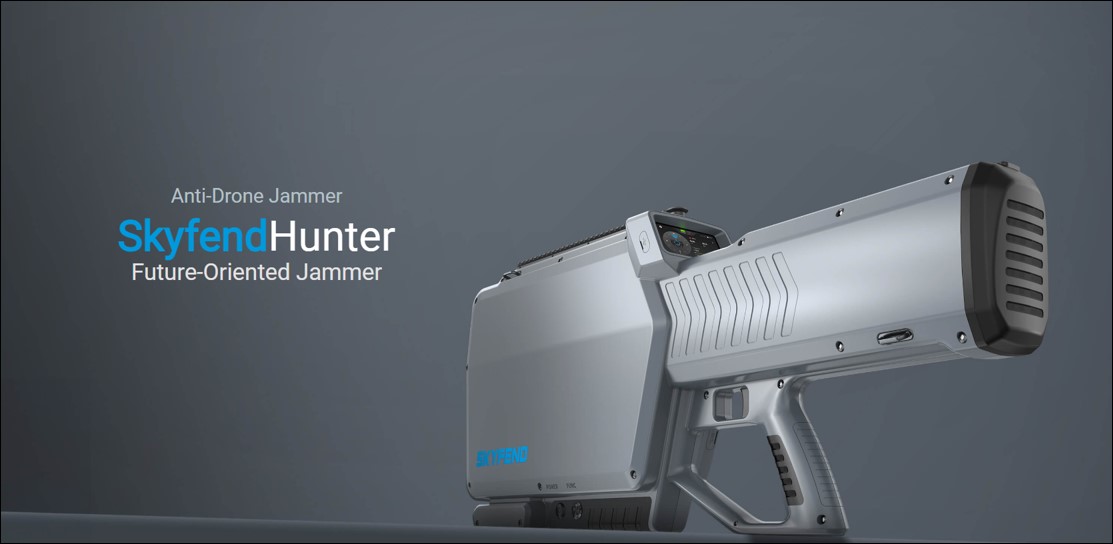

SkyFend Hunter SHH100 Chinese Anti-Drone Device
Hunter SHH100
Counter-UAS System
Other
Basic Information
Name
SkyFend Hunter SHH100 Chinese Anti-Drone Device
Designation
Hunter SHH100
Alternate Designation
Hunter SHH100
Equipment Type
Counter-UAS System
Manufacturer
Skyfend Technology
Date of Introduction
2020
Description
The Hunter SHH100 Chinese Anti-Drone Device is distinguished by its unique capability to disrupt multiple drones simultaneously, targeting their control systems, navigation, and video transmission through precise jamming of radio (RF) and satellite navigation (GNSS) signals. Counter UAV/Counter UAS/Anti-Drone.
Ground Specifications
Crew
1
Range
3.0 km
System
Alternate Designation
Hunter SHH100
Type
Anti-Drone Device
Manufacturer
Skyfend Technology
Crew
1 ea

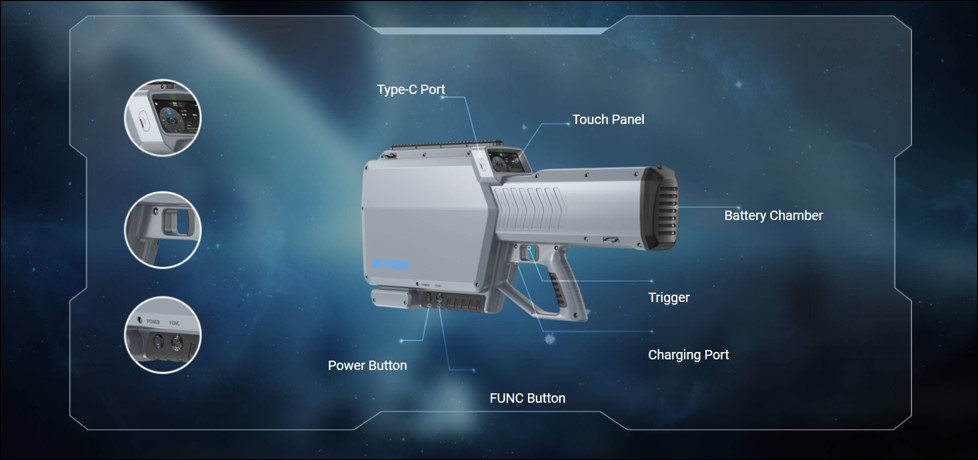

Touch Screen
Yes, the 3.5-inch touchscreen offers a high resolution of 1280 x 720, enabling users to obtain a clear view of the quantity, frequency bands and models of intruding drones. Additionally, the touchscreen provides detailed direction-finding guidance, facilitating efficient user operations. In conjunction with other detection devices, the touchscreen intuitively displays real-time countermeasure efficacy. Users can utilize the touchscreen to adjust basic settings such as alarm modes, device connectivity and languages.
Antenna
Omni-directional antennas, Hunter detects and alerts to drone signals in all directions within 2km range. Upon a drone entering the detection zone, Hunter swiftly obtains its model, frequency band, and direction. It then automatically adjusts the jamming frequency, targeting the RF or GNSS signals specific to the detected drone model, effectively neutralizing the drone threat beyond visual range.

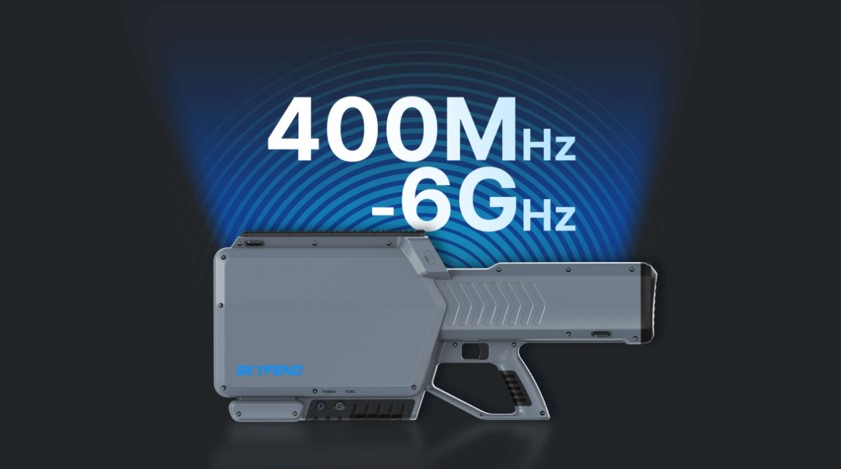

Frequency
400 Mhz - 6 Ghz
Global Positioning System
The device supports all major global satellite positioning systems, including GPS, GLONASS, BeiDou, and Galileo, ensuring comprehensive coverage and automatic frequency adaptation.
Detection Range
2,000 m, with customizable full-band coverage.
Jamming Range
3,000 meters, effectively neutralizing flight control and image transmission signals.
Operation Time
Operational time exceeding 8 hours in detection mode and at least 1 hour in active jamming.
Battery
Recharble
Water Resitance
IP65 rating
Dimensions
Length
778 mm
Height
337 mm
Width
113 mm
Weight
6.5 kg
Details
Country of Origin
China
Category
Land Based Electronic Warfare (EW) Systems
Land > Land Based Electronic Warfare (EW) Systems
Filter Label
S
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.78 m
Width
0.11 m
Height
0.34 m
Weight
6.5 kg
Operators (2)
China
Venezuela
