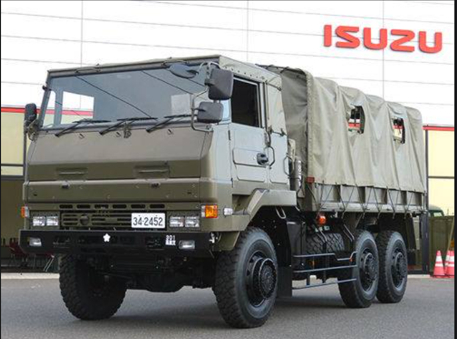

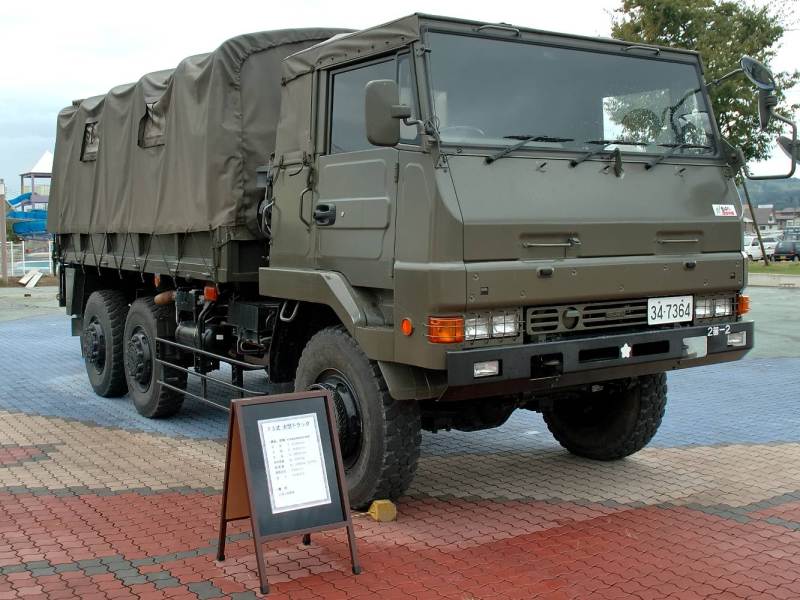

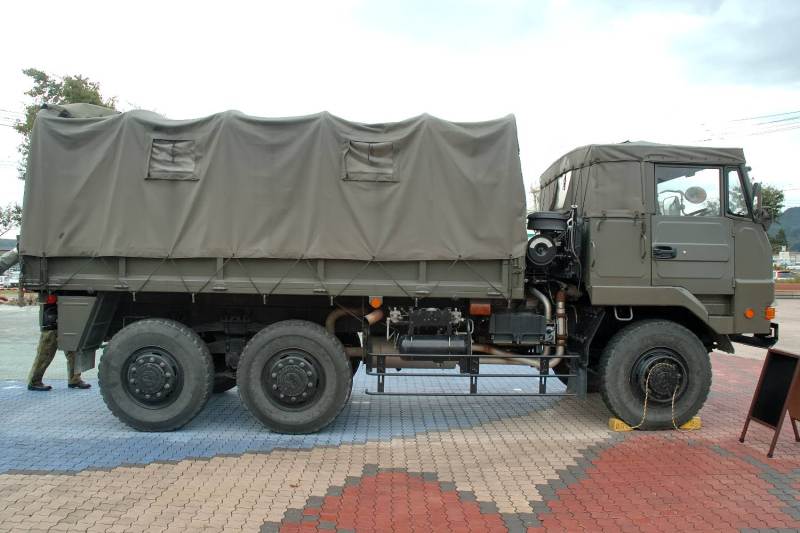

Type 73 SKW 475 Japanese 6x6 Tactical Utility Truck

Type 73 Ougata

Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Type 73 SKW 475 Japanese 6x6 Tactical Utility Truck
Designation
Type 73 Ougata
Alternate Designation
Type 73 Ougata
Equipment Type
Manufacturer
Isuzu
Date of Introduction
1973
Description

The Isuzu SKW is a tactical truck of Japanese origin. It was developed by Isuzu in the late 1960s to replace the previous range of 2.5 t trucks in Japanese service. The SKW is best known as the Type 73 in Japanese service. The design has been updated three times in order to provide improved performance. Despite the upgrades, the Type 73 designation remains unchanged, mostly because the capabilities and performance remain similar. The SKW is a 3.5 t tactical truck that is based on a commercial truck chassis. Even though the design was improved in many areas for military use it uses many off-the-shelf parts. The SKW features a 6x6 chassis with a forward control cab mounted on top of the engine. Most SKW has single rear tires with a few specialist models having double rear tires. On all three models, the cab roof can be removed and the windshield lowered for a reduced silhouette. The SKW series is unarmed and has no armor or NBC system.

Ground Specifications
Crew 3
Range 500.0 km
Variants
SKW 475MW Cargo Truck with winch.
SKW 475MV Cargo Truck with crane.
SKW 475MD Dump Truck.
SKW 475MV Tanker for water or fuel (5,000 liters).
System
Alternative Designation Type 73 Ougata
System Tactical Cargo Truck
Manufacturer Isuzu
Configuration 6x6
Crew 3 (driver and 2 passengers in cab)
Payload Capacity (On Road) 6 tons
Payload Capacity (Off Road) 3 tons
Automotive
Engine Isuzu Model 8PE1
Engine Name V8 Diesel
Engine Power 286 hp at 2,300 rpm
Fuel Capacity 190 liters
Transmission Automatic 6 forward, 1 reverse
Maximum Speed Speed 105 km/h (on road)
Range 500 km
Gradient 60 %
Side Slope 40 %
Vertical Step 0.6 m
Trench 1 m
Fording 0.8 m
Dimensions
Length 6.67 m
Width 2.41 m
Height 3.02 m
Wheelbase 3.4 m
Empty Weight 6.8 tons
Comat Weight 10.5 tons
Maximum On-Road Weight 13.0 tons
Main Weapon System
Note There are no weapon systems associated with the Type 73 SKW 475 Japanese 6x6 Tactical Utility Truck.
Protection
Hull Armor The Type 73 SKW 475 Japanese 6x6 Tactical Utility Truck is unarmed and has no armor.
Applique Armor INA
Mine Clearing No
NBC Protection No
Smoke Equipment No
Details
Country of Origin Japan
Category Logistics
Land > Combat Support Vehicles > Logistics
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.67 m
Width
2.41 m
Height
3.02 m
Weight
13000 kg
Operators (1)
Japan
