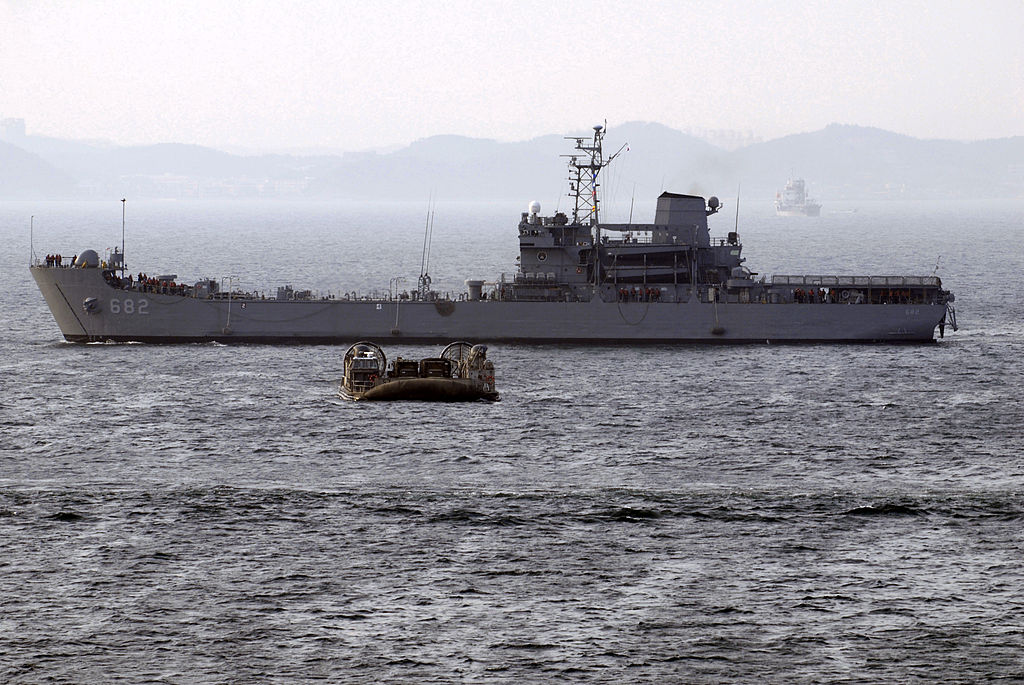

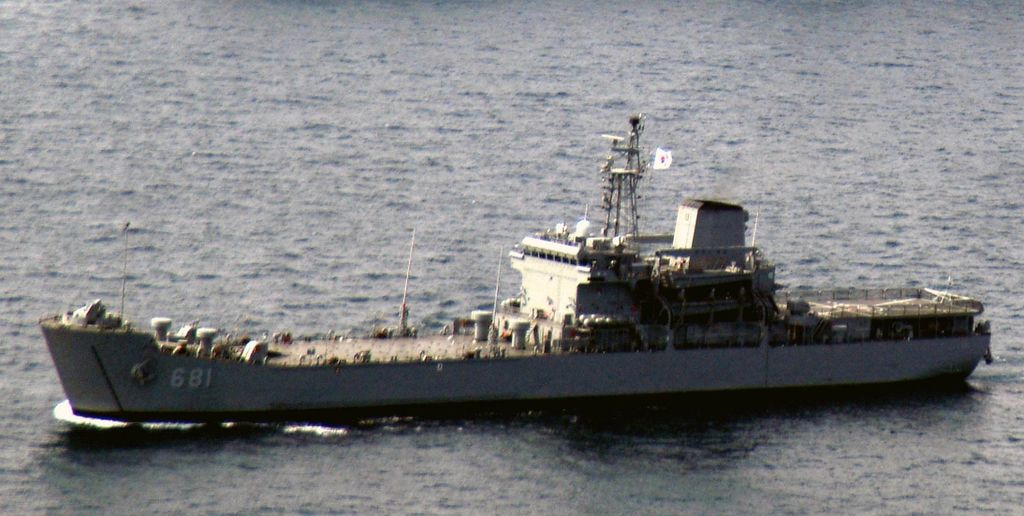

Go Jun Bong Class South Korean Amphibious Landing Ship

Go Jun Bong Class

Amphibious Landing Ship
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Go Jun Bong Class South Korean Amphibious Landing Ship
Designation
Go Jun Bong Class
Alternate Designation
Go Jun Bong Class
Equipment Type
Amphibious Landing Ship
Manufacturer
Date of Introduction
1994
Description

Go Jun Bong Class LST is an Amphibious Landing Ship class of the Republic of Korea Navy. Go Jun Bong class LST is based on the design of the LST-542 class LST, and thus its exterior is very similar to the Un Bong class LST. The ship is designed to land multiple personnel, tanks and equipment simultaneously with doors and ramps placed on both the stern and bow of the ship, unlike the Un Bong class LST which only has doors on the bow. It is also equipped with a turn table, saving time when loading or landing vehicles. There is also a ramp for moving trucks up to the deck, and multiple elevators for rapid cargo loading.

Ground Specifications
Crew 169
Variants
Go Jun Bong Commissioned: 1994 Status: Active
Bi Ro Bong Commissioned: 1998 Status: Active
Hyang Ro Bong Commissioned: 1999 Status: Active
Sung In Bong Commissioned: 1999 Status: Active
System
Alternative Designation Go Jun Bong Class
Type Amphibious Landing Ship
Builder Hanjin Industrial Shipbuilding, Masan, South Korea
Crew 169
Troops 200
Dimensions
Length 112.50 m
Beam 15.30 m
Draft 3.00 m
Displacement, Standard 1,900 tons
Displacement, Full Load 4,278 tons
Propulsion System
Engine Name 2 x SEMT-Pielstick type 16 PA6 V280
Engine Type Diesel Engines
Engine Power 12,800 total bhp
Fuel Capacity INA
Maximum Range 4,500 nm at 12 knots
Maximum Speed 16 knots
Main Weapon System
System #1
Name Bofors 40 mm gun
Type Anti-Aircraft Autocannon
Caliber 40 mm
Quantity 4 x Bofors 40 mm Anti-Aircraft Autocannon
Length 6.5 m
Barrel Length 2.2 m
Width 1.8 m
Height 1.9 m
Weight 1,981 kg
Barrels 1 or 2
Traverse 360°
Rate of Fire 120 round/min
Muzzle Velocity 881 m/s
Maximum Firing Range 7,160 m
System #1, Ammunition
Type Rifle
Caliber 40mm
Shell 40×311mmR
Basic Load INA
System #2
Name M61 Vulcan
Type Autocannon
Caliber 20 mm
Quantity 2 x M61 Vulcan 20mm Autocannons
Barrels 6-barrel (progressive RH parabolic twist, 9 grooves)
Action Hydraulically operated, electrically fired, rotary cannon
Rate of Fire 6,000 rounds per minute
Muzzle Velocity 1,050 m/s
Feed System Belt or linkless feed system
System #2, Ammunition
Type Rifle
Caliber 20 mm
Cartridge 20×102 mm
Basic Load INA
Fire Control Systems
Optronic Gun Fire Control System 1 x Selenia NA-18 optronic gun fire control
Vulcan Fire Control System 2 x Mark 90 Vulcan fire control
Radar Systems
Surface Search Radar 1 x Raytheon AN/SPS-64(V)9 surface search
Navigation Radar 1 x Raytheon AN/SPS-64(V)6 navigation radar
Aviation Facilities
Helicopters 1 × UH-60 helicopter
Protection
Radar Intercept 1 x radar intercept
NBC Water Washdown System Yes
Chaff Launcher 1 x RBOC chaff launcher
Details
Country of Origin South Korea
Category Naval
Naval
Filter Label
G
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
112.5 m
Width
Height
Weight
Operators (1)
South Korea
