Terrier CEV

Terrier CEV

Engineering Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Terrier CEV
Designation
Terrier CEV
Alternate Designation
Equipment Type
Engineering Vehicles
Manufacturer
BAE Systems
Date of Introduction
2013
Description

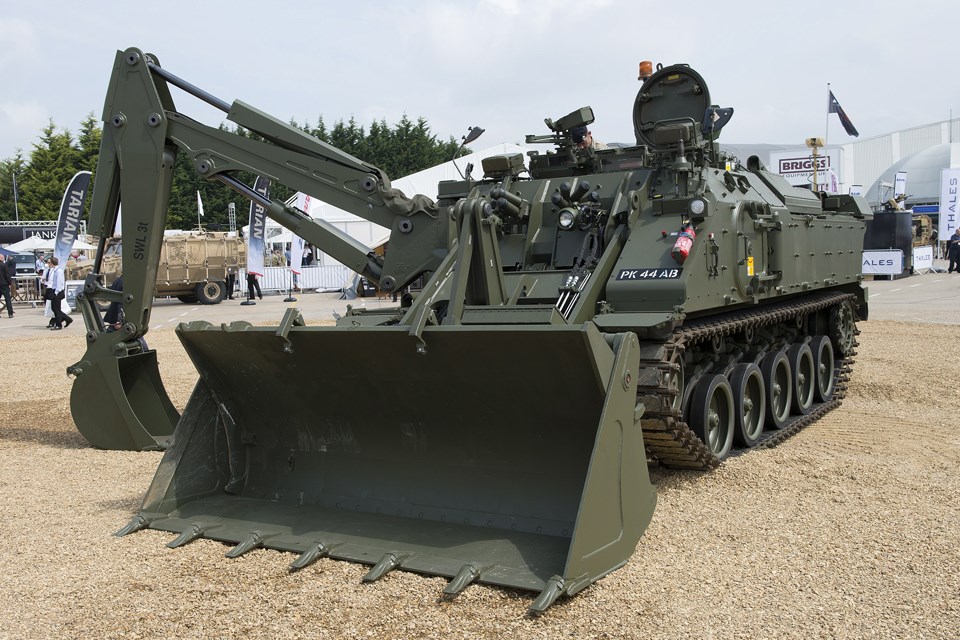

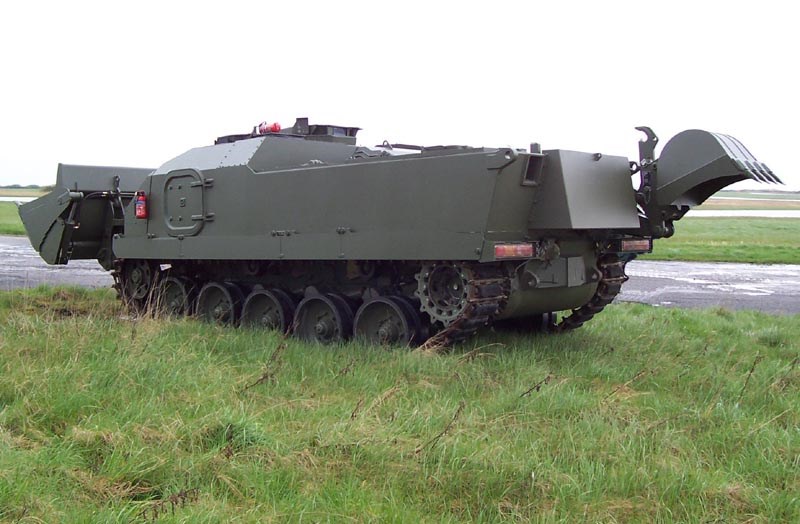

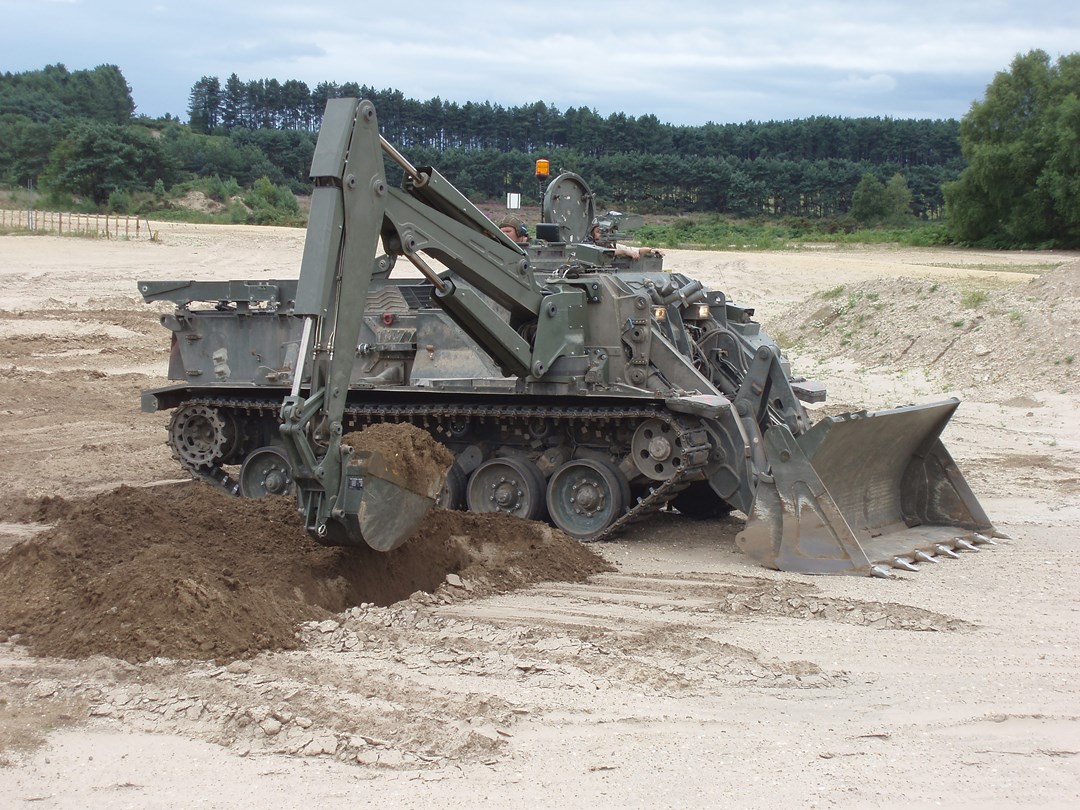

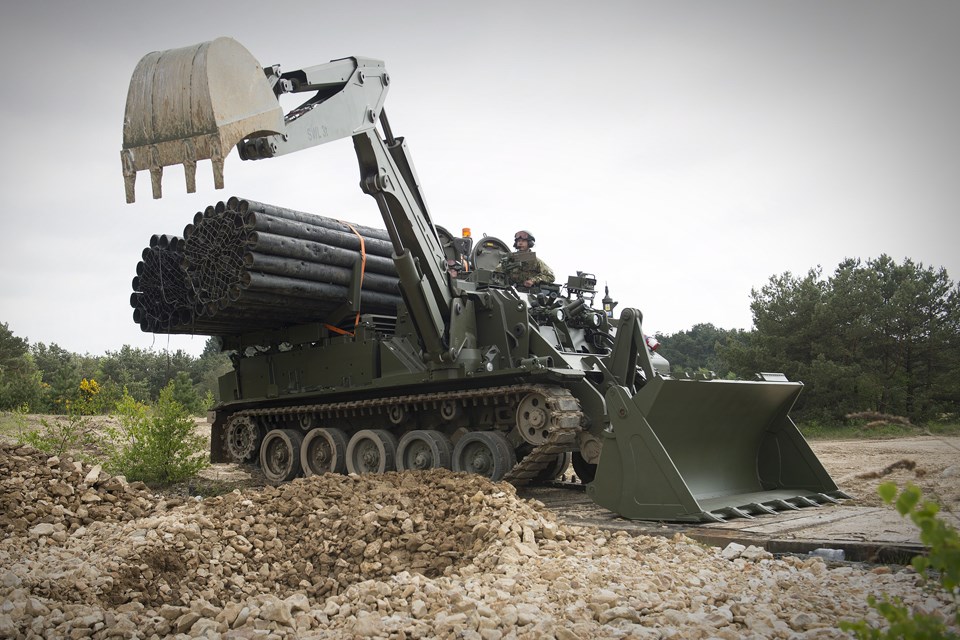

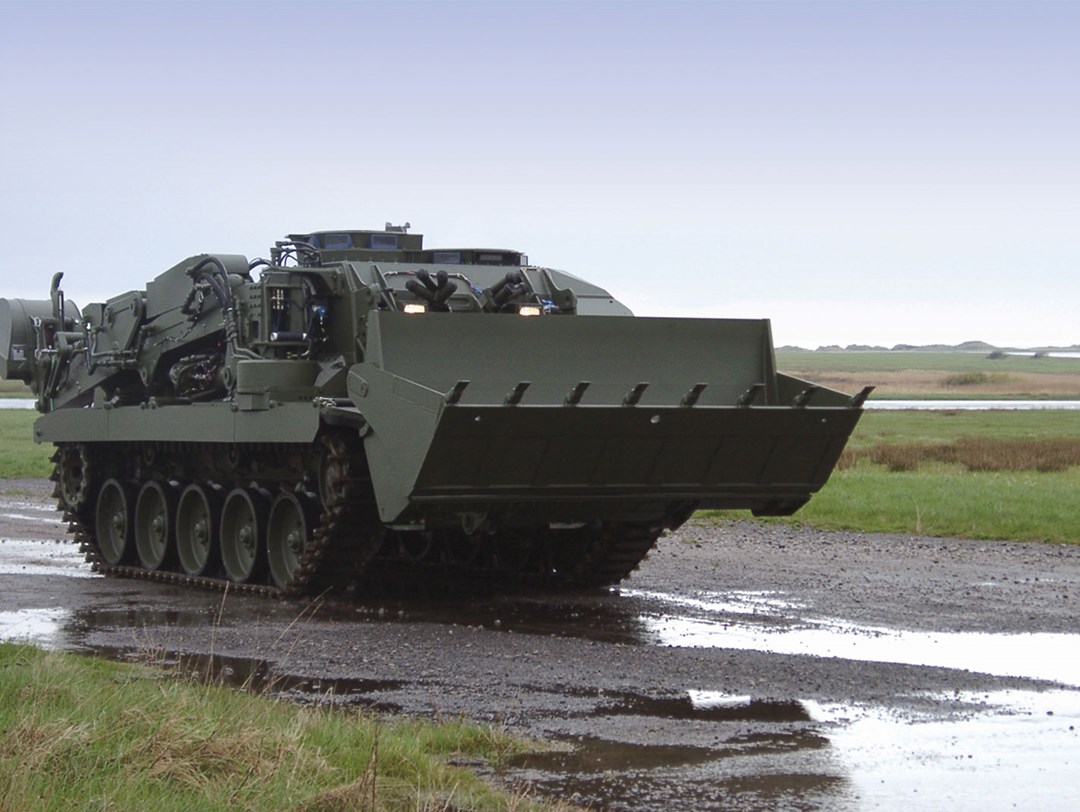

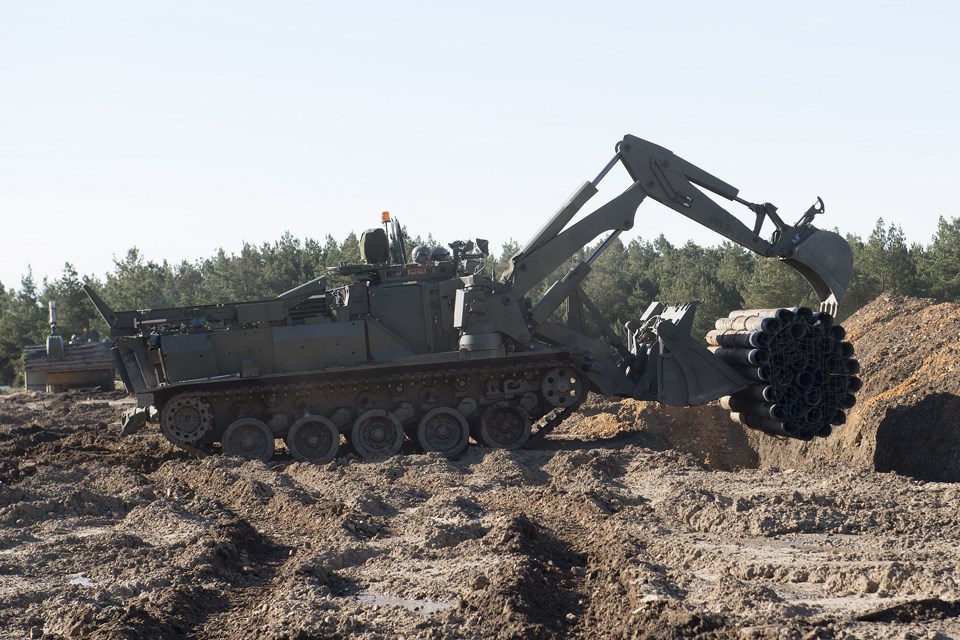

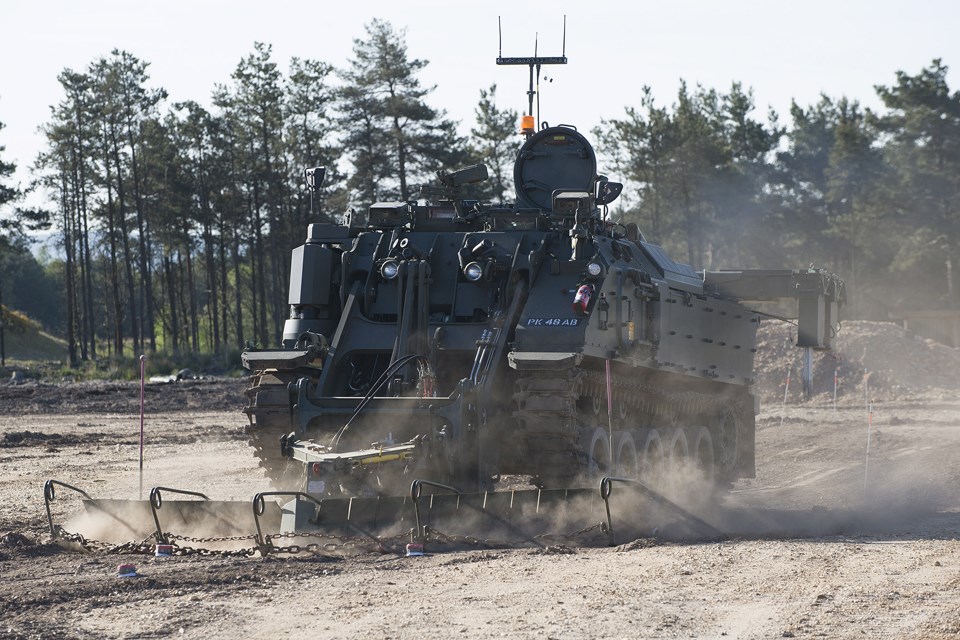

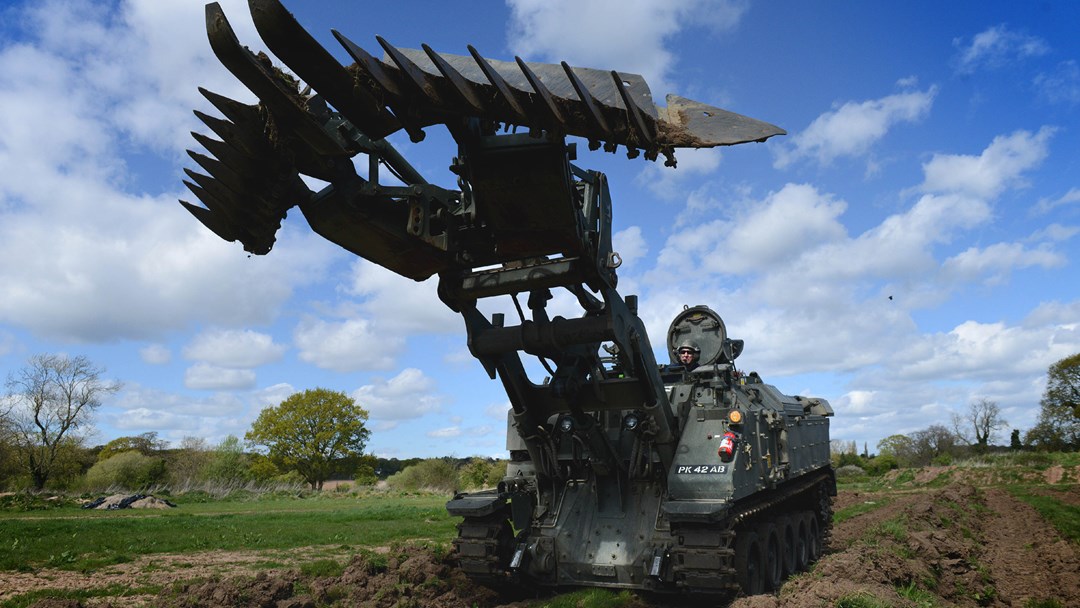

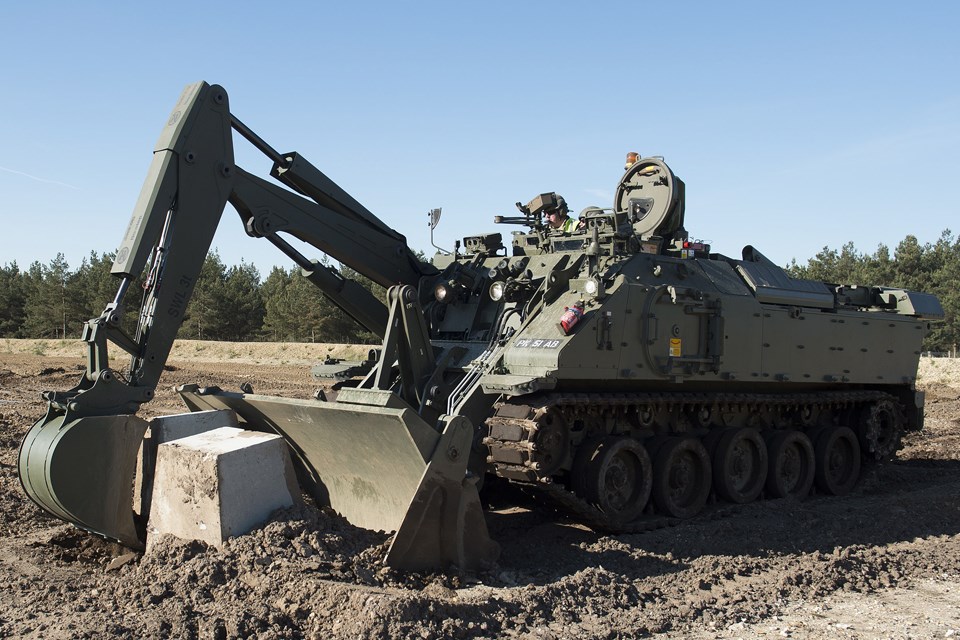

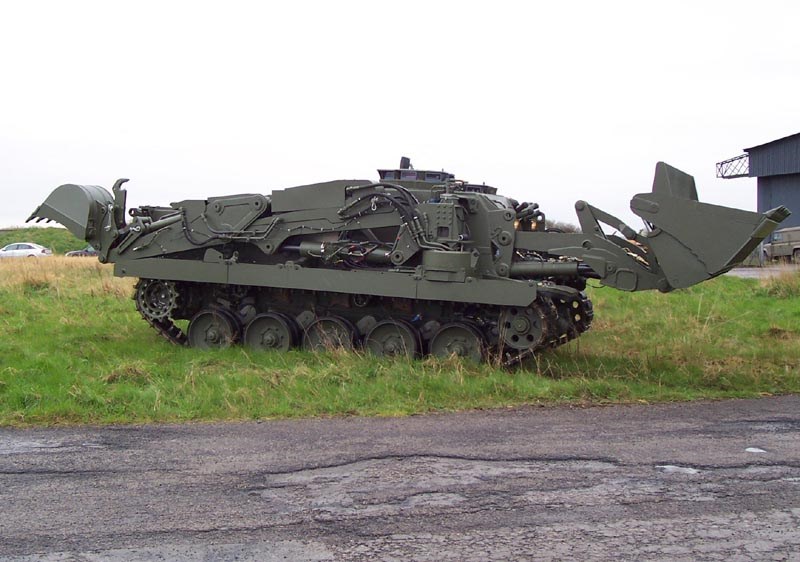

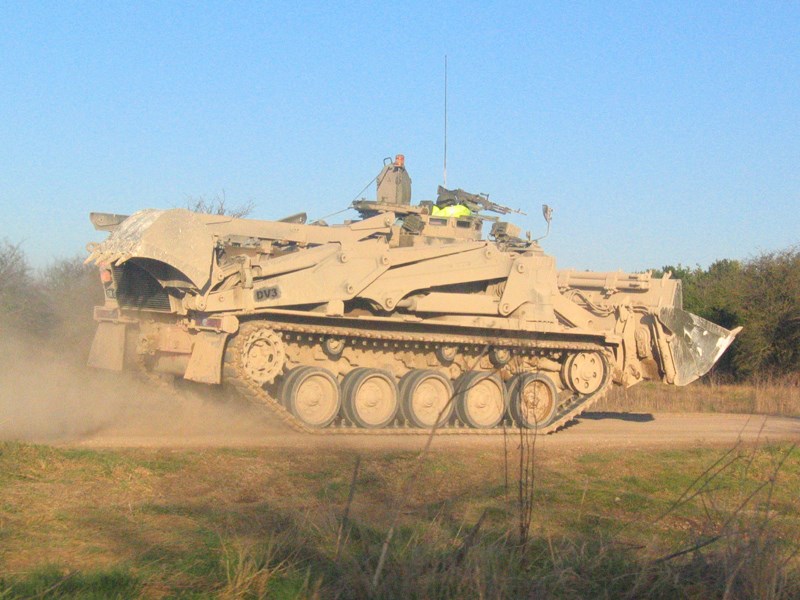

The Terrier CEV is an air-transportable armored combat engineer vehicle being developed by BAe Systems, RO Defence, for the British Army's Royal Engineers with an estimated requirement for up to 65 units. The Terrier development and demonstration contract awarded to BAE Systems was valued at £300 million. The vehicle will feature reduced logistics support needs while providing a wide range of utilities. It will support both current legacy forces and the Future Rapid Effects System (FRES) forces structures. FRES is the British counterpart to US Future Combat Systems (FCS). The C-17 and the A400M are the two airborne platforms planned by the British Armed Forces to airlift the Terrier armored vehicle. The Terrier CEV will be capable of clearing and mark routes, digging defensive positions and preparing or clearing obstacles. The fully-equipped weight requirement is less than 31.5 tons and crew of two-man or remote operation mode in hazardous environments. A 7.62mm machine gun will be provided for self-defense purposes. The first Terrier prototype was unveiled by the British Minister for Defence Procurement, Lord Drayson, on 27 May 2005 at BAE Systems' site in Leicester, Great Britain. Design activities will be carried out at Leicester site and production in Newcastle and Barrow. In service date was anticipated by mid-2008. In January 2006, BAE Systems was awarded a £10 million contract to provide Terrier training systems to the UK MoD. The contract included four crew training simulators, a remote control trainer and a classroom set of software suites for diagnostic emulator workstations. Deliveries were planned for February 2008.

Ground Specifications
Crew 2
Main Weapon 7.62mm machine gun (8mm)
Max Speed 80.5 km/h
Overview (Deagel)
Group Engineering Vehicles
Status Active
Origin United Kingdom
Contractor BAE Systems
Initial Operational Capability (IOC) June 5, 2013
Total Production 60
Unitary Cost GBP £5.0 million
Specifications (Deagel)
Crew 2
Dimensions — Main Gun Caliber 7.6 millimeter
Mass — Max Weight 31,500 kilogram
Mass — Payload 5,000 kilogram
Speed — Top Speed 50 mph
Time — Service Life 30 year
Gear (Deagel)
Item 1 Optronic Systems: DNVS (1)
Details
Country of Origin United Kingdom
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
Width
Height
Weight
31500 kg
Operators (1)
United Kingdom
