Type 037IG Class (Houxin Class) Chinese Corvette
Type 037IG Class
Corvette
Other
Basic Information
Name
Type 037IG Class (Houxin Class) Chinese Corvette
Designation
Type 037IG Class
Alternate Designation
Type 037IG Class; NATO: Houxin Class
Equipment Type
Corvette
Manufacturer
—
Date of Introduction
1991
Description
The Type 037IG missile boat (NATO: Houxin class) were first built by Qiuxing and Huangpu Shipyard from 1991 through 1999 for the People's Liberation Army Navy (PLAN). In addition to the PLAN, 6 were exported to Myanmar: 2 in 1995, 2 in July 1996, and 2 in late 1997. This boat is the anti-ship version of the Type 037 submarine chasers, armed with missiles rather than torpedoes. It is most effectively used in conjunction with multiple missile boats to send a swarm of missiles towards its intended target and then egress from the area immediately. The swarm of anti-ship missiles will hopefully slip past the target's air defenses for at least one or possibly more hits.
Naval & Littoral Specifications
Crew
71
Beam
7.20 m
Draft
2.40 m
Variants
Ships in PLAN Service

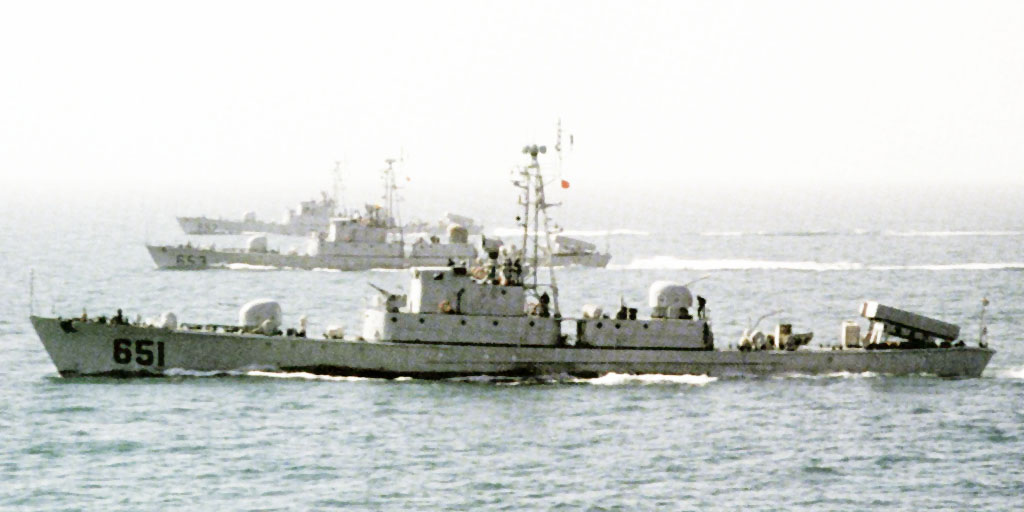

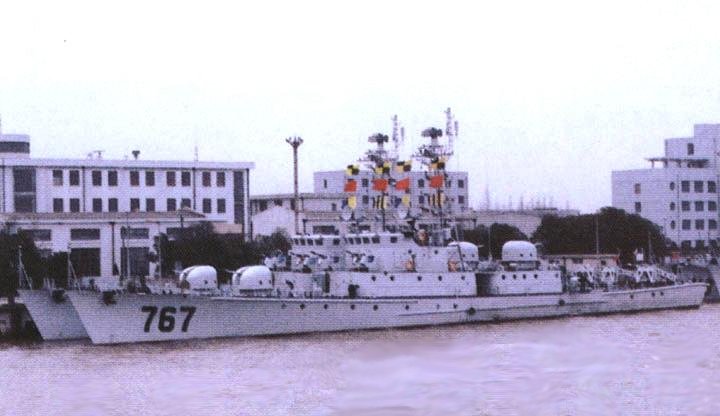

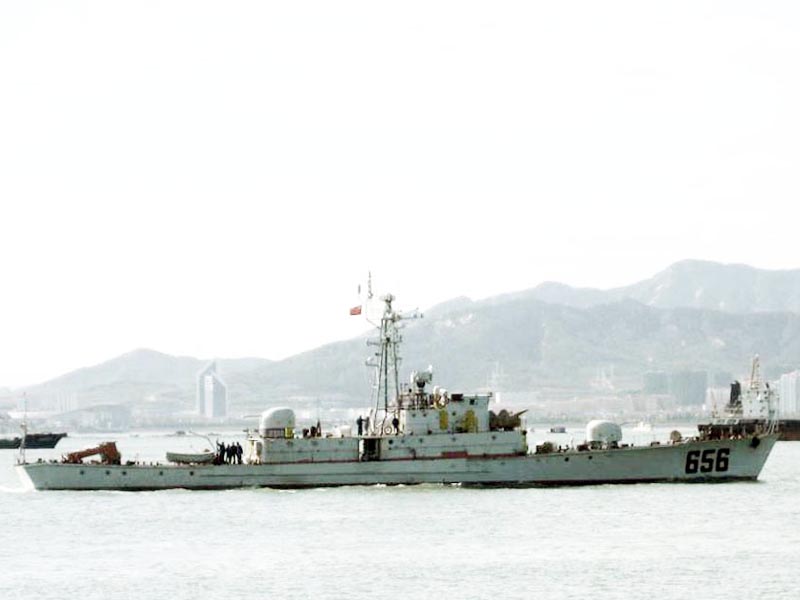

Pennant Numbers: 651－656、 751－760 and 764－767.
Completed: 26 (20 PLAN + 6 Myanmar)
Active: 26 (20 PLAN + 6 Myanmar)
Pendant No.
275/285, 290, 302, 305, 609/610, 618/622, 626/629, 636/637, 689/692,
695/699, 701, 707, 723/733 and 740/742
System
Alternative Designation
Type 037IG Class; NATO: Houxin Class
Type
Corvette; Missile Boat
Builder
Qiuxing and Huangpu Shipyard
Crew
71
Dimensions
Length
62.8 m
Beam
7.2 m
Draft
2.4 m
Displacement, Standard
395 tons
Displacement, Full Load
478 tons
Propulsion System
Engine Name
4 × Chinese PR 230ZC
Engine Type
Diesel
Engine Power
4 × Chinese PR 230ZC diesel engines at 4,000 hp (2,983 kW) with 4 shafts
Maximum Range
1,300 nmi (2,400 km) at 15 kn (28 km/h)
Maximum Speed
28 knots (52 km/h; 32 mph)
Gun Weapon Systems
Gun Weapon System #1
Name
Type 76A
Type
Naval Gun
Caliber
37mm
Quantity
4 × Type 76A 37 mm gun (2 × 2)
Note
The Type 76A is a fully enclosed and fully automatic model in the Type 76 series. Unlike the Type 76F, the gun is fully automatic, with the semi-automatic operational mode and the one-man operator console removed. In addition to the optronic FCS found in the Type 76F, the Type 76A is linked to radar FCS. The maximum rate of fire, however, is reduced in comparison to Type 76, dropping from the original 400 rd/min/barrel to 375 rd/min/barrel. In addition to anti-aircraft and anti-surface roles, the Type 76A can also be used as a close-in-weapon system.
Gun Weapon System #1 Ammunition
Type
Rifle
Caliber
37mm
Shell
INA
Basic Load
INA
Gun Weapon System #2
Name
Type 69
Type
Heavy Machine Gun
Caliber
12.7mm
Quantity
4 × Type 69 14.5 mm heavy machine guns (2 × 2)
Length
1,980 mm
Barrel Length
1,346 mm
Width
162mm
Height
225mm
Weight
49 kg
Action
Short recoil operation
Rate of FIre
600 rpm
Muzzle Velocity
1,005 m/s
Maximum Firing Range
4000m
Effective Firing Range
3000m
Feed System
40-round belt
Sights
iron or optical
Gun Weapon System #2 Ammunition
Type
Rifle
Caliber
14.5mm
Cartridge
14.5×114 mm
Basic Load
INA
Missile Weapon System
Missile Weapon System #1
Name
C-802
Type
Anti-Ship Missile System
Note
The C-802 is the export version of the YJ-83
Length
INA
Weight
INA
Warhead
190 kg high-explosive fragmentation
Engine
CTJ-2 turbojet
Operational Range
120 km
Maximum Speed
Mach 0.9
Guidance System
Inertial navigation/active radar homing terminal guidance
Mines
Note
12 max. mines (two mine rails fitted)
Mortar System
Mortar Launcher
The ships are armed with two 6-tubed anti-submarine mortar launchers.
Mortar Type
Type 87 Mortar
Fire Control Systems (FCS)
FCS Name
INA
Computerized FCS
Yes, 1 × I-band Type 347 (Rice Lamp)
Battle Management System
No
Radar Systems
Name
1 × I-band Type 352 (Square Tie)
Type
Surface Search Radar
Frequency
INA
Range
INA
Sonar Systems
Name
1 x Tamir-11 HF
Type
Hull-Mounted Sonar
Protection
Active Protection System
INA
Countermeasures
INA
NBC Water Washdown System
INA
Depth Charge Racks
2 depth charge racks
Depth Chargers
2 BMB-2 depth charge mortars
Details
Country of Origin
China
Category
Naval
Naval
Filter Label
T
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
62.8 m
Width
—
Height
—
Weight
—
Operators (2)
China
Myanmar
