Koalitsiya-SV

Koalitsiya-SV

Self-Propelled Howitzers
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Koalitsiya-SV
Designation
Koalitsiya-SV
Alternate Designation
2S35, Coalitsia-SV
Equipment Type
Self-Propelled Howitzers
Manufacturer
Central Research Institute Burevestnik, Uraltransmash
Date of Introduction
2024
Description

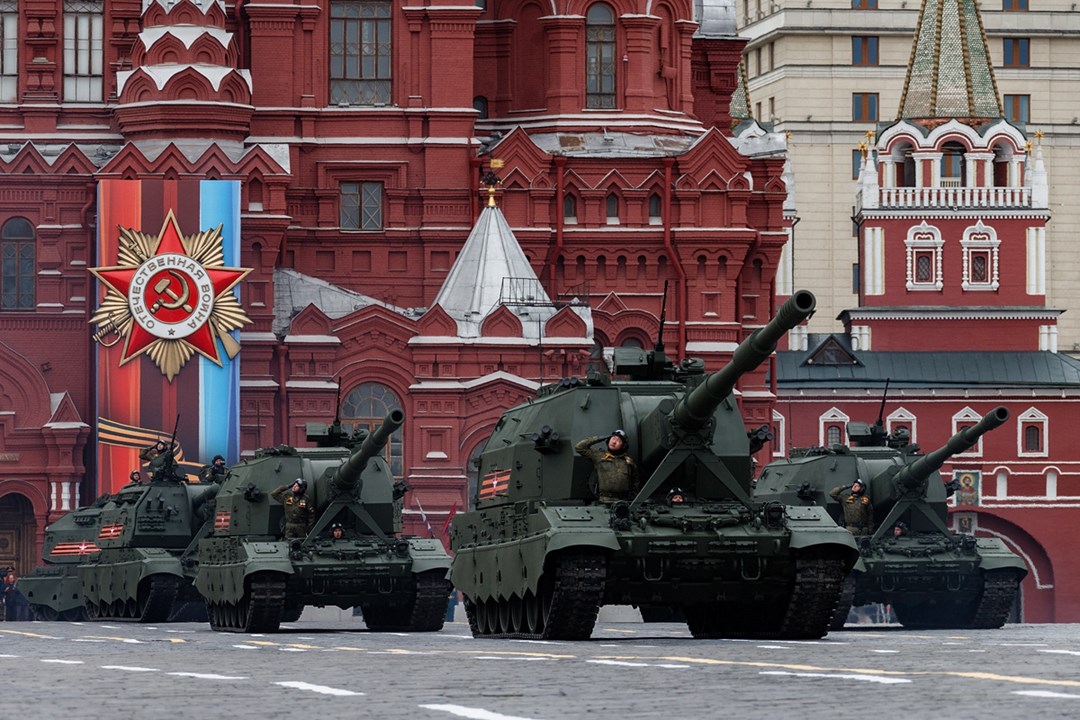

The 2S35 Koalitsiya-SV, Coalition-SV in English, is a self-propelled howitzer (SPH) intended to hit ground targets with high accuracy as the replacement for the 2S19 howitzers. It is fitted with a new 2A88 152mm or 155mm high pressure cannon with a maximum range of 70 kilometers firing precision-guided rounds. The Koalitsiya-SV also features automatic targeting and charge selection system reducing the vehicle's crew to four or three members only. The unmanned turret is fitted with pneumatic loader and microwave shell priming system as well as 50-70 shells allowing for a maximum rate fire of 16 rounds per minute. The artillery system is able to hit the same target simultaneously with multiple shells traveling along a different path. The early versions of 2S35 showcased in 2015 were mounted on T-90 tank chassis instead of the Armata platform. The first operational units based upon the T-90 chassis were deployed to Ukraine in January 2024.

Ground Specifications
Crew 3
Main Weapon 2A88 152mm or 155mm high pressure cannon (152mm)
Max Speed 90.0 km/h
Range 500.0 km
Overview (Deagel)
Group Self-Propelled Howitzers
Status Active
Also Known As 2S35, Coalitsia-SV
Origin Russia
Contractors Central Research Institute Burevestnik, Uraltransmash
Initial Operational Capability (IOC) January 2024
Total Production 12
Specifications (Deagel)
Ammunition Load 70
Crew 3
Rolling Rubber Wheels 7
Dimensions — Main Gun Caliber 152 millimeter
Performance — Max Range 500 kilometer
Performance — Max Range firing RAP 70,000 meter
Power — Power 1,500 hp
Rate — Max Rate of Fire 16 roundperminute
Speed — Top Speed 90 kph
Gear (Deagel)
Item 1 Combat Management Systems: Andromeda-D
Item 2 Large Caliber Cannons: 2A88 (1)
Item 3 Vehicle Engines: 12N360 (1)
Variants
Variant 1 Tosochka
Variant 2 Koalitsiya-SV
Variant 3 2F66-1
Variant 4 T-14
Variant 5 T-14-152
Variant 6 T-15
Variant 7 T-15A
Variant 8 Armata RAAV
Variant 9 T-16
Variant 10 Armata Terminator
Variant 11 Gorets-O
Details
Country of Origin Russia
Category Artillery
Land > Artillery
Sources

deagel.com: https://www.deagel.com/x/x/a002752

Classification
Domain
Ground
Equipment Status
Active
Operators (1)
Russia
