GAM-101 Chinese Anti-Tank Guided Missile (ATGM)
GAM-101
Anti-Tank Guided Missile (ATGM)
Other
Basic Information
Name
GAM-101 Chinese Anti-Tank Guided Missile (ATGM)
Designation
GAM-101
Alternate Designation
GAM-101
Equipment Type
Anti-Tank Guided Missile (ATGM)
Manufacturer
Poly Technologies
Date of Introduction
2016
Description

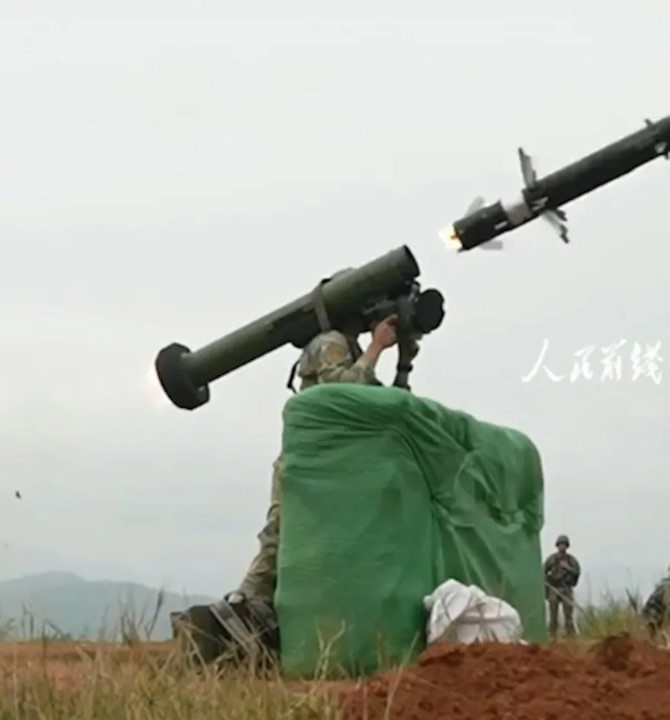

The GAM-101 Chinese Anti-Tank Guided Missile (ATGM) is a shoulder‐launched system with a missile diameter of 130 mm and a length of 1,200 mm, weighing a total of 24 kg including the missile, launch tube assembly, and a command launch unit (CLU). The missile on its own weighs approximately 13 kg and 16 kg with its launch‐tube.
Ground Specifications
Main Weapon
Anti-Tank Guided Missile (ATGM)
Max Speed
612.0 km/h
Range
2.5 km
System
Alternative Designation
GAM-101
Type
Anti-Tank Guided Missile (ATGM)
Manufacturer
Poly Technologies
Propulsion
The missile is propelled by a solid‐propellant rocket main motor and booster motor providing a soft‐launch capability. It has a maximum range of 2.5 km while the minimum range is 200 m.
Guidance System
The fire‐and‐forget missile is fired in lock‐on‐before‐launch mode, and can engage a target in direct or top attack approaches.
Seeker

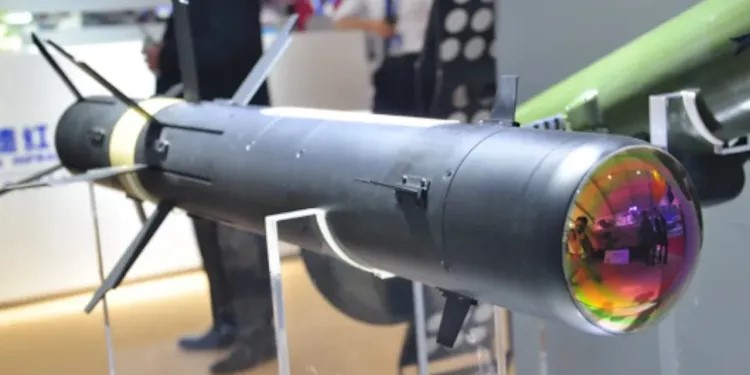

The missile incorporates an uncooled imaging infrared seeker.
Warhead
Tandem HEAT
Maximum Velocity
170 m/s
Maximum Range
2,500 m
Minimum Range
200 m
Hit Probability
90%
Armor Penetration
800 mm RHA equivalent
Operating Temperature Range
‐40° to +50°C
Dimensions
Missile Length
1,200 mm
Launch Tube Diameter
150 mm
Missile Diameter
130 mm
Missile Weight
13 kg
Missile with Launch Tube Weight
16 kg
System Weight
24 kg
Details
Country of Origin
China
Category
Land
Land
Filter Label
G
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
1.2 m
Width
0.13 m
Height
—
Weight
24 kg
Operators (1)
China
