M30 American 106.7mm Heavy Mortar

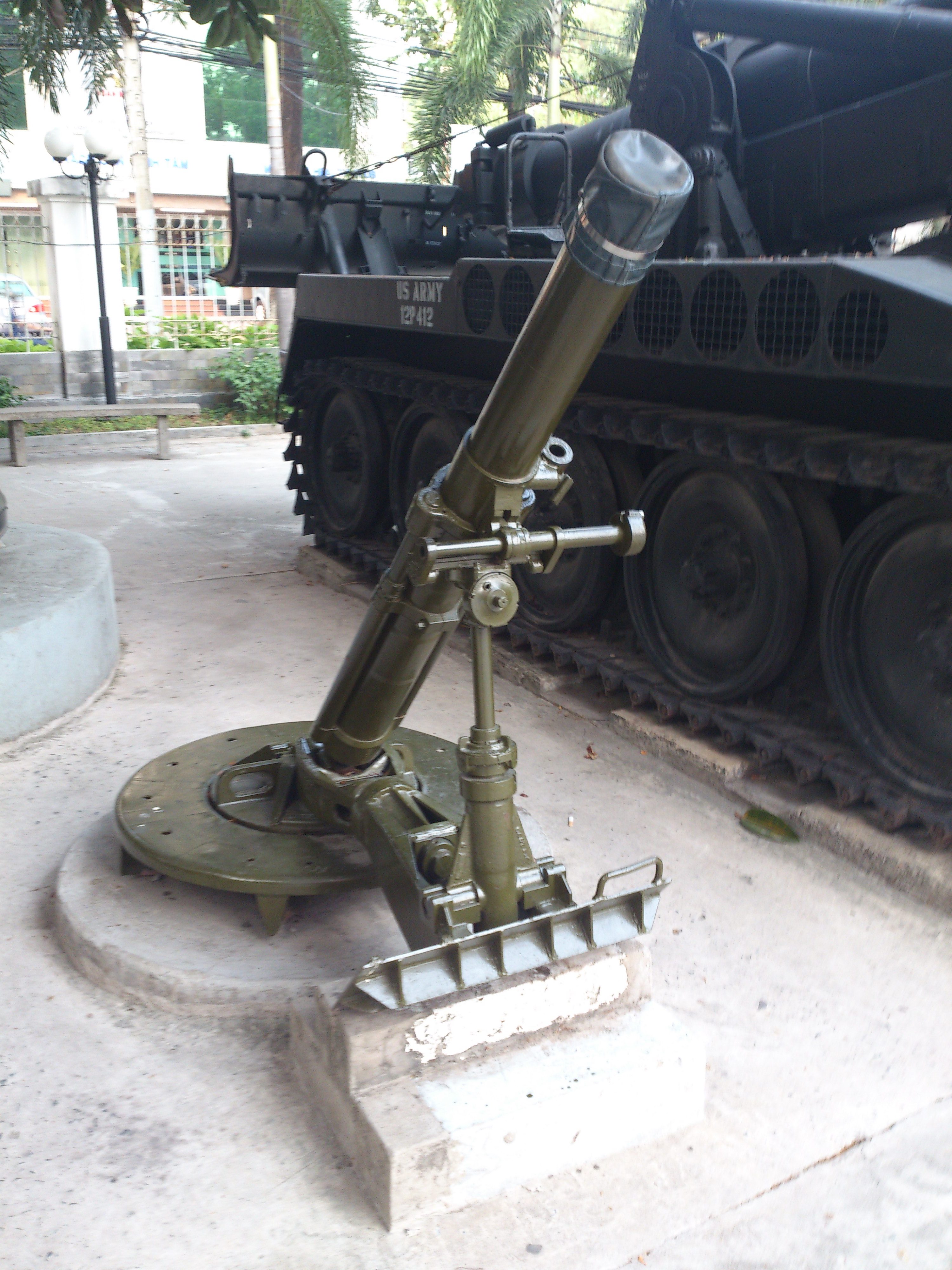

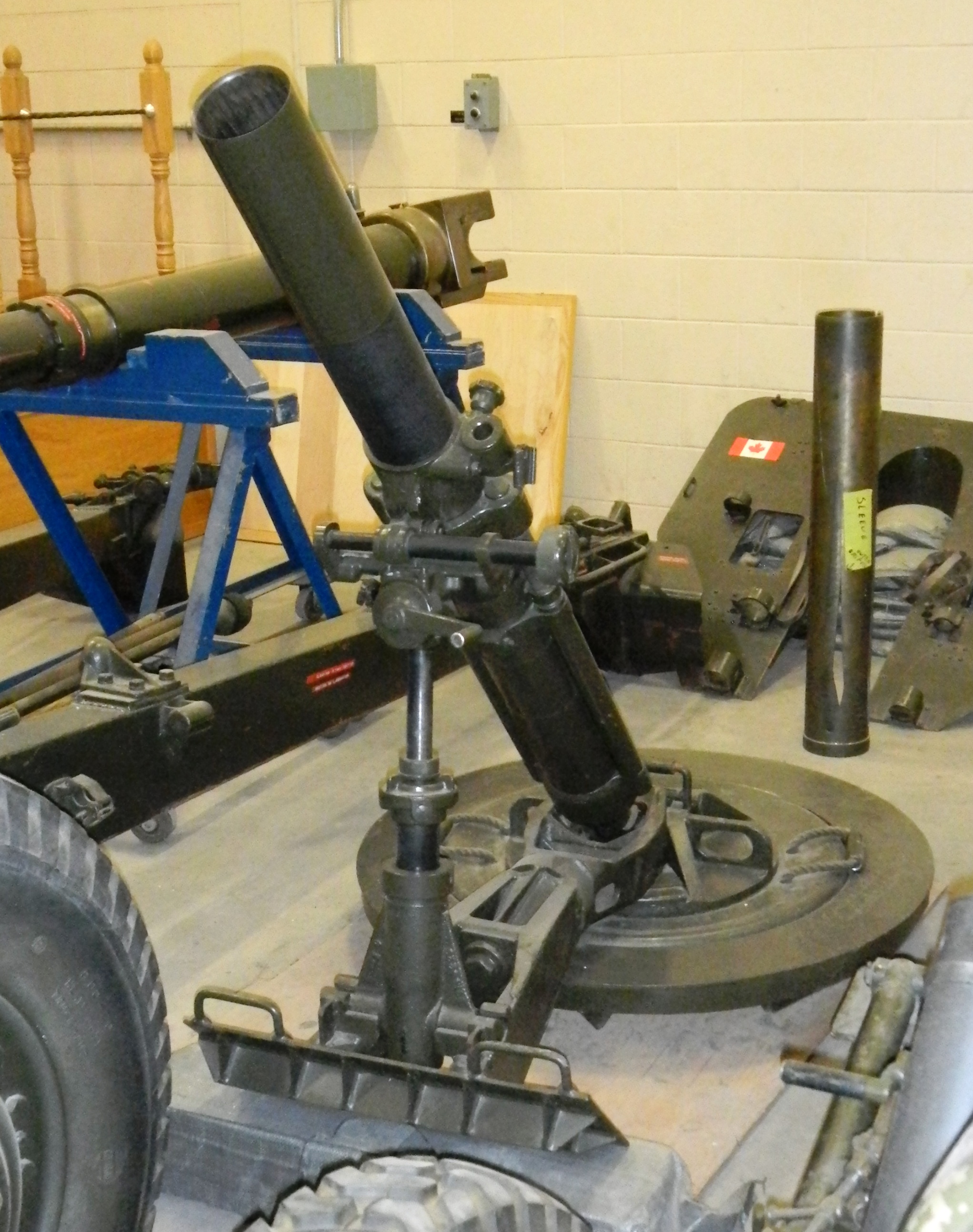

The M30 106.7 mm (4.2 inch, or "Four-deuce") heavy mortar is an American rifled, muzzle-loading, high-angle-of-fire weapon used for long-range indirect fire support to infantry units. The M30 system weighs 305 kg including the complete mortar with a welded steel rotator, M24A1 base plate and M53 sight. A point of interest in the design of this mortar is the rifled barrel. A rifled barrel requires the round to be a very tight fit to the bore in order for the rifling to engage the round and impart rotation to it. But, in a muzzle-loading mortar, the round has to be loose enough in the bore to drop in from the front. In order to have it both ways, these rounds have an expandable ring at the base, which expands into the rifling under the pressure of the firing charge that propels the round. Additionally, imparting a spin to a round causes it to drift away from the direction of fire during flight and the longer the flight (greater range to target), the farther the drift, so the computation for setting the direction for firing at a specific target has to account for this drift. American rounds are designed to be drop-safe and bore-safe. As such, the fuzes in the rounds for this rifled mortar did not arm unless the round was spun a certain number of times i.e. the round was not armed until it had exited the barrel spinning and traveled a safe distance from the gun emplacement.
