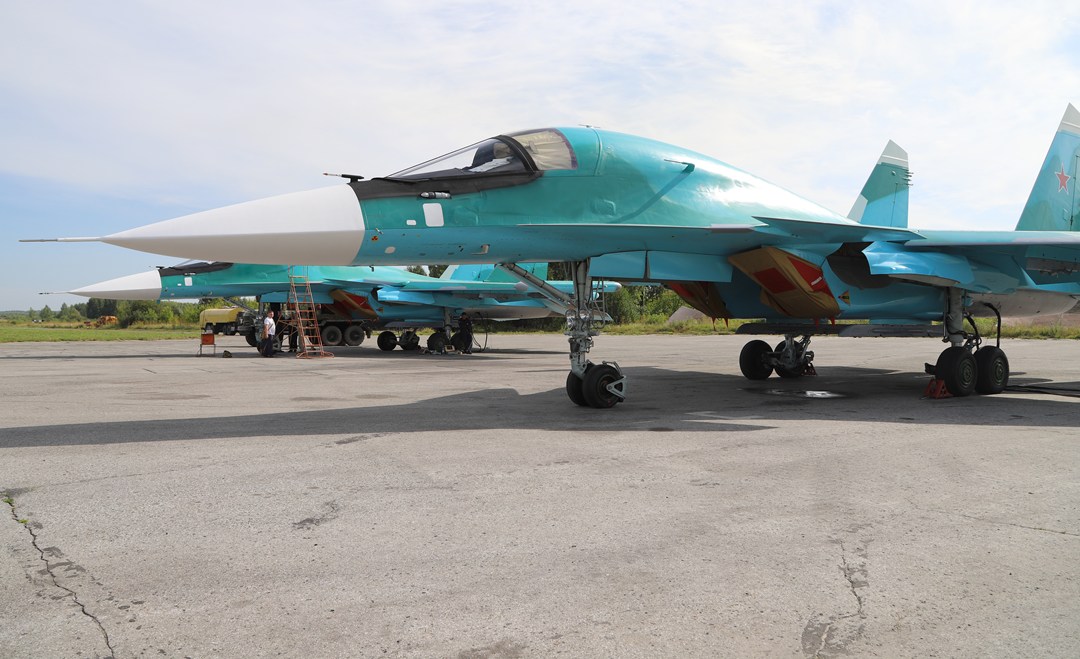

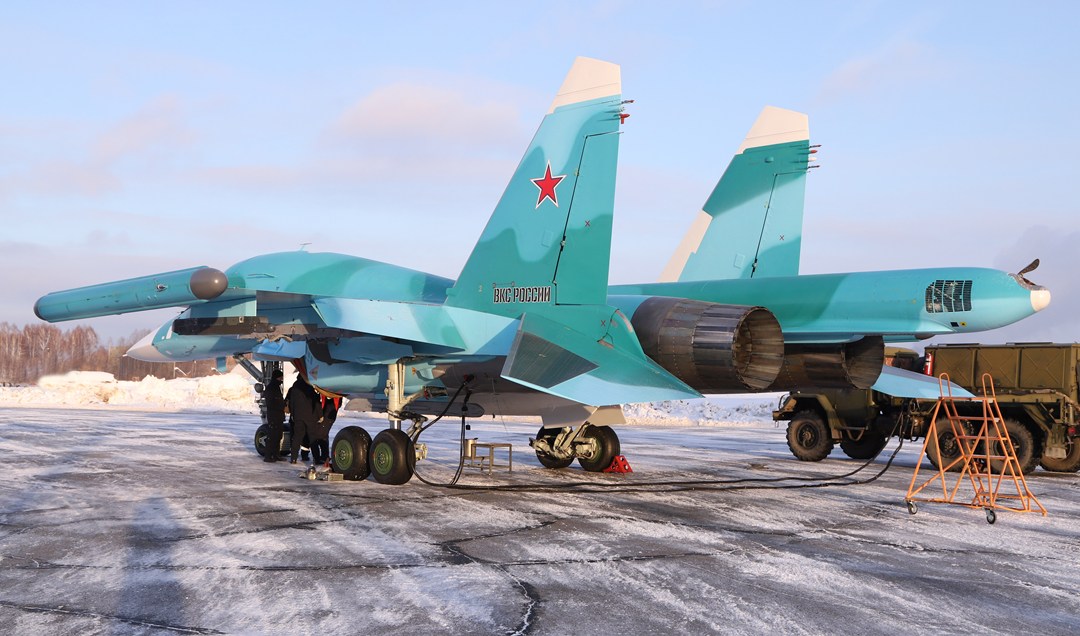

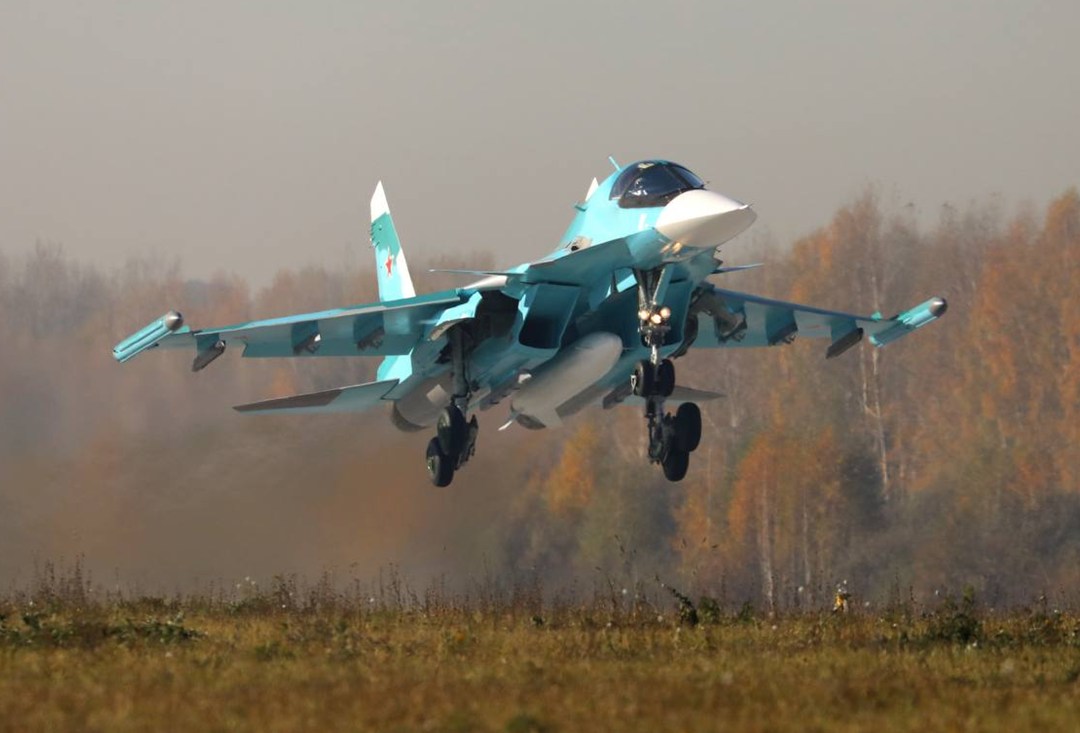

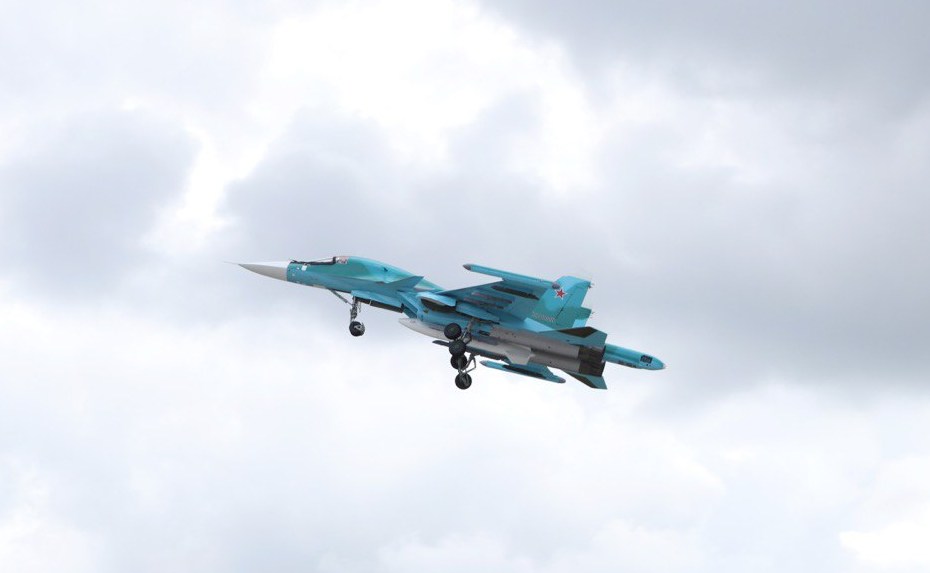

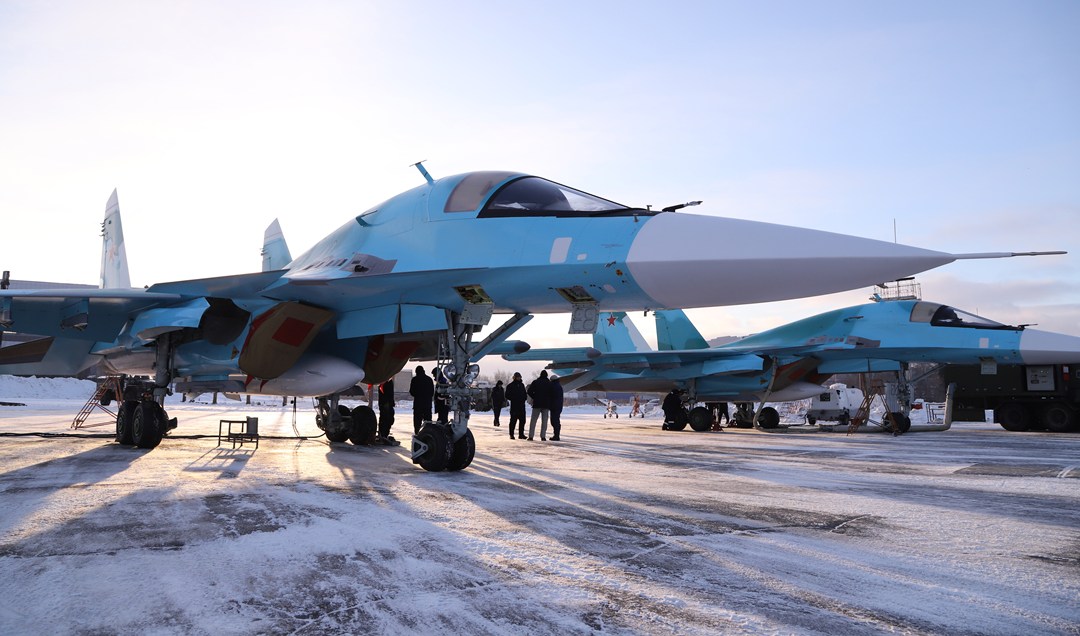

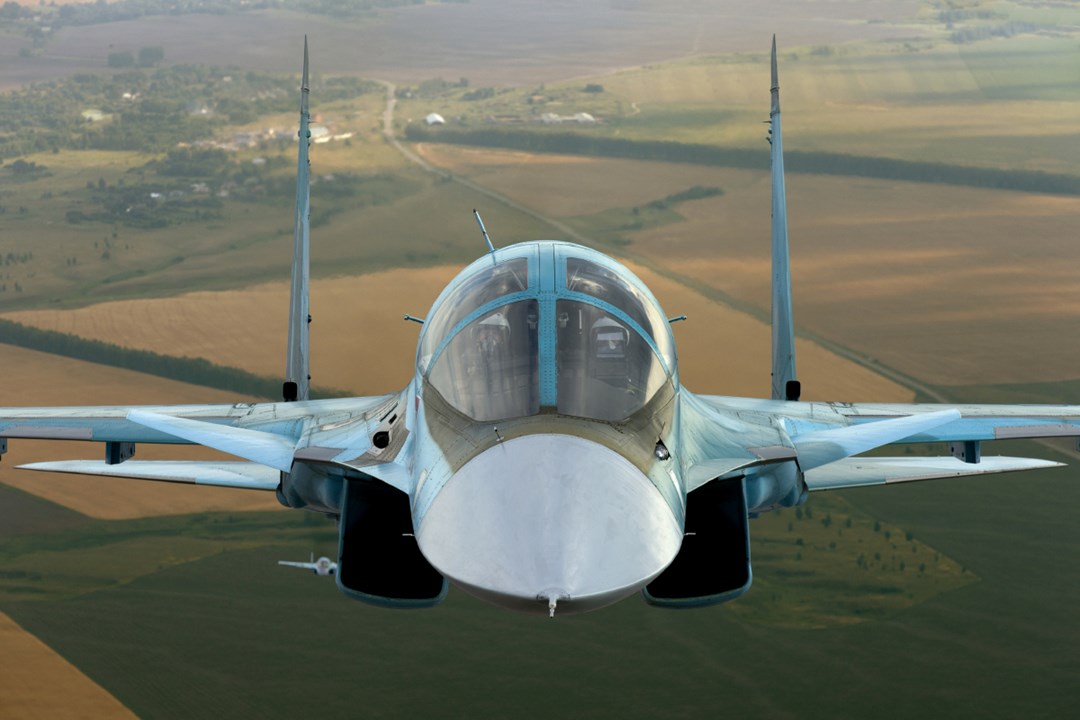

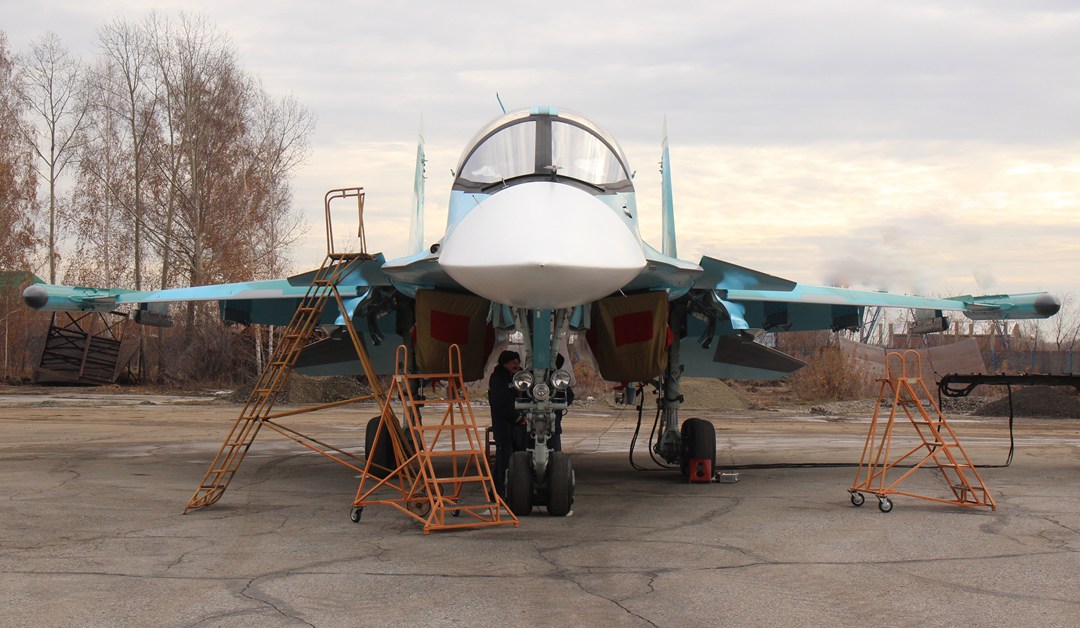

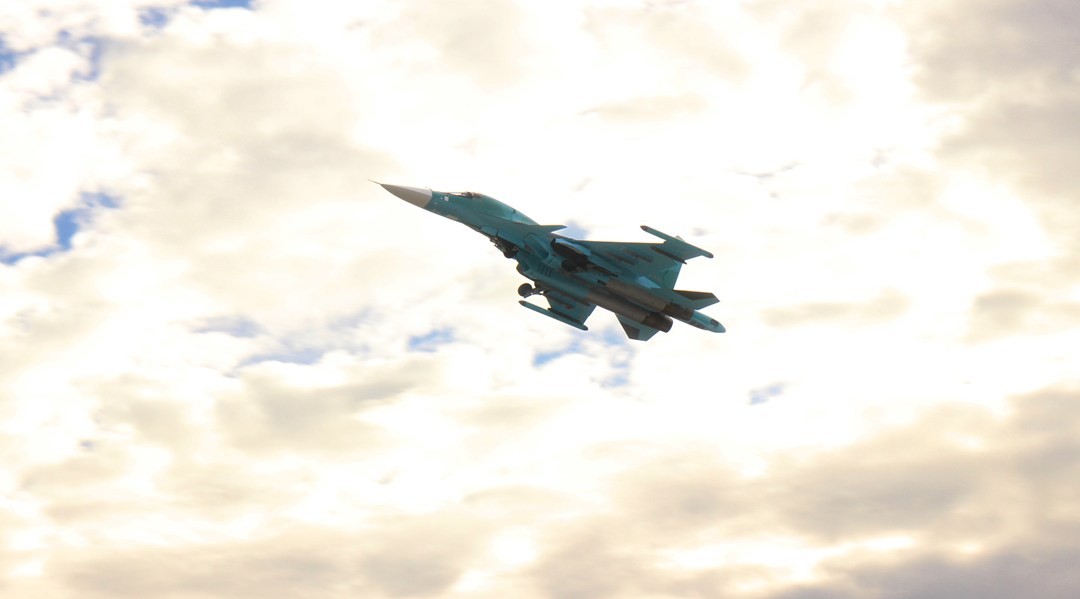

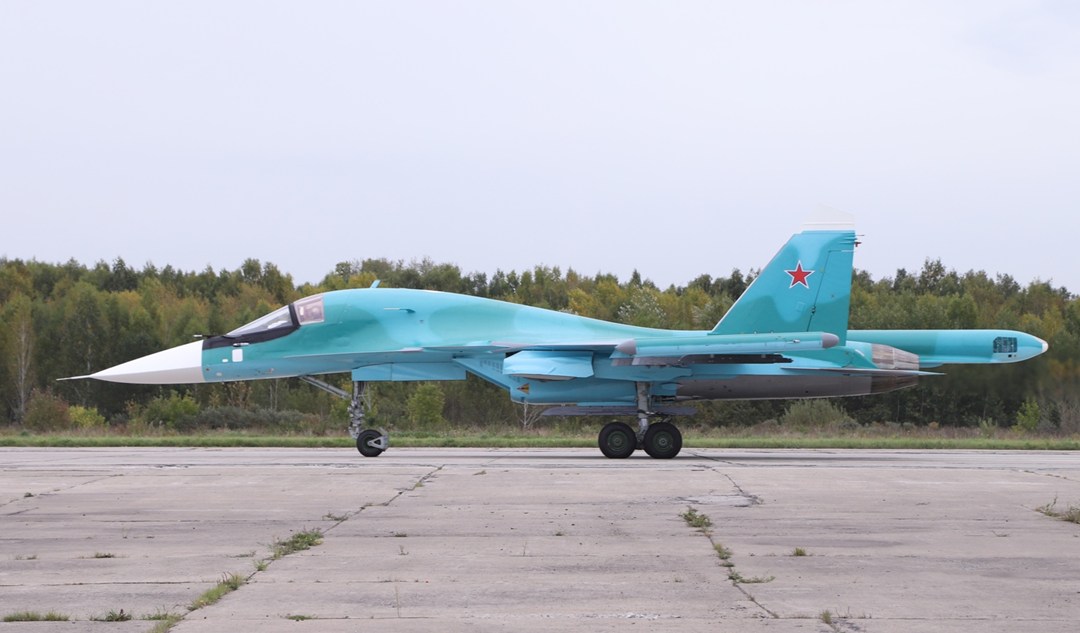

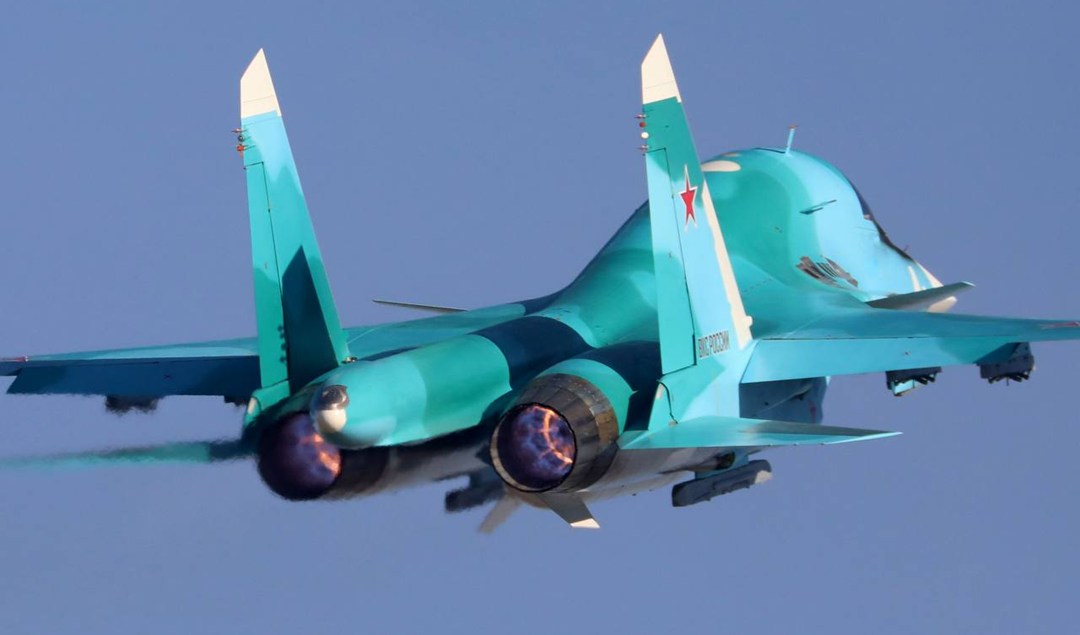

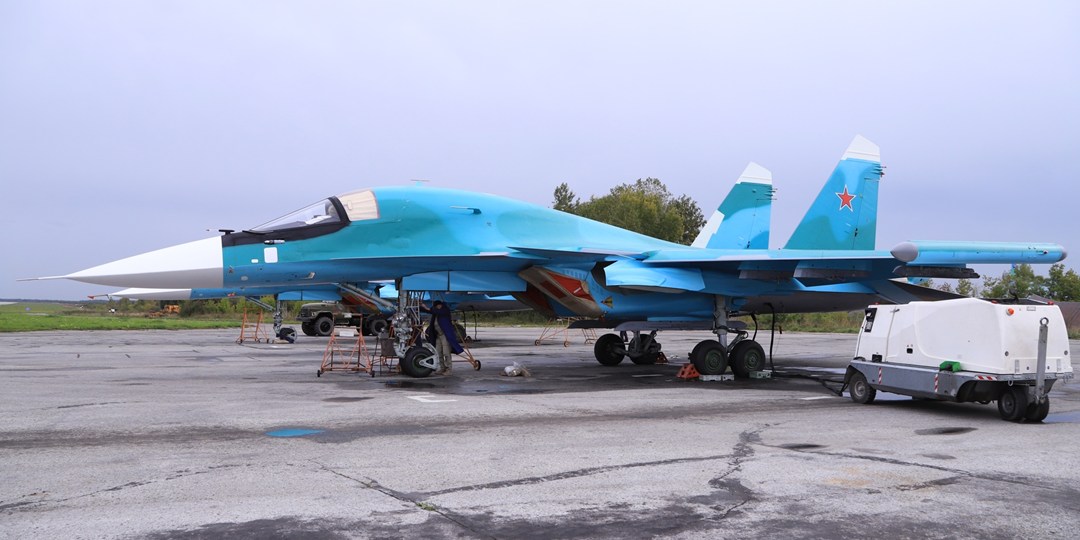

Su-34

Attack Aircrafts

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

Su-34

Designation

Su-34

Alternate Designation

Fullback, Strike Flanker, Su-27IB, Su-32 (export version), Su-32FN, Su-32MF, Su-34E

Equipment Type

Attack Aircrafts

Manufacturer

NAPO, Sukhoi

Date of Introduction

2011

Description

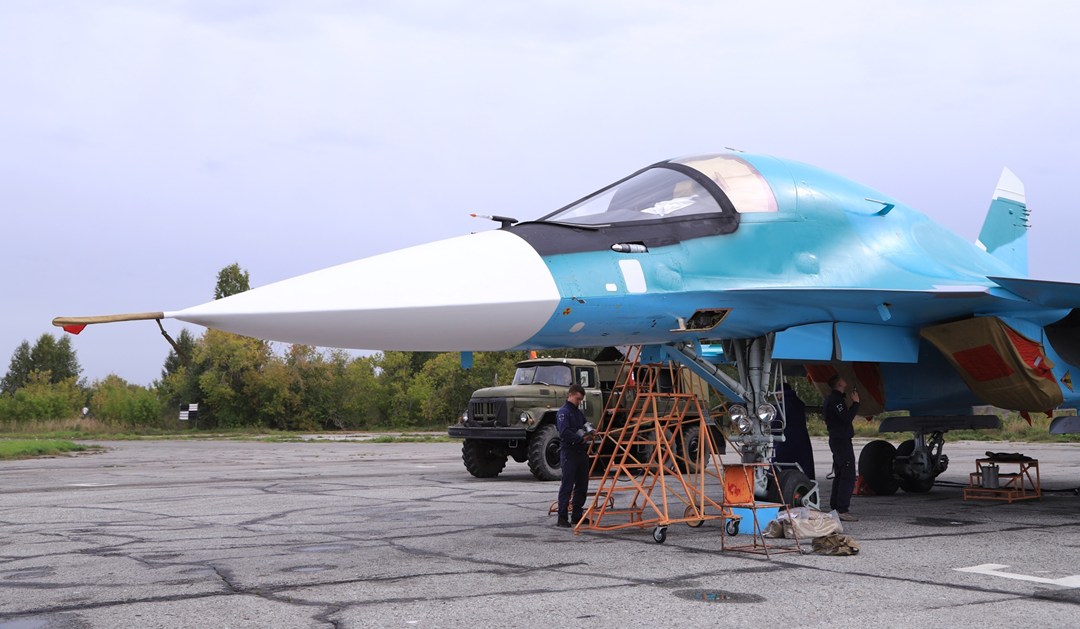

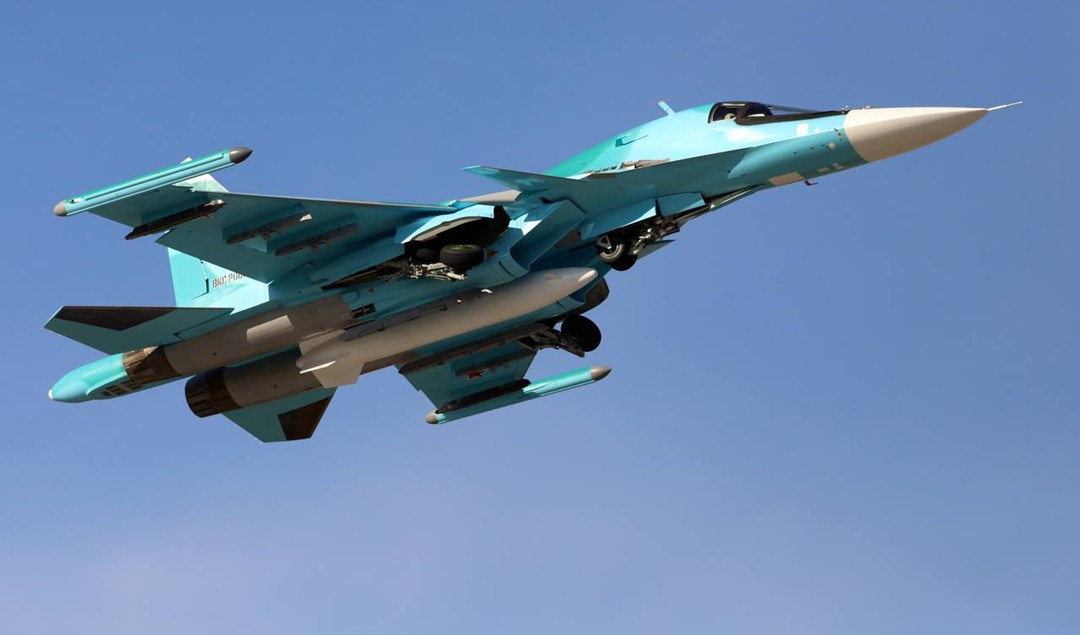

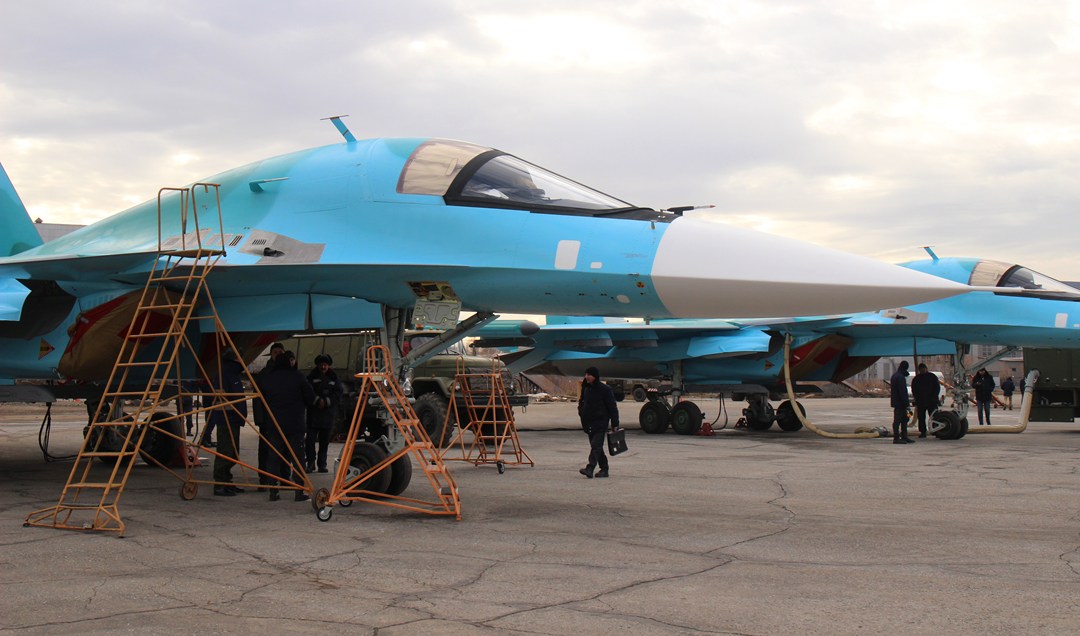

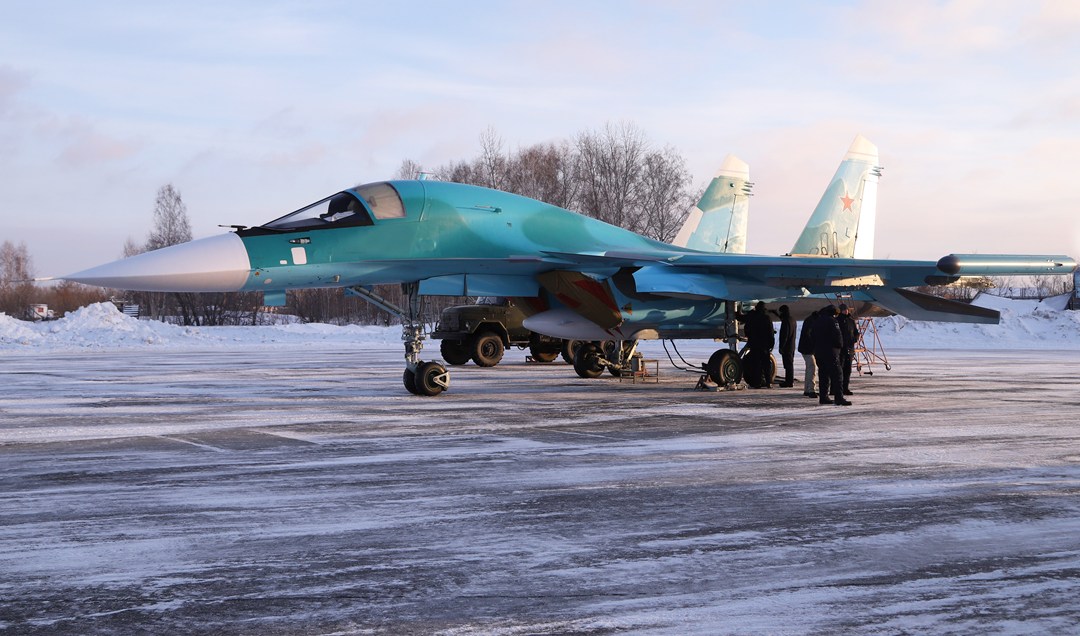

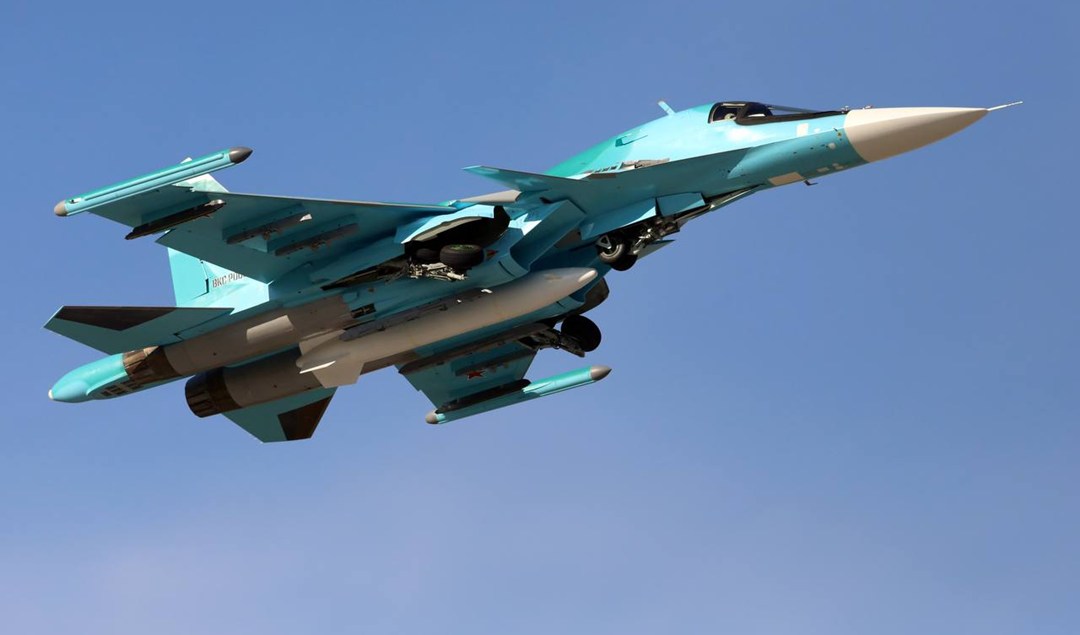

Development of the Sukhoi Su-32/Su-34 began in the early 1980s as a replacement for proven Su-24 Fencer long range, attack aircraft. It features the basic design airframe of successful Su-27 Flanker air defense fighter aircraft but introducing a new nose section with a two-seat, side-by-side ergonomic cockpit inside an armored titanium capsule and state-of-the-art avionics and liquid crystal displays. The armored cabin features plates of 17mm in thickness. The Su-32, also referred to as the Su-27IB, Su-32FN, Su-32MF or Su-34, has canard foreplanes, a flattened nose and two AL-35F engines for enhanced maneuverability. The spacious and pressurized cockpit with a galley allows the two-man crew to stand up and perform some exercise to relax themselves during long endurance missions. The production Su-34 airplanes are powered by two AL-31MF1 engines rated at 29,762-lb of thrust each with afterburner.

Air & Air Defense Specifications

Crew 2

Max Speed 1900.0 km/h

Range 4000.0 km

Service Ceiling 17000 m

Wingspan 14.70 m

Overview (Deagel)

Group Attack Aircrafts

Status Active

Also Known As Fullback, Strike Flanker, Su-27IB, Su-32 (export version), Su-32FN, Su-32MF, Su-34E

Origin Russia

Contractors NAPO, Sukhoi

Initial Operational Capability (IOC) September 2011

First Flight April 13, 1990

Total Production 172

Unitary Cost RUB 1.1 billion

Specifications (Deagel)

Crew 2

External Stations 12

Number of Engines 2

Sorties a day 4

Area — Wing Area 60 square meter

Dimensions — Height 6.1 meter

Dimensions — Length 23.3 meter

Dimensions — Main Gun Caliber 30 millimeter

Dimensions — Wingspan 14.7 meter

Mass — Empty Weight 22,500 kilogram

Mass — Fuel Load 12,100 kilogram

Mass — Max Takeoff Thrust 59,524 pound

Mass — Max Takeoff Weight 44,360 kilogram

Mass — Payload 8,000 kilogram

Performance — Armor Thickness 17 millimeter

Performance — Ceiling 17,000 meter

Performance — Max Range 4,000 kilometer

Performance — Min Range 1,100 kilometer

Performance — Radius of Operation 1,100 kilometer

Speed — Top Speed at High Altitude 1,900 kph

Speed — Top Speed at Sea Level 1.2 mach

Time — Flight Endurance 10 hour

Gear (Deagel)

Item 1 Air-to-Air Missiles: R-27ER (2)

Item 2 Air-to-Air Missiles: R-27ET (2)

Item 3 Air-to-Air Missiles: R-27R (2)

Item 4 Air-to-Air Missiles: R-27T (2)

Item 5 Air-to-Air Missiles: R-73 (2)

Item 6 Air-to-Air Missiles: R-77 (2)

Item 7 Anti-Radiation Missiles: Kh-31P

Item 8 Anti-Radiation Missiles: Kh-31PD

Item 9 Anti-Ship Missiles: Kh-31A

Item 10 Anti-Ship Missiles: Kh-31AD

Item 11 Anti-Ship Missiles: Kh-35U

Item 12 Anti-Ship Missiles: Kh-41

Item 13 Anti-Ship Missiles: Kh-59MK

Item 14 Anti-Ship Missiles: Kh-65SE

Item 15 Bombs: KAB-1500KR

Item 16 Bombs: KAB-1500LG-F-E

Item 17 Bombs: KAB-500KR

Item 18 Bombs: KAB-500L

Item 19 Bombs: KAB-500OD

Item 20 Bombs: KAB-500S-E

Item 21 Cruise Missiles: Kh-65

Item 22 Fighter Aircraft Engines: AL-31MF1 (2)

Item 23 Jamming Systems: SAP-14 (1)

Item 24 Jamming Systems: SAP-518 (2)

Item 25 Medium Caliber Cannons: GSh-301 (1)

Item 26 Radar Systems: Sh-141 (1)

Item 27 Standoff Weapons: Kh-29D

Item 28 Standoff Weapons: Kh-29L

Item 29 Standoff Weapons: Kh-29T

Item 30 Standoff Weapons: Kh-38MAE

Item 31 Standoff Weapons: Kh-38MKE

Item 32 Standoff Weapons: Kh-59ME

Variants

Variant 1 Su-34

Variant 2 Su-34M

Details

Country of Origin Russia

Sources

deagel.com: https://www.deagel.com/x/x/a000181

Classification

Domain

Air & Air Defense

Equipment Status

Active

Dimensions

Length

23.3 m

Width

14.7 m

Height

6.1 m

Weight

44360 kg

Operators (1)

Russia
