PU-12M6 Russian 8x8 Mobile Command and Control Vehicle

PU-12M6

Automated Command and Control (C2) System

Spotted an error? Sign in to suggest an edit.

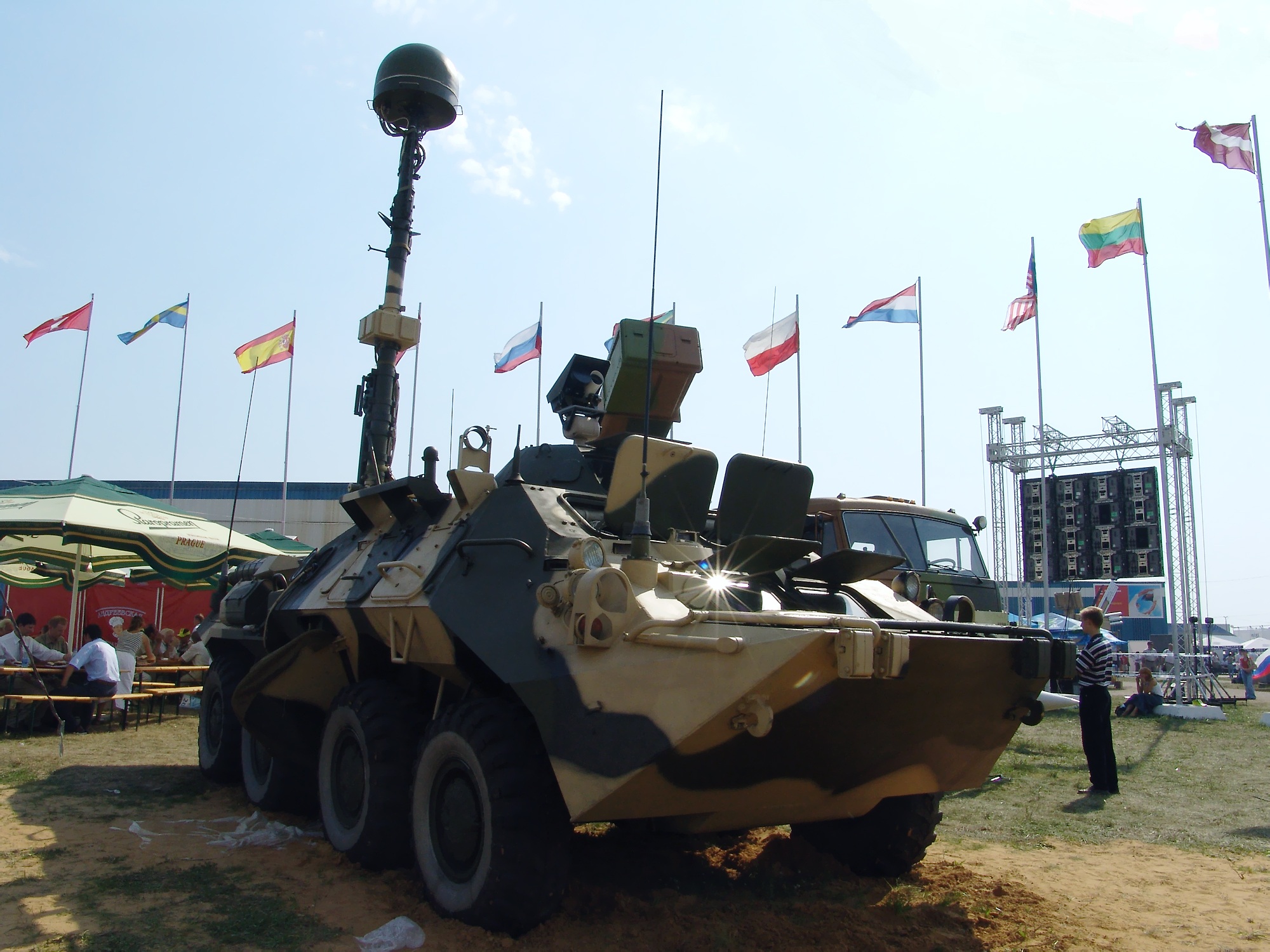

PU-12M6 Russian 8x8 Mobile Command and Control Vehicle — PU-12-M6_(A).jpgTRADOC ODIN WEG

Basic Information

Name

PU-12M6 Russian 8x8 Mobile Command and Control Vehicle

Designation

PU-12M6

Alternate Designation

PU-12M6

Equipment Type

Automated Command and Control (C2) System

Manufacturer

—

Date of Introduction

1986

Description

The PU-12M6 mobile control post is a BTR-80 variant designed to automate combat control of weapons employment by Air Defense units on the move and at halt under air attack. It is a battery Command Post intended to operate as part of special purpose automated control system for multiple surface-to-air weapons systems..

Ground Specifications

Crew 4

Mobility Type Wheeled (8x8)

Engine Water-cooled, V8 Diesel (260 hp)

NBC Protection Yes

Max Speed 80.0 km/h

Range 600.0 km

Variants

PU12M7 Battery Command Post The system can act as the CP of an AD missile regiment at divisional level, controlling up to five subordinate battery CPs equipped with PU-12M7.

System

Alternative Designation PU-12M6

Type Battery Command Post Vehicle

Manufacturer INA

Family PU-12M Series

In Service Late 1980s - Present

Crew 4

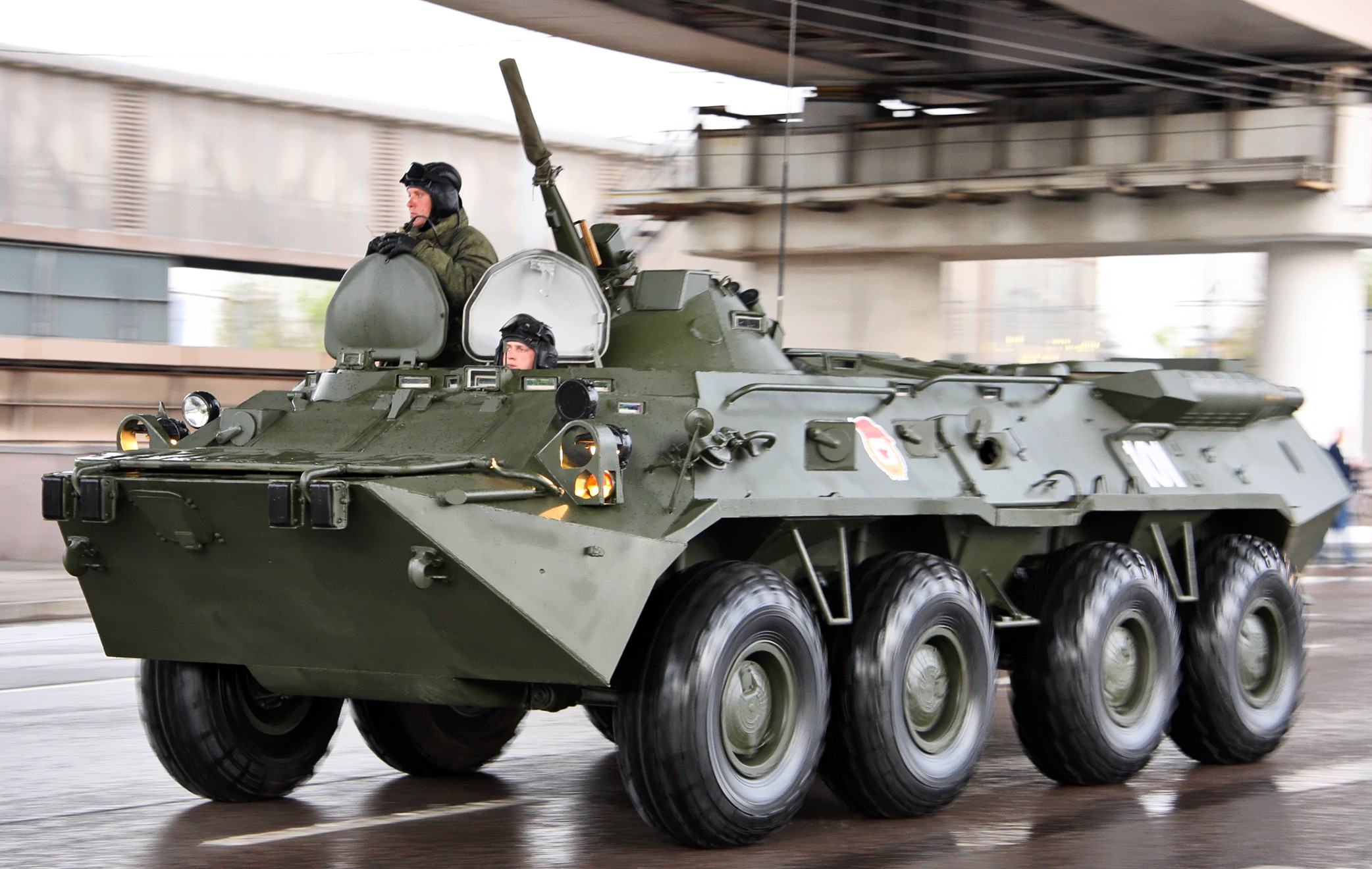

Chassis BTR-80

Passenger Capacity INA

Dimensions

Length 7.7 m

Width 2.9 m

Height 2.41 m

Weight, Combat 13.6 tons

Automotive

Engine Name KamAZ-7403

Engine Type Water-cooled, V8 Diesel

Engine Power 260 hp

Maximum Range 600 km

Speed, Maximum Road 80 km/h

Speed, Average Cross 50 km/h

Speed Maximum Swim 10 km/h

Gradient 60 %

Side Slope 40 %

Vertical Step 0.5 m

Trench 2.0 m

Fording Depth Amphibious

Communications

R-176 Radio System The R-176 Antey family is the next generation of the Russian Ground Forces’ long range, over-the-horizon radios for operational and strategic level control. Among other technological innovations, the R-176 Antey family, is reportedly a Software Defined Radio (SDR), meaning a radio that is primarily manipulated through software instead of hardware such as mixers, filters, modulators/demodulators, etc. These types of radios are capable of receiving and transmitting different waveforms based solely on the software used, instead of requiring physical modifications of hardware.

Command and Control System

Onboard Power Supply System Yes

Navigation System Yes, using GLONASS

Survey System Yes

Data Transmission and Reception Equipment Yes

Control of Short-Range Air Defence Missile Batteries: Via Coded Datalink up to 6

Control of Short-Range Air Defence Missile Batteries: Via Telephone Link up to 4

Control of Short-Range Air Defence Missile Batteries: Igla MANPADS (via coded datalink) up to 6

Number of Received Targets up to 99

Coordinates Measurement Envelope up to 100 km

Coordinates Measurement Envelope Maximum Altitude up to 25 km

Data Transmission Range via field Telephone Wire up to 15 km

Fire Control

Laser Target Desinator No

Night Vision Devices Yes

Protection

Hull Armor Front armor of the BTR-80 APC protects against 12.7 mm rounds. All-round protection is against 7.62 mm rounds and artillery shell splinters.

Applique Armor Available

Active Protection System INA

Mine Clearing No

Self-Entrenching Blade No

NBC Protection Yes

Smoke Equipment 6 x 81-mm smoke grenade launchers

Life Support System Yes

Image Sources

Notes https://armyrecognition.com/august_2013_defense_industry_military_army_news_uk/weapons_sales_record_for_ukrainian_defense_industry_with_increase_of_520_compared_to_2012_0808133.html; http://roe.ru/eng/catalog/air-defence-systems/air-defense-automated-command-and-control-systems/PU-12M7/;

Details

Country of Origin Russia

Category Land

Land

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

7.7 m

Width

2.9 m

Height

2.41 m

Weight

13600 kg

Operators (2)

Russia

CFE Treaty
