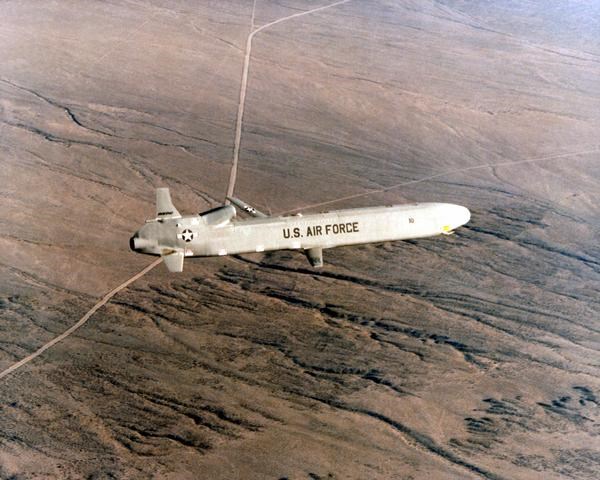

AGM-86D CALCM
AGM-86D CALCM
Cruise Missiles
Basic Information
Name
AGM-86D CALCM
Designation
AGM-86D CALCM
Alternate Designation
Conventional Air Launched Cruise Missile
Equipment Type
Cruise Missiles
Manufacturer
Boeing
Date of Introduction
2001
Description
The AGM-86D CALCM has been develop to meet the US Air Force requirements against hardened and buried targets. The D model features a Lockheed-Martin AUP penetration warhead capable of piercing up to 12 feet of concrete.
Air & Air Defense Specifications
Max Speed
802.8 km/h
Range
1100.0 km
Wingspan
3.70 m
Overview (Deagel)
Group
Cruise Missiles
Status
Retired - No Longer Operational
Also Known As
Conventional Air Launched Cruise Missile
Origin
United States of America
Contractor
Boeing
Initial Operational Capability (IOC)
2001
Total Production
?
Unitary Cost
USD $1.2 million
Specifications (Deagel)
Dimensions — Diameter
620 millimeter
Dimensions — Length
6.3 meter
Dimensions — Wingspan
3.7 meter
Mass — Thrust
600 pound
Mass — Warhead
907 kilogram
Mass — Weight
1,475 kilogram
Performance — Max Range
1,100 kilometer
Performance — Piercing in Concrete
12 foot
Speed — Top Speed
223 mps
Variants
Variant 1
AGM-86B ALCM
Variant 2
AGM-86C CALCM
Variant 3
AGM-86D CALCM
Details
Country of Origin
United States
Sources
deagel.com: https://www.deagel.com/x/x/a001068
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
6.3 m
Width
3.7 m
Height
—
Weight
—
Operators (1)
United States
